Furiously fast, powerfully capable
Furiously fast, powerfully capable
Whyte Bikes

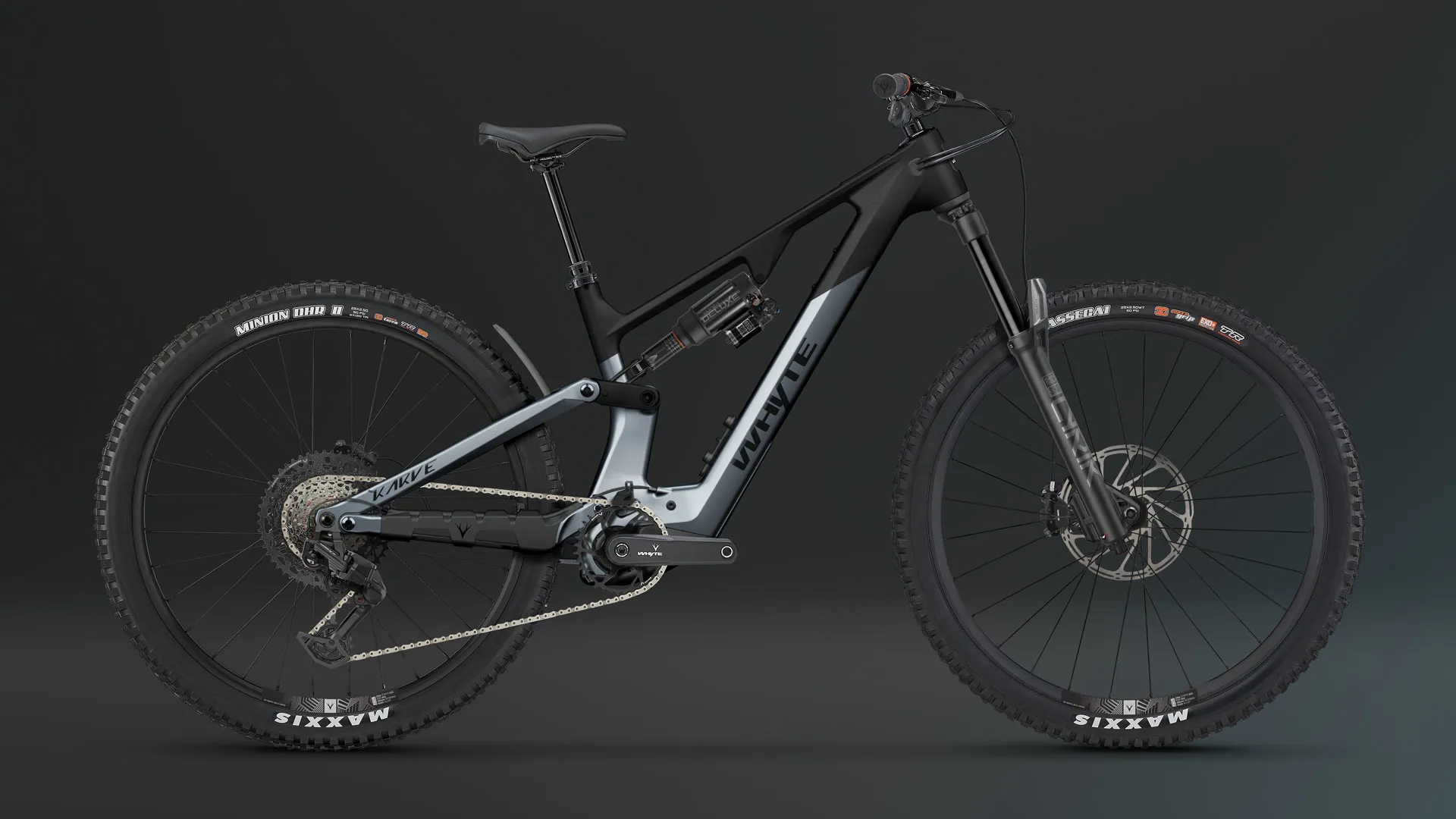

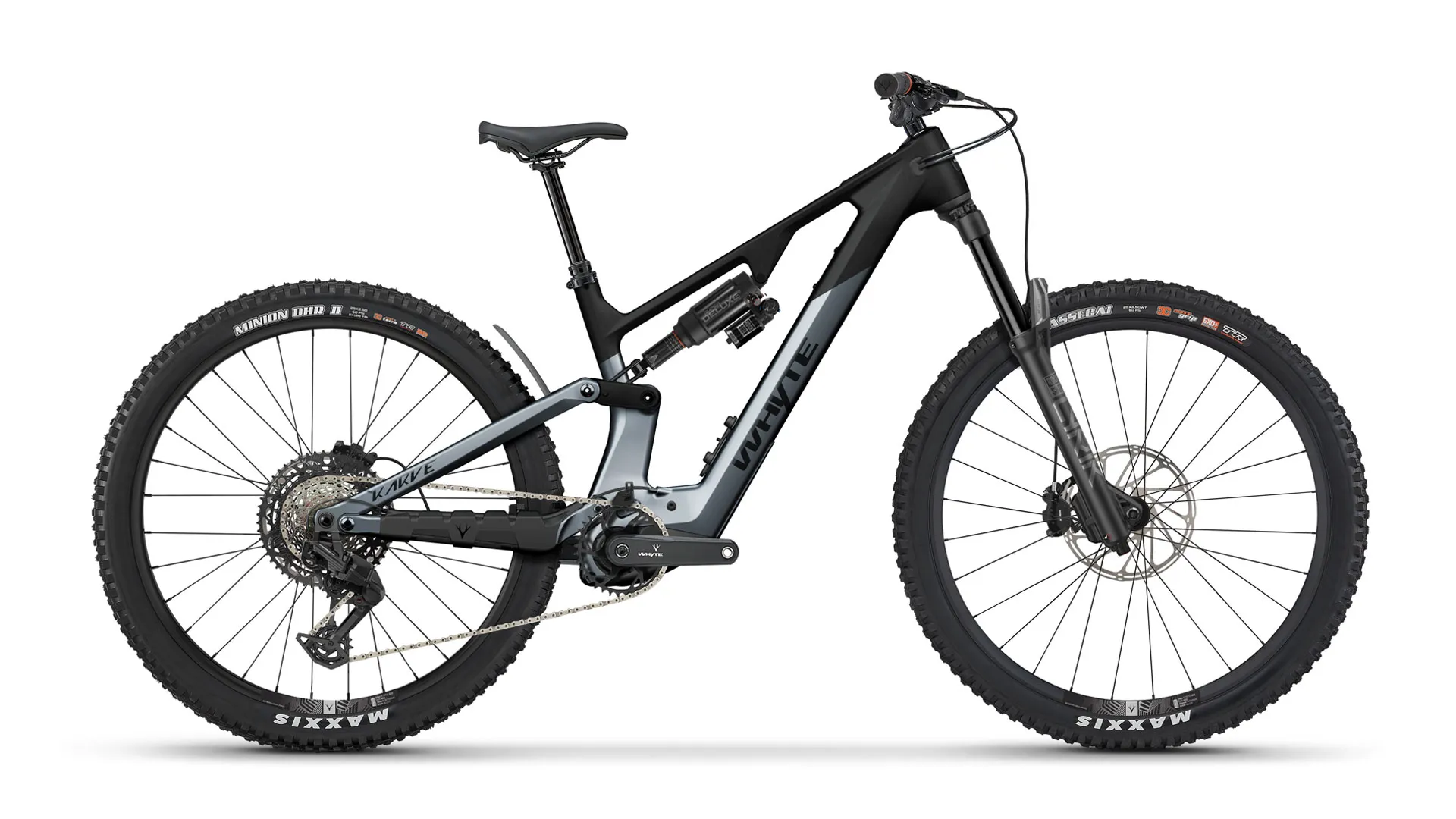

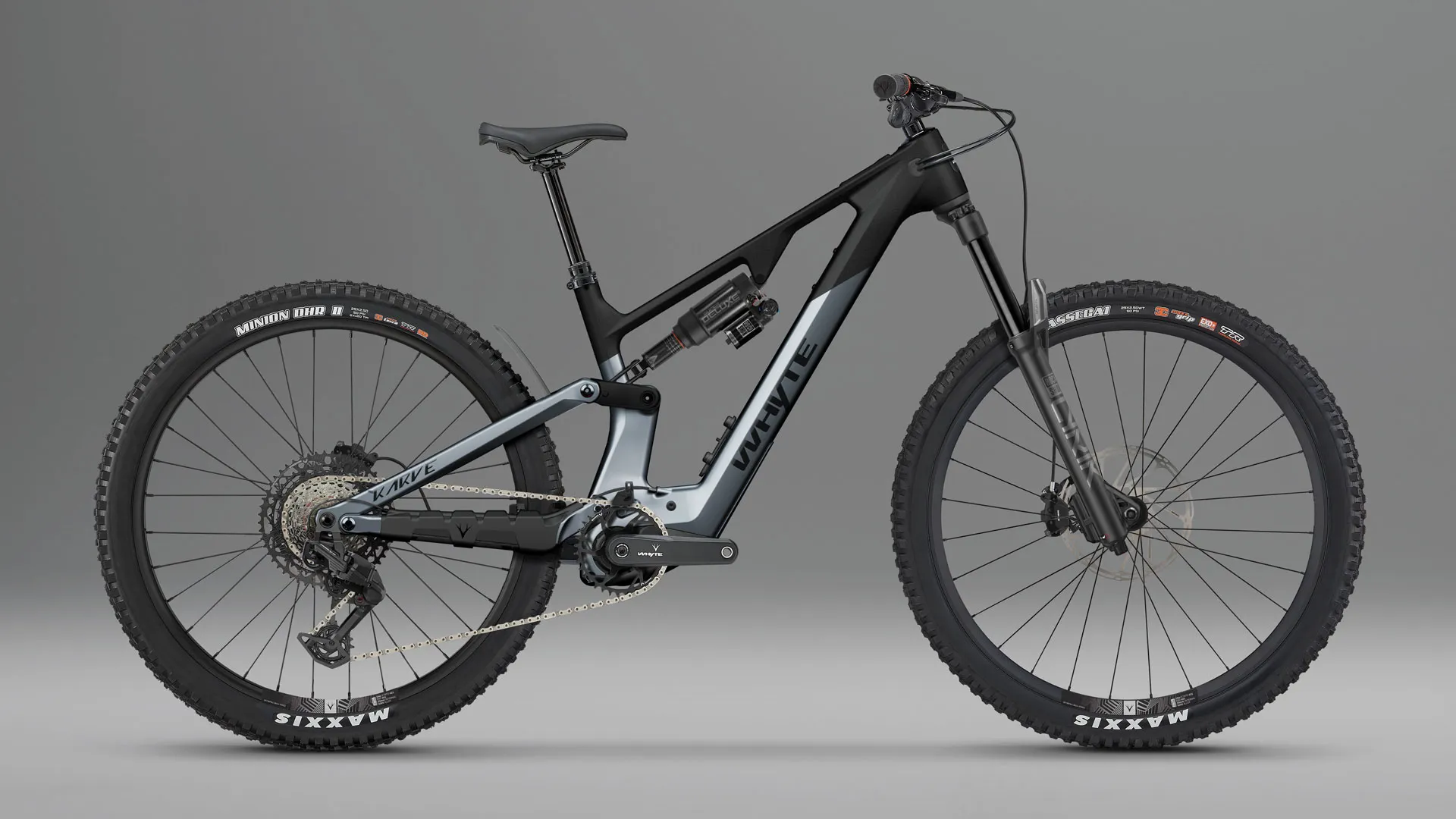

Whyte Karve RS V1 E.Mountain Bike - Dark Silver

£5,650.00
Size Guide
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Whyte Karve RS V1 E.Mountain Bike - Dark Silver

Season:2026

Brand:Whyte Bikes

Code:KarveRSSIL

Furiously fast, powerfully capable
Powerful, agile and balanced, Karve RS is a thrilling all-rounder that pairs proportional geometry with size-specific tuning to deliver balanced, assured handling for every rider.Confident and highly capable, it’s built for those who expect more control, composure and consistency from every ride. From steep descents to technical climbs and demanding back-country trails, it delivers the stability and precision to stay on line when it matters. Controlled handling, strong, responsive support and a planted feel let you ride with commitment and carry speed with confidence. Designed, developed and proven in the UK, Karve RS is built to be dependable, resilient and ready to perform all year-round. All so you can turn every ride up to 11 –and keep it there.

Karve RS Main Features
  • 160mm front + 160mm rear of proven Quad-Link 4 suspension, with carefully custom-tuned rear shocks.
  • Uni-directional carbon fibre (front) and alloy (rear) frame with geometry adjustment is light and strong.
  • Avinox M2S full-torque (up to 150Nm), full-power (1300W peak) motor with five assistance modes (auto, eco, trail, turbo + boost)
  • SRAM Eagle 90 mechanical T-Type 1x12 transmission + SRAM Maven Base four-piston hydraulic brakes.
  • Avinox DP100 OLED top-tube touchscreen display delivers a wealth of customisable information at your fingertips.
  • 800Wh internal battery so you can ride further.
  • 29in trail-smoothing wheels front and rear + MX ready.

Ideal for...Enthusiast riders who want a light, mid-travel full-power enduro-capable eMTB that delivers the very best handling and performance possible for maximum thrills –everywhere.

Charge time (800Wh): 80% in 4hr 54mins approx. from empty, and to 100% in 6hrs 11mins approx. with 4A charger.

Technical Information
  • Frame
    Uni-directional carbon mainframe, ZS56 top and bottom head tube, internal cable routing, 6061 Alloy swing arm, Shape.it Link V2 and 12mm x 148mm Boost dropouts
  • Drive unit
    Avinox M2S drive unit with 150Nm maximum torque, 1300W of peak power and 250W of nominal power. Features five power mode settings including Auto and Boost. AXS derailleur powered off motor and featuring SmoothShift.
  • Battery
    Avinox 800Wh fixed battery, mounted into the frame by 2x bolts. Removeable for maintenance by removing motor.
  • Display
    Avinox DPC100 OLED display mounted within the top tube, paired with the discrete bar mounted wireless controller. Also connects to the Avinox Ride smartphone app to give you even more insight and control at your fingertips..
  • Charger
    12Amp Fast Charger.
  • Rear Shock
    RockShox Super Deluxe Select, DebonAir, Fast Black coating, adjustable rebound, 230x57.5mm, custom tuned for Whyte
  • Fork
    RockShox Lyrik Select, 160mm travel, 44mm offset, Linear XL, Delta RC damper, Fast Black coating, tapered steerer, 110mm x 15mm Boost, Maxle stealth
  • Headset
    ZS56 upper / lower headset cups for 1 1/8in upper and 1.5in lower with sealed bearings
  • Stem
    Whyte, 35mm Extension, 35mm Bar Bore
  • Handlebar
    Whyte Custom 7050 alloy, 40mm rise, 35mm bar bore, 800mm wide
  • Bar Tape / Grip
    Whyte Enduro lock-on
  • Brakes
    SRAM Maven Base hydraulic disc brake, four piston, sintered metal pads, 200mm six bolt Centerline rotors
  • Tyres
    Maxxis Assegai WT, TR, 29x2.50" 120TPI, EXO+ Sidewall Protection, 3C MaxxGrip, Dual Compound, folding bead (front); Maxxis Minion DHR 2 WT, TR, 29x2.50" 120TPI, Double Down casing, 3C MaxxTerra, Dual Compound (rear)
  • Wheels
    Whyte eMTB sleeved rims, 30mm internal width, tubeless ready, Alloy, e-bike specific, double sealed cartridge bearings, nine degree micro engagement four pawl, 32 hole, HG freehub Boost spacing, six bolt, 29" front and rear
  • Front Derailleur
    N/A
  • Rear Derailleur
    SRAM Eagle 90 T-Type, 12 speed
  • Shift Levers
    SRAM Eagle 70, right, MMX, 12 speed
  • Chain
    SRAM Eagle 70 T-Type Flat-Top, 12 speed
  • Cassette
    SRAM XS 1270, T-Type, 10-52T, 12 speed
  • Chainset
    Whyte 155mm long ISIS crank arms, SRAM direct mount, 36T chainring, T-Type
  • Bottom Bracket
    N/A
  • Pedals
    Fibre reinforced composite platform
  • Saddle
    Whyte Custom
  • Seatpost
    TranzX +RAD adjustable dropper post, 34.9mm, frame size specific drop (size S 150mm drop; size M 170mm drop; sizes L-XL 200mm drop)
Sizing Information
FRAME SIZESmallMediumLargeExtra Large
A - REACH (mm)444469494519
B - STACK (mm)615.2626636.7651.1
C - HEAD ANGLE (° degrees)64 / 63.464 / 63.464 / 63.464 / 63.4
D - SEAT ANGLE (° degrees)7978.678.377.9
E - BB HEIGHT (mm)350.8350.8350.8350.8
F - WHEELBASE (mm)1220.21250.51290.81333
G - REAR CENTRE (mm)445445455465
H - STANDOVER HEIGHT (mm)795795795795
I - SEAT TUBE LENGTH (mm)395420445470
J - HEAD TUBE LENGTH (mm)97109121137
