The Alpine Trail E2 is a high-performance enduro eMTB featuring a Series 4 aluminium frame, 170mm front and 160mm rear suspension, and a powerful Bosch Gen 5 CX motor.
The Alpine Trail E2 is a high-performance enduro eMTB featuring a Series 4 aluminium frame, 170mm front and 160mm rear suspension, and a powerful Bosch Gen 5 CX motor.
Marin

Marin Alpine Trail E2 Full Suspension eMountain Bike - Gloss Root Beer

£5,699.00
Size Guide
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Marin Alpine Trail E2 Full Suspension eMountain Bike - Gloss Root Beer

Season:2026

Brand:Marin

Code:7390630ROOTBEER

The Alpine Trail E2 is a masterclass in performance, constructed for riders who challenge themselves with the steepest, most technical terrain.

Marin's Alpine Trail E2 features a featherweight Series 4 aluminium frame that is 1.36kg (3lb) lighter than previous iterations. The frame includes weather-sealed internal cable routing, SRAM’s UDH, Boost axle spacing, and chunky chainstay protection. The bike is powered by Bosch's Gen 5 Performance Line CX motor, providing 120Nm of torque and a 600 per cent support ratio, paired with a removable 800Wh battery.

The suspension system utilises 170mm of travel up front with a RockShox Zeb Select+ fork and 160mm of MultiTrac 2 LT travel at the rear with a custom-tuned RockShox Vivid Air Select+ shock. Riders can lock in a personal set-up with adjustable geometry, including a ±0.75-degree headset adjustment and chainstay flip chips to modify bottom bracket height and chainstay length. The bike uses a mixed wheel setup with a 74cm (29") wheel at the front and a 70cm (27.5") wheel at the rear.

Marin Alpine Trail E2 Main Features:

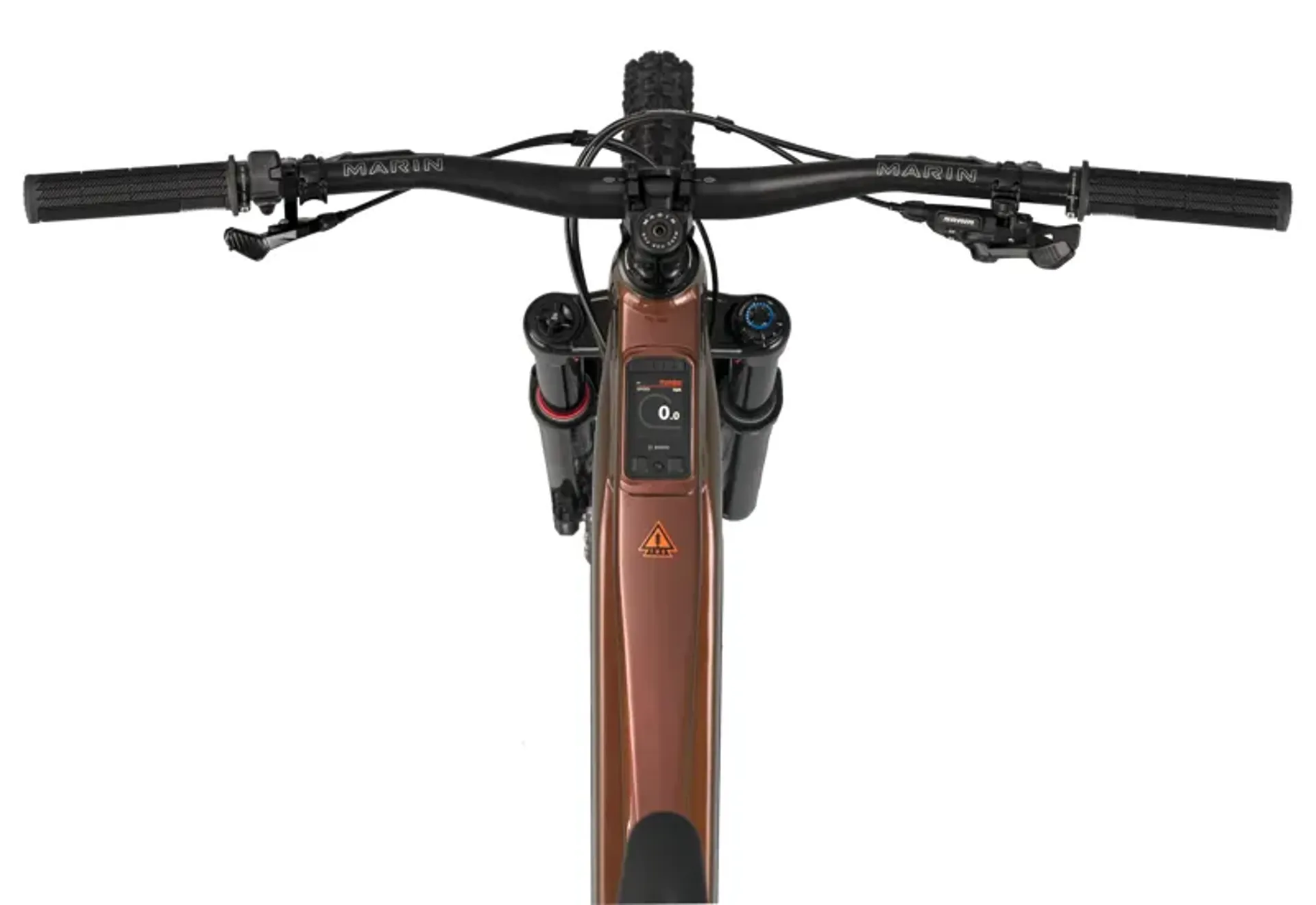

  • Bosch 2in colour Kiox 400C top tube display
  • SRAM Eagle Transmission for crisp shifting
  • Maven Bronze brakes with high stopping power
  • WTB Sportterra Tough i30 wheelset
  • Schwalbe Magic Mary tyres with Radial Gravity casing
  • X-Fusion Manic HC dropper post with 10mm increment travel adjustment
  • Three sets of bottle bosses inside the front triangle
Technical Information
  • App
    Bosch eBike Flow App
  • Range
    15-55 miles / 25-90 km
  • Display
    Bosch Kiox 400
  • Switch
    Bosch BRC3300 Bluetooth Remote
  • Motor
    Bosch Gen 5 Performance Line CX
  • Motor Torque
    120Nm
  • Motor Support Ratio
    600%
  • Battery
    PT800 Horizontal, 800Wh
  • Frame
    Series 4 Alloy, 160mm MultiTrac LT Suspension, 148mm Rear Thru-Axle
  • Front Suspension
    RockShox Zeb Select+, 170mm Travel, 29", 110x15mm Maxle Stealth
  • Rear Suspension
    RockShox Vivid Air Select+, 205x65mm
  • Wheelset
    WTB Sportterra Tough i30
  • Front Tire
    Schwalbe Magic Mary, Gravity Pro, Ultra Soft, Radial, 29x2.5"
  • Rear Tire
    Schwalbe Magic Mary, Gravity Pro, Soft, Radial, 27.5x2.5"
  • Chainguide
    e*thirteen e*Spec
  • Rear Derailleur
    SRAM Eagle 70
  • Shift Lever
    SRAM Eagle 90, MMX Clamp
  • Crankset
    Marin Forged eMTB, 34T, 150mm
  • Chain
    SRAM Eagle 70 T-Type
  • Cassette
    SRAM XG 1270, T-Type, 10-52T
  • Front Brake
    SRAM Maven Bronze, 4-Piston Hydraulic Disc, 200mm Rotor
  • Rear Brake
    SRAM Maven Bronze, 4-Piston Hydraulic Disc, 200mm Rotor
  • Brake Levers
    SRAM Maven Bronze, MMX Clamps
  • Handlebar
    Marin Trail, 35mm Clamp, 7000 Alloy, 800mm Length, 20mm Rise
  • Stem
    Marin CNC, 35mm Length, 35mm Bar Bore
  • Grips
    Marin Grizzly Lock-On
  • Headset
    FSA Custom, Adjustable HTA
  • Seatpost
    X-Fusion Manic HC, 34.9mm, Size S: 150mm, Size M: 170mm, Size L-XL: 200mm Travel
  • Saddle
    Marin Short Nose
Sizing Information
GeometrySmallMediumLargeX.Large
A Stack 620634643647
B Reach 430460490520
C Headtube angle 63.5°63.5°63.5°63.5°
D Headtube length 100115125130
E Seattube length 400420430450
F Seattube angle 79°79°79°79°
G Toptube effective 556592626659
H Bb height 352352352352
I Bb drop 24 | 724 | 724 | 724 | 7
J Chainstay 442442442442
K Wheelbase 1211124812831318
L Standover height 683690695698
M Fork offset 44444444
N Seatpost diameter 34.934.934.934.9
O Handlebar width 800800800800
P Stem length 35353535
Q Crank length 160160160160
