Designed, developed and proven on the toughest UK terrain and through the harshest conditions, Karve EVO is made for gravity thrill seekers, self-shuttlersand big mountain riders looking for the biggest thrills and the very best descending and self-shuttle performance possible.

Designed, developed and proven on the toughest UK terrain and through the harshest conditions, Karve EVO is made for gravity thrill seekers, self-shuttlersand big mountain riders looking for the biggest thrills and the very best descending and self-shuttle performance possible.

Whyte Bikes

Whyte Karve Evo RSX V1 Avinox Full Suspension E.MTB - Sapphire Blue

£7,299.00
Size Guide
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

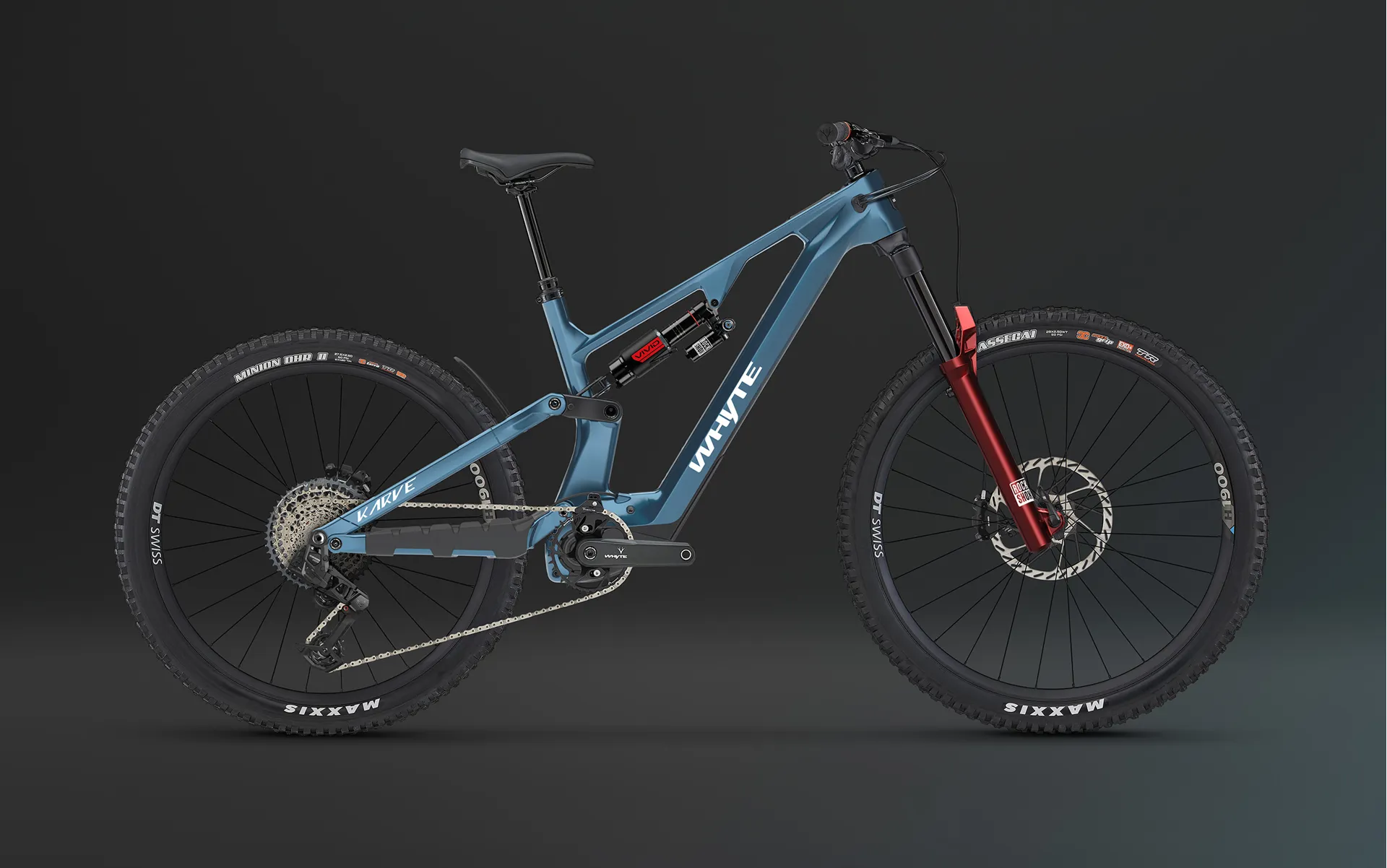

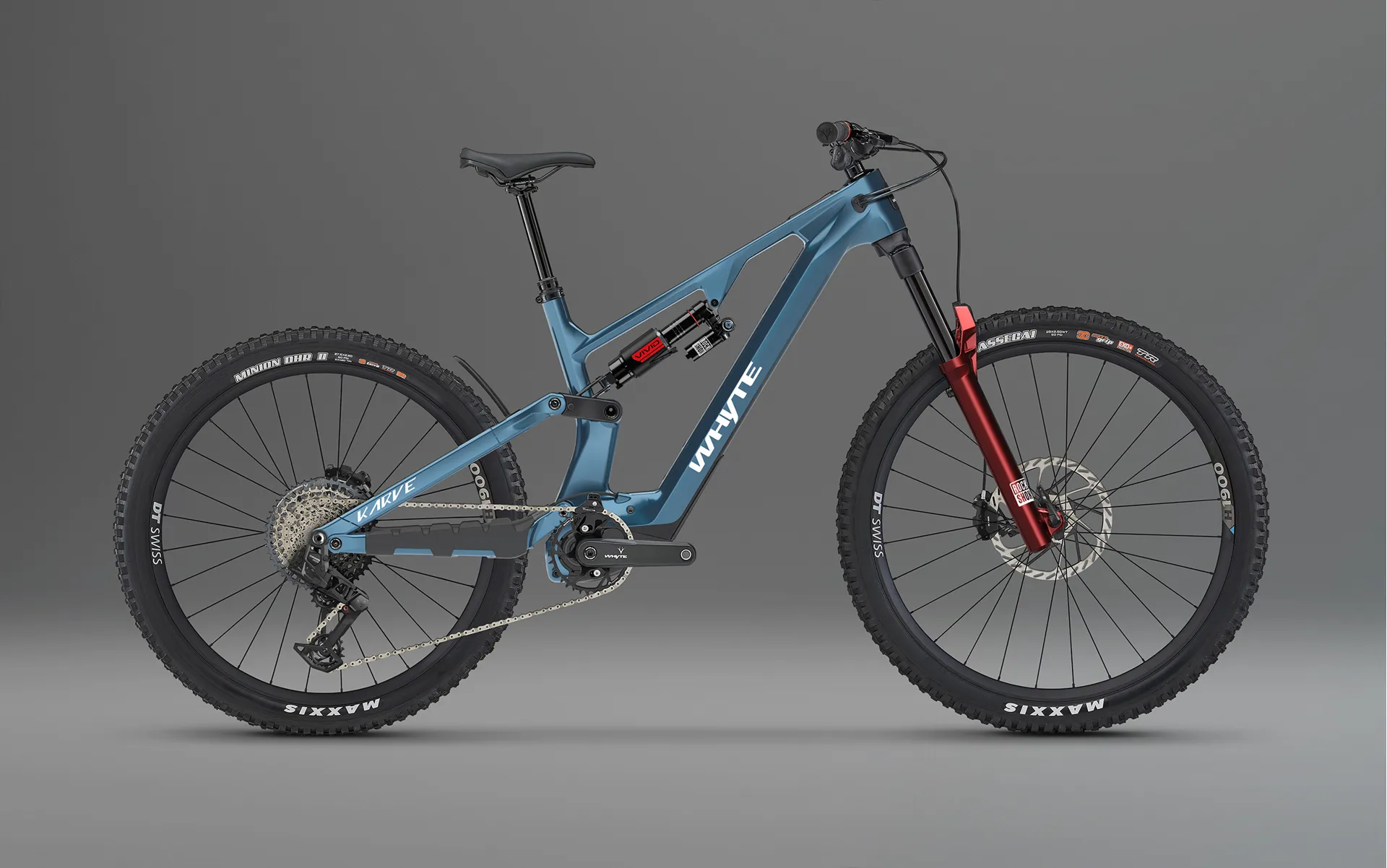

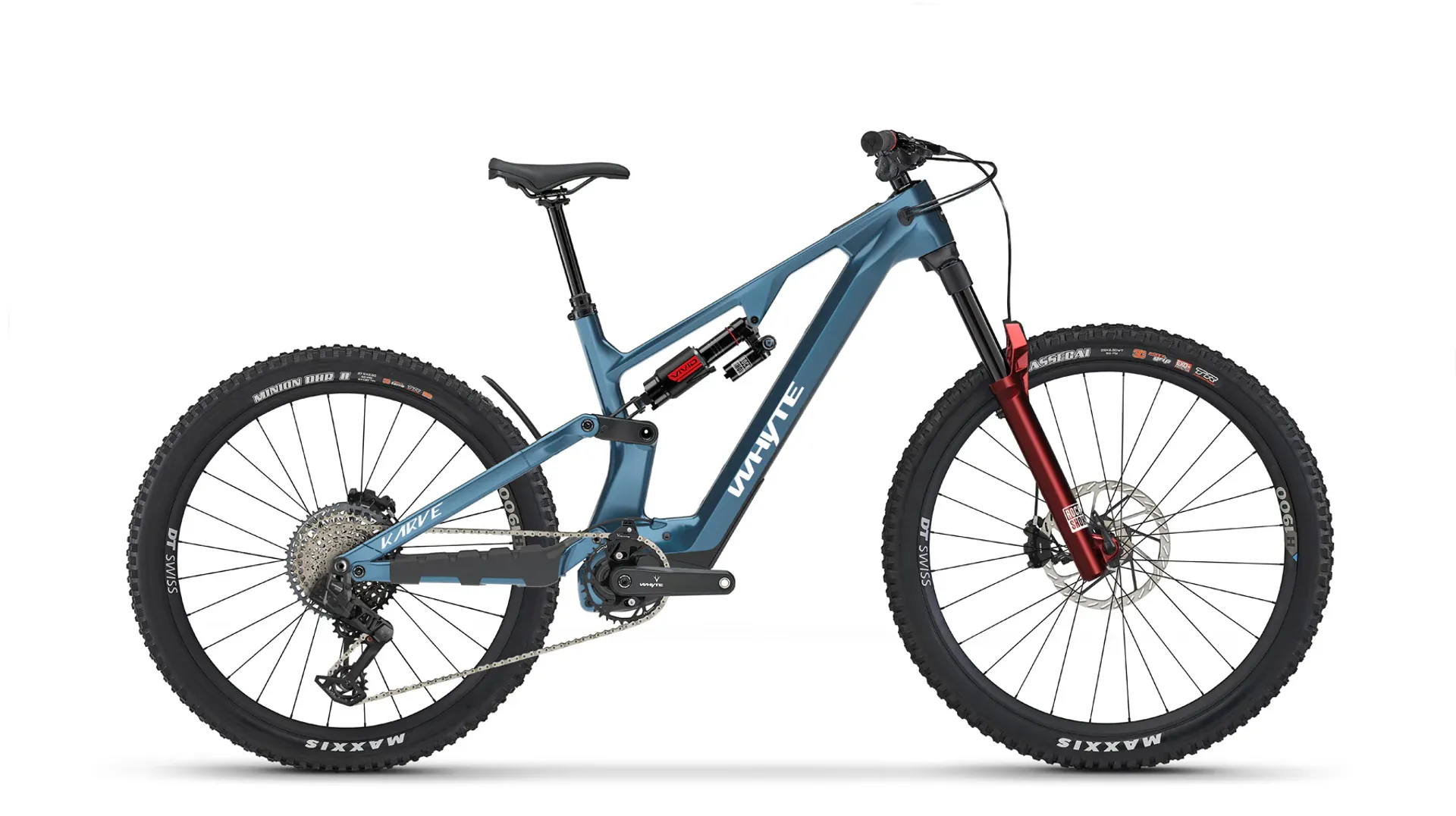

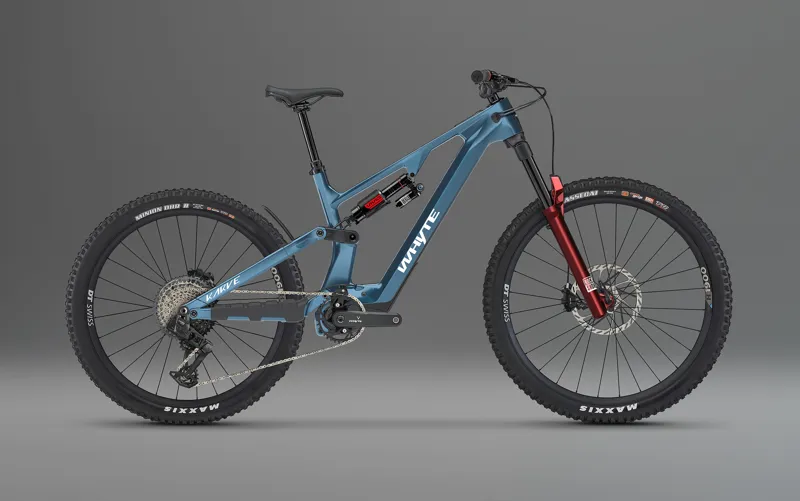

Whyte Karve Evo RSX V1 Avinox Full Suspension E.MTB - Sapphire Blue

Season:2026

Brand:Whyte Bikes

Code:KarveEVORSXBLUBLUMAT

The ultimate thrill ride

For the most extreme lines. The supreme self-shuttle machine. With the power of Avinox inside. Karve EVO is the chaos-crushing, climb-shrinking electric mountain bike (eMTB) for self-shuttled riding, and big mountain terrain. If having the best time dropping in on the biggest terrain is why you ride, Karve EVO RSX is ready.
Our top of the range Karve EVO RSX bike delivers maximum control and confidence in every situation. Dressed in an impeccable parts list, the Karve EVO RSX is ready for everything: when the trails are insane choosing anything else is just crazy.

Karve RSX V1 Highlights:
  • 180mm front and rear of Whyte custom-tuned suspension travel
  • Uni-directional carbon fibre (front) and alloy (rear) frame with geometry adjustment is light and strong + factory fitted with RideWrap frame protection
  • Avinox full-torque (up to 150Nm), full-power (1300W peak) motor with five assistance modes (auto, eco, trail, turbo + boost) + 12A fast charger
  • SRAM AXS Eagle 1x12 transmission + SRAM Maven Silver four-piston hydraulic brakes
  • Avinox DPC100 OLED top-tube touchscreen display delivers a wealth of customisable information at your fingertips
  • 800Wh internal battery so you can get more runs in
  • DT Swiss Hybrid MX wheels (29er front, 27.5in rear) for maximum confidence on even the steepest terrain + full 29er ready
  • RideWrap frame protection kit fitted as standard (85% coverage)
Technical Information
  • Frame
    Uni-directional carbon mainframe, ZS56 top and bottom head tube, internal cable routing, 6061 Alloy swing arm, Shape.it Link V2 and 12mm x 148mm Boost dropouts, RideWrap frame protection kit fitted as standard
  • Rear Shock
    RockShox Vivid Ultimate RC2T, 230 x 62.5mm, custom tuned for Whyte
  • Fork
    RockShox ZEB Ultimate, 180mm travel, 44mm offset, Linear XL, Charger 3.2 damper, Fast Black coating, tapered steerer, 110mm x 15mm Boost, Maxle stealth
  • Headset
    ZS56 upper / lower headset cups for 1 1/8in upper and 1.5in lower with sealed bearings
  • Stem
    Whyte, 35mm Extension, 35mm Bar Bore
  • Handlebar
    Whyte Custom 7050 alloy, 40mm rise, 35mm bar bore, 800mm wide
  • Bar Tape / Grip
    Whyte Enduro lock-on
  • Brake Levers
    SRAM Maven Silver hydraulic disc brake, four piston, sintered metal pads, 220/200mm six bolt HS2 rotors
  • Tyres
    Maxxis Assegai WT, TR, 29 x 2.5in 120TPI, EXO+ Sidewall Protection, 3C MaxxGrip, Dual Compound, folding bead (front); Maxxis Minion DHR 2 WT, TR, 27.5 x 2.5in 120TPI, Double Down casing, 3C MaxxTerra, Dual Compound (rear)
  • Wheels
    DT Swiss Hybrid HF1900, Boost spacing, SRAM XD steel driver, six bolt, 29" front, 27.5" rear
  • Front Derailleur
    N/A
  • Rear Derailleur
    SRAM S1000 AXS Eagle, 12 speed
  • Shift Levers
    SRAM AXS Pod, right, MMX, 12 speed
  • Chain
    SRAM GX T-Type Flat-Top, 12 speed
  • Cassette
    SRAM XS 1275, T-Type, 10-52T, 12 speed
  • Chainset
    N/A
  • Bottom Bracket
    N/A
  • Pedals
    Fibre reinforced composite platform
  • Saddle
    Whyte Custom
  • Seatpost
    TranzX +RAD adjustable dropper post, 34.9mm, frame size specific drop (size S 150mm drop; size M 170mm drop; sizes L-XL 200mm drop)
Sizing Information
FRAME SIZEMediumLargeExtra Large
A - REACH (mm)457482507
B - STACK (mm)636.8647.5661.9
C - HEAD ANGLE (° degrees)63.3 / 62.763.3 / 62.763.3 / 62.7
D - SEAT ANGLE (° degrees)77.877.577.1
E - BB HEIGHT (mm)350.1350.1350.1
F - WHEELBASE (mm)1259.21299.51341.7
G - REAR CENTRE (mm)445455465
H - STANDOVER HEIGHT (mm)795795795
I - SEAT TUBE LENGTH (mm)420445470
J - HEAD TUBE LENGTH (mm)109121137
