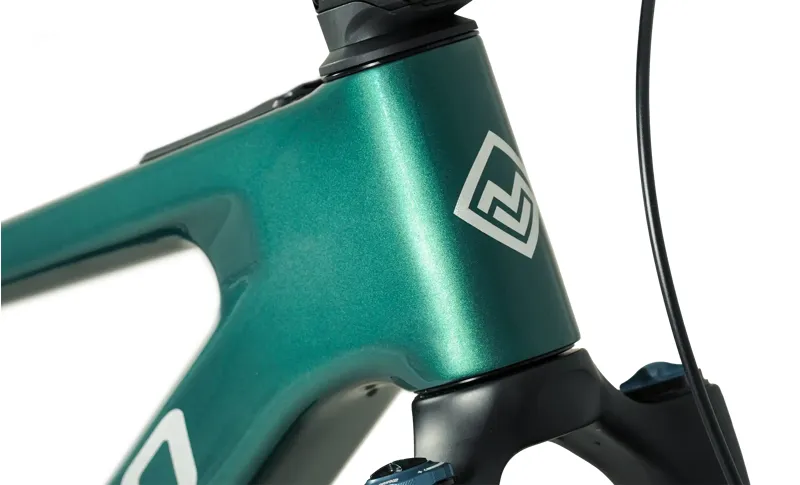

Megamo Reason CRB 05 Full Suspension Avinox E.MTB - Green

2027 sees refinements annd evolution to a proper do everthing e.bike

2027 sees refinements annd evolution to a proper do everthing e.bike

Megamo

Megamo Reason CRB 05 Full Suspension Avinox E.MTB - Green

£6,999.00

Megamo Reason CRB 05 Full Suspension Avinox E.MTB - Garnet UD

Megamo Reason CRB 05 Full Suspension Avinox E.MTB - Amber Orange

Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Megamo Reason CRB 05 Full Suspension Avinox E.MTB - Green

Season:2027

Brand:Megamo

Code:MH37005GRN

The 2027 Megamo Reason Carbon gets beefed up with the new M2S series of motors, a range of spec upgrades and some gorgeous new colours.

The same 160mm serious trail bike chassis continues with the aim on been that one bike to go do any riding you plan.

2027 Reason CRB 05 main features:

Avinox M2S Motor with 130NM and 1500Watts peak power outputs
Avinox 800wh integrated battery
FOX 38 Performance fork and Float X Performance Shock
SRAM Eagle 90 T-Type 12 Speed transmisson
Shimano Deore XT MT8220 4 piston brakes
Maxxis Double Down MaxxGrip/ MaxxTerra Tyres

Technical Information

Frame	Reason Full Carbon Frame, Alloy shock extension, Full Integratted Battery, 12 x 148 Boost, Megamo ASP, Wheel travel: 160 mm
Motor	Avinox M2S Drive Unit: 1500 Watt peak Power, 130Nm Peak Torque
UI/Remote	Avinox Screen: 2-inch OLED Control Display, Avinox Wireless Controllers: Right and left sides
Connectivity	Bluetooth Smart phone App, 4G SIM enabled functions (Data Sim required)
Battery	Avinox Integrated Battery: 800Wh
Charger	Avinox Charger: 12A/508W (0-80% in 1.5Hrs)
Fork	2027 FOX 38 Float Performance E-Bike Optimized, 160mm Travel
Rear Shock	2027 FOX Float X Performance 210x55mm, 2 Position
Headset	Acros AZX-589 ZS56 blocklock 150º
Stem	Satori New Ursa 35mm
Grips	Megamo Lock-On Grips
Handlebars	Megamo Alloy Butted 35x800 mm, 12mm Rise, 6º Back Sweep
Saddle	Fizik Terra Aidon X5
Seatpost	Megamo Dropper seat post, remote adjustment, 31,6mm, size Sml - 125mm/ size Med -150mm/ size Lrg - 170mm
Brakes	Shimano XT BR-M8220, hydraulic disc 4-Piston, Shimano RT-CL800 Rotors 203/203mm
Rear Derailleur	Sram Eagle 90 T-Type 12 Speed
Shift Levers	Sram Eagle 90 Transmision Trigger, 12 Speed
Cassette	Sram XS-1270 Eagle 10-52T HG Fitting
Chain	Sram Eagle 90 T-Type
Crankset	FSA CK-752 Alloy, 160mm
Chainrings	Avinox Chainring 104BCD 36T (Min 32T/ Max 36T compatible)
Wheels	Megamo 27SL 30ASY, Tubeless ready Aluminium rims
Front Tire	Maxxis Assegai MaxxTerra 292.5" MaxxGrip Double Down TLR - we can discuss tyre upgrades to your choice.
Rear Tire	Maxxis DHR II MaxxTerra 29x2.4" MaxxTerra Double Down TLR - we can discuss tyre upgrades to your choice.
Inner Tubes	Standard, Presta Valve - We can provide tubeless set-up and tyres liners in addition.

Sizing Information

	Small	Medium	Large	X.Large
Flip Chip Position	Low/ High	Low/ High	Low/ High	Low/High
Reach	444/442mm	472/470mm	502/500mm
Stack Height	615/617mm	633/635mm	651/653mm
Standover Height	780mm	785mm	790mm
Wheelbase	1232/1233mm	1273/1274mm	1316/1317mm
Chainstay Length	449/450mm	453/454mm	457/458mm
Bottom Bracket Drop	27/30mm	27/30mm	27/30mm
Bottom Bracket Height	351/348mm	351/348mm	351/348mm
Effective Top Tube Length	583/584mm	616/617mm	650/651mm
Head Tube Angle	63.7/63.5°	63.7/63.5°	63.7/63.5°
Head Tube Length	100mm	120mm	140mm
Effective Seat Tube Angle	77.2/77°	77.2/77°	77.2/77°
Seat Tube Height	400mm	420mm	455mm
