The Alpine Trail E XR is a powerful enduro eMTB featuring a Series 4 aluminium frame, 170mm front/160mm rear suspension, and a Bosch Gen 5 CX motor.
The Alpine Trail E XR is a powerful enduro eMTB featuring a Series 4 aluminium frame, 170mm front/160mm rear suspension, and a Bosch Gen 5 CX motor.
Marin

Marin Alpine Trail EXR Full Suspension E.Mountain Bike - Black/ Silver

£6,899.00
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Marin Alpine Trail EXR Full Suspension E.Mountain Bike - Black/ Silver

Season:2026

Brand:Marin

Code:7390650BLK

The Alpine Trail E XR sheds pounds and adds thrills. It is the biggest, boldest enduro eMTB from Marin.

The Series 4 aluminium frame is slimmed down but still packs a ride-all-day, removable 800Wh battery. Experience the climbing power of Bosch's 120Nm, 600 per cent assist Gen 5 CX motor. The bike features 170mm of suspension up front and 160mm of MultiTrac 2 LT travel at the rear. Adjustable geometry allows riders to personalise the ride, with ±0.75-degree headset adjustment and chainstay flip chips to adjust bottom bracket height and chainstay length.

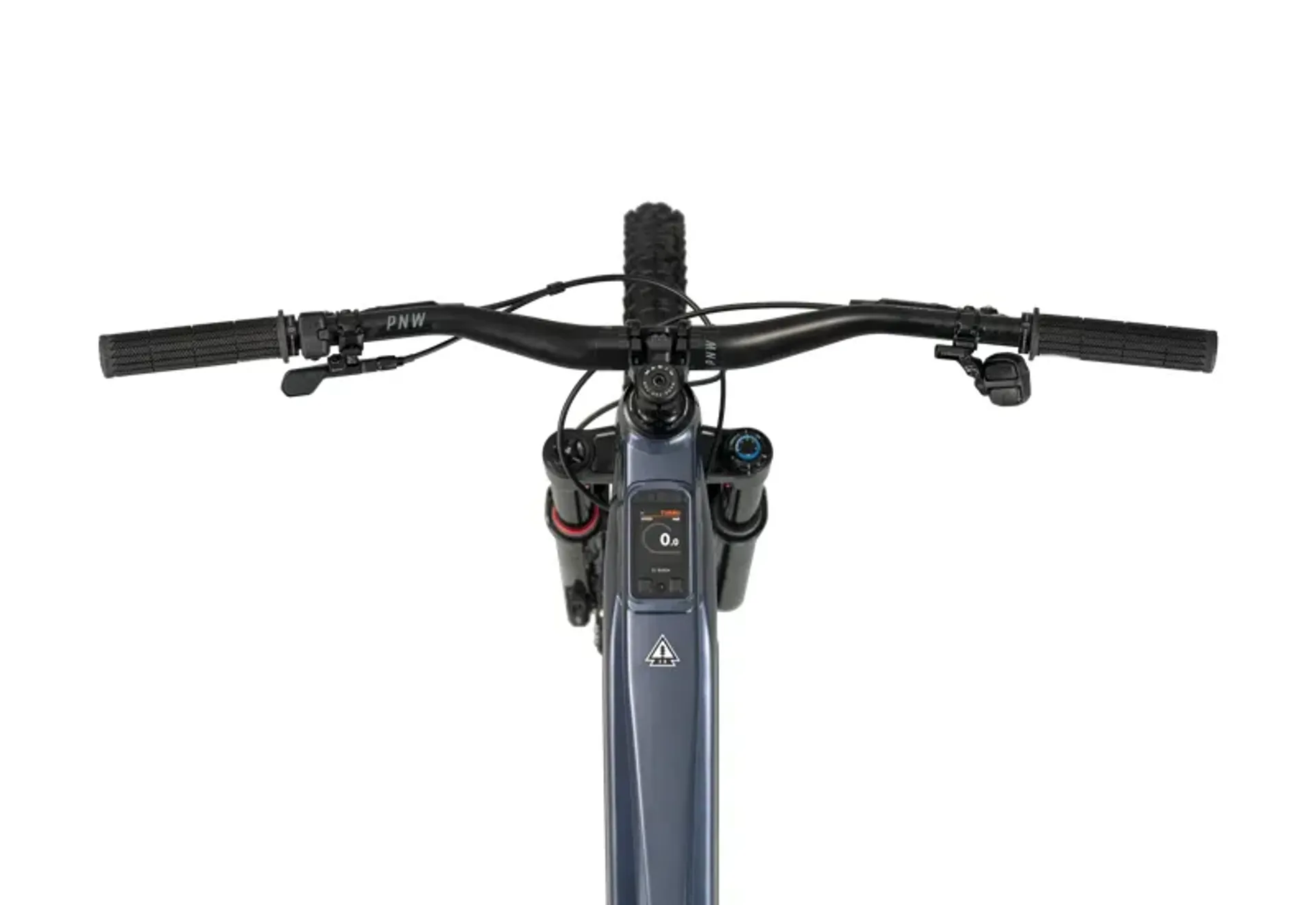

Mixed wheels—74cm (29in) up front and 70cm (27.5in) out back—combine stability and agility. The bike is equipped with RockShox ZEB Ultimate and Vivid Air shocks, SRAM’s wireless GX Eagle AXS Transmission, and Maven Silver brakes. Stats are tracked via the 5cm (2in) colour Kiox 400C display integrated into the top tube. The frame is 1.35kg (3lb) lighter than previous versions, featuring weather-sealed internal cable routing, SRAM’s UDH, and Boost axle spacing.

2026 Marin Alpine Trail EXR Main Features:

  • Series 4 aluminium frame with internal cable routing
  • Bosch Gen 5 Performance Line CX motor with 120Nm torque and 800Wh battery
  • 170mm front and 160mm rear suspension travel
  • SRAM wireless GX Eagle AXS transmission
  • SRAM Maven Silver brakes
  • RockShox ZEB Ultimate fork and Vivid Air shock
  • Mixed wheel setup (74cm (29in) front, 70cm (27.5in) rear)
  • Adjustable geometry with headset cups and chainstay flip chips
Technical Information
  • App
    Bosch eBike Flow App
  • Range
    15-55 miles / 25-90km
  • Display
    Bosch Kiox 400
  • Remote
    Bosch BRC3300 Bluetooth
  • Battery
    800Wh
  • Drive unit
    Bosch Gen 5 Performance Line CX
  • Motor torque
    120Nm
  • Frame
    Series 4 Alloy, 160mm MultiTrac LT suspension, 148mm rear thru-axle
  • Front suspension
    RockShox Zeb Ultimate, 170mm travel, 29", 110x15mm Maxle Stealth
  • Rear suspension
    RockShox Vivid Air Ultimate, 205x65
  • Rim
    DT Swiss M552, 29mm inner, 32H
  • Hub rear
    DT Swiss 370 Hybrid, 148x12mm, 6-bolt disc, Micro Spline
  • Hub front
    DT Swiss 370 Hybrid, 110x15mm, 6-bolt disc
  • Spokes
    DT Swiss Champion, Pro Lock nipples
  • Tires
    Front: Schwalbe Magic Mary 29x2.5", Rear: Schwalbe Magic Mary 27.5x2.5"
  • Chainguide
    e*thirteen e*Spec
  • Rear derailleur
    SRAM GX AXS T-Type
  • Shift lever
    SRAM AXS Pod
  • Crankset
    SRAM GX, 34T, 150mm
  • Chain
    SRAM GX T-Type
  • Cassette
    SRAM CS-XS-1275 T-Type, 10-52T
  • Brakes
    SRAM Maven Silver, 4-piston hydraulic disc, 200mm rotor
  • Handlebar
    PNW Range, 38mm rise, 35mm clamp, 800mm width
  • Stem
    Marin CNC, 35mm length, 35mm bar bore
  • Grips
    Marin Grizzly Lock-On
  • Headset
    FSA Custom, adjustable HTA
  • Seatpost
    PNW Loam, 34.9mm, 150mm (S), 170mm (M), 200mm (L-XL)
  • Saddle
    WTB Devo Pick-Up
Sizing Information
GeometrySmallMediumLargeX.Large
A Stack 620634643647
B Reach 430460490520
C Headtube angle 63.5°63.5°63.5°63.5°
D Headtube length 100115125130
E Seattube length 400420430450
F Seattube angle 79°79°79°79°
G Toptube effective 556592626659
H Bb height 352352352352
I Bb drop 24 | 724 | 724 | 724 | 7
J Chainstay 442442442442
K Wheelbase 1211124812831318
L Standover height 683690695698
M Fork offset 44444444
N Seatpost diameter 34.934.934.934.9
O Handlebar width 800800800800
P Stem length 35353535
Q Crank length 160160160160
