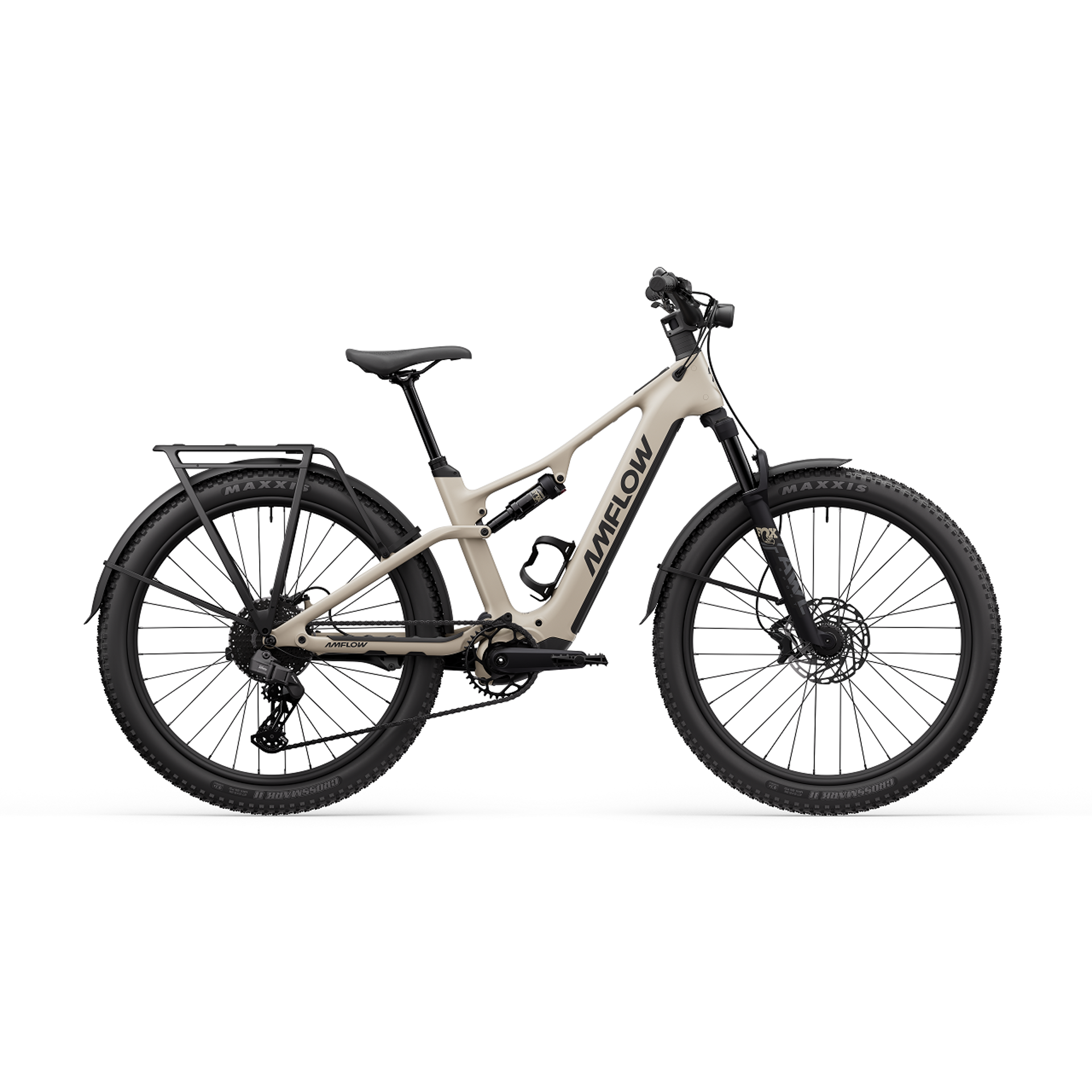

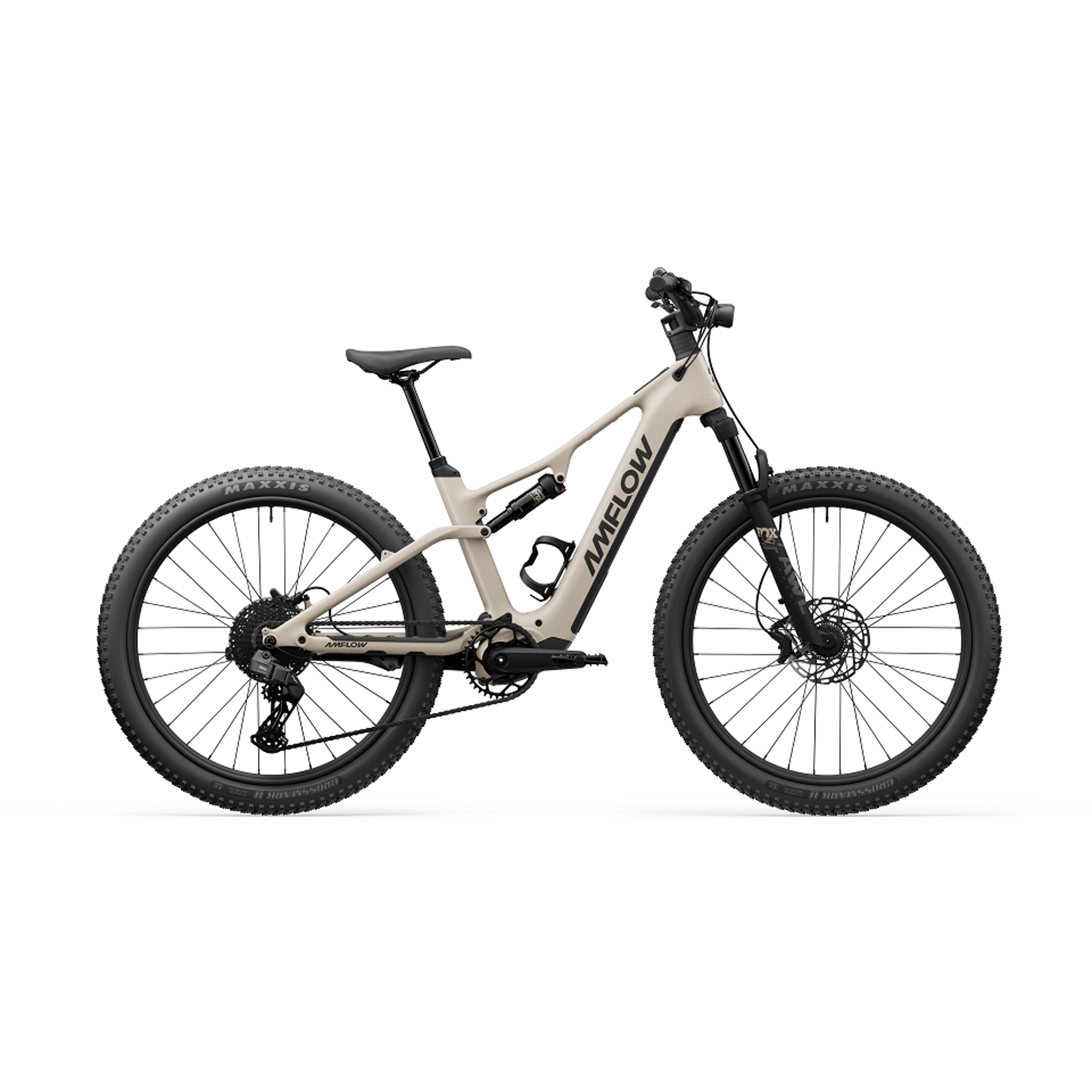

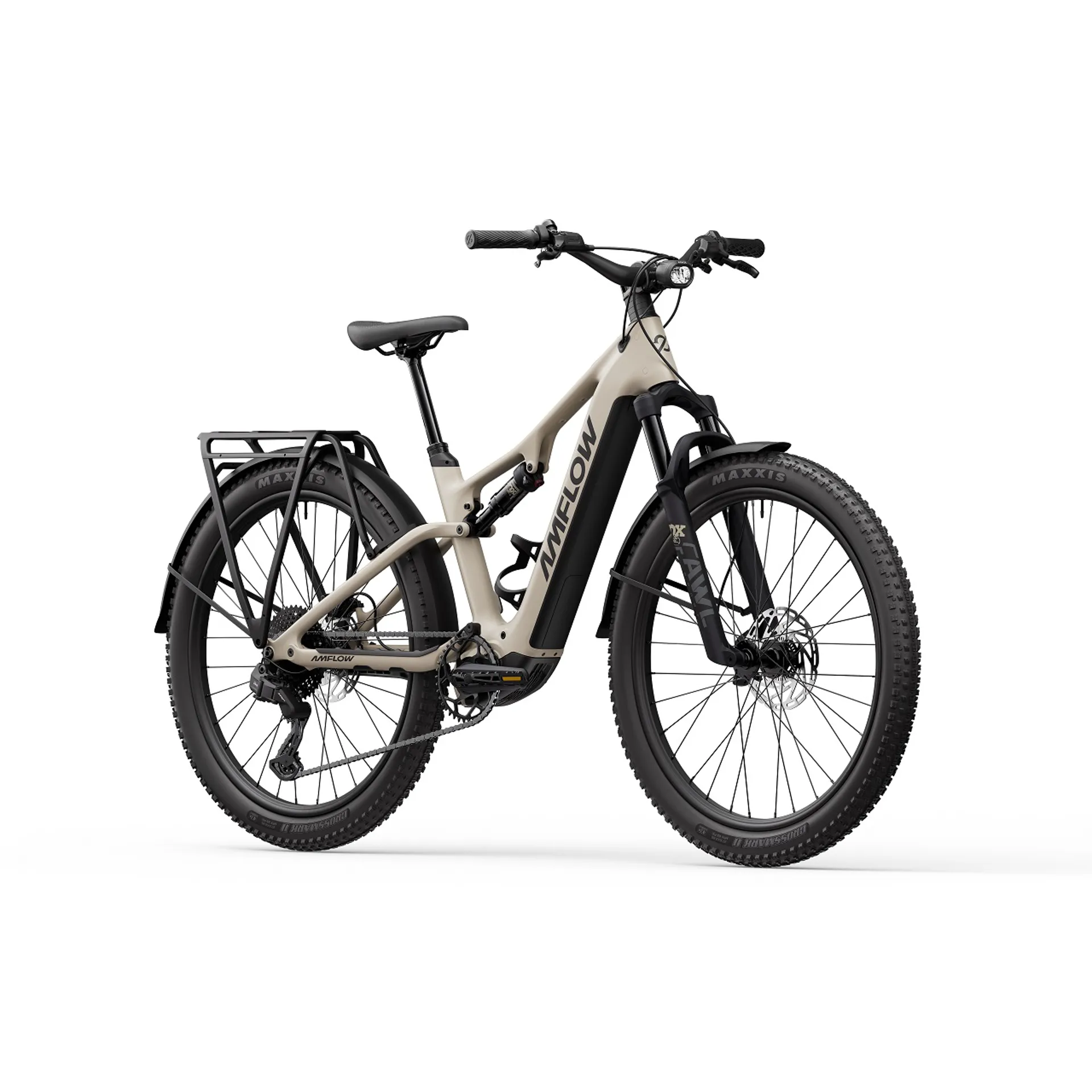

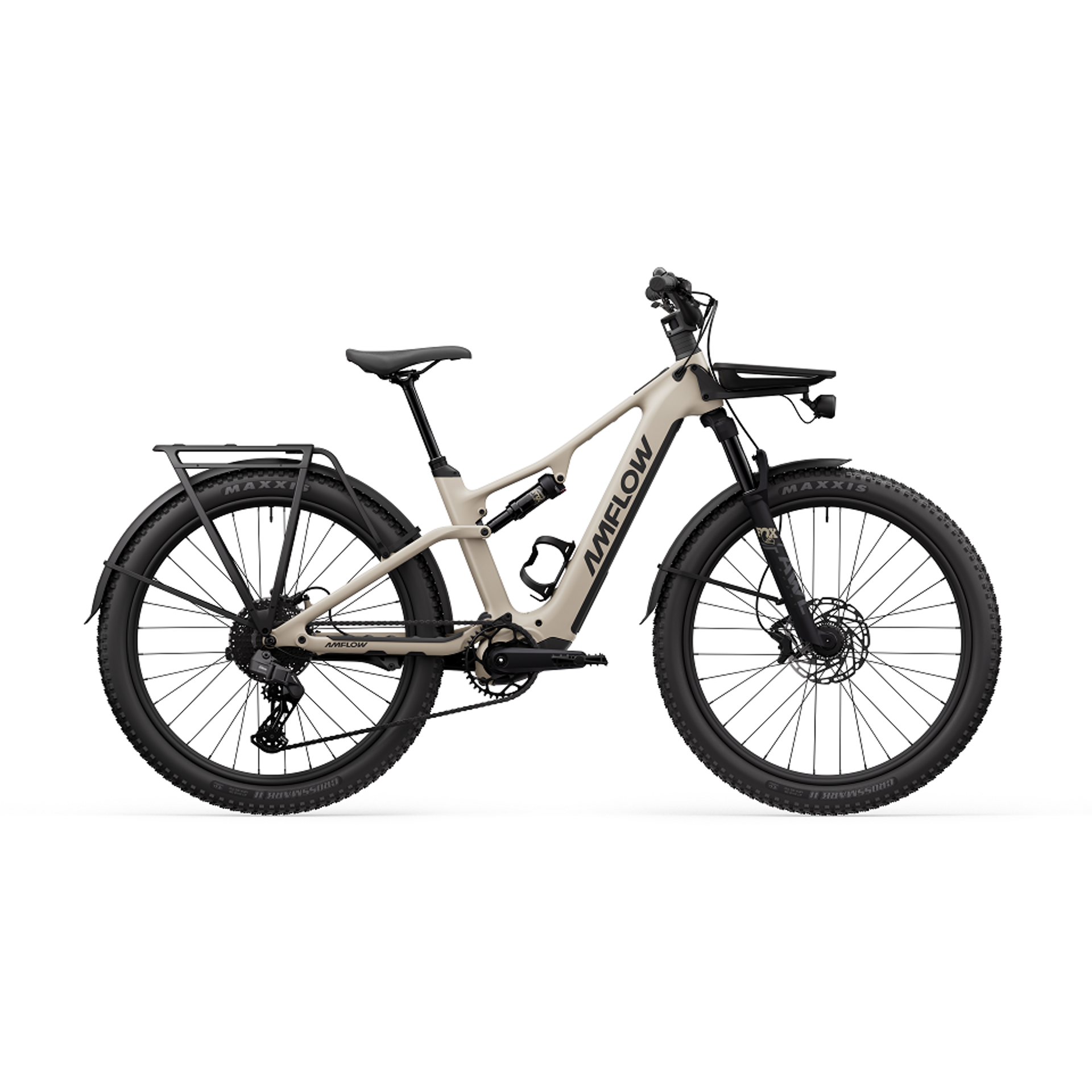

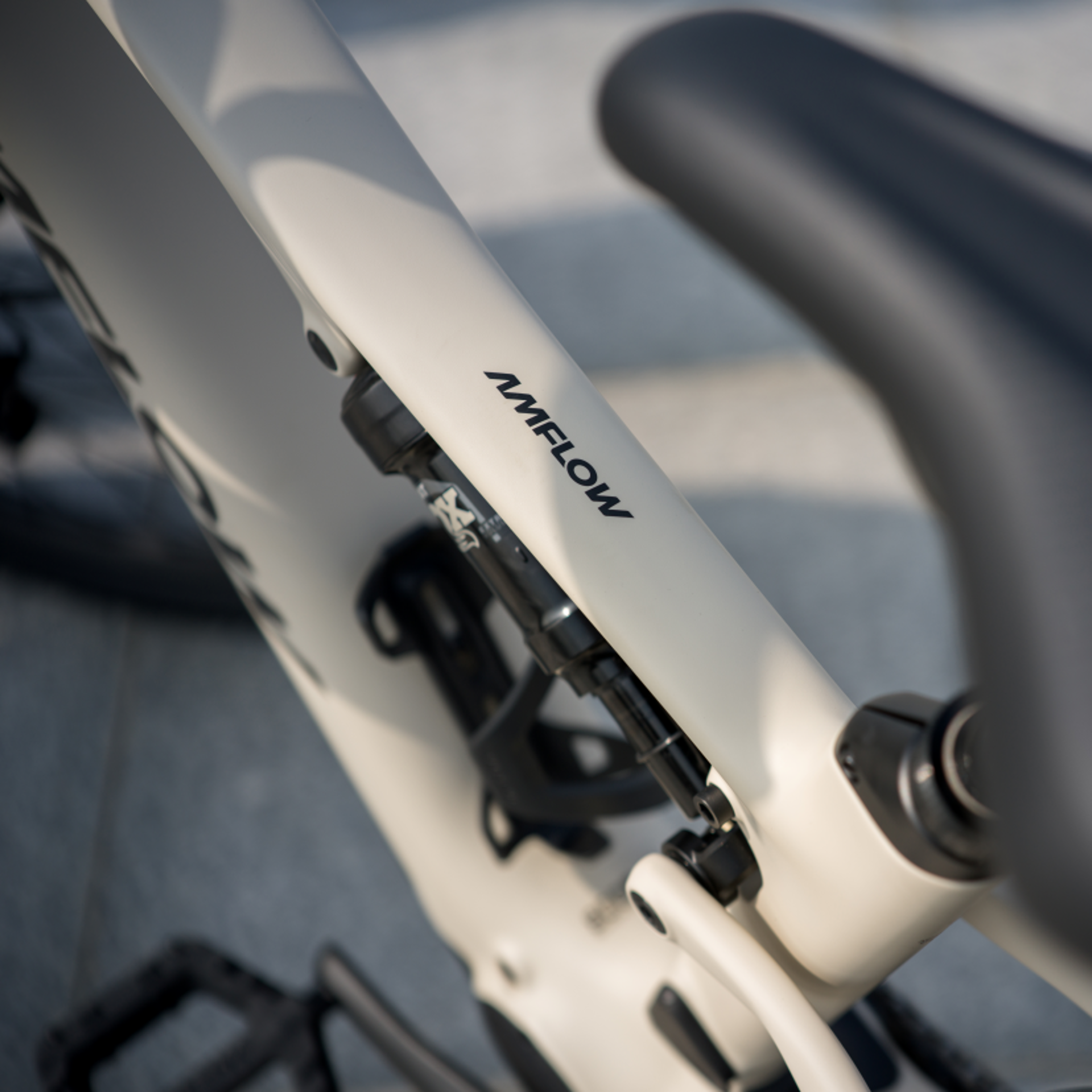

| Frame | Amflow TL Carbon Frame, Full Suspension, Removable Battery, Compatible With 27.5″ and 29″ Front and Rear Wheels, Compatible With Front and Rear Mudguards, Compatible With Rear Rack and Front Rack, Compatible With Bike Trailers (Requires Trailer Thru-Axle) |
| Motor | Avinox M2 Drive Unit: Nominal 110Nm, Peak 125Nm, 1100Watts peak Power |

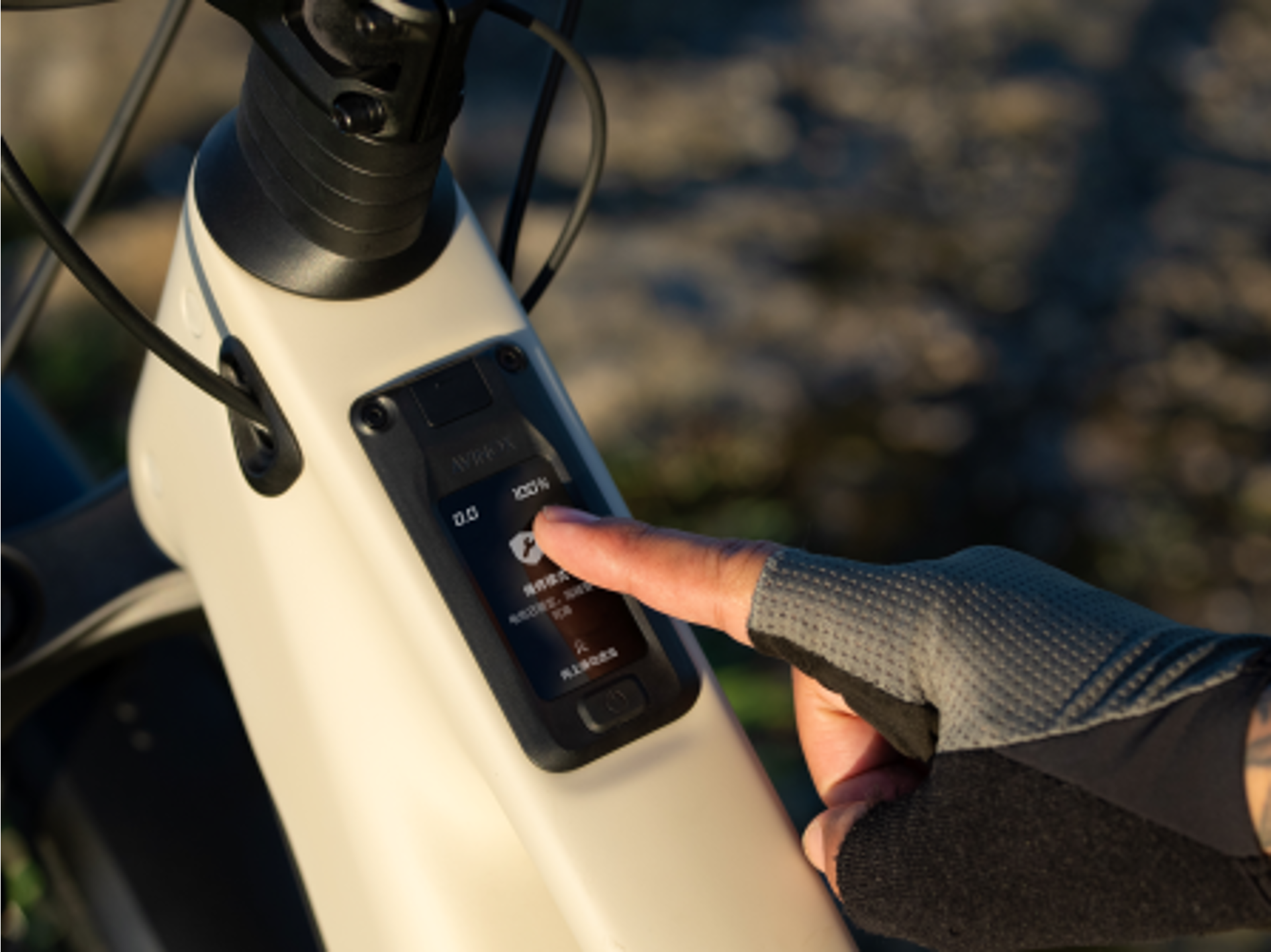

| UI/Remote | Avinox DPC100, 2-inch OLED Control Display, Avinox Wireless Controllers: Right and left sides |
| Connectivity | Bluetooth Smart phone App, Apple Find Me tracking. |

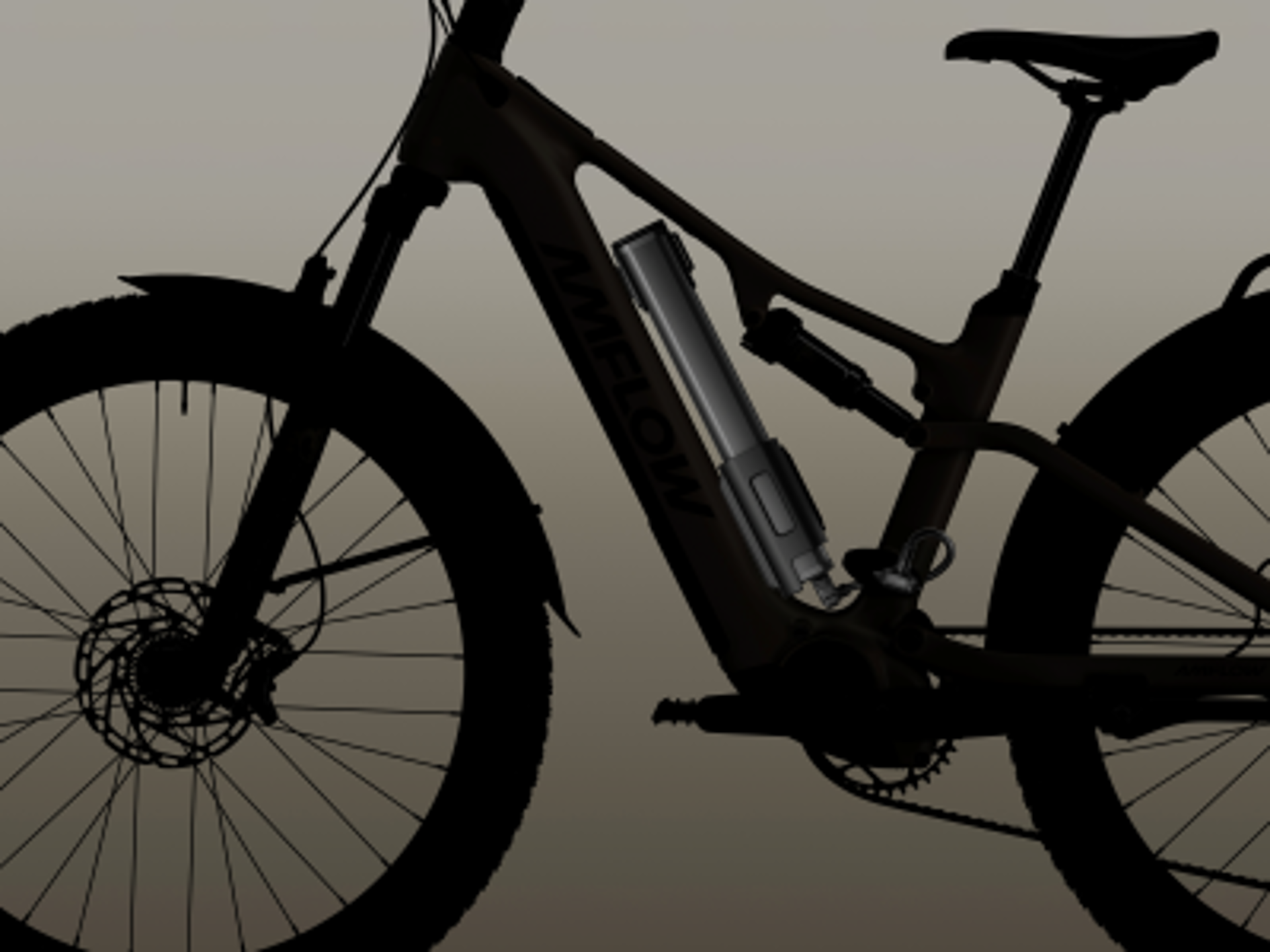

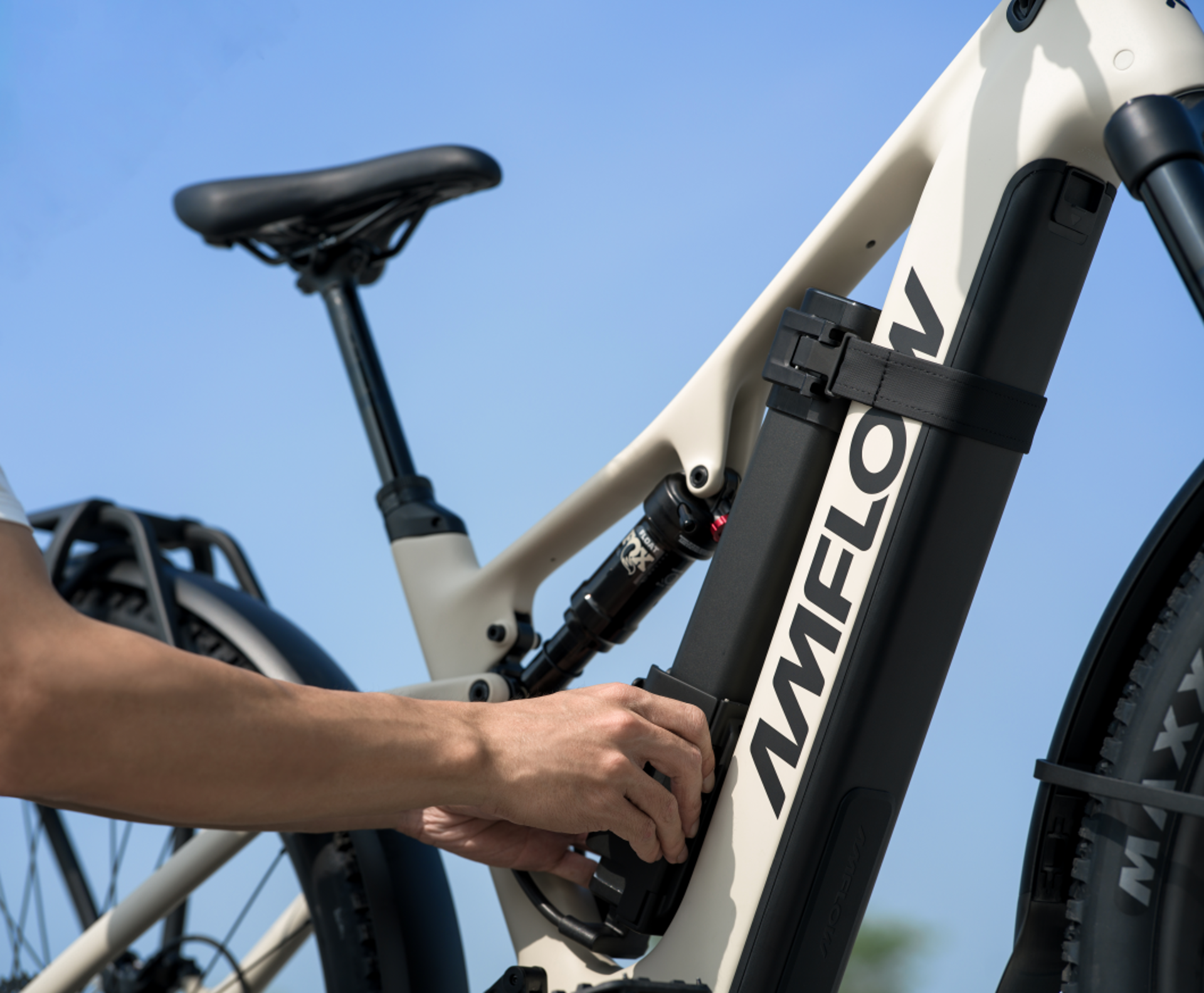

| Battery | Avinox Removable Battery: 800Wh |
| Charger | Avinox Charger: 4A/168W - optional 12A/ 508W fast charger available. |
| Rear Shock | 2027 FOX FLOAT Rhythm, LSR adjustment, Amflow TL tuned, 190x45mm |
| Fork | 2027 FOX AWL Sport, 120mm, RAIL 2.0 damper, LSR adjustment, 15x110mm Kabolt, 44mm offset |
| Stem | Amflow Mountain Bike Split Stem, Length: 35mm, Clamping diameter: 35mm |
| Grips | Amflow Enduro Grip 2 Lock-on Grips |
| Handlebars | Amflow Touring Handlebar, S/M Size Frame: 720mm Width, L/XL Size Frame: 740mm Width, 35mm Diameter, 93mm Rise |
| Saddle | Amflow Touring Saddle |

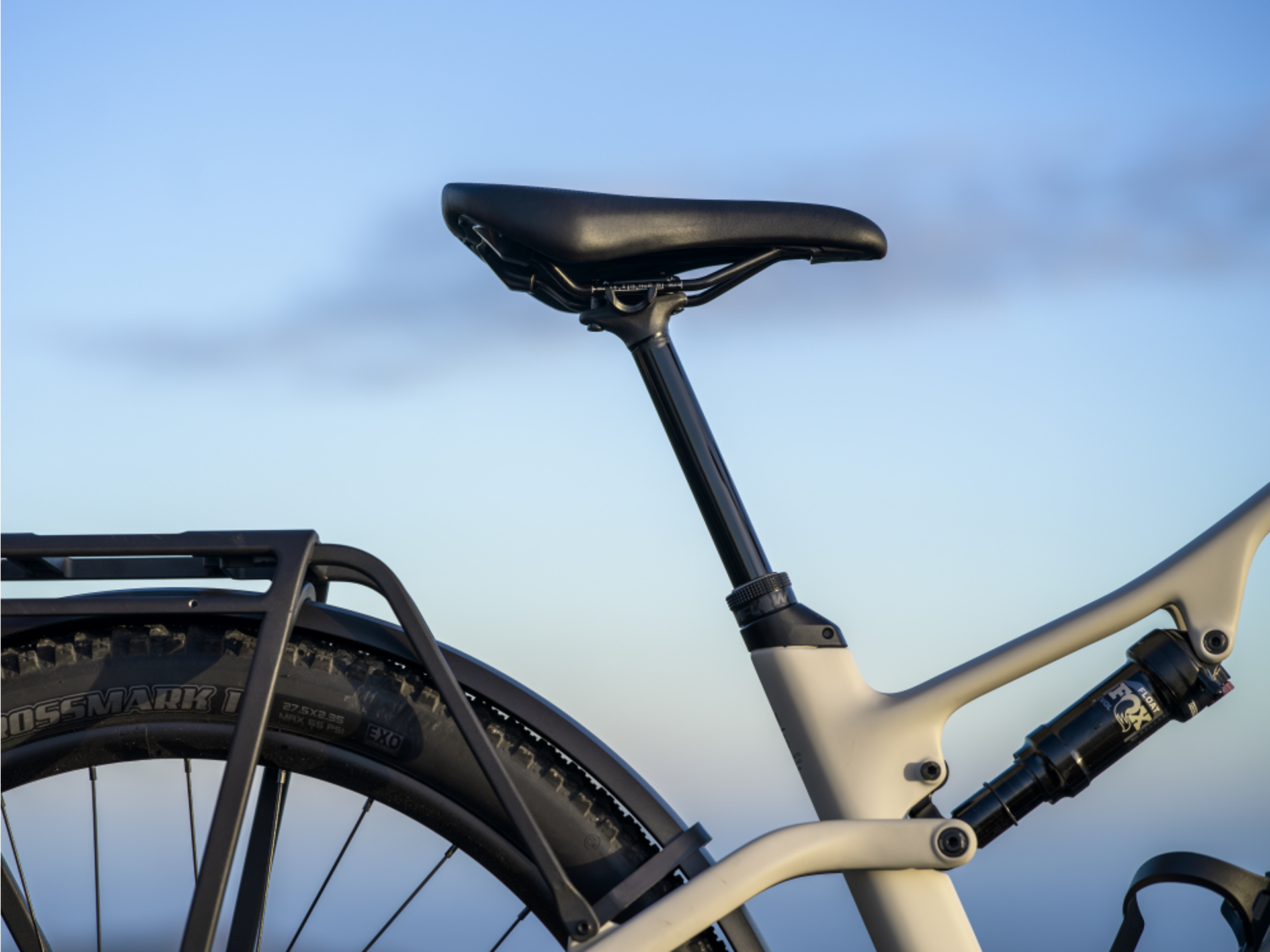

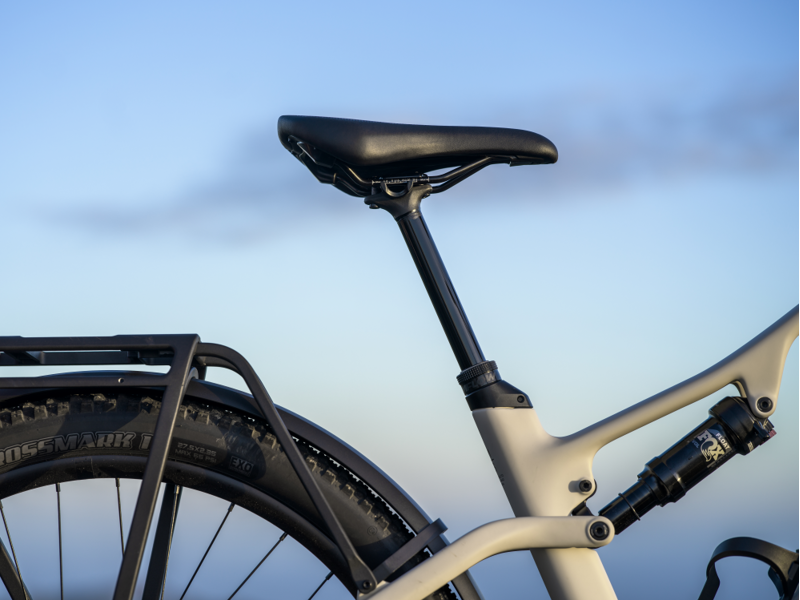

| Seat Post | Amflow TA Dropper Post, 31.6mm (Adjustable Travel: 0/-10/-20mm), S/M - 150mm, L/XL -170mm |
| Brakes | Tektro TKD173 Hydraulic Disc Brake, 4-piston calipers, Amflow custom, Tektro Sensor Rotors (180mm, 2.3mm) |
| Rear Derailleur | TRP E.A.S.I. RD-T7010E-L, 10/11-Speed, Electronic |
| Shift Levers | Avinox Wireless remote integration |

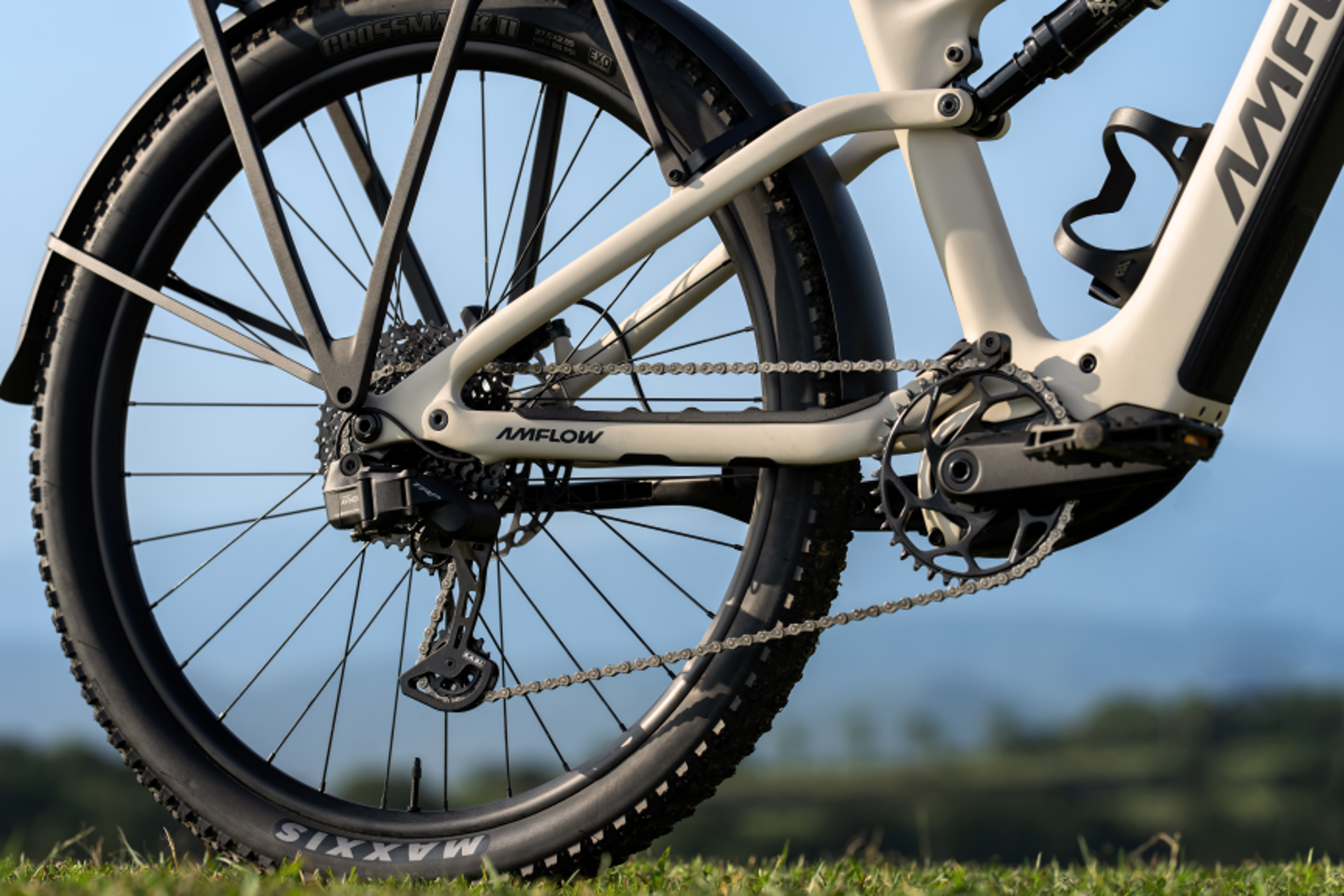

| Cassette | Tektro CS-M5243, 10-Speed, 11-43 Teeth |
| Chain | Avinox eGlide T Chain (10S/11S, 118 Links) |
| Crankset | Avinox SL Crankset (S/M: 155mm; L/XL: 160mm) |
| Chainrings | Avinox Direct Mount Chainring, 38 Teeth |
| Front Hub | Amflow Alloy, 2 sealed cartridge bearings, 15×110mm thru-axle, 32h, 6-bolt |
| Rear Hub | Amflow Alloy, 4 sealed bearings, 12×148mm thru-axle, 32H, 6-bolt, 4 pawls 36T, HG |
| Rims | Amflow HTA-25 Alloy Tubeless Ready, 27.5" |
| Spokes | SAPIM E-Light J-bend |
| Front Tire | Maxxis Crossmark II Wire Bead EXO, 27.5x2.35 - Discuss your tyre requirements with us, we can offer tubeless and puncture proof upgrade options |
| Rear Tire | Maxxis Crossmark II Wire Bead EXO, 27.5x2.35 - Discuss your tyre requirements with us, we can offer tubeless and puncture proof upgrade options |
| Inner Tubes | Standard, Presta Valve - We can provide tubeless set-up and tyres liners in addition. |

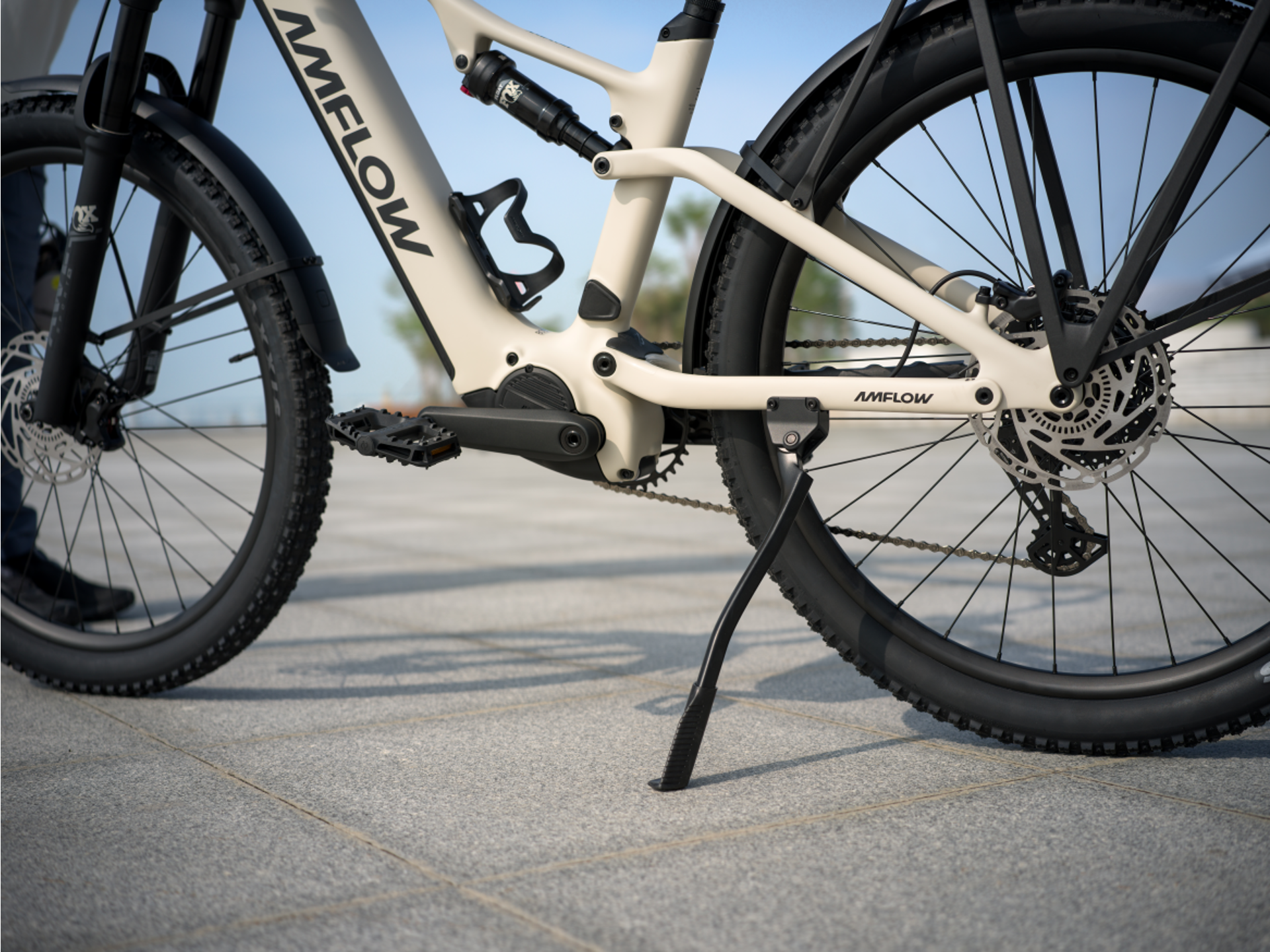

| Extras | Avinox Front Light Amflow Touring Rear Rack, Compatible With MIK HD Standard Amflow Elite MTB Pedals Amflow Bottle Cage Front Mudguard, Rear Mudguard Amflow Touring Kickstand (348mm) Sate-lite M8 Rear Light With Integrated Reflector Dropper Post Travel Reducing Spacer Two Keys for Removable Battery Torque Wrench |
