Longer periods of sitting, steeper uphill’s and greater levels of impact characterise the E-MTB experience. After intense development, the optimal saddle shape was found. Thanks to the 3D flexibility of the Saddle every complex movement of the hip will be supported by the Ergonomic Core.
- Shell: Nylon Composite
- Rails: CroMo
- Cover: Microfibre
- Padding: Orthopaedic Comfort Foam
Ingenious Working Principle–Floating ergonomic saddle core
When pedaling, your weight is continuously shifted from one sit bone to the other – with the highest stress on the pedal-up side, where your body weight is focused and high pressure occurs. This localized pressure is noticeably reduced by the Ergon Core: Through the suspended Core design and the high-end material properties the bike saddle has the ability to adapt to every pelvic motion when pedaling – enormously enhancing comfort.
Energy-Saving Ramp–Ideally supported in steeper terrain
The SM E-Mountain Core Prime Men significantly improves your seated position while climbing. The steeply rising ramp at the rear gives you a stable, effort-saving hold when climbing uphill. We have also designed the saddle nose to be particularly wide and comfortable, as the seat position often shifts forward in extremely steep sections.
Innovative Infinergy®–Cycling on clouds
BASF’s innovative Infinergy®material sets new standards in suspension and damping on the bike. The elastic saddle core supports the natural pelvic movements with every pedal stroke, absorbs road shocks and is easy on the lower back. When pressure is released, the Ergon Core, which consists of thousands of foam particles, returns to its original shape in a flash – even under continuous load. Leading manufacturers of performance running shoes also use this E-TPU foam worldwide with great success.

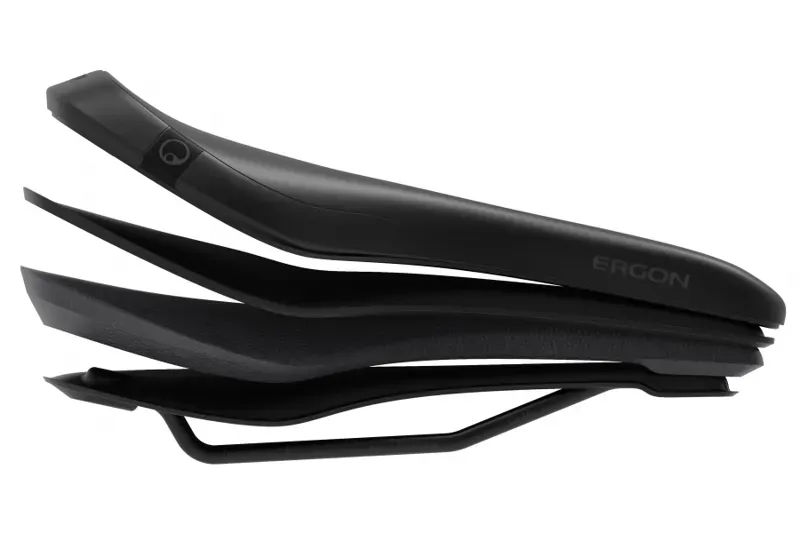

The Adavntages of twin shell–Ergon CORE3D®vs. standard saddle
The revolutionary CORE3D®saddle construction with twin shell technology takes comfort to a whole new level. In a conventional saddle, there is only one saddle shell. This single shell carries the load of the rider and must therefore be very rigid. The SM E-Mountain Core Prime, on the other hand, has two shells. A majority of rider weight is supported by the lower stiffer shell. On the upper flexible shell lies the cushion and sitting surface. In between the two shells is the floating ergonomic core made of Infinergy®, which isolates road shock, dampens vibrations, supports pelvic movements when pedaling and noticeably takes pressure off the sit bones.
The Twin Shell and Inner Core Damper–Support that follows your pedal stroke

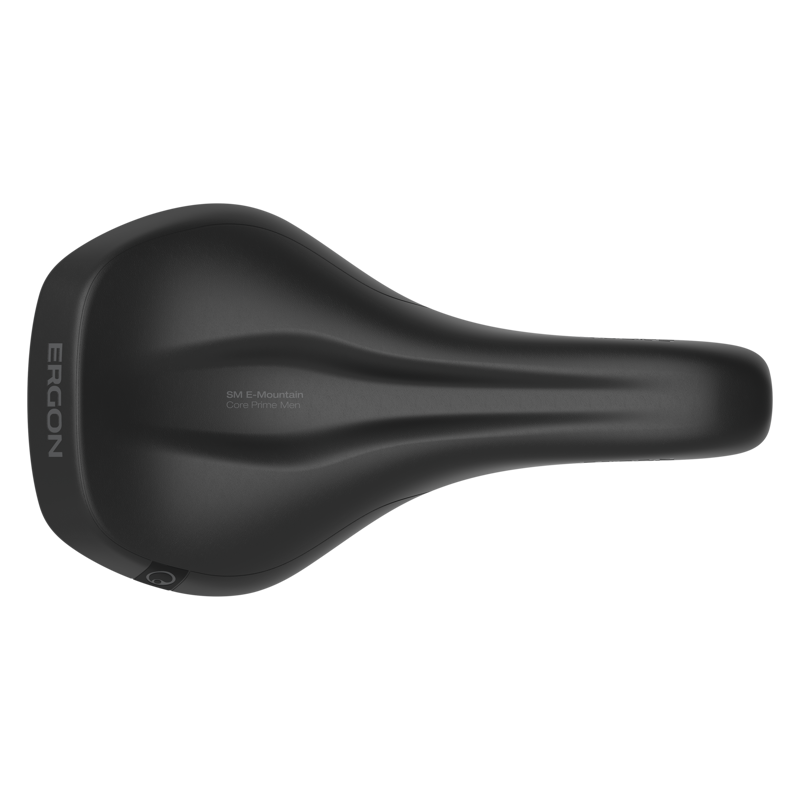

The view below of the SM E-Mountain Core Prime shows the entire saddle surface – the high-performance elastomer damper decouples the two saddle shells from each other. This sandwich construction with elastic core allows the saddle to follow the natural pedaling movements more ergonomically in all three directions. Unevenness of the riding surface and vibrations are efficiently filtered out thanks to Ergon CORE3D®.
Orthopedic Foam–Comfortable and durable
The padding is made of orthopedic comfort foam. The foam is supportive, soft, but does not collapse. In addition to the foam, specific gel pad inlays offer even more comfort under the sitting area. With this saddle, it is not absolutely necessary to wear cycling shorts. The saddle is covered with robust microfiber to prevent abrasions and maintain the durability of the saddle.
Minimizing saddle discomfort
When cycling, a majority of your body weight rests on the small saddle surface. If body weight is not distributed evenly to the bony structures, unnecessary pressures are then distributed to the sensitive soft tissue areas. A relief channel helps, but is not the only important factor to overall saddle comfort.
For an ergonomic distribution of pressure, the correlations between the sit bone distance and sitting angle must be taken into account. An ergonomic bicycle saddle should have sufficient contact surface, but still allow the thighs to move freely. Furthermore, cycling is not static. Pedaling uphill, the rider intuitively slides in the direction of the saddle nose to shift the body’s center of gravity forward. The reverse is true when going downhill.
Ergon takes all of this into account in the development of each saddle. We develop specific saddle models both for the everyday cyclist as well as professionals. Our saddles are available in different widths, are designed for dynamic sitting, are completely step-free and allow through their anatomical shape comfort in all riding positions.

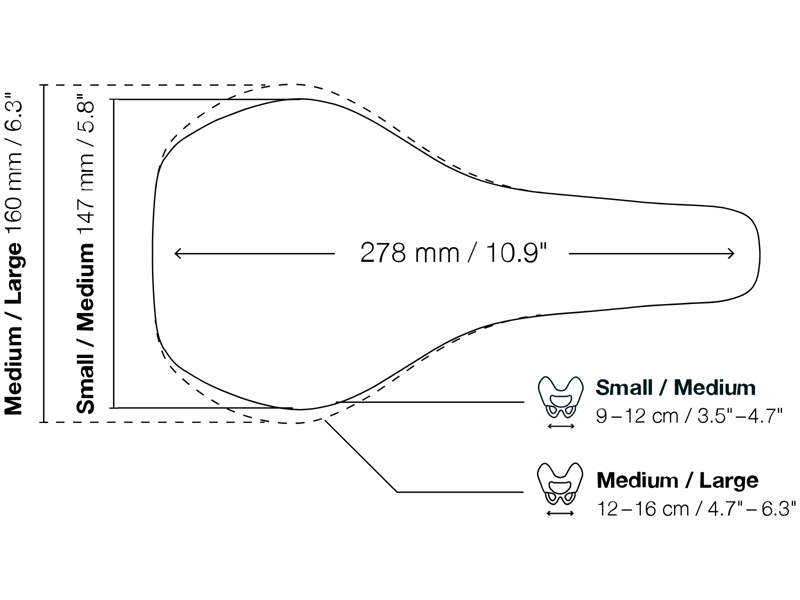

The correct size
The shape and size of the saddle must match the sit bone width of the rider to maximize comfort and enjoyment. The pelvic bone has a unique V-shape and the saddle must offer the sit bones a large contact surface with the ability to meet the demand of different sitting positions. Various saddle widths are offered so that the usable seat surface corresponds to the riders unique sit bone width. The more forward and aggressive the rider sits, the further forward the sit bones contact the saddle.
