The DSX is the mountain biker’s gravel bike with familiar hand positioning, reliable 1x drivetrains, large tire clearance, and dropper post routing for better off road control, and on road descending stability.
The DSX is the mountain biker’s gravel bike with familiar hand positioning, reliable 1x drivetrains, large tire clearance, and dropper post routing for better off road control, and on road descending stability.
Marin

Marin DSX FS Flat Bar Gravel Bike - Gloss Black/ Grey

Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

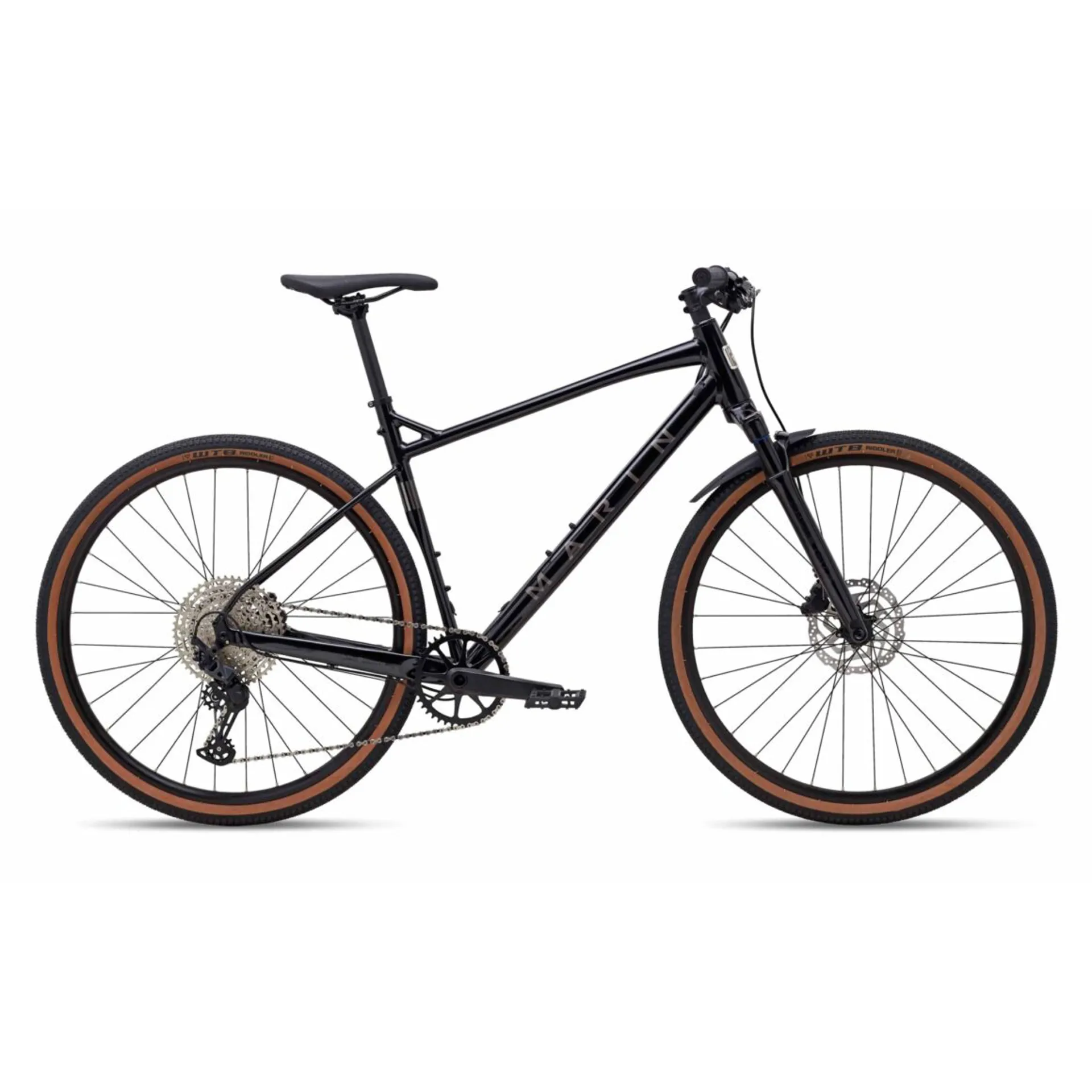

Marin DSX FS Flat Bar Gravel Bike - Gloss Black/ Grey

Season:2024

Brand:Marin

Code:7339610GLSBLK

The DSX is a flat bar gravel bike based on our Gestalt X drop bar platform with Series 3 aluminum frames and carbon forks with large tire clearance, low standover, hydraulic disc brakes, and 1x drivetrains with the comfort and heads up positioning of a flat handlebar.

Mountain bike sensibilities in a flat bar package capable of fast commutes,long Saturday adventures spanning pavement and light singletrack, and all-day gravel events.

Technical Information
  • Frame

    Series 3 DSX, Supension Adjusted Geometry, 6061 Aluminum, Tapered Head Tube, Relieved BB, Internal Cable Routing, Mudguard and Rack Mounts, Flat Mount Disc, 142x12mm Thru-Axle

  • Fork

    SR Suntour GVX LOR, 60mm Travel, Air Spring, Rebound Adjust, Lockout, Integrated Fender Mounts

  • Rims

    Marin Aluminum Double Wall, 21mm Inner, Disc Specific, Tubeless Compatible

  • Hub, Rear

    Shimano Forged Aluminum, 142x12mm, Microspline, Disc, 32H

  • Hub, Front

    Forged Aluminum, 100x12mm, Disc, 32H

  • Spoke, Nipples Nipples

    14g Black Stainless Steel

  • Tires

    WTB Riddler, 700Cx45mm

  • Derailleur, Rear

    Shimano SLX 12-Speed

  • Derailleur, Front

    -

  • Shift Lever

    Shimano Deore 12-Speed

  • Crankset

    Forged Aluminum, 42T Steel Narrow Wide Chainring

  • Bottom Bracket

    Sealed Outboard Bearing

  • Chain

    KMC X12

  • Cassette

    Shimano Deore 12-Speed, 10-51T

  • Brake, Front

    Shimano MT201/UR300 Flat Mount Hydraulic Disc, 160mm Rotor

  • Brake, Rear

    Shimano MT201/UR300 Flat Mount Hydraulic Disc, 160mm Rotor

  • Brake Levers

    Shimao Hydraulic

  • Handlebar

    Marin MiniRiser

  • Stem

    Marin 3D Forged Alloy

  • Grips

    Marin MTB

  • Headset

    FSA No.42 ACB, Sealed Cartridge Bearings, 1 1/8” x 1 1/2”

  • Seatpost

    Marin Alloy

  • Saddle

    Marin DSX

  • Pedals

    Commute Platform

  • Extras

    Bolt-On Thru-Axles F and R

Sizing Information
SMLXL
Stack583.2601.8629.7657.6
Reach400425440455
Headtube Angle68.5°68.5°68.5°68.5°
Headtube Length100120150180
Seattube Angle74°74°74°74°
Seattube Length430480520558
Toptube Effective567.23597.6620.6643.6
BB Height277.5277.5277.5277.5
BB Drop82828282
Chainstay425425425425
Wheelbase10651097.31123.31149.3
Standover Height667708738761
Fork Offset47474747
Seatpost Diameter27.227.227.227.2
Handlebar Width680680680700
Stem Length70707070
Crank Length170175175175
