The award winning sweet spot of the 2022 Stumpjumper line up, the Evo Comp Carbon is trail bike nivana!
The award winning sweet spot of the 2022 Stumpjumper line up, the Evo Comp Carbon is trail bike nivana!
Specialized

Specialized Stumpjumper EVO Comp - Arctic Blue

Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Specialized Stumpjumper EVO Comp - Arctic Blue

Season:2024

Brand:Specialized

Code:320261329922

A new 2023 season version of this bike will be coming, hit the back in stock notify tab to get details!

In order to bring evo fun to the masses Specialized took their FACT 11m carbon frame (yep the exact same frame as used on the top of the range S-Works) dressed it with a bullet-proof SRAM GX eagle 12-speed drivetrain and a tough as nails set of alloy wheels and set it loose to shred unsuspecting trails everywhere.

MBR magazines 2022 Shop bought trail bike of the year award winner!



Features:

  • All the travel in the world is useless without the proper shock tuning and kinematics. For the new Stumpjumper EVO design, Specialized prioritized kinematic performance. Applying lessons learned while developing the Enduro, then following that with more than 1,000 hours of field and suspension lab development, they’ve not only improved the pedaling performance of the Stumpjumper, but they’ve made it more capable, agile, and lively. They increased anti-squat, so the suspension better resists pedal bob, and further improved bump performance on square-edge hits. Bottom line? This thing shreds trails, not legs.
  • The S-Sizing geometry of the new Stumpjumper EVO is Specialized's most progressive yet. Long, low, slack, short offset fork, steeper seat tube angle – these are requirements for modern progressive riding. But not everyone jibs the same way, which is why the geo on the new Stumpjumper EVO is fully adjustable with six different settings. You can adjust the BB height by 10mm, you can adjust your head angle by two-degrees, and you can make these adjustments independently of each other. Finally, if you want to go full-party mullet-mode, the EVO lets you run a 27.5-inch rear wheel mated with a 29-inch front.
  • Rider-First Engineered™ frames use a size-specific approach to ride characteristics that ensures benchmark handling and flawless performance, regardless of frame or rider size. Whether you’re a jump-happy grom riding an S1, or a DH-fiend giant in need of the lengthy S6, you’ll experience the same ride traits – rail-sharp cornering and balanced front and rear stiffness – at the lightest-possible weight.
  • Specialized introduced the SWAT™ door on the Stumpjumper in 2016, adding room IN your frame for those “oh sh**t” necessities like pumps and spare tubes, and immediately rendering jersey pockets redundant. With the new Stumpjumper, they have increased the volume and added a SWAT™ Bladder, giving you an extra 22oz of water storage – the same size as a small water bottle – hidden in your downtube.
Technical Information
  • Frame
    FACT 11m carbon chassis and rear-end, asymmetrical design, 29 Trail Geometry, SWAT™ Door integration, head tube angle adjustment, threaded BB, fully enclosed internal cable routing, 12x148mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 150mm of travel
  • SWAT
    Increased-volume SWAT™ Door integration with 22oz SWAT™ Bladder
  • Seat Binder
    Alloy, 38.6mm
  • Rear Shock
    FOX FLOAT X Performance, Rx Trail Tune, EVOL Air sleeve, 2-position lever w/ LSR adjustment, S1:210x50mm, S2-S6:210x55mm
  • Fork
    FOX FLOAT 36 Rhythm, GRIP damper, two position Sweep adjustment, 15x110mm QR axle, 44mm offset, S1:150mm of travel, S2-S6:160mm of travel
  • Stem
    Alloy Trail Stem, 35mm bar bore

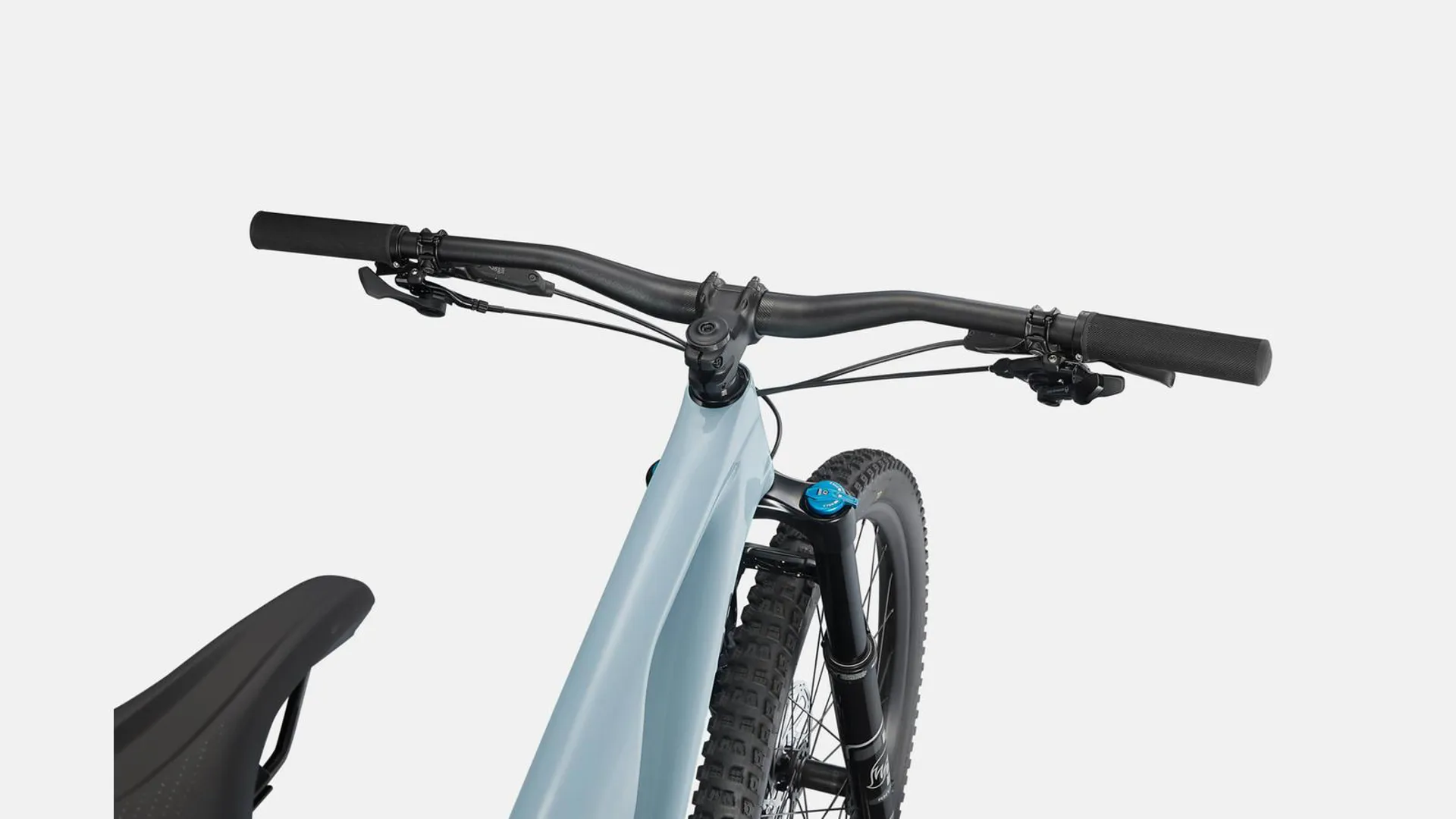

  • Handlebars
    Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 30mm rise, 800mm width
  • Tape
    Specialized Trail Grips
  • Saddle
    Bridge Comp, Hollow Cr-mo rails, 155/143mm
  • SeatPost
    X-Fusion Manic, infinite adjustable, two-bolt head, bottom mount cable routing, remote SLR LE lever, 34.9, S1: 100mm, S2: 125mm, S3: 150mm, S4/S5: 175mm, S6: 190mm
  • Front Brake
    SRAM Code RS, 4-piston caliper, hydraulic disc, 200mm
  • Rear Brake
    SRAM Code RS, 4-piston caliper, hydraulic disc, 200mm
  • Rear Derailleur
    SRAM GX Eagle, 12-speed
  • Shift Levers
    SRAM GX Eagle Trigger, 12-speed
  • Cassette
    SRAM XG-1275, 12-speed, 10-52t
  • Chain
    SRAM NX Eagle, 12-speed
  • Crankset
    SRAM X1 6K, DUB, S1:165mm, S2-S5: 170mm, S6: 175mm
  • Chainrings
    Alloy, 30T
  • Bottom Bracket
    SRAM DUB, BSA 73mm, threaded
  • Rims
    Specialized 29, hookless alloy, 30mm inner width, tubeless ready
  • Front Hub
    Alloy, sealed cartridge bearings, 15x110mm thru-axle, 28h
  • Rear Hub
    Alloy, sealed cartridge bearings, 148mmx12mm thru-axle, 28h
  • Spokes
    DT Swiss Industry
  • Front Tire
    Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3"
  • Rear Tire
    Eliminator, GRID TRAIL casing, GRIPTON® T7 compound, 29x2.3"
  • Inner Tubes
    Standard, Presta valve
Sizing Information
S1S2S3S4S5S6
Crank Length165mm170mm170mm170mm170mm175mm
Handlebar Width800mm800mm800mm800mm800mm800mm
Stem Length40mm40mm50mm50mm50mm50mm
Saddle Width155mm155mm143mm143mm143mm143mm
Seatpost Length100mm125mm150mm170mm170mm190mm
Stack613mm617mm626mm635mm644mm654mm
Reach408mm428mm448mm475mm498mm528mm
Headtube Length95mm95mm105mm115mm125mm135mm
Headtube Angle64.5°64.5°64.5°64.5°64.5°64.5°
BB Height335mm340mm340mm340mm340mm340mm
BB Drop40mm35mm35mm35mm35mm35mm
Trail131mm131mm131mm131mm131mm131mm
Fork Length (full)561mm571mm571mm571mm571mm571mm
Fork Rake/Offset44mm44mm44mm44mm44mm44mm
Front Center732mm756mm780mm809mm838mm873mm
Chainstay Length438mm438mm438mm438mm448mm448mm
Wheelbase1167mm1191mm1216mm1247mm1285mm1319mm
Top-tube Length (horizontal)538mm564mm590mm623mm647mm679mm
Bike Standover Height733mm764mm763mm762mm767mm770mm
Seat Tube Length385mm385mm405mm425mm445mm465mm
Seat Tube Angle78°77.6°77.2°76.9°77°77°
Max Seatpost Insertion180mm180mm200mm220mm240mm260mm
Min Seatpost Insertion80mm80mm80mm80mm80mm80mm
