Frame
M5 Alloy chassis and rear-end, Trail Geometry, horst pivot geo adjustment, threaded BB, internal cable routing with external rear brake option, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, 170mm of travel
-
Seat Binder
Alloy, 38.6mm
-

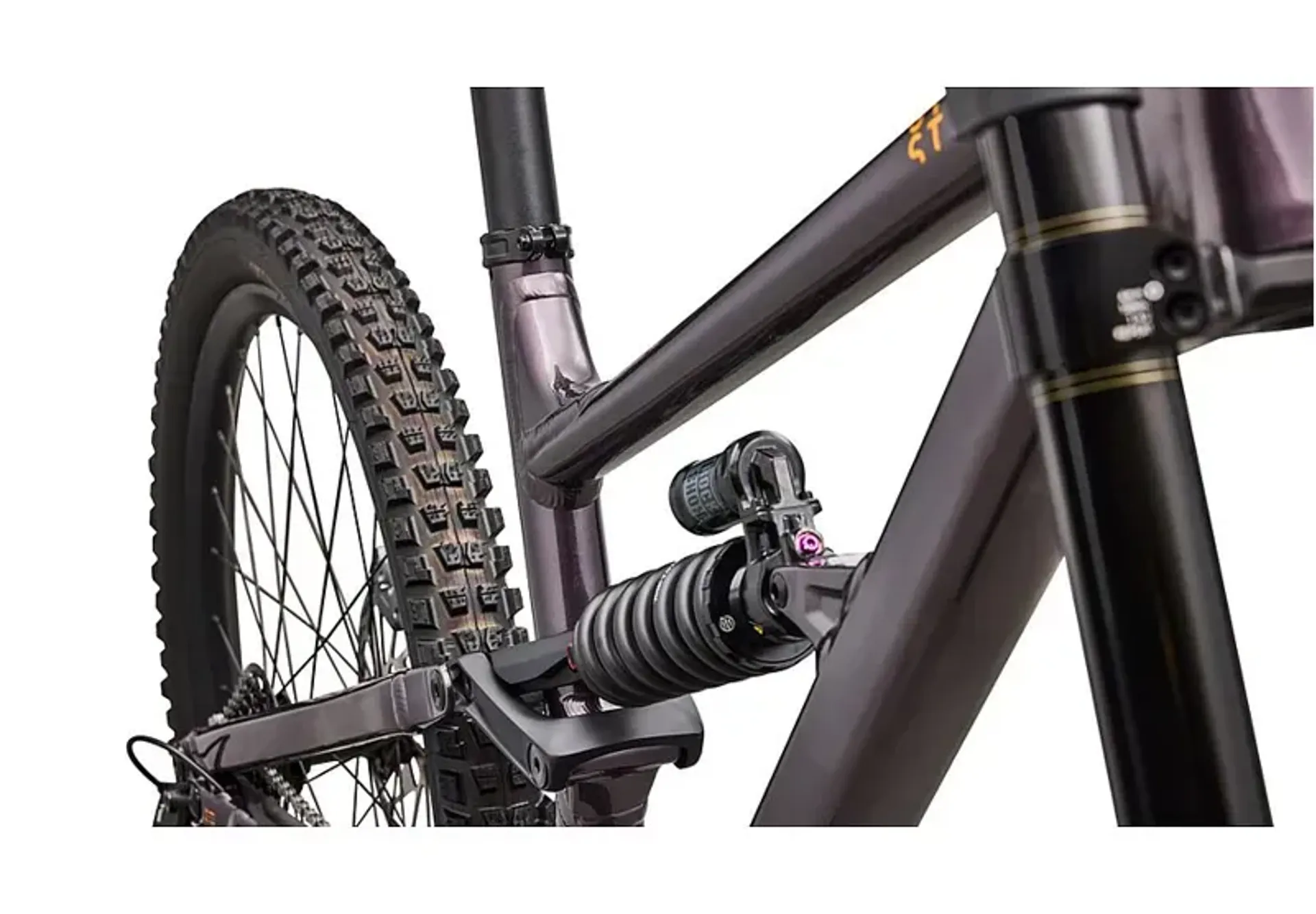

Rear Shock
RockShox Vivid Coil, external rebound adjust, hydraulic bottom out, 230x62.5mm
-
Fork
RockShox BoXXer 29, Charger 3 RC damper, adjustable low-speed compression, adjustable rebound, 20x110mm thru-axle, 44mm offset, 180mm of travel
-
Front Brake
SRAM Maven Bronze, 4-piston caliper, hydraulic disc
-
Rear Brake
SRAM Maven Bronze, 4-piston caliper, hydraulic disc
-
Shift Levers
SRAM GX DH, trigger, 7-speed
-
Rear Derailleur
SRAM GX DH, 7-speed, trigger
-
Cassette
SRAM GX DH, 7-speed, 11-25t
-
Chain
SRAM PC1110 w/ Powerlink™
-
Crankset
SRAM DESCENDANT DH, DUB, alloy, Direct, 34T ring, 55mm chainline, 165mm
-
Bottom Bracket
SRAM DUB Threaded Wide
-
Rims
Roval 29"/27.5" Alloy DH, 28mm internal width, 28h, tubeless ready
-
Front Hub
Alloy, sealed cartridge bearings, 20x110mm, 28h
-
Rear Hub
Specialized alloy rear hub disc, sealed cartridge bearings, 6-Bolt, 12X148mm thru-axle, 32H
-
Spokes
DT Swiss Elemental
-
Front Tire
Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, TLR, 29x2.4"
-
Rear Tire
Butcher, GRID GRAVITY Casing, Gripton T9 compound, TLR, 27.5X2.4
-
Inner Tubes
Standard, Presta Valve
-
Stem
Descendant 35mm Direct Mount Stem, 50mm length
-

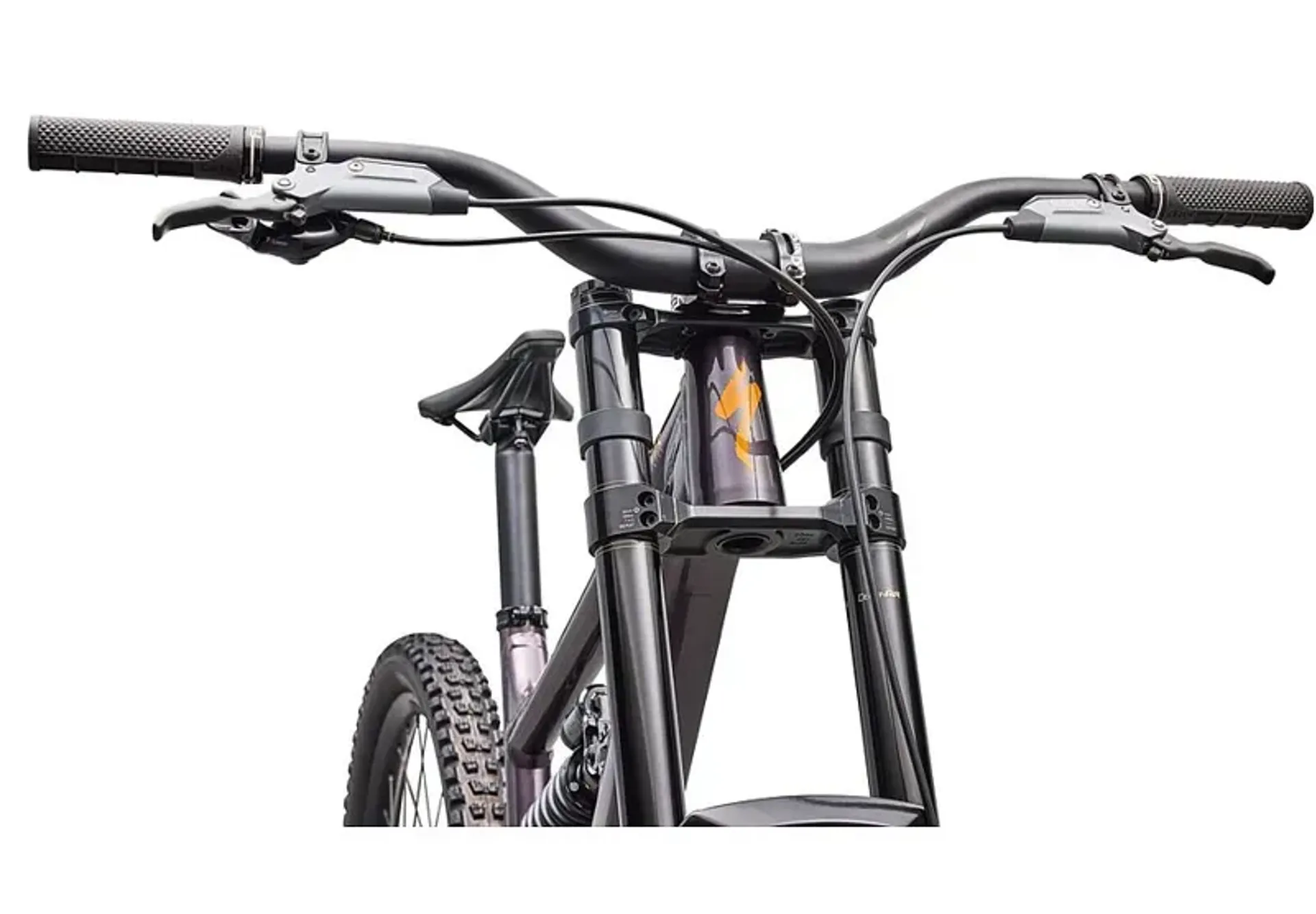

Handlebars
Specialized, 6000 series alloy, 6-degree upsweep, 8-degree backsweep. S2: 780 width, 20mm rise: S3-S5: 800 width, 50mm rise
-
Grips
Deity Lockjaw Grips
-
Saddle
Body Geometry Henge DH, hollow Cro-Mo rails, 130mm
-
SeatPost
Specialized 2-bolt head, forged alloy, 5mm offset, micro-adjust, 34.9mm
-
Weight
17.19 kg (37 lb, 14.4 oz)
-
Weight Size
S3
