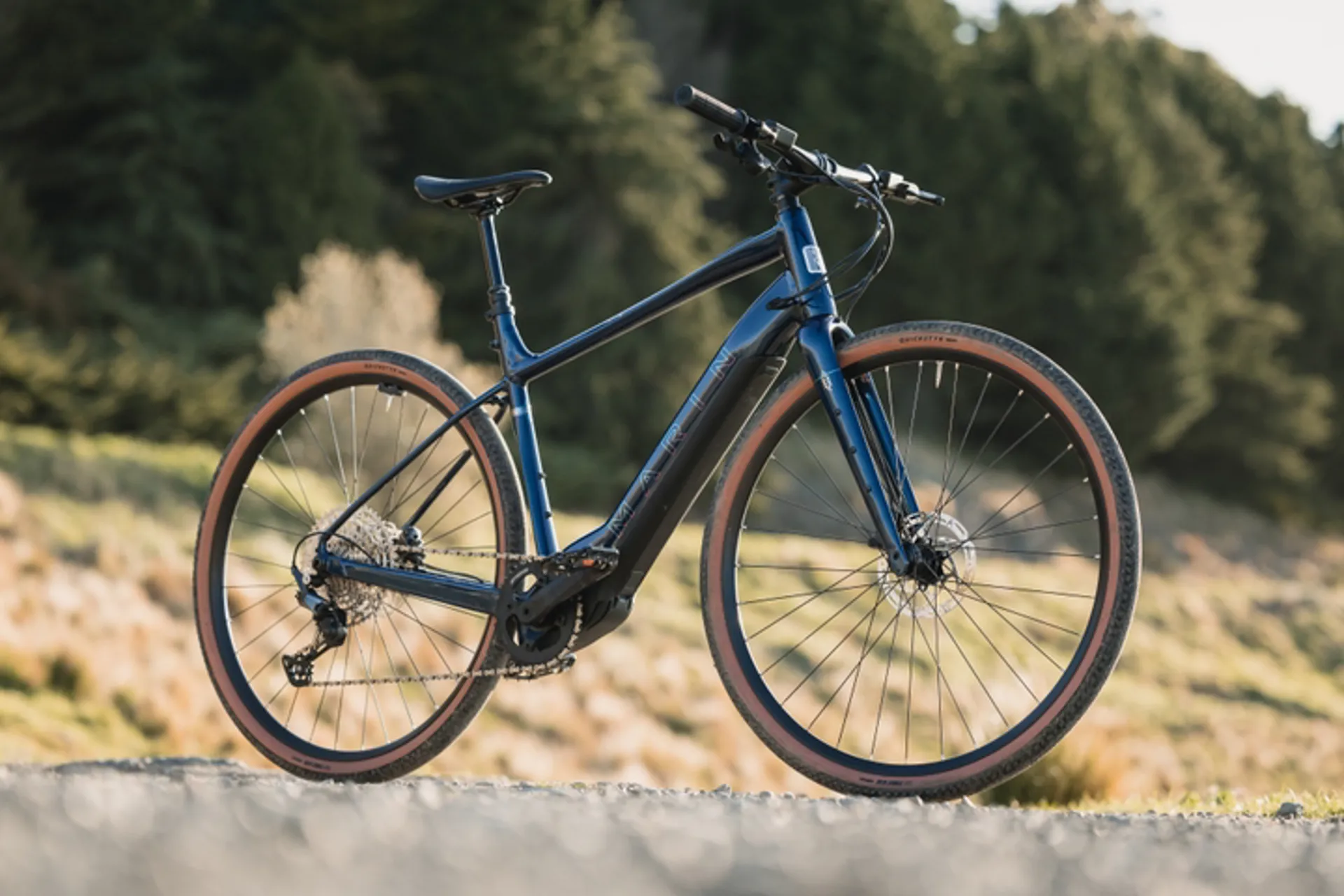

The new Marin DSX E flat bar gravel e-bike takes everything riders love about the DSX and supercharges it for faster commutes, bigger adventures, and effortless exploration. Built around a lightweight Series 4 aluminium frame paired with a full carbon fibre fork and tapered steerer, the DSX E feels impressively stiff and responsive while filtering out trail buzz for a smooth, fast, and confidence-inspiring ride. High-volume tyres and generous clearance for up to 700 x 50 rubber flatten rough roads, broken tarmac, and loose gravel, encouraging you to push further and ride longer. At the heart of the DSX E is the lightweight Bosch SX motor, delivering up to 600W and 60Nm of peak power
The new Marin DSX E flat bar gravel e-bike takes everything riders love about the DSX and supercharges it for faster commutes, bigger adventures, and effortless exploration. Built around a lightweight Series 4 aluminium frame paired with a full carbon fibre fork and tapered steerer, the DSX E feels impressively stiff and responsive while filtering out trail buzz for a smooth, fast, and confidence-inspiring ride. High-volume tyres and generous clearance for up to 700 x 50 rubber flatten rough roads, broken tarmac, and loose gravel, encouraging you to push further and ride longer. At the heart of the DSX E is the lightweight Bosch SX motor, delivering up to 600W and 60Nm of peak power
Marin

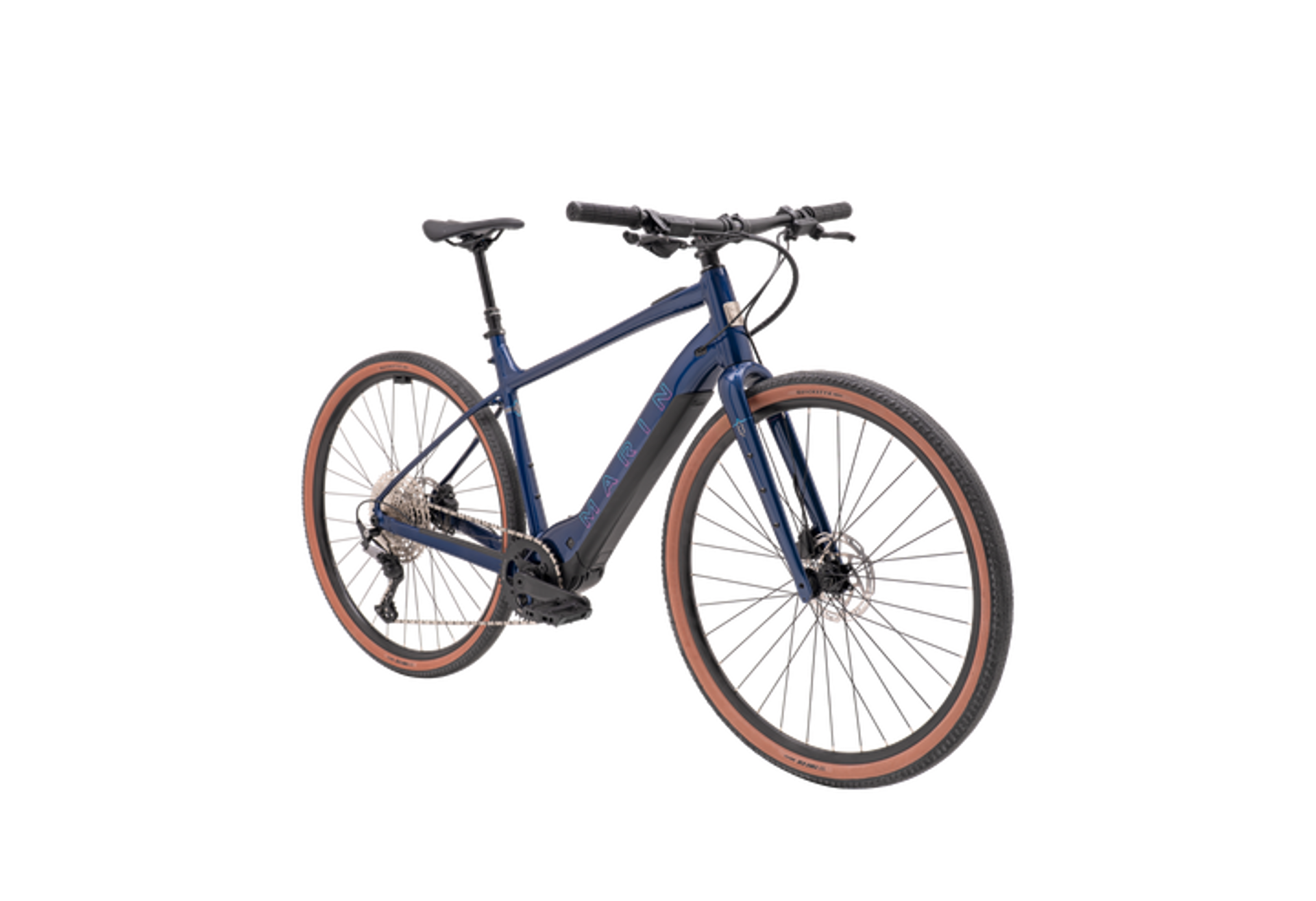

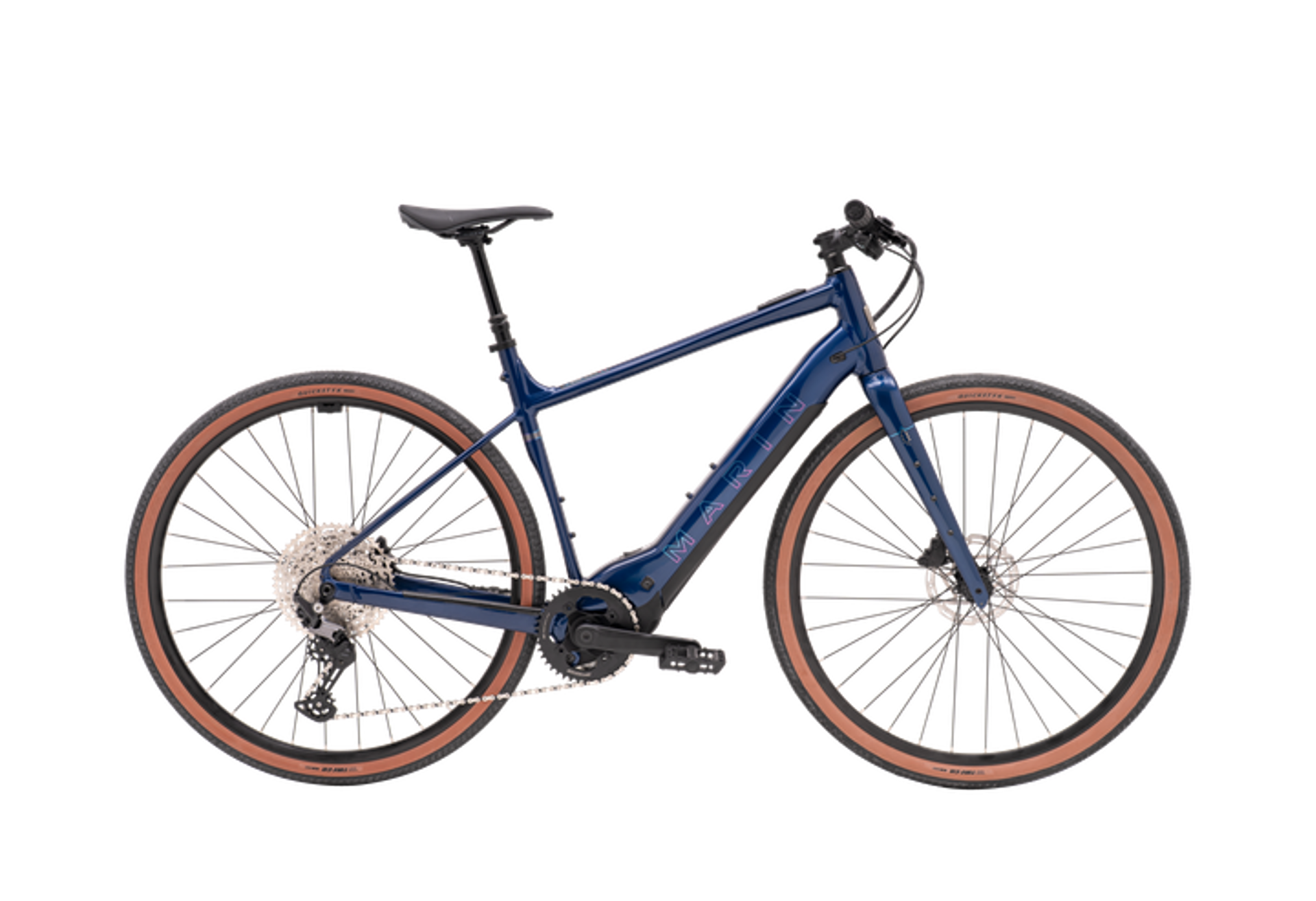

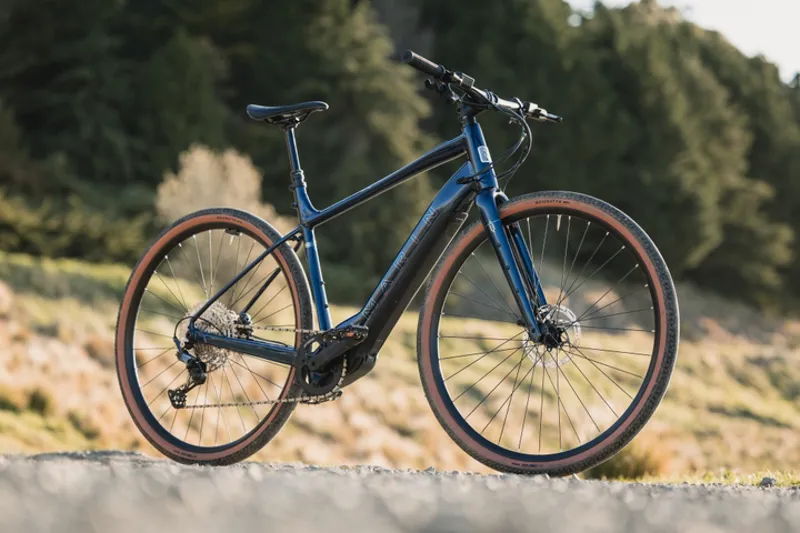

Marin DSX E Flat Bar Gravel Hybrid E.Bike - Gloss Dark Blue

£3,399.00
Size Guide
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Marin DSX E Flat Bar Gravel Hybrid E.Bike - Gloss Dark Blue

Season:2026

Brand:Marin

Code:7407010DBLU

The DSX E is built using our lightweight Series 4 Aluminum and full Carbon Fiber fork with tapered steerer - a combo which keeps things light and stiff where it needs to be and reduces buzz for fast and comfortable ride. High volume tires and clearance for 700 x 50 means rough roads and gravel get ironed out and powerful Tektro Hydraulic disc brakes haul you up when needed.
The Shimano 1 x 12 speed drivetrain, in conjunction with the 600W 60Nm peak power lightweight Bosch SX motor, means you can efficiently climb up nearly any gradient and then rip down the other side confidently making the most of the Trans-X dropper post. Own the commute or weekend mission!
Technical Information

Frame

All-New Series 4 DSX, 6061 Aluminum, One-Piece Hydroformed Downtube & Motor Mount, Internal Cable Routing, Mudguard and Rack Mounts, Flat Mount Disc, 142x12mm Thru-Axle

Fork

Carbon Disc Fork, Internal Cable Routing, Flat Mount Disc 12x100 mm

Motor

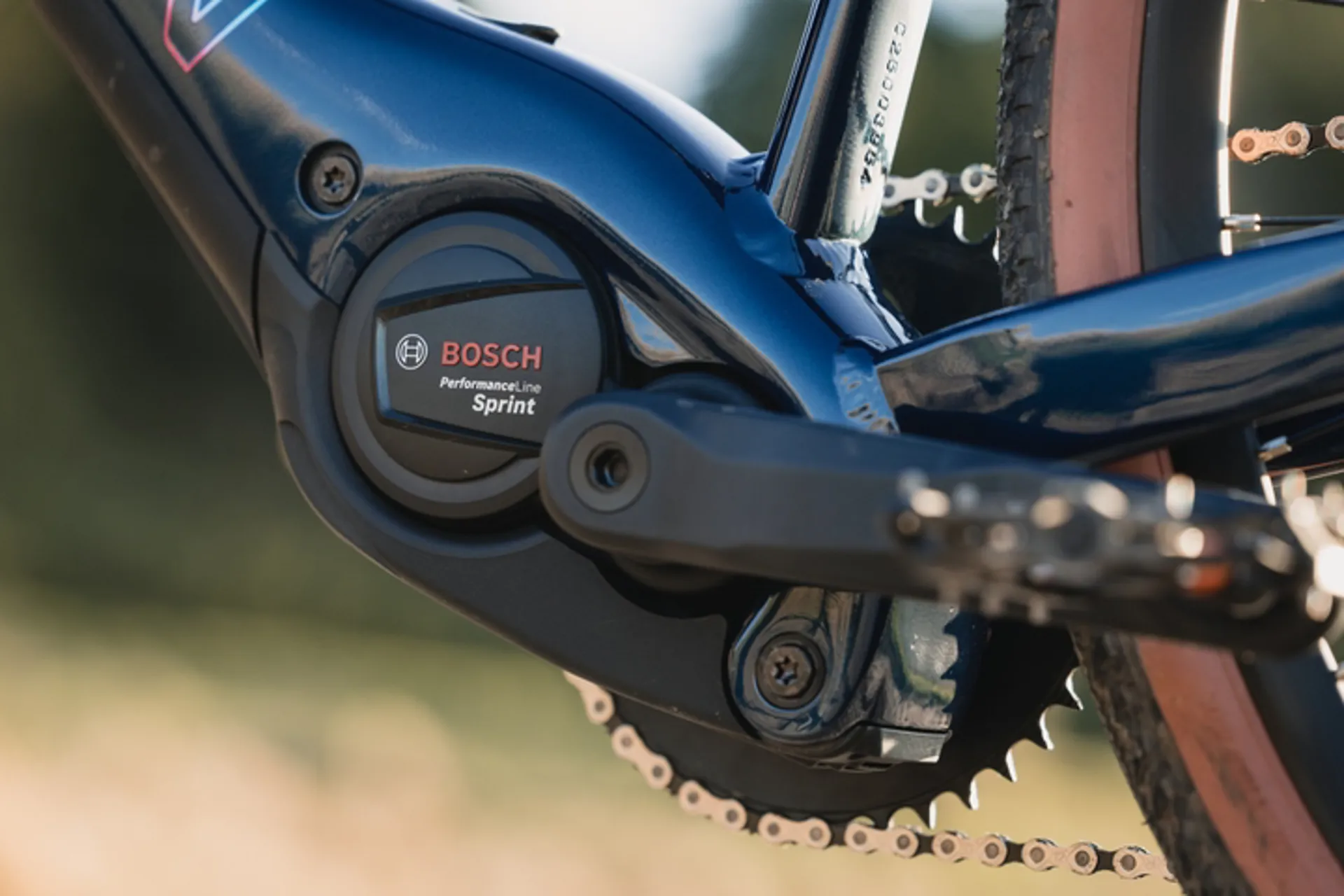

Bosch Performance Line SX Smart System, 60nm Peak Torque, 600W Peak Power, 400% Assist

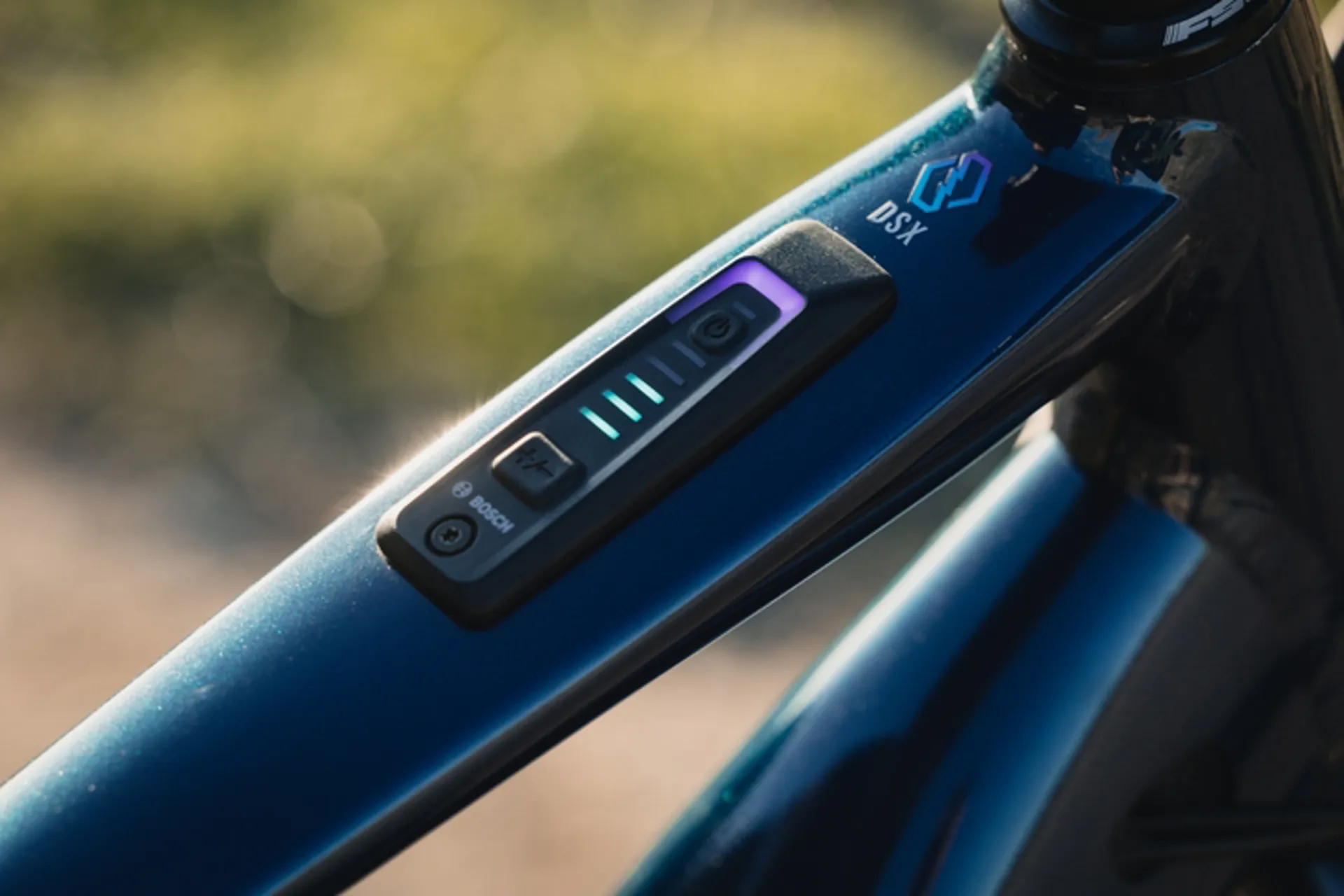

UI/Remote

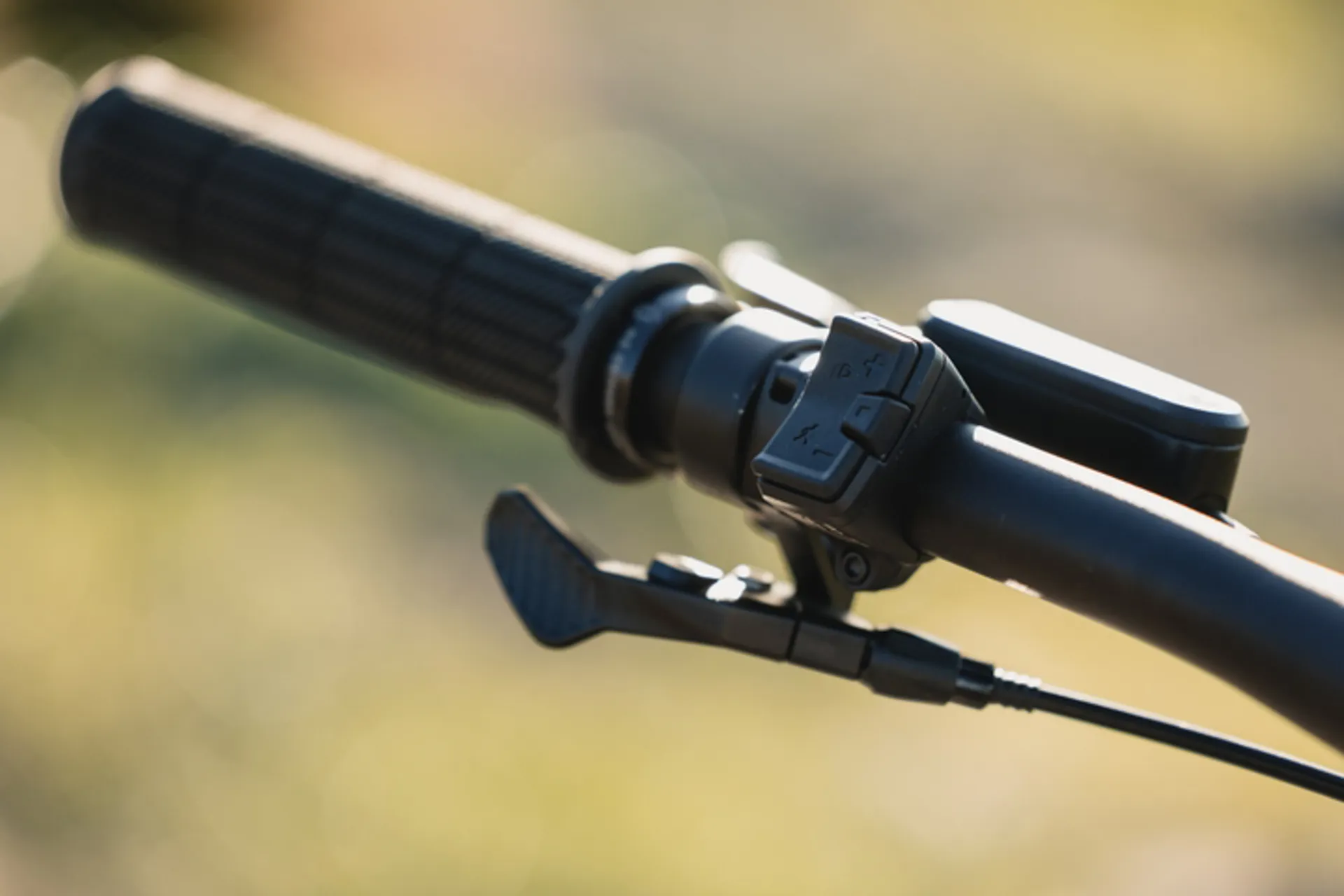

Bosch System Control, Purion400 Display and Mini Wireless Remote

Connectivity

Bluetooth Smart phone Bosch Flow App

Battery

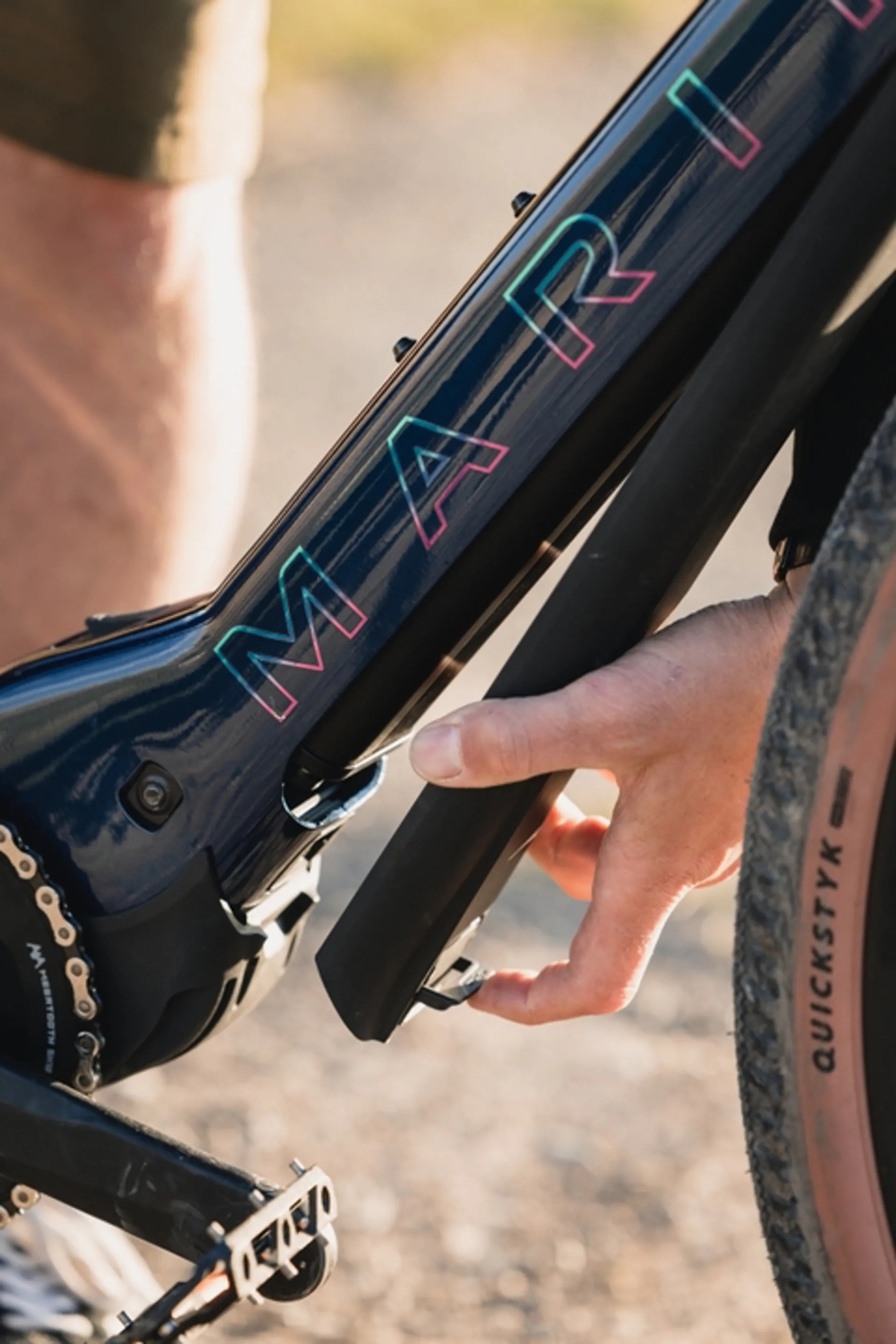

Bosch CompactTube 400wh, optional PowerMore 250 Extender available seperately

Charger

Bosch 2amp Charger

Headset

FSA No.42 ACB, Sealed Cartridge Bearings, 1 1/8” x 1 1/2”

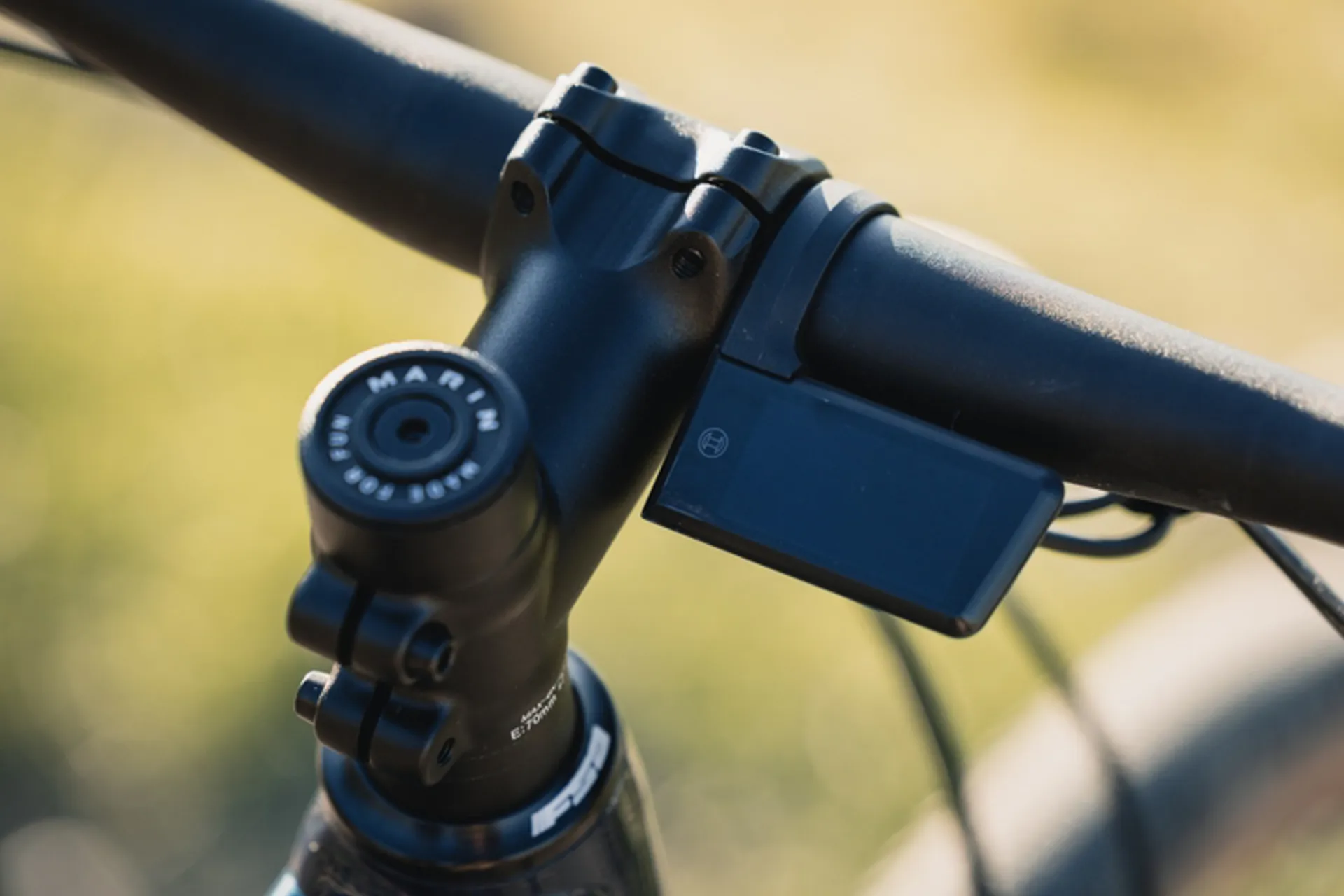

Stem

Marin 3D Forged Alloy

Tape

Marin MTB

Handlebars

Marin MiniRiser

Saddle

Marin DSX

Seatpost

Trans-X Dropper

Brakes

Tektro HD-R3020, Flat-Mount Hydraulic Disc, 160mm Rotor with Tektro Clean Cockpit Levers

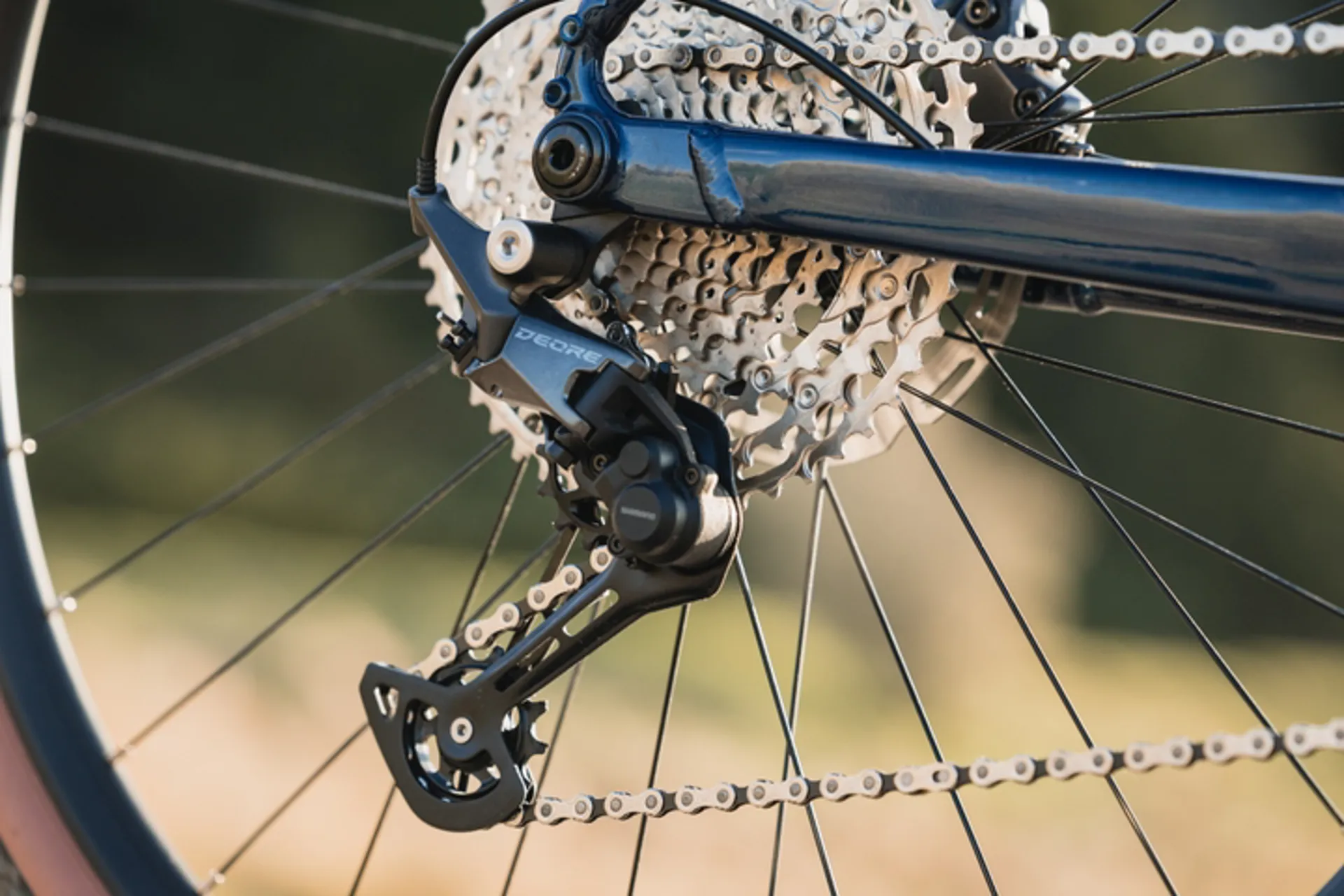

Rear DerailleurShimano Deore, RD6100, 12 Speed
Shift LeversShimano Deore, SLM6100, 12-Speed
CassetteShimano M5100 12 Speed, 10-51 Teeth
ChainKMC X12
CranksetFSA Forged Aluminum, 42T Steel Narrow Wide Chainring
ChainringsFSA 42T Steel Narrow Wide Chainring
HubsForged Aluminum Alloy 32H, Front axle 12x100mm, Rear axle 12x142mm
RimsMarin Aluminum Double Wall, 25mm Inner, 18mm Tall, Disc Specific, Tubeless Compatible

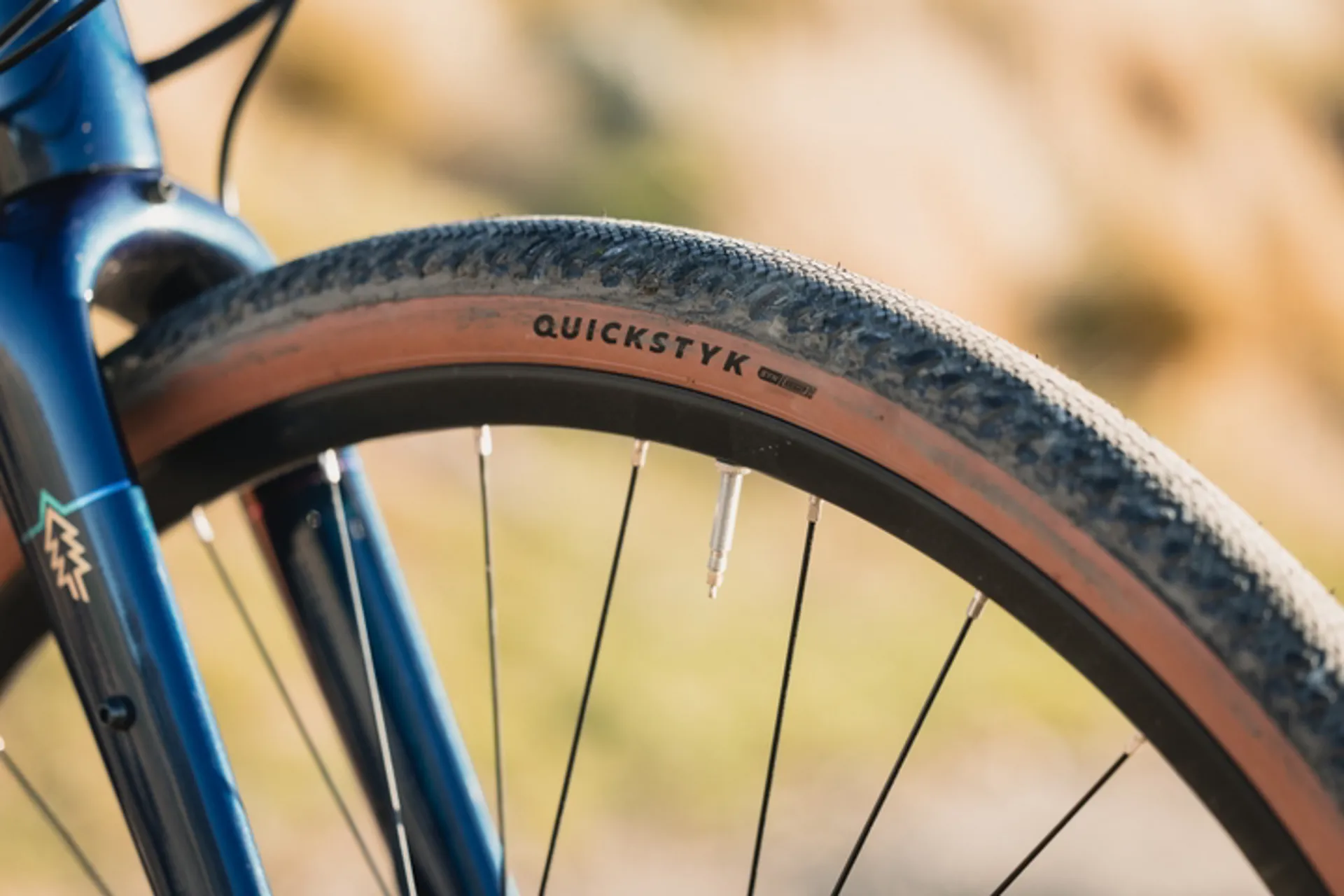

Front TireVee Tire Co., QuikStyk, 700x45, Folding Bead, Tubeless Compatible
Rear TireVee Tire Co., QuikStyk, 700x45, Folding Bead, Tubeless Compatible
Inner TubesPresta Valve
