Bridging the gap between XC and trail, the Tallboy can hold it's own on the descents and rip the climbs in equal measure. Make a list of all the best bits you could have on a fast trail bike... the XX AXS RSV is exactly what you will end up with!
Bridging the gap between XC and trail, the Tallboy can hold it's own on the descents and rip the climbs in equal measure. Make a list of all the best bits you could have on a fast trail bike... the XX AXS RSV is exactly what you will end up with!
Santa Cruz

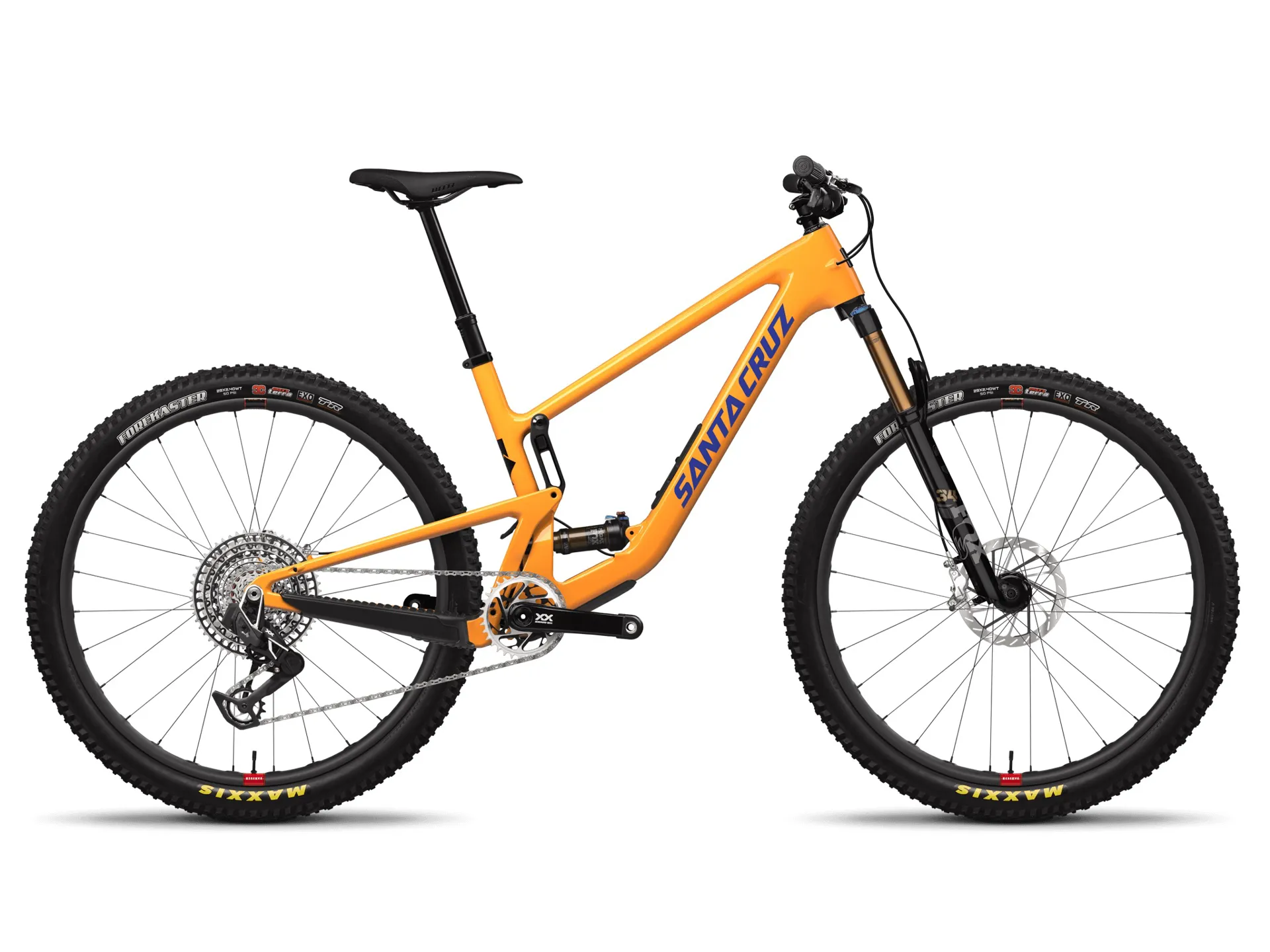

Santa Cruz Tallboy CC V5 XX AXS RSV Kit - Gloss Melon

£10,499.00
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Santa Cruz Tallboy CC V5 XX AXS RSV Kit - Gloss Melon

Season:2024

Brand:Santa Cruz

Code:SCTBCCV5XXRSVGM

The Downhiller's XC Bike

The Tallboy has earned a loyal following amongst those who seek a go-to bike that will hold up to the relentless hammering of "power hour" hot laps or long days in the saddle harvesting the best trails. The highly-refined VPP™ suspension on the Tallboy combines pedaling efficiency and all-out bump-chomping prowess. If ever there was a gravity riders’ XC bike, the Tallboy is it.

Key Features:

Frame Material:Carbon CC
Wheel Size:29"
Front Travel:130mm
Rear Travel:120mm
Transmission:SRAM XX AXS Eagle T-Type
Brakes:SRAM Level Ultimate Stealth 4-Piston
Wheels:Reserve 30|SL Rims and Industry 9 Hydra Hubs
SuspensionFOX 34 Factory or R.Shox Pike Ultimate/ FOX Float Factory
Please note that due to how Santa Cruz Bikes assemble and delivery bikes into the UK, we are unable to give a full and comprehensive stock availabilty or delivery date for bikes and frames listed on the website.

If you are looking at particular models, colours and sizes please get in touch with us and we can advise more accurately to your specific request.

Technical Information
FrameCarbon C
ForkFOX 34 Float Factory, Grip2, 130mm -or- RockShox Pike Ultimate, 130mm
ShockFOX Float Factory, 190x45
Rear DerailleurSRAM XX Eagle AXS T-Type, 12spd
ShiftersSRAM AXS Ultimate Pod Bridge
CranksetSRAM XX Eagle DUB T-Type Crankset, 32t
CassetteSRAM XX Eagle T-Type, 10-52t
ChainSRAM XX Eagle T-Type, Flattop, 12spd
Bottom BracketSRAM DUB 73mm MTB Wide BB
BrakesSRAM Level Ultimate Stealth 4-Piston
Brake RotorsSRAM HS2 180/ 180mm
HeadsetChris King DropSet 3 Integrated Headset
BarsSanta Cruz Carbon
StemIndustry Nine A35, 40mm
GripsSanta Cruz House Grips
Front HubIndustry Nine Hydra, 15x110, 6-Bolt 28h
Rear HubIndustry Nine Hydra, 12x148, XD, 6-Bolt, 28h
RimsReserve 30|SL 29"
Front TireMaxxis Forekaster 29"x2.4"WT, 3C, MaxxTerra, EXO
Rear TireMaxxis Forekaster 29"x2.4"WT, 3C, MaxxTerra, EXO
TubesReserve Sealant
Seat PostOneUp V2 Dropper Post, 31.6 -or- Reverb Stealth -or- Fox Transfer
SaddleWTB Silverado Medium, Ti
Sizing Information
XSSMLXLXXL
Reach | hi/lo405/403430/428455/453475/473495/493520/518
Stack | hi/lo601/603610/612619/621628/630646/648656/658
Head Tube Angle | hi/lo65.7/65.565.7/65.565.7/65.565.7/65.565.7/65.565.7/65.5
Seat Tube Length 370/370380/380405/405430/430460/460500/500
Front Center | hi/lo708/708737/737766/766790/790818/818847/847
BB Height | hi/lo335/332335/332335/332335/332335/332335/332
BB Drop | hi/lo38/4138/4138/4138/4138/4138/41
Wheelbase | hi/lo1138/11381167/11671199/11991227/12271257/12581290/1291
Rear Center | hi/lo430/431430/431433/434437/438439/440443/444
Head Tube Length 95/95105/105115/115125/125145/145155/155
Top Tube Length | hi/lo555/556579/580602/603622/623644/645671/671
Seat Tube Angle | hi/lo76/75.776.3/7676.7/76.476.8/76.677/76.877.1/76.8
Standover Height | hi/lo680/676693/691696/693698/695698/695701/698


Tallboy 5 Size Chart
