Bridging the gap between XC and trail, the Tallboy can hold it's own on the descents and rip the climbs in equal measure.. in R Kit disguise all whilst leaving money in the bank for other fun stuff!
Bridging the gap between XC and trail, the Tallboy can hold it's own on the descents and rip the climbs in equal measure.. in R Kit disguise all whilst leaving money in the bank for other fun stuff!
Santa Cruz

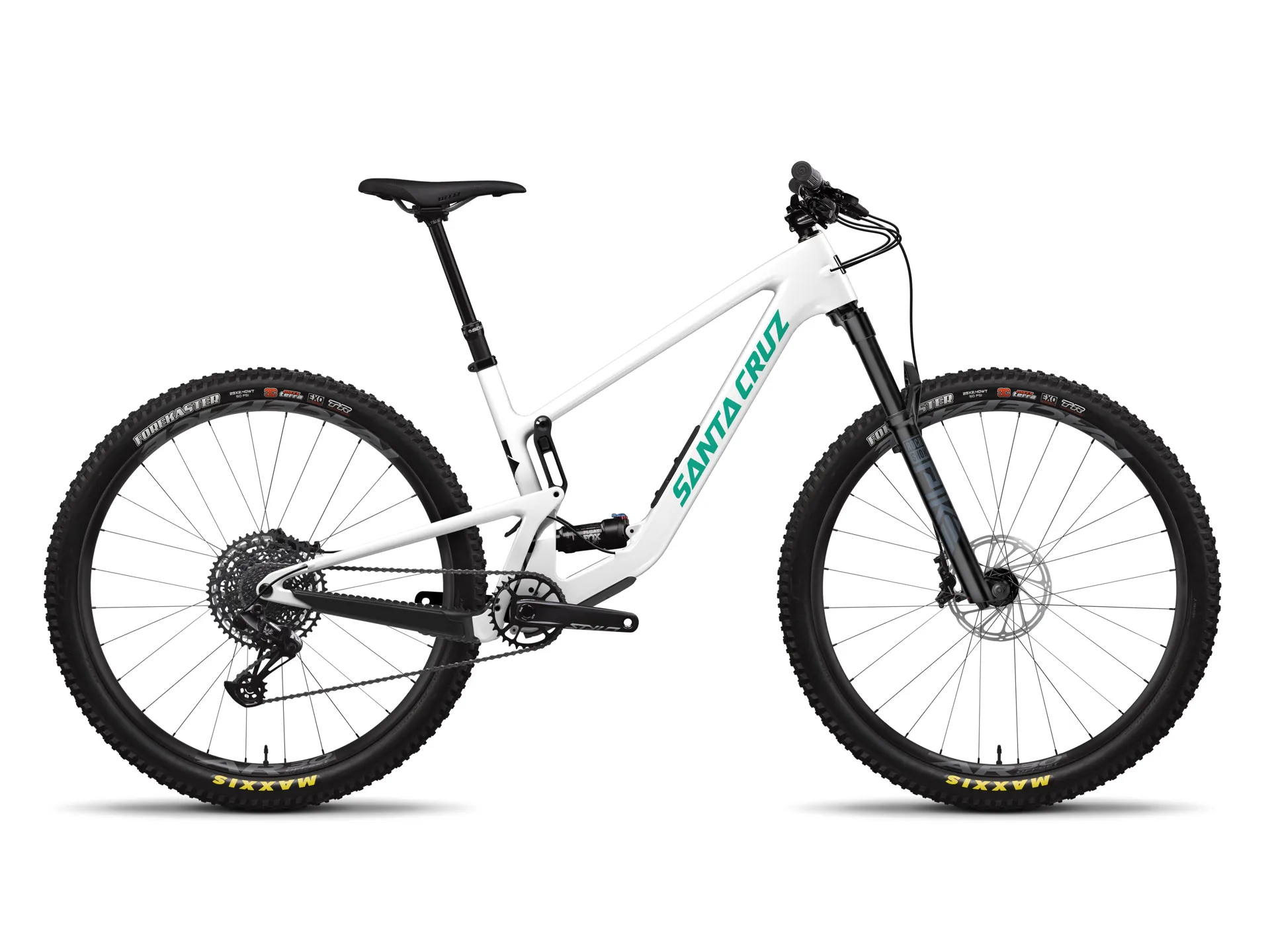

Santa Cruz Tallboy C V5 R 29 Kit - Gloss White

£4,799.00
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Santa Cruz Tallboy C V5 R 29 Kit - Gloss White

Season:2024

Brand:Santa Cruz

Code:SCTBCV5RGW

The Downhiller's XC Bike

The Tallboy has earned a loyal following amongst those who seek a go-to bike that will hold up to the relentless hammering of "power hour" hot laps or long days in the saddle harvesting the best trails. The highly-refined VPP™ suspension on the Tallboy combines pedaling efficiency and all-out bump-chomping prowess. If ever there was a gravity riders’ XC bike, the Tallboy is it.

Key Features:

Frame Material:Carbon C
Wheel Size:29"
Front Travel:130mm
Rear Travel:120mm
Transmission:SRAM NX Eagle
Brakes:SRAM G2 R
Wheels:RaceFace AR Offset 30 Rims and SRAM MTH 716/ 746 Hubs
SuspensionR.Shox Pike/ FOX Float Performance
Please note that due to how Santa Cruz Bikes assemble and delivery bikes into the UK, we are unable to give a full and comprehensive stock availabilty or delivery date for bikes and frames listed on the website.

If you are looking at particular models, colours and sizes please get in touch with us and we can advise more accurately to your specific request.

Technical Information
FrameCarbon C
ForkRockShox Pike, 130mm
ShockFOX Float Performance, 190x45
Rear DerailleurSRAM NX Eagle, 12spd
ShiftersSRAM NX Eagle, 12spd
CranksetSRAM Stylo 148 DUB 32t
CassetteSRAM PG1230, 12spd, 11-50t
ChainSRAM NX Eagle, 12spd
Bottom BracketSRAM DUB 68/73mm Threaded BB
BrakesSRAM G2 R
Brake RotorsSRAM Centerline 180/ 180mm
HeadsetFSA IS-2/47/42 ACB or Cane Creek 10 IS Integrated
BarsRaceFace Ride
StemBurgtec Enduro MK3, 42mm
GripsSanta Cruz House Grips
Front HubSRAM MTH 716, 15x110, Torque Cap, 32h
Rear HubSRAM MTH 746, 12x148, 32h
RimsRaceFace AR Offset 30 29"
Front TireMaxxis Forekaster 29"x2.4"WT, 3C, MaxxTerra, EXO
Rear TireMaxxis Forekaster 29"x2.4"WT, 3C, MaxxTerra, EXO
TubesStan's Sealant
Seat PostSDG Tellis Dropper, 31.6
SaddleWTB Silverado, CroMo
Sizing Information
XSSMLXLXXL
Reach | hi/lo405/403430/428455/453475/473495/493520/518
Stack | hi/lo601/603610/612619/621628/630646/648656/658
Head Tube Angle | hi/lo65.7/65.565.7/65.565.7/65.565.7/65.565.7/65.565.7/65.5
Seat Tube Length 370/370380/380405/405430/430460/460500/500
Front Center | hi/lo708/708737/737766/766790/790818/818847/847
BB Height | hi/lo335/332335/332335/332335/332335/332335/332
BB Drop | hi/lo38/4138/4138/4138/4138/4138/41
Wheelbase | hi/lo1138/11381167/11671199/11991227/12271257/12581290/1291
Rear Center | hi/lo430/431430/431433/434437/438439/440443/444
Head Tube Length 95/95105/105115/115125/125145/145155/155
Top Tube Length | hi/lo555/556579/580602/603622/623644/645671/671
Seat Tube Angle | hi/lo76/75.776.3/7676.7/76.476.8/76.677/76.877.1/76.8
Standover Height | hi/lo680/676693/691696/693698/695698/695701/698


Tallboy 5 Size Chart
