The newest version of the Hightower remains our greatest hits of engineering. The XX AXS RSV Kit brings the best of everything... CC Frsame, Reserve Wheels, XX T-Type gears and bespoke finishing kit
The newest version of the Hightower remains our greatest hits of engineering. The XX AXS RSV Kit brings the best of everything... CC Frsame, Reserve Wheels, XX T-Type gears and bespoke finishing kit
Santa Cruz

Santa Cruz Hightower CC V3 XX AXS RSV Kit - Matte Cardinal Red

£10,399.00
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

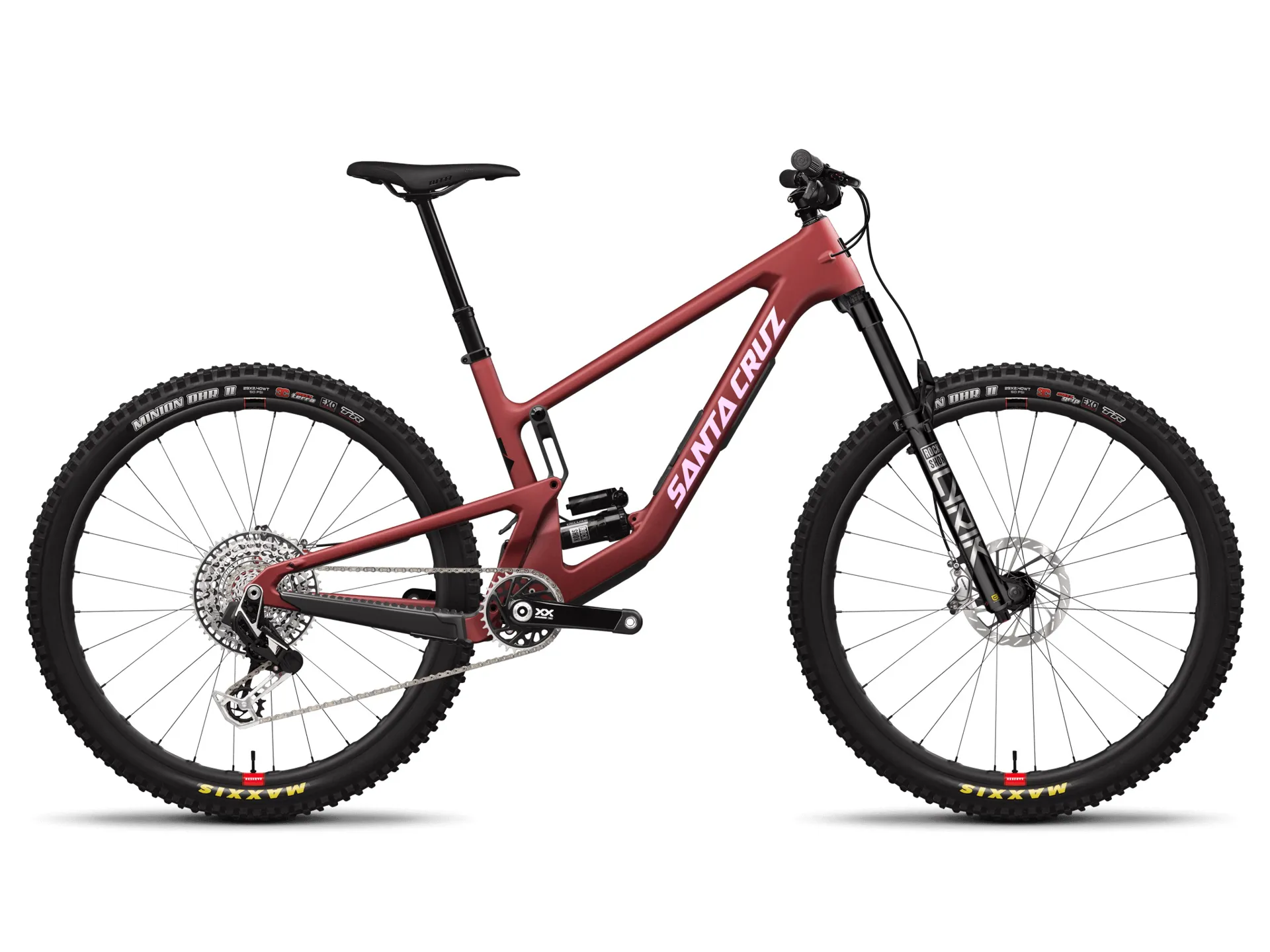

Santa Cruz Hightower CC V3 XX AXS RSV Kit - Matte Cardinal Red

Season:2024

Brand:Santa Cruz

Code:SCHTCCV3XXRSVMCR

The newest version of the Hightower remains our greatest hits of engineering - now further refined and bottled into our most all-terrain of bikes. Big on wheels, medium on travel, short on fuss, this is the do-it-all model that does it over and over again thanks to a versatile balance of geo, spec and durability. If you’re not looking for extremes, just something extremely good, the Hightower is your elevator.

Key Features:

Frame Material:Carbon CC
Wheel Size:29"
Front Travel:150mm
Rear Travel:145mm
Transmission:SRAM XX Eagle AXS T-Type
Brakes:SRAM Code Ultimate Stealth
Wheels:Reserve 30|HD Rims and Industry 9 Hydra Hubs
SuspensionRockShox Lyrik Ultimate -or- FOX 36 Float Factory/ R.Shox Super Deluxe Ultimate
Please note that due to how Santa Cruz Bikes assemble and delivery bikes into the UK, we are unable to give a full and comprehensive stock availabilty or delivery date for bikes and frames listed on the website.

If you are looking at particular models, colours and sizes please get in touch with us and we can advise more accurately to your specific request.

Technical Information
FrameCarbon CC 29" 145mm Travel VPP™
ForkRockShox Lyrik Ultimate, 150mm -or- FOX 36 Float Factory
ShockRockShox Super Deluxe Ultimate, 210x55
Rear DerailleurSRAM XX Eagle AXS T-Type, 12spd
Shifters

SRAM AXS Pod Ultimate Bridge

CranksetSRAM XX Eagle DUB T-Type Crankset, 32t
CassetteSRAM XX Eagle T-Type, 10-52t
ChainSRAM XX Eagle T-Type, Flattop, 12spd
Bottom BracketSRAM DUB 68/73mm Threaded BB
BrakesSRAM Code Ultimate Stealth
Brake RotorsSRAM HS2 180mm/180mm
HeadsetChris King DropSet 3 Integrated Headset
BarsSanta Cruz Carbon
StemIndustry Nine A35, 40mm
GripsSanta Cruz House Grips
Front HubIndustry Nine Hydra, 15x110, Torque Cap, 6-Bolt, 28h
Rear HubIndustry Nine Hydra, 12x148, XD, 6-Bolt, 28h
RimsReserve 30|HD 29"
Front TireMaxxis Minion DHR II 29"x2.4", 3C MaxxGrip, EXO, TR
Rear TireMaxxis Minion DHR II 29"x2.4", 3C Maxx-Terra, EXO, TR
TubesReserve Sealant
Seat PostOneUp V2 Dropper Post, 31.6 -or- Reverb Stealth -or- Fox Transfer
SaddleWTB Silverado Medium, Ti

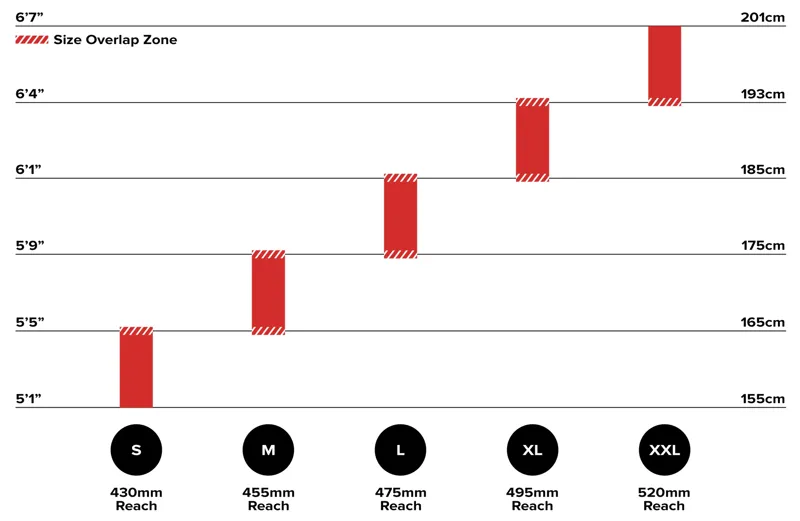

Sizing Information
SMLXLXXL
Reach | hi/lo430/427455/452475/472495/492520/517
Stack | hi/lo611/613625/627634/636652/654665/668
Head Tube Angle | hi/lo64.8°/64.5°64.8°/64.5°64.8°/64.5°64.8°/64.5°64.8°/64.5°
Seat Tube Length 380405430460500
Front Center | hi/lo752/752783/783807/807836/836867/867
BB Height | hi/lo342/339342/338342/338342/338342/338
BB Drop | hi/lo31/3431/3431/3431/3431/34
Wheelbase | hi/lo1183/11831217/12181244/12451276/12761310/1311
Rear Center | hi/lo431/432434/435437/438440/441443/444
Head Tube Length 100115125145160
Top Tube Length | hi/lo571/572599/600626/627647/648674/675
Seat Tube Angle | hi/lo77°/76.7°77°/76.7°76.7°/76.4°76.9°/76.6°76.9°/76.7°
Standover Height | hi/lo706/701708/703711/706714/709719/714
