The Big Al is the 29” counterpart to the Marley; designed as a fun all-rounder with the same performance and value that made its smaller-wheeled sibling a multiple test winner.
The Big Al is the 29” counterpart to the Marley; designed as a fun all-rounder with the same performance and value that made its smaller-wheeled sibling a multiple test winner.
Ragley

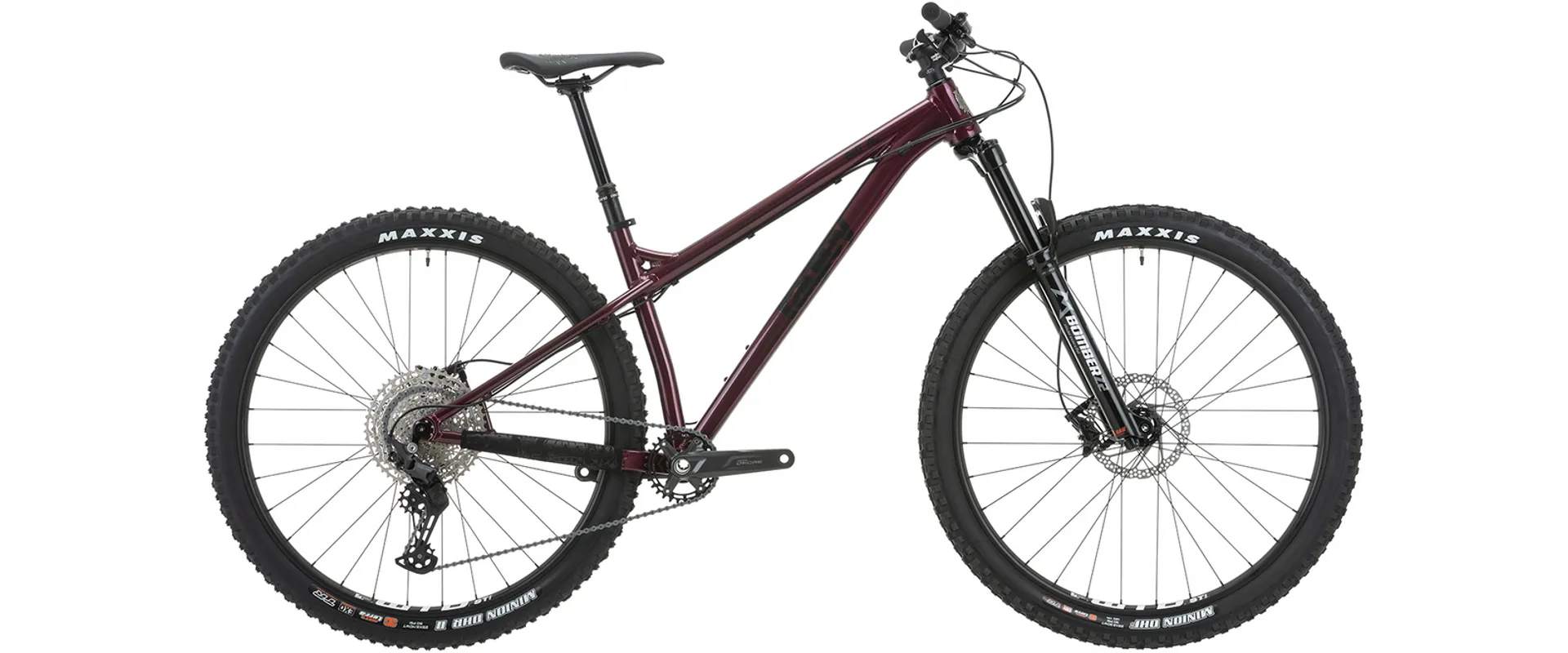

Ragley Big AL 1.0 - Raspberry

Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Ragley Big AL 1.0 - Raspberry

Season:2022

Brand:Ragley

Code:106515853RSB

The Big Al is the 29” counterpart to the Marley; designed as a fun all-rounder with the same performance and value that made its smaller-wheeled sibling a multiple test winner.

The Big Al 1.0 takes all that’s great about the 2.0 but upgrades the spec: The addition of the group test winning Brand-X Ascend dropper plus the upgraded 11-speed Deore groupset and SRAM DB8 brakes.

Keeping things lively at the business end; a Marzocchi Z2 Rail provides additional stiffness with 140mm of exceptional damping to keep the front wheel digging into the dirt.

A perfect balance between all-out gravity led tomfoolery and practical pedalability. Just like the Marley, the Big Al is well mannered during a leisurely all-day ride but drop the saddle and send it down the rough stuff for the good times…

Everything you could want from an all-round hardtail; get wild straight out of the box.

Material6061 alloy
Recommended Fork Travel130mm – 150mm
Axle to Crown541mm
Fork Offset51mm
Wheels Size29''
Max Tyre Size2.5''
HeadtubeZS44/28.6 | ZS56/40
Seatpost31.6mm
Seat Clamp34.9mm
BB73mm BSA
Rear Hub12x148mm
Rear AxleM12x175mm 1.5 Thread
Chain GuideISCG 05 Tabs
Brake MountPM160
ProtectionChain Stay
Technical Information
  • Frame
    Ragley Big Al - Alloy Boost 29"
  • Fork
    Marzocchi Bomber Z2, 140mm Travel, RAIL, Gloss Black, Kabolt:15x110, 1.5 Tapered steerer, 51mm offset
  • Wheelset
    Nukeproof Neutron Boost Hubs, 36 points of engagement, HG Freehub, WTB ST i30 TSC 2.0 29'' 32h rims
  • Shifter
    Shimano Deore SL-M5100, 11-SPEED RAPIDFIRE, Direct attach to brake using iSpec EV
  • Rear Deraileur
    Shimano Deore RD-M5100 SGS 11-SPEED, SHADOW PLUS DESIGN
  • Chain
    KMC X11-EPT 11SPEED. W/QL, 118L
  • Cassette
    Shimano Deore M5100 11-51t or DTS GMX 11-50t 11 Speed
  • Crankset
    Shimano Deore M5100 or Race Face Ride, 170mm, 30t, Boost
  • Brakes
    SRAM DB8
  • Rotors
    SRAM Centerline 180mm
  • Tyres
    Maxxis MINION DHF 29x2.5 WT 3C MaxxTerra/EXO+/TR 120TPI, Maxxis MINION DHR II 29X2.40 WT 3C MaxxTerra/EXO/TR 60TPI
  • Handlebars
    Ragley Alloy Handlebar, Black, 25mm Rise, 31.8mm Clamp (Width - S780mm, M780mm, L800mm, XL800mm)
  • Stem
    Ragley 31.8mm clamp, 50mm length, +3° rise
  • Saddle
    Ragley Saddle
  • Seatpost
    Brand-X Ascend Internal Routed 31.6mm; MD - 150mm Drop; LG, XL - 170mm Drop
  • Headset
    Nukeproof Neutron ZS44/28.6 | ZS56/40 Headset with Ragley Top Cap
  • Grips
    Ragley A20 Compound
Sizing Information

MediumLargeX-Large
(A) Reach440mm460mm480mm
(B) Stack634mm643mm652mm
(C) Effective Top Tube Length625mm645mm667mm
(D) Seattube Length420mm460mm500mm
(E) Seattube Angle (Actual)747474
(F) Headtube Length100mm110mm120mm
(G) Headtube Angle65.565.565.5
(H) Chainstay Length435mm435mm435mm
(I) Wheelbase119712171241
(J) Bottom Bracket Drop-65mm-65mm-65mm
(K) Stand Over Height758mm784mm813mm
(L) Fork Travel140mm140mm140mm
(M) Fork Offset51mm51mm51mm
(N) Axle to Crown541mm541mm541mm
