The Rift Zone 27.5 is Marin's most playful trail bike, made for the ride
The Rift Zone 27.5 is Marin's most playful trail bike, made for the ride
Marin

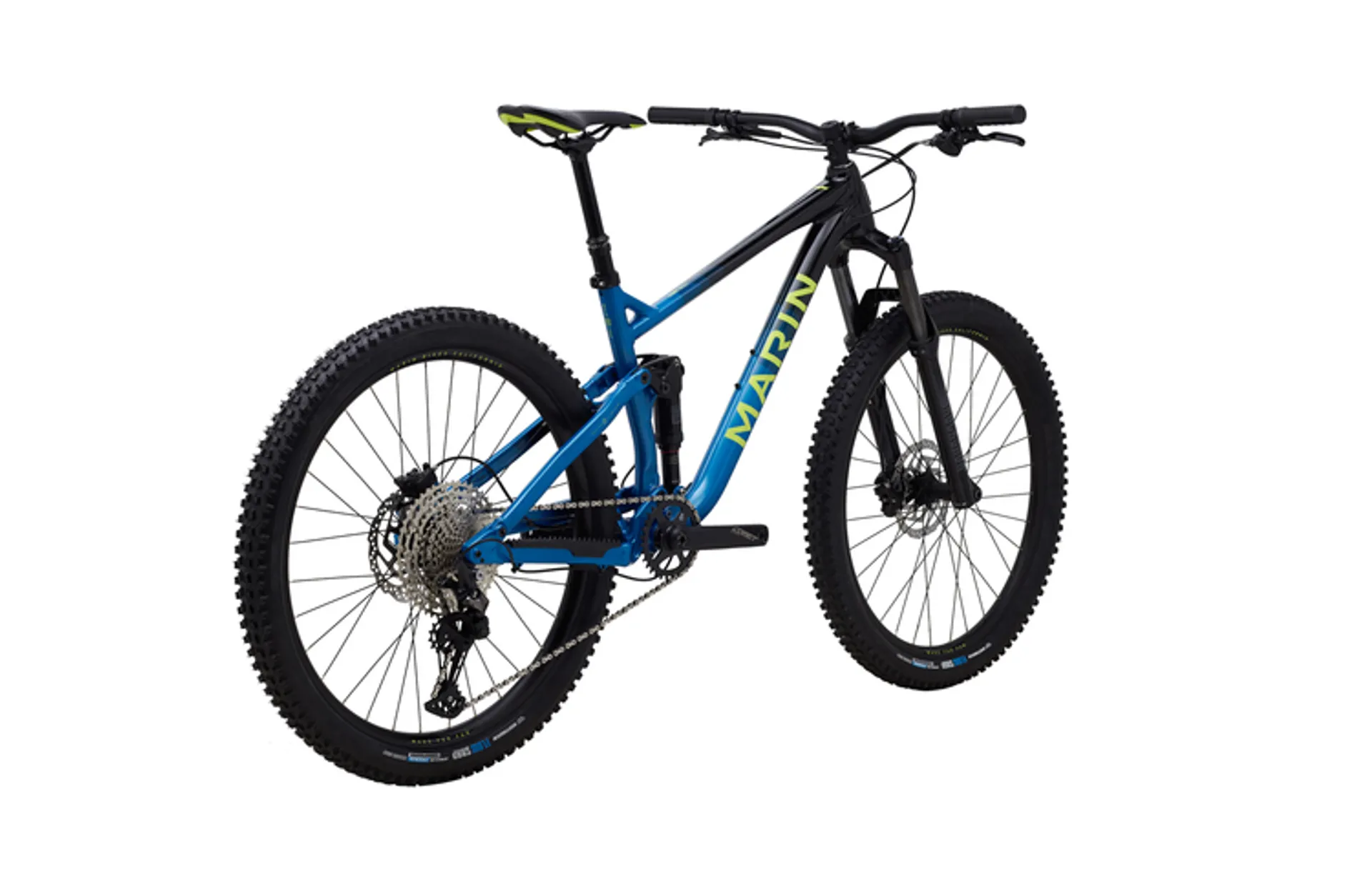

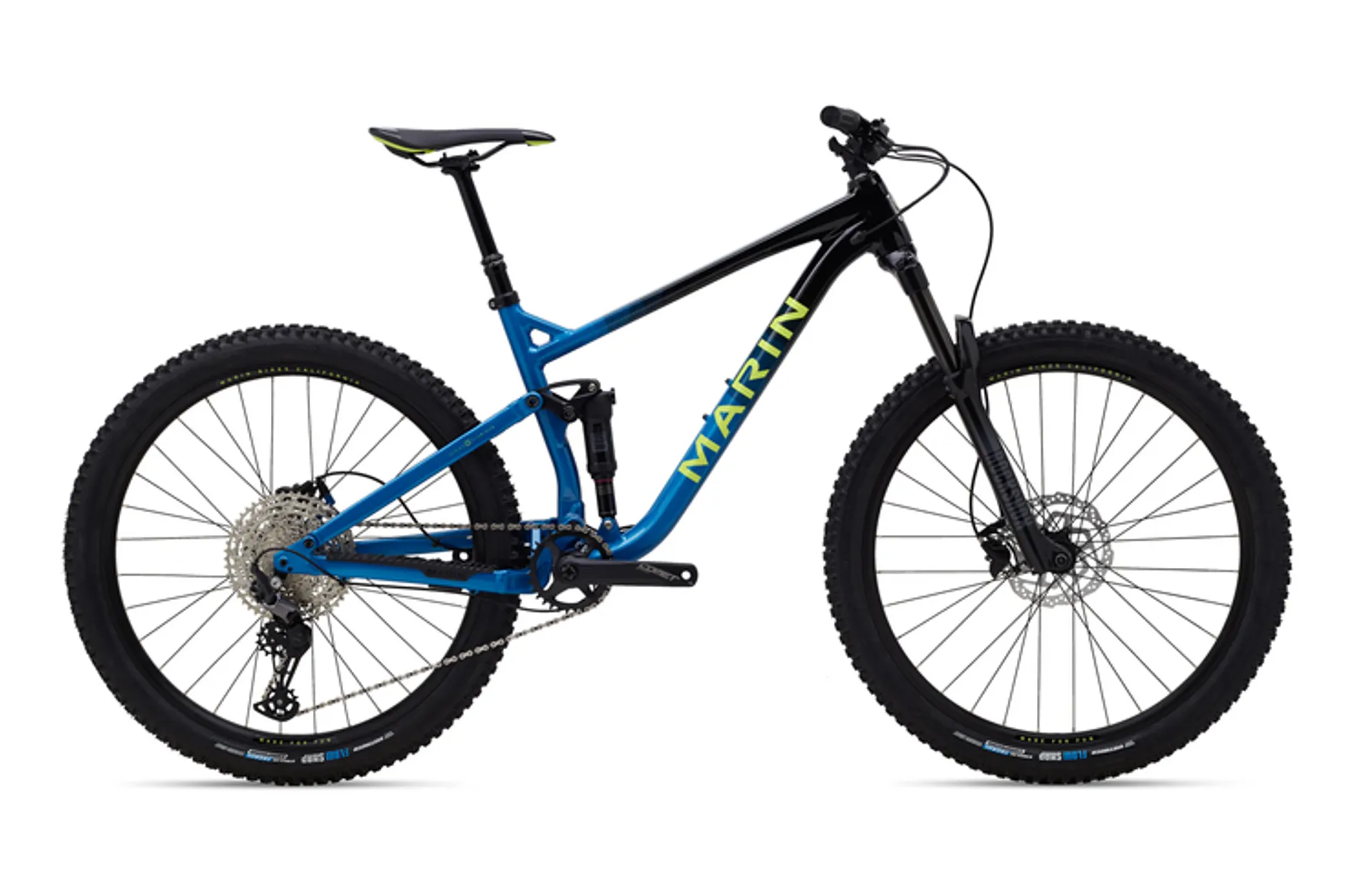

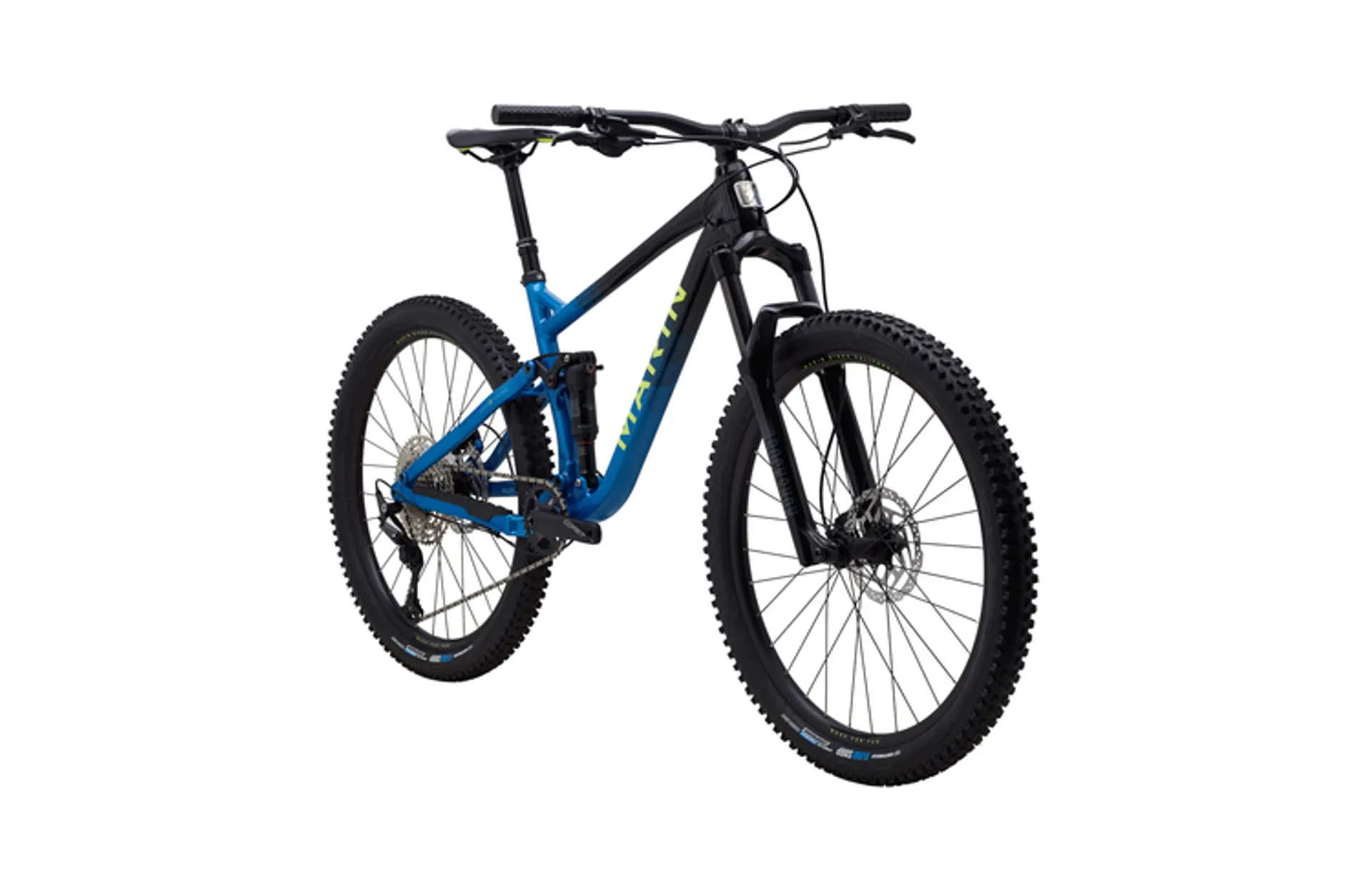

Marin Rift Zone 2 27.5 - Black/Blue

Size Guide
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Marin Rift Zone 2 27.5 - Black/Blue

Season:2022

Brand:Marin

Code:73327200

ALL AROUND TRAIL ENJOYMENT

HAVING FUN

The Rift Zone 27.5 is our most playful trail bike, made for the rider that catches a bit of air off of every root in the trail, is always looking for an alternate line, and ends every ride with a smile. This is an all-around suspension bike with trail performance far out stretching the asking price.

Key upgrades from Rift Zone 27.5 1:

  • RockShox Deluxe Select R Debonair rear shock
  • Shimano Deore 12-speed drivetrain
  • Vee Tire Flow Snap 2.35" tires
Technical Information



SPECIFICATIONS

FRAME

Series 3 6061 Aluminum Frame, 27.5” Wheels, 120mm Travel, MultiTrac Suspension Platform, 148x12mm Boost Thru-Axle, 73mm Threaded BB w/ ISCG05 Tabs

FRONT SUSPENSION

RockShox Recon Silver RL 27.5", 130mm Travel, Solo Air, Compression and Rebound Adjustment, Alloy Tapered Steerer, Fast Black Uppers, 110x15mm Boost Spacing, Maxle Stealth, 37mm Offset

REAR SUSPENSION

RockShox Deluxe Select R, Debonair Air Sleeve, Rebound Adjustment, Custom Tune, 210x50mm, M8x25mm Hardware

RIMS

Marin, Double Wall Alloy, 29mm Inner, Pinned Joint, Disc Specific, 32H, Tubeless Compatible

HUB, REAR

Shimano HB-MT410B, 148x12mm, Centerlock, Microspline Freehub Body

HUB, FRONT

Shimano HF-MT410B, 110x15mm, Centerlock

SPOKE, NIPPLES

14g Black Stainless Steel

TIRES

Vee Tire Flow Snap 27.5x2.35", Tackee Compound, Tubeless Ready

DERAILLEUR, REAR

Shimano Deore, 12-Speed, SGS

SHIFT LEVER

Shimano Deore, 12-Speed, SL-7100R

CRANKSET

FSA Comet, Modular 1x, 32T Direct Mount Chainring, MegaTooth Technology, Boost Spacing

BOTTOM BRACKET

Mega EXO 73mm BSA

CHAIN

KMC X-12 Silver and Black

CASSETTE

Shimano, Deore 12-Speed, 10-51T

BRAKE, FRONT

Shimano BR-MT200 Hydraulic Disc, 180mm Rotor

BRAKE, REAR

Shimano BR-MT200 Hydraulic Disc, 180mm Rotor

BRAKE LEVERS

Shimano BL-MT201 Hydraulic

HANDLEBAR

Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back

STEM

Marin 3D Forged Alloy, 35mm

GRIPS

Marin Single Clamp Locking

HEADSET

FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2”

SEATPOST

TranzX, YSP23JL, 1x Remote, Size S 125mm Travel, Size M and L 150mm Travel, Size XL 175mm Travel, 30.9mm

SADDLE

Marin Speed Concept

PEDALS

Choose your pedals by clicking on here

Sizing Information

Geometry

Rift Zone 27.5 2 geometry diagram
XSSMLXL
Stack579583.6588.2597.3601.9
Reach410425445465485
Headtube Angle66.5°66.5°66.5°66.5°66.5°
Headtube Length105110120125130
Seattube Angle75°74.7°74.5°74.3°74.1°
Seattube Length330380425470515
Toptube Effective570.6586.8608.1632.9651.9
BB Height338.5338.5338.5338.5338.5
BB Drop1818181818
Chainstay430430430430430
Wheelbase1129.41146.31168.31192.31214.3
Standover Height647665702727768
Fork Offset4242424242
Seatpost Diameter30.930.930.930.930.9
Handlebar Width780780780780780
Stem Length3535353535
Crank Length170170175175175

All lengths in millimeters
