The Alpine Trail is a 29” wheeled full suspension bike built for the all day enduro rider that earns their downhill fun.
The Alpine Trail is a 29” wheeled full suspension bike built for the all day enduro rider that earns their downhill fun.
Marin

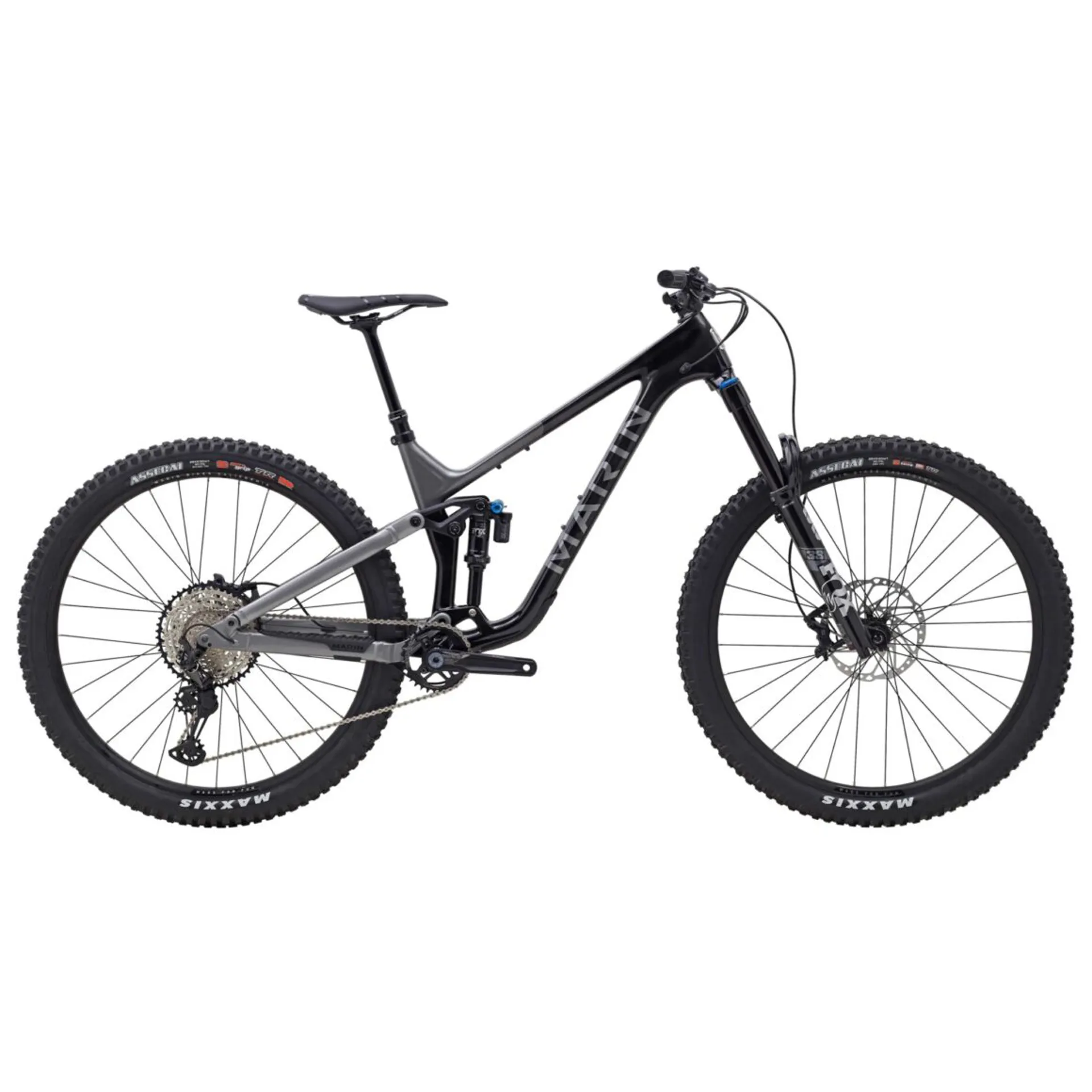

Marin Alpine Trail C2 Full Suspension Mountain Bike - Black/ Silver

£3,400.00
Size Guide
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Marin Alpine Trail C2 Full Suspension Mountain Bike - Black/ Silver

Season:2023

Brand:Marin

Code:7324020GLSBLK

Big mountains, epic passes, and all day ripping descents.

If you live for the alpine adventure and gravity-fueled downhills, look no further than the Alpine Trail series. Updated for 2021, and built around the longest travel version of our critically acclaimed MultiTrac platform with progressive slack headtube/steep seattube geometry, low-slung aluminum or carbon frames, and 29” wheels, the Alpine Trail is here to conquer all singletrack in its path.

Technical Information
  • FRAME
    Unidirectional Carbon Fiber Front Triangle, Series 4 Alloy Rear End, 29” Wheels, 150mm Travel MultiTrac Suspension Platform, Internal Dropper Post and Rear Derailleur Routing, Chainstay Mounted Post Mount Disc Brake, 148x12mm Boost Thru-Axle, 73mm Threaded BB w/ ISCG05 Tabs
  • FORK
    Fox 38 Performance Elite, 160mm Travel, 29" , 110x15mm Boost Kabolt Thru-Axle, 44mm Offset, Integrated Fox Fender
  • REAR SHOCK
    Fox Float X, Performance, EVOL Air Spring, 3 Position Compression Adjustment, Rebound Adjustment, 205x65mm, Trunnion Upper Mount, 25mmxM8 Lower Mount
  • RIMS
    Marin, Double Wall Alloy, 29mm Inner, Welded Joint, Disc Specific, 32H, Tubeless Compatible
  • HUB REAR
    Shimano HB-MT510B, 148x12mm, Disc, Microspline Freehub Body
  • HUB FRONT
    Shimano HF-MT410B, 110x15mm, Disc
  • SPOKE
    14g Black Stainless Steel
  • TIRES
    Front: Maxxis Assegai 29x2.5”, MaxxTerra, EXO+, Tubeless Compatible; Rear: Maxxis Assegai 29x2.5”, MAXX GRIP, DoubleDown, Tubeless Compatible
  • DERAILLEUR REAR
    Shimano XT 12-Speed, SGS
  • DERAILLEUR FRONT
    -
  • SHIFT LEVER
    Shimano SLX 12-Speed, I-Spec EV
  • CRANKSET
    FSA Gradient, Modular 1x, 32T Direct Mount Chainring, MegaTooth Technology, Mego EXO Spindle, Boost Spacing
  • BOTTOM BRACKET
    MEGAEVO BB, 73mm BSA Threaded
  • CHAIN
    KMC X-12 Silver and Black
  • CASSETTE
    Shimano SLX M7100 Cassette, 12-Speed, 10-51T
  • BRAKE FRONT
    Shimano SLX, 4-Piston Hydraulic Disc Brake, 203mm Rotor
  • BRAKE REAR
    Shimano SLX, 4-Piston Hydraulic Disc Brake, 180mm Rotor
  • BRAKE LEVERS
    Shimano SLX Hydraulic, I-Spec EV
  • HANDLEBAR
    Race Face Affect R 35, 35mm Clamp, 780mm Width, 20mm Rise, 5º Up, 8º Back
  • STEM
    Race Face Affect R 35, 50mm Length
  • GRIPS
    Marin Single Clamp Locking
  • HEADSET
    FSA No 57, Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
  • SEATPOST
    X-Fusion Manic, 1x Shimano I-Spec EV Remote, Size S 125mm Travel, Size M and L 150mm Travel, Size XL 170mm Travel, 30.9mm
  • SADDLE
    Marin Trail Speed Concept Pro
  • PEDALS
    -
  • EXTRAS
    Bolt-On Thru-Axle
Sizing Information
SMLXL
Stack619628632643
Reach430455480515
Headtube Angle63.5°63.5°63.5°63.5°
Headtube Length100110115130
Seattube Angle78°78°78°78°
Seattube Length390400425430
Toptube Effective561.7589615652
BB Height342342342342
B Drop35353535
Chainstay430430430430
Wheelbase1199122912561297
Standover Height690694695698
Fork Offset44444444
Seatpost Diameter30.930.930.930.9
Handlebar Width780780780780
Stem Length50505050
Crank Length170170170170
