The 2022 San Quentin 1 is a great budget trail slayer of a hardtail.
The 2022 San Quentin 1 is a great budget trail slayer of a hardtail.
Marin

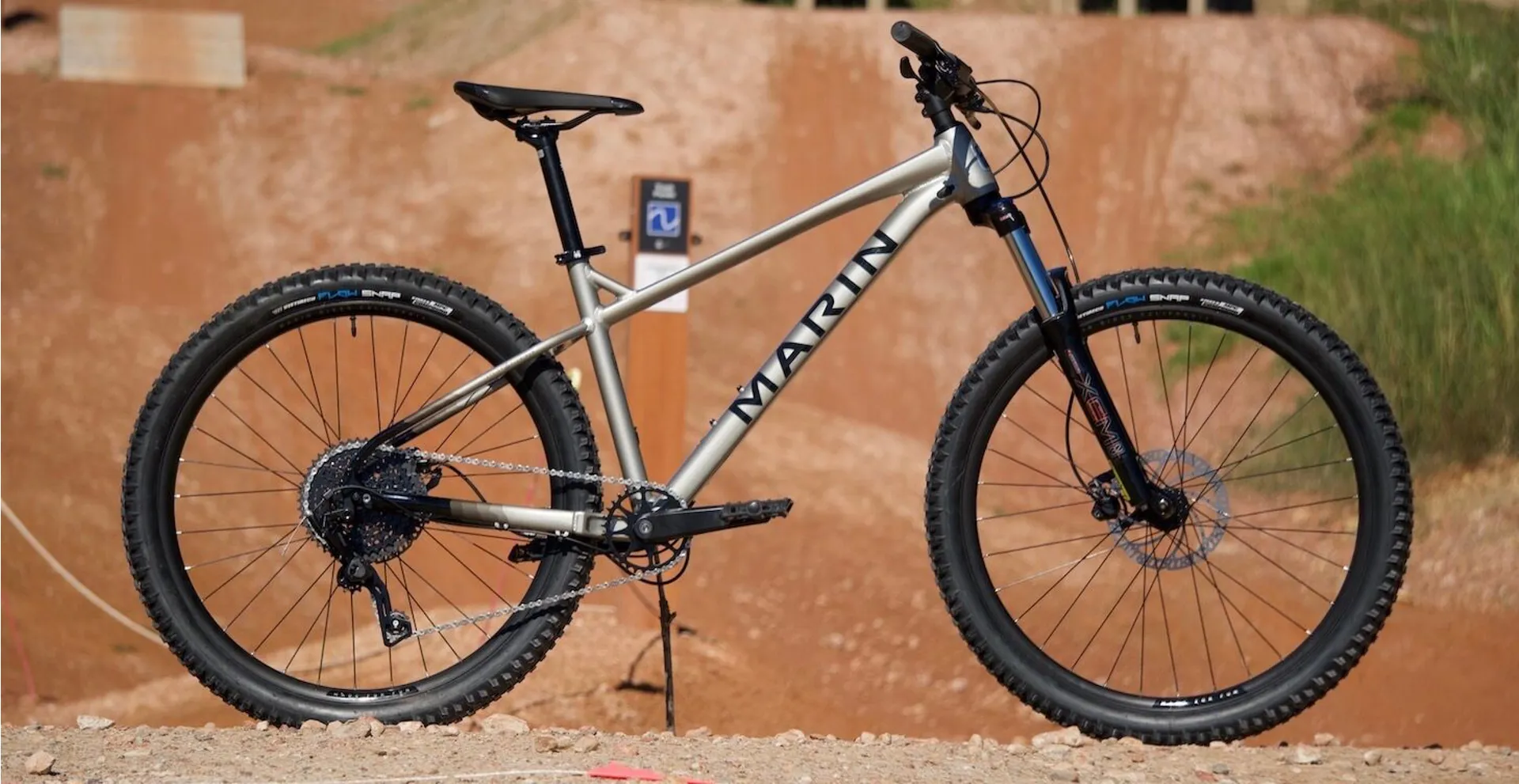

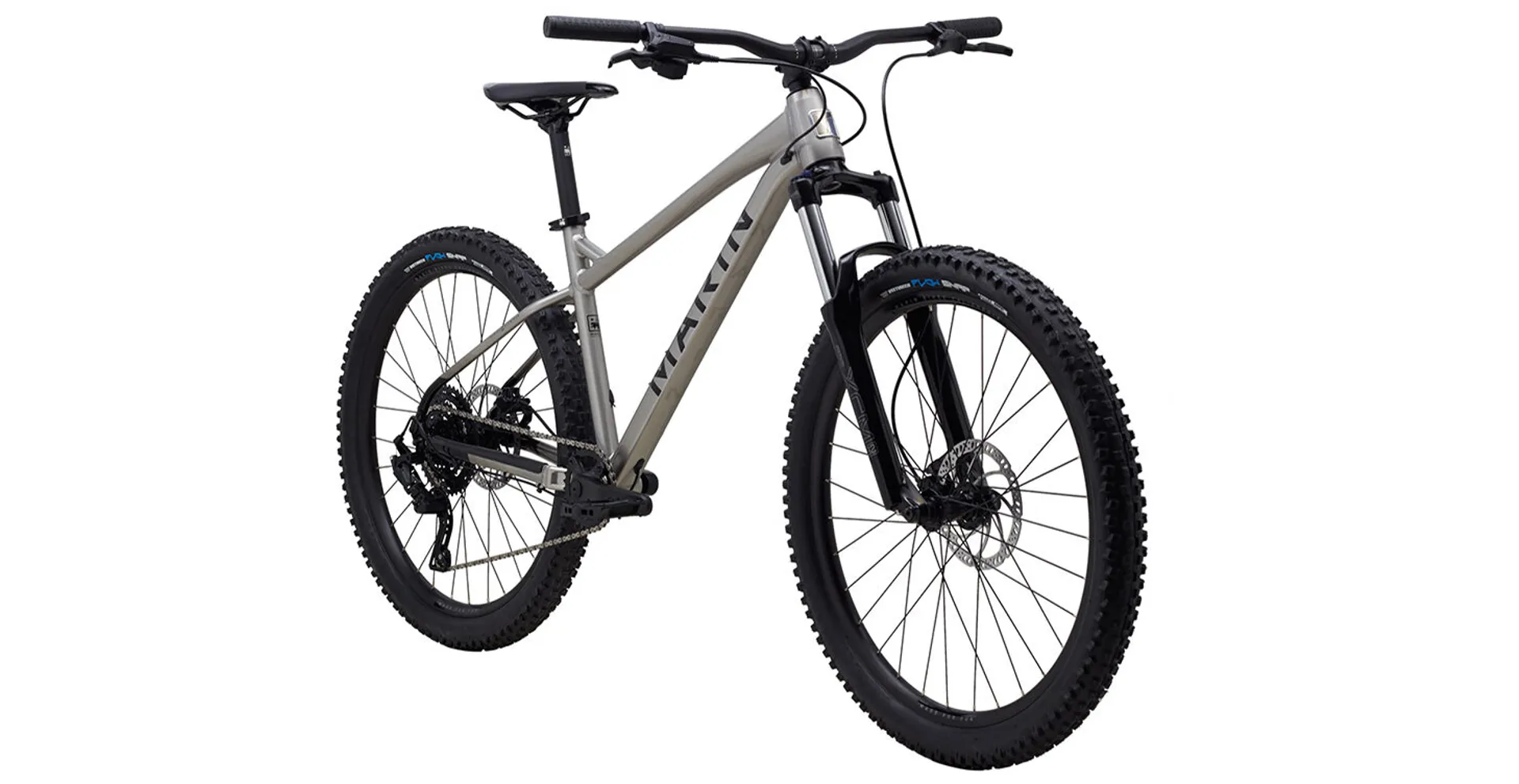

2022 Marin San Quentin 1 - Grey/Black

Size Guide
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

2022 Marin San Quentin 1 - Grey/Black

Season:2022

Brand:Marin

Code:732411

DOWNHILL TRAILS, LIGHT DIRT JUMP and ENDURO

The San Quentin is for the aggressive hardtail trail rider looking for a blend between singletrack capabilities and extended air time.

Developed in conjunction with freeride legend Matt Jones and taking its name from the most rough and tumble piece of Marin County, the San Quentin collection lives up to the notoriety of the namesake maximum security California State Prison. Blending the strength an style of our Alcatraz dirt jump frame with the natural trail savvy of the best hardtails, the San Quentin family of aggressive trail hardtails is the perfect mash-up for the modern trail rider.


Technical Information

SPECIFICATIONS

FRAME

Series 2 6061 Aluminum, Double Butted Frame, 141mm Open Dropout, 73mm Threaded BB

FRONT SUSPENSION

SR Suntour XCM32 Boost 15x110mm Spacing, 120mm Travel, Lock Out, 27.5", Bolt-On Thru-Axle, 47mm Offset

RIMS

Marin, Double Wall Alloy, 29mm Inner, Pinned Joint, Disc Specific, 32H Tubeless Compatible

HUB, REAR

Forged Alloy, 141mm Width, Disc, 32H, Shimano Standard Freehub Body

HUB, FRONT

Forged Alloy, 110x15mm, Disc, 32H

SPOKE, NIPPLES

14g Black Stainless Steel

TIRES

Vee Tire Co, Flow Snap, 27.5x2.6", MPC Compound, Wire Bead

DERAILLEUR, REAR

MicroShift RD-M9195M, 9 Speed, With Clutch

SHIFT LEVER

MicroShift SL-M9195-R, 1x9 with Bearings

CRANKSET

Marin Forged Alloy, Integrated Steel 32T Narrow Wide Chainring, Boost Spacing

BOTTOM BRACKET

Sealed Cartridge Bearing, Square Taper

CHAIN

KMC X-9

CASSETTE

Sunrace, 9 Speed, 11-46T

BRAKE, FRONT

Tektro M275 Hydraulic Disc Brake, 180mm Rotor

BRAKE, REAR

Tektro M275 Hydraulic Disc Brake, 160mm Rotor

BRAKE LEVERS

Tektro M275 Hydraulic Disc

HANDLEBAR

Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back

STEM

Marin 3D Forged Alloy, 45mm

GRIPS

Marin MTN, Closed End

HEADSET

FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2”

SEATPOST

Marin Alloy, 30.9mm

SADDLE

Marin Speed Concept

PEDALS

Choose your pedals by clicking on here
Sizing Information
San Quentin 2 geometry diagram
SMLXL
Stack586.1590.7599.7604.3
Reach422444464484
Headtube Angle65°65°65°65°
Headtube Length105110120125
Seattube Angle75°75°75°75°
Seattube Length385430475515
Toptube Effective579.1602.3624.7645.9
BB Height310310310310
BB Drop50505050
Chainstay425425425425
Wheelbase1144.81168.91193.11215.3
Standover Height664677714745
Fork Offset37373737
Seatpost Diameter30.930.930.930.9
Handlebar Width780780780780
Stem Length35353535
Crank Length170175175175

All lengths in millimeters
