A proper trail equiped stead for the junior mountain biker
A proper trail equiped stead for the junior mountain biker
Whyte

Whyte 403 V3 - Cement Gloss/ Khaki/ Sand

£750.00
Size Guide
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Whyte 403 V3 - Cement Gloss/ Khaki/ Sand

Season:2023

Brand:Whyte

Code:W403V3-2

26in wheels are another level up when it comes to real off-road control and speed. Especially when you match them with a lightweight, lively alloy frame and custom tuned, air sprung junior suspension fork like the 403 has.

Downsized Total Geometry handling dynamics are perfect for pushing limits and learning new skills safely and grips, saddle and cranks are all sized ideally for early teenage trail stars. Shimano 9 speed gears are flawlessly smooth, hydraulic brakes give precise fingertip control whatever the weather.

The Vee Crown Gem tyres are great off road all-rounders and with two different colour options our 403 is a complete package of awesome looks and awesome performance.

Every effort has been made to ensure accuracy throughout this website. However, we do respectfully reserve the right to correct any errors, inaccuracies or omissions and for manufacturers to change or update bike specifications, features, prices and colours without prior notice
Technical Information
FRAME6061 Alloy, Hydro Formed T6 Aluminium, Multi Butted, SCR, Internal Cable Routing with BBX and Chainstay Post Mount Dropouts
FORKSR Suntour XCR, 100mm Travel, Hydro Lock-out, Air Spring, Adjustable Rebound, Post Mount
HEADSETFEIMIN H807B, Semi Integrated, 1 1/8" Caged Bearings
REAR HUBAlloy, Cup & Cone, Double Seal, 28 Hole
FRONT HUBAlloy, Cup & Cone, Double Seal, 28 Hole
SPOKES2.0mm, PG, Black Stainless, Brass Nipples
RIMSWhyte Trail-403, 28 Hole
TYREVEE TIRE Co, Crown Gem 26" x 2.25"
SHIFT LEVERSShimano Altus SL-M2010 or Microshift SL-M859-R Trigger Shifter, 9 Speed
REAR MECHShimano Altus RD-M2000-SGS or Microshift RD-M465S 9 Speed
CASSETTESunRace CSM90, ED Black 11-36, 9 Speed
CHAINSunRace, 9 Speed
CRANKSETAlloy 6061, 28T Narrow Wide Chainring, Single guard, 152mm Crank Length
BOTTOM BRACKETSquare Interface, Cartridge Bearings, 73mm
SEATPOSTWhyte 6061 Alloy, 15mm Offset, 30.9mm x 300mm, 2 Bolt Clamp
SADDLEWhyte Jr Mid Custom
HANDLEBARWhyte 6061 Alloy, 25mm Rise, 31.8mm, 660mm Wide
STEMWhyte Alloy, 35mm
GRIPSWhyte Lock-on V Grip
BRAKES FRONTTektro HD-M275, Hydraulic, 160mm Rotor
BRAKES REARTektro HD-M275, Hydraulic, 160mm Rotor, Internal Routing
PEDALSFibre Reinforced Composite Platform
WEIGHT13.2 Kg


Every effort has been made to ensure accuracy throughout this website. However, we do respectfully reserve the right to correct any errors, inaccuracies or omissions and for manufacturers to change or update bike specifications, features, prices and colours without prior notice
Sizing Information

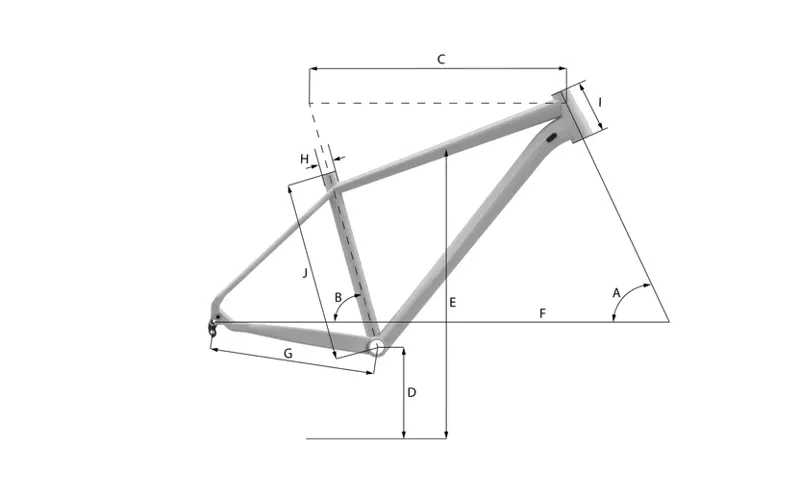

GEOMETRY
SIZEONE SIZE
A
HEAD TUBE ANGLE		66.5
B
SEAT TUBE ANGLE		76
C
TOP TUBE HORIZONTAL		520
D
BB HEIGHT ABOVE GROUND		295
E
STAND OVER HEIGHT		706
F
WHEEL BASE		1057
G
CHAIN STAY LENGTH		410
H
SEAT POST DIAMETER		30.9
I
HEAD TUBE LENGTH		95
J
SEAT TUBE LENGTH		331
STACK560
REACH380
