All the awesome attitude of our award-winning E-Hardtail MTBs but optimised for tearing up the town and country.
All the awesome attitude of our award-winning E-Hardtail MTBs but optimised for tearing up the town and country.
Whyte Bikes

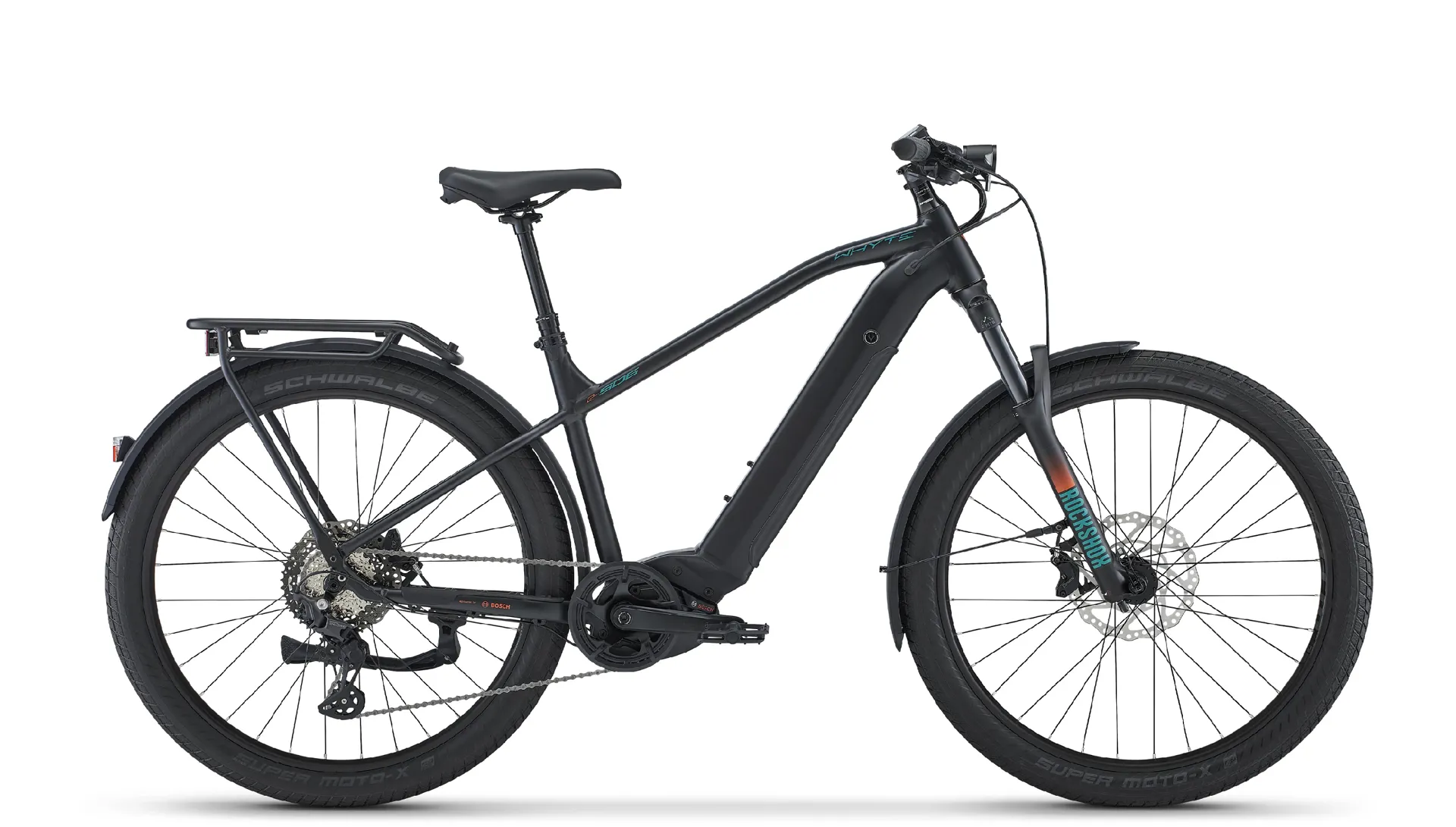

Whyte E-506 V2 SUV All-Terrain E-Bike - Matt Black/ Blue/ Burnt Orange

£3,599.00 £3,999.00 10% off
Size Guide
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Whyte E-506 V2 SUV All-Terrain E-Bike - Matt Black/ Blue/ Burnt Orange

Season:2023

Brand:Whyte Bikes

Code:E-506BLKWhitehBluBurntORG

On and off-road versatility

All the awesome attitude of our award-winning E-Hardtail MTBs but optimised for tearing up the town and country. Total Geometry handling and RockShox suspension will own the short cut through the park or carve through traffic on the fat slick tyres.

The full power Bosch motor will shrink hills and holeshot every traffic light start, and a dropper post means feet on the floor safety at every stop. Tough alloy rack, kickstand, full mudguards and built-in lights let you mix business and pleasure 24/7 and there’s enough battery for big days out on the weekend too.

Technical Information
e-BIKE SPECIFIC SPECIFICATION
DRIVE UNIT Performance CX 85Nm
BATTERY 500Wh
BATTERY CHARGER2 Amp

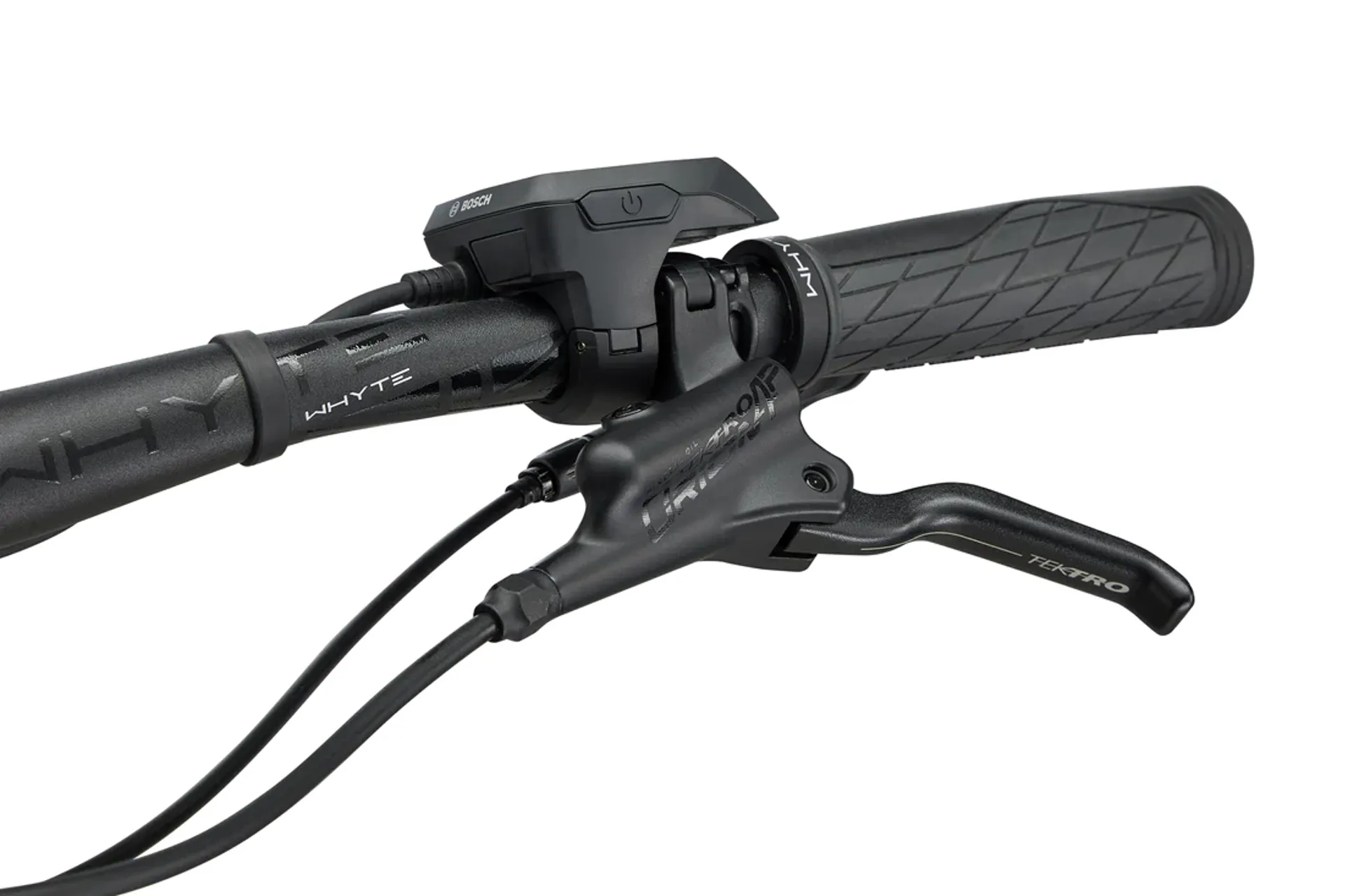

DISPLAY Purion


SPECIFICATION
COLOUR Matt Black with Ocean & Burnt Orange
FRAME 6061 Alloy, Hydro Formed T6 Aluminium, Multi Butted, Custom Drawn, Tapered Headtube, Internal Cable Routing for Dropper Post and 12mm X 148mm Boost Dropouts
FORK RockShox 35 Silver R 27.5"", 120mm Travel, 37mm Offset, Coil, Fast Black Coating, Adjustable Rebound, Tapered Steerer, 110mm x 15mm Boost, Maxle Lite
REAR SHOCK N/A
HEADSET FSA No. 57B Orbit ZS, 1 1/2" Lower and 1 1/8" Upper Caged Bearings
REAR HUB Alloy, e-bike specific, Double Sealed Cartridge Bearings, 12mm x 148mm Boost Thru Axle, 32 Hole
FRONT HUB Alloy, Double Sealed Cartridge Bearings, 15mm x 110mm Boost Thru Axle, 31mm Torque Caps, 32 Hole
SPOKES DT Swiss New Champion 2.0mm, Black Stainless, Brass Nipples
RIMS WTB ST i30 TCS 2.0 System, Pinned Joint, Tubeless Ready, 32 Hole
TYRE Schwalbe, Super Moto-X, 27.5" x 2.4, Greenguard Puncture Protection

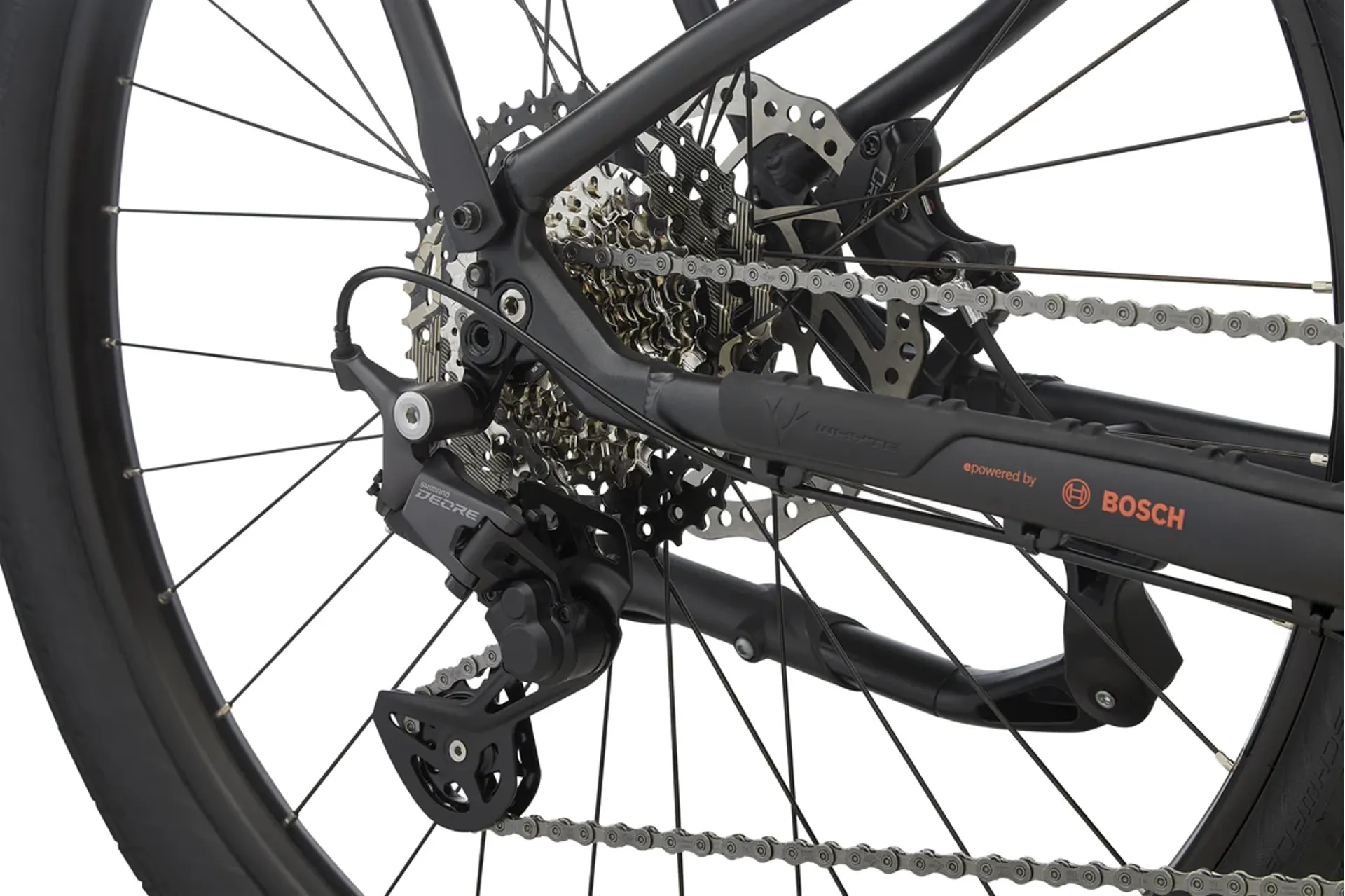

REAR DERAILLEURShimano M5130 Deore, GS, 10 Speed
SHIFT LEVERS Shimano M5130 Deore 10 Speed
CASSETTE Shimano CS-LG600, 10 Speed, 11-43
CHAIN Shimano CN-LG500, 10 Speed

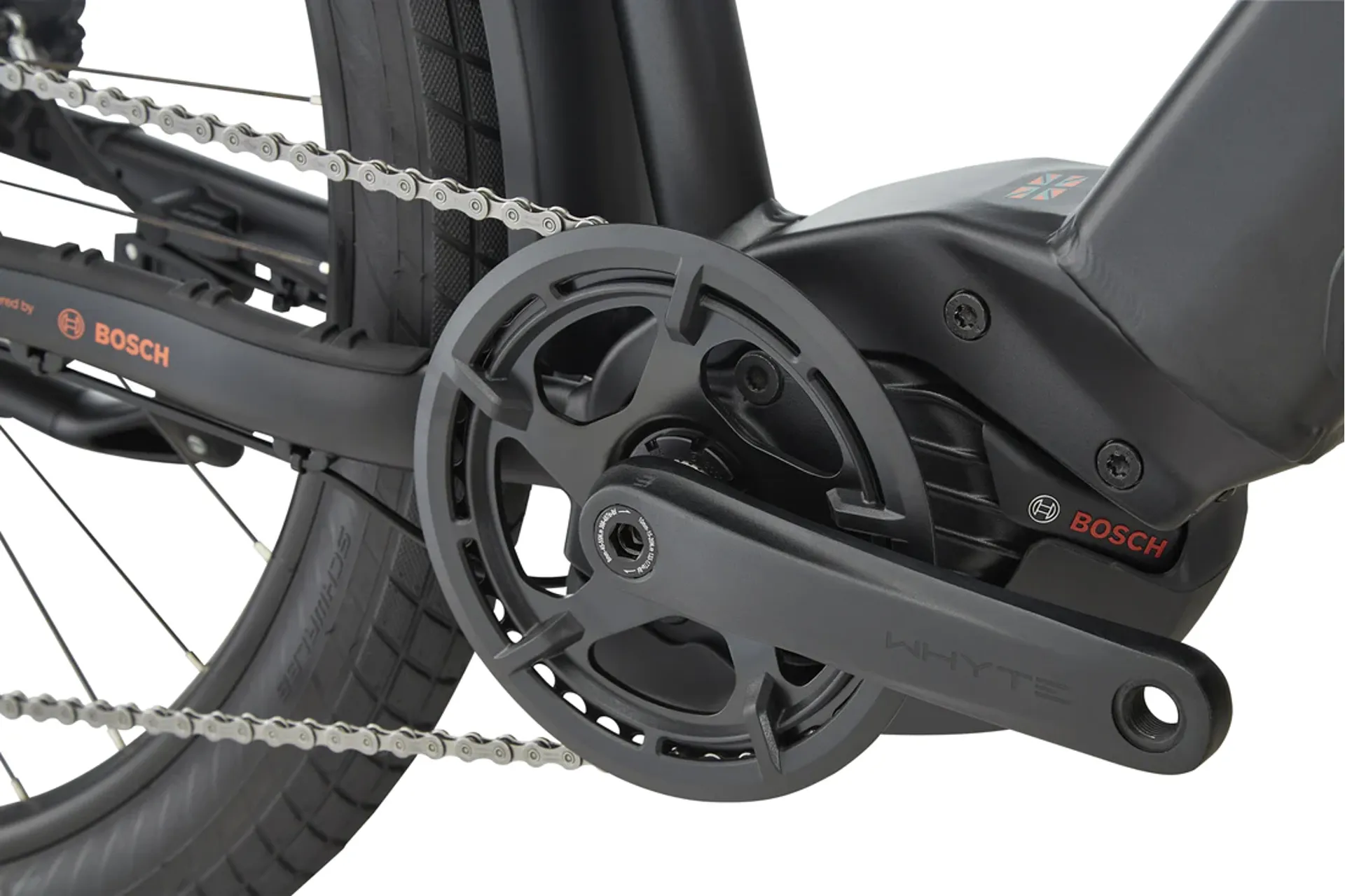

CRANKSET Whyte, Steel narrow/wide, 160mm, Direct Mount 38T for Bosch Performance Line CX, Black
SEATPOST Whyte drop.it, 30.9, S 125mm, M/L/XL 150mm Travel, Paddle Remote Lever
SADDLE Whyte Custom, SUV Comfort sport, Single panel, with moulded rear handle
HANDLEBAR Whyte 6061 Alloy, 25mm Rise, 31.8mm, 720mm Wide
STEM Whyte Alloy 6061, 35mm Extension
GRIPS Whyte Custom Dual Density Lock-on
BRAKES FRONT Tektro Orion, 4-Piston with Sintered Metal Pads, 203mm Disc, Post Mount
BRAKES REAR Tektro Orion, 4-Piston with Sintered Metal Pads, 203mm Disc, Post Mount, Internal Routing
BRAKE LEVERS Tektro Orion
Sizing Information
SIZE GUIDE
SMLXL
5’2″ – 5’6″5’6″ – 5’10”5’10” – 6’2″6’2″ – 6’5″
157 – 168 cm168 – 178 cm178 – 188 cm188 – 196 cm


GEOMETRY
SIZESMLXL
HEAD TUBE ANGLE64.564.564.564.5
SEAT TUBE ANGLE74.574.574.574.5
TOP TUBE HORIZONTAL601629653681
BB HEIGHT ABOVE GROUND303303303303
STAND OVER HEIGHT788795801808
WHEEL BASE1183121412391269
CHAIN STAY LENGTH440440440440
SEAT POST DIAMETER30.930.930.930.9
HEAD TUBE LENGTH115125135145
SEAT TUBE LENGTH406444482533
STACK616625635643.5
REACH430454477503
