The E-505 bikes deliver full power Bosch boost for flattening climbs and shrinking distance while still delivering pitch perfect handling and rock shrugging float, to make all that extra riding as exciting and awesome as ever.
The E-505 bikes deliver full power Bosch boost for flattening climbs and shrinking distance while still delivering pitch perfect handling and rock shrugging float, to make all that extra riding as exciting and awesome as ever.
Whyte

Whyte E-505 V1 Electric Bike - Matt Black

£3,499.00
Size Guide
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

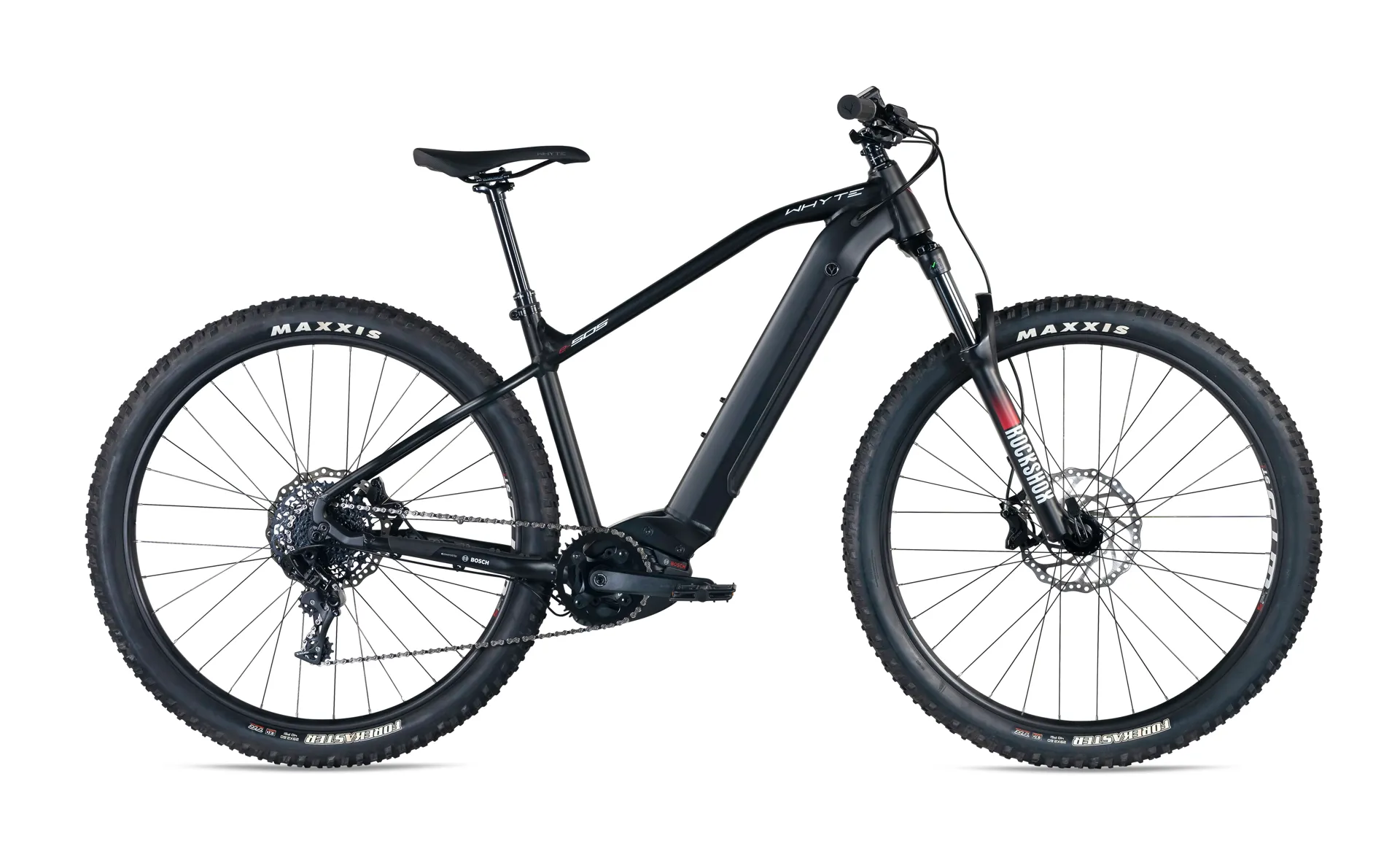

Whyte E-505 V1 Electric Bike - Matt Black

Season:2023

Brand:Whyte

Code:WE505

The E-500 bikes are Whyte's first E.hardtails to combine the exceptional handling benefits of Whyte geometry with a complete eSystem from Bosch for the unbeatable combination of ride performance and reliability.

Bosch’s class-leading Gen 4 Performance Line CX Drive Unit has all the power you’ll need on tap. With a whopping 85Nm of torque you’ll be conquering climbs that many others can only push up.

Puncture resistant 2.6” tubeless tyres add reliability, comfort and maximum grip to your ride, whilst powerful 4 piston brakes mean proper stopping power on demand.
Technical Information
ColourMatt Black with Grey & Rose
SizesM,L,XL
Frame6061 Alloy, Hydro Formed T6 Aluminium, Multi Butted, Custom Drawn, Tapered Headtube, Internal Cable Routing for Dropper Post
and 12mm X 148mm Boost Dropouts
ForkRockShox 35 Gold RL 29”, 120mm Travel, 44mm Offset, DebonAir, Fast Black Coating, Adjustable Compression and Rebound,
Tapered Steerer, 110mm x 15mm Boost, Maxle Lite
HeadsetFSA No. 57B Orbit ZS, 1 1/2” Lower and 1 1/8” Upper Caged Bearings
Rear HubAlloy, e-bike specific, Double Sealed Cartridge Bearings, 12mm x 148mm Boost Thru Axle, 32 Hole
Front HubAlloy, Double Sealed Cartridge Bearings, 15mm x 110mm Boost Thru Axle, 31mm Torque Caps, 32 Hole
SpokesDT Swiss Champion 2.0mm, Black Stainless, Brass Nipples
RimsWTB ST i30 TCS 2.0 System, Pinned Joint, Tubeless Ready, 32 Hole
TyresMaxxis Forekaster TR 29” x 2.6” 60TPI, EXO Sidewall Protection
Shift LeversSRAM GX, 11 Speed
Rear DerailleurSRAM GX, 11 Speed
CassetteSRAM PG-1130, 11-42, 11 Speed
ChainKMC NPBK Sport, 11 Speed
CranksetWhyte, Steel narrow/wide, 165mm, Direct Mount 36T for Bosch Performance Line CX, Black
Bottom BracketN/A
SeatpostWhyte drop.it, 30.9, 150mm Travel, Paddle Remote Lever
SaddleWhyte Custom, Triple Panel Design
HandlebarWhyte 6061 Alloy, 30mm Rise, 31.8mm, 780mm Wide
StemWhyte Alloy 6061, 35mm Extension
Grips

Whyte Lock-on V Grip
Front Brakes

Tektro Orion, 4-Piston with Sintered Metal Pads, 200mm Disc, Post Mount
Rear BrakesTektro Orion, 4-Piston with Sintered Metal Pads, 200mm Disc, Post Mount, Internal Routing
PedalsNone
Sizing Information
GEOMETRY
SIZEMLXL
HEAD TUBE ANGLE (adjustable to)65.565.565.5
SEAT TUBE ANGLE74.574.574.5
TOP TUBE HORIZONTAL626645663
BB HEIGHT ABOVE GROUND (adjustable to)305305305
STAND OVER HEIGHT825844851
WHEEL BASE119812171237
CHAIN STAY LENGTH450450450
SEAT POST DIAMETER30.930.930.9
HEAD TUBE LENGTH115125135
SEAT TUBE LENGTH444.5495.7533.4
