The absolute pinicle of E.bike big country performance, go racing or tackle the very hardest terrain you can find up in the mountains.. the 2024 E-180 Works really will allow you to ride at your best!
The absolute pinicle of E.bike big country performance, go racing or tackle the very hardest terrain you can find up in the mountains.. the 2024 E-180 Works really will allow you to ride at your best!
Whyte Bikes

Whyte E-180 Works Mountain E.Bike - White with Matt Black

Size Guide
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

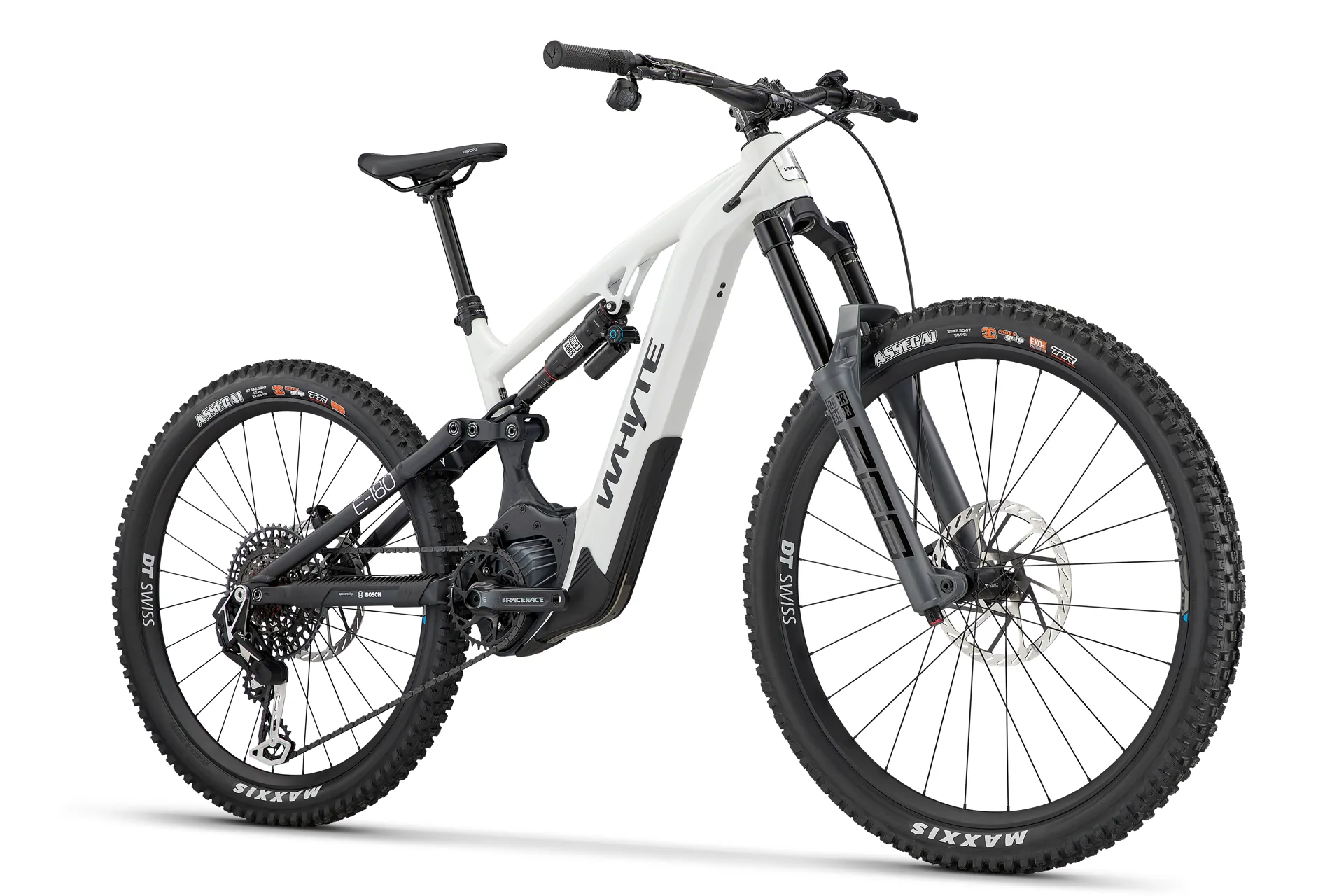

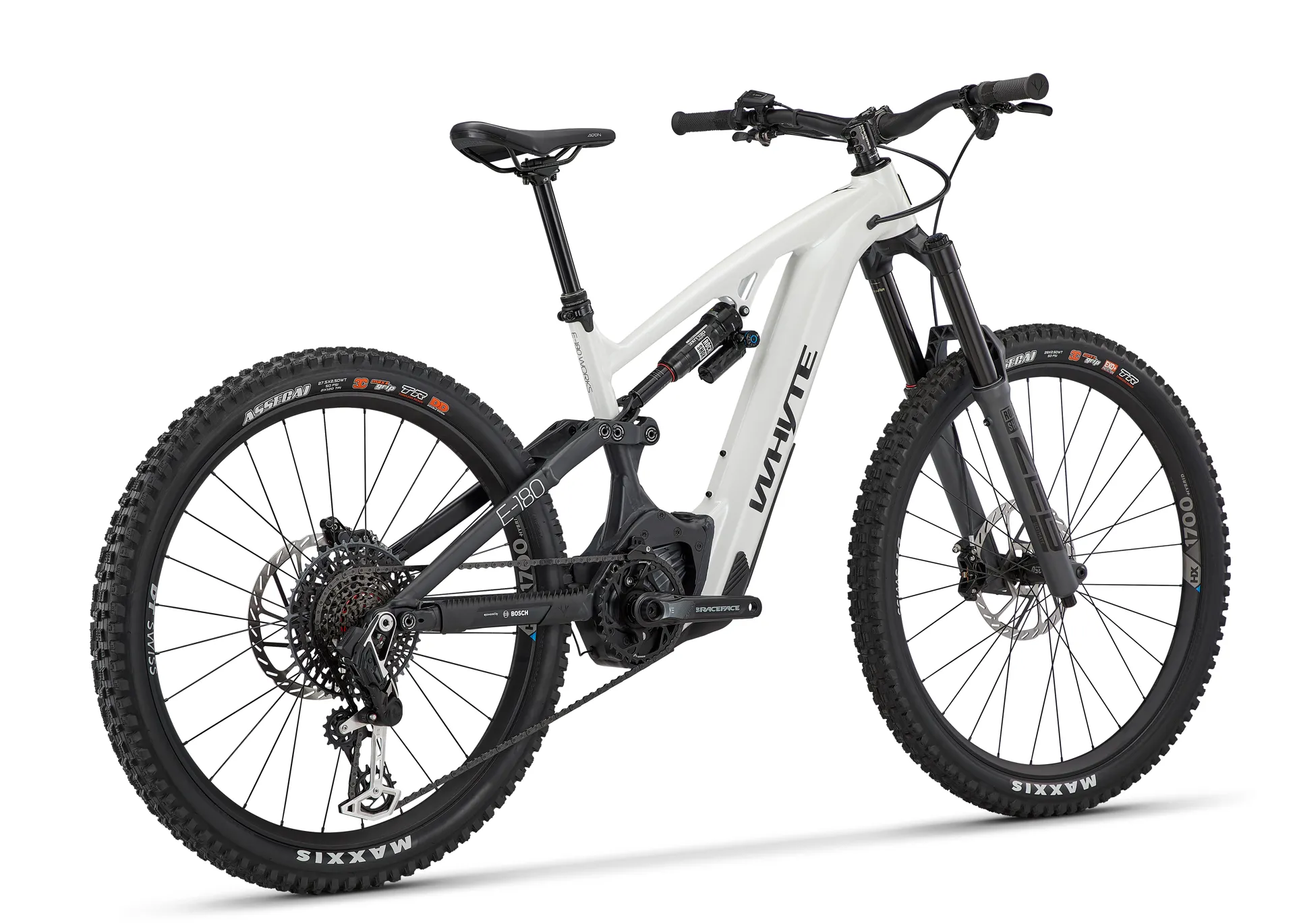

Whyte E-180 Works Mountain E.Bike - White with Matt Black

Season:2024

Brand:Whyte Bikes

Code:E180WGLSWHTWhitehBLK

The ultimate e-enduro machine

Built around the first ever competition e-enduro engine – the Performance Line CX Race Limited Edition motor from Bosch – and dressed in a zero compromise, maximum performance build, our top-of-the range E-180 Works is the ultimate super e-enduro race bike designed, developed and tested for – and by – the fastest riders on the fiercest courses.

Peerless performance
Our Works build is equipped with the pinnacle in high performance parts, including: SRAM’s all-new wireless XX Eagle AXS T-Type transmission for flawless shifting performance, everywhere – even under extreme load; RockShox Zeb Ultimate fork and custom tuned Super Deluxe Ultimate shock turn every mm of the travel into extra speed and traction to deliver riders the perfect balance of support, grip, confidence, and control right from the first ride; DT Swiss wheels and Maxxis tyres; SRAM Code RSC four-piston brakes with 220mm rotors for the power to control race-speeds; RaceFace and Crankbrothers finishing kit, and much more.
Engineered so you can commit
Featuring our latest gravity frameset, the E-180 Works' frame maximises the advantage of our unique tilted motor and super low-slung battery arrangement – which brings the bike’s centre of gravity as low as possible – to deliver you ultra-stable, dynamically centred and confident handling on any terrain. Our ‘in-tube’ battery design also creates a stronger, sleeker, smarter frame that exceeds the highest safety levels by nearly 250% in some areas; vital when racing events that are longer, harder and more brutal than any other in mountain biking.
Made for racing
The Bosch Performance Line CX Race Limited Edition motor delivers more power, more quickly and for longer from a lighter block. So you can accelerate harder, hold top speed better and even kick-boost through technical sections you can’t pedal and literally leave the competition standing. The 750Wh battery gives hours of power on hardcore race stages and epic liaisons, and our Axial Rail slide-in battery system makes mid-race battery switches super easy. Whyte engineer and two-time British Enduro Series Champion, Sam Shucksmith, has also meticulously tuned the E-180 Works' suspension to deliver the very highest level of support, grip, speed, and control right from the startline.

Highlights
  • Optimised low centre of gravity gives you exceptional handling.
  • 180mm front + 170mm rear of trail-dominating suspension travel.
  • Multi-butted 6061 T-6 aluminium hydroformed frame is built to last.
  • Bosch Performance CX Race Line 85Nm motor (600W peak power) for class-leading performance and reliability.
  • 750Wh battery gives you the range to ride further for longer in between charges.
  • Rockshox ZEB Ultimate Fork and Super Deluxe Ultimate RCT shock
  • SRAM XX T-Series AXS Transmisson
  • MX wheels (29er front, 27.5in rear) so you can tackle everything full-gas – no matter how rowdy or steep.

eBike specification

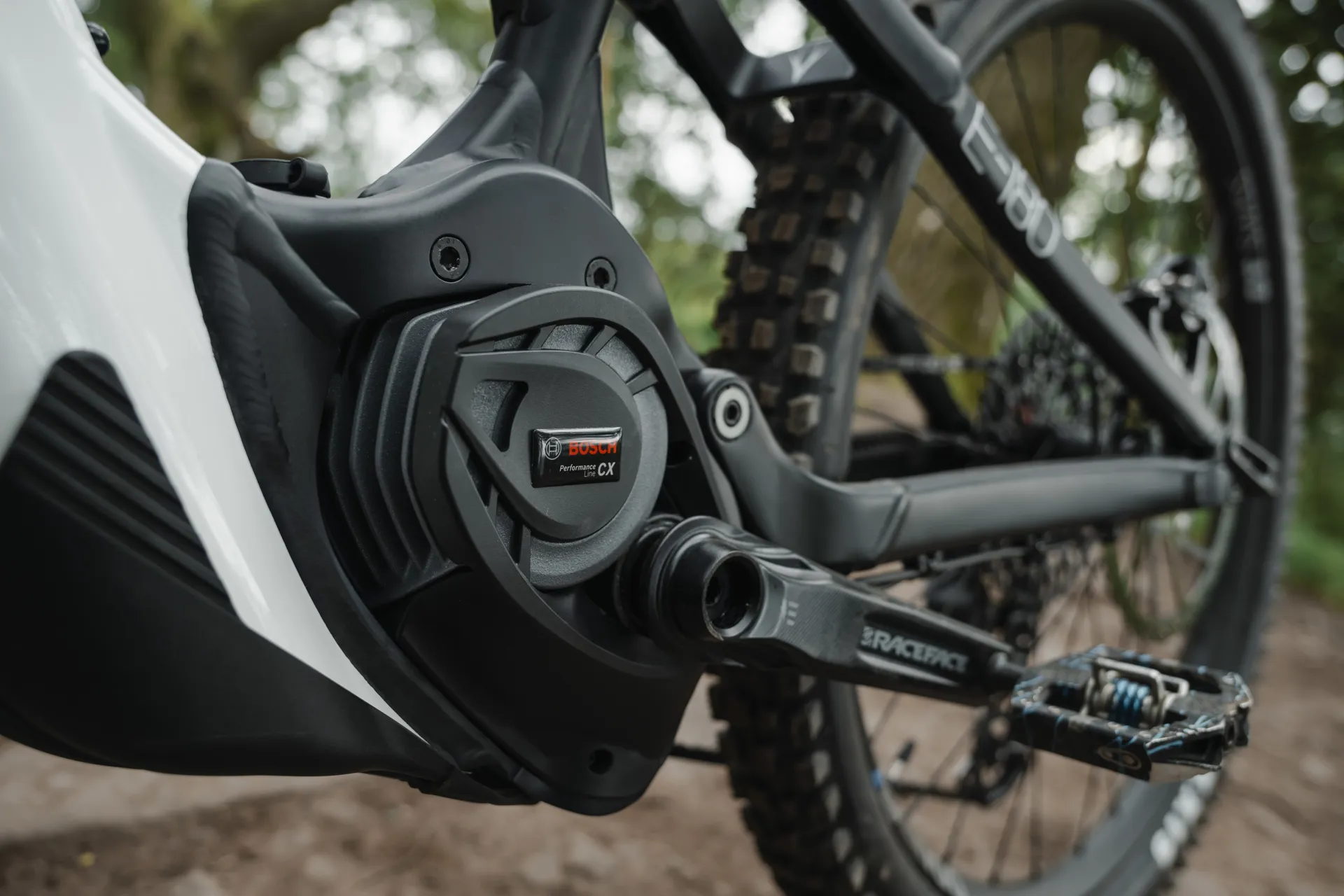

  • Bosch Performance Line CX Race Edition (Smart System) drive unit with 85Nm maximum torque, 250W nominal power. Features four power settings including Race Mode.
  • Bosch PowerTube 750Wh internal, perfectly integrated into the frame with an intuitive lockable mechanism for easy removal. Reaches full charge in less than six hours, and just over two hours for half charge.
  • Bosch LED Remote allows for easy use and visibility as you ride, and also connects to Bosch’s eBike Flow App to give you even more insight and control over your bike.
  • 4A Compact Charger (230V).

Bike classification grading: 4 Enduro
This bike is intended for all-mountain and enduro use over rough terrain, where loss of contact between the wheels and surface is common, up to speeds of 40km/h.
Technical Information
eBike motorBosch Performance Line CX (Smart System) drive unit with 85Nm maximum torque, 250W nominal power. Features four power settings including Tour+, that allows riders to focus on riding whilst being economic on power usage, and eMTB mode which automatically adjusts
eBike displayBosch LED Remote allows for easy use and visibility for the rider, also connecting to Bosch’s eBike Flow App to give the rider even more insight and control at their fingertips

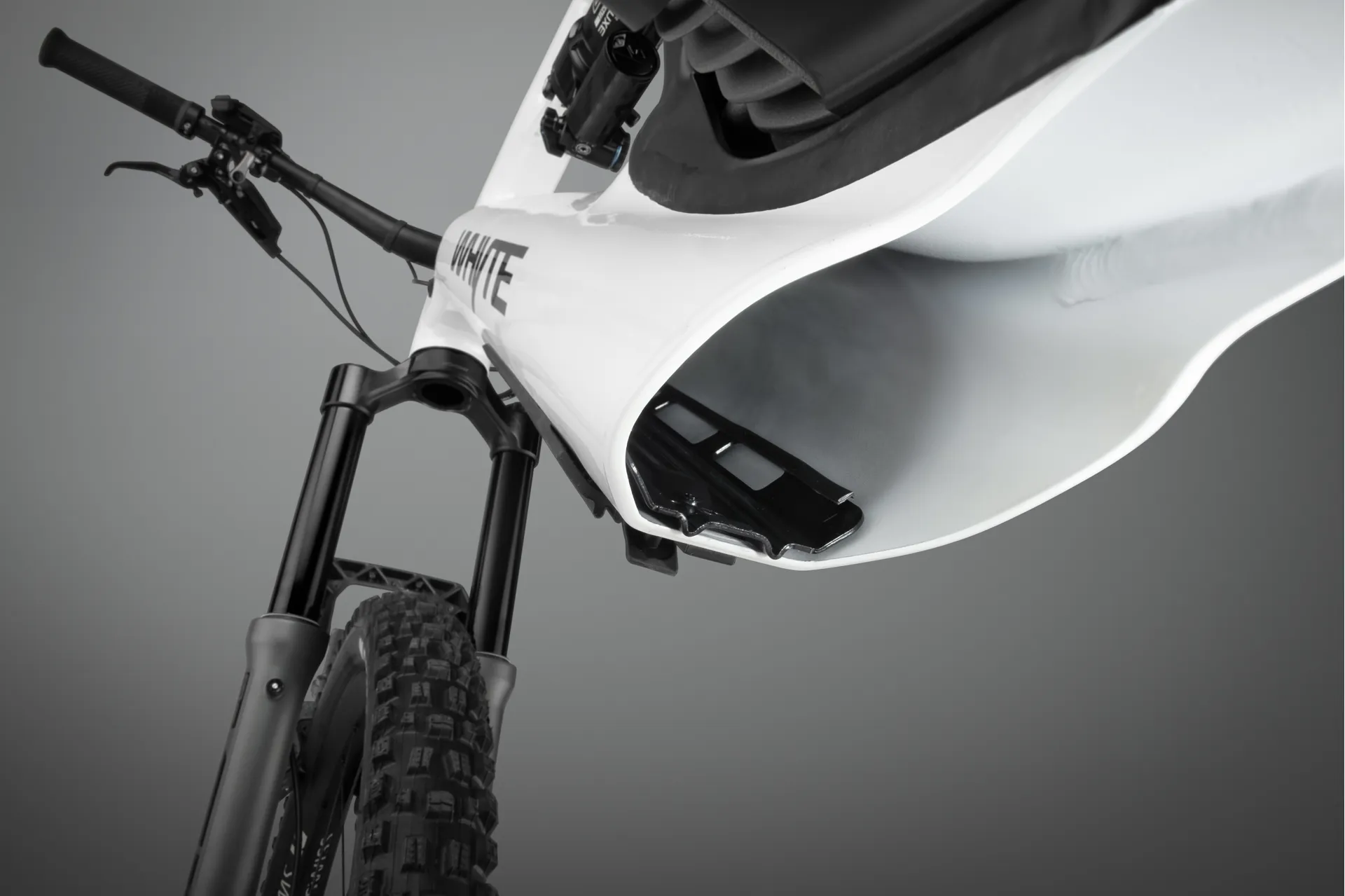

eBike batteryBosch PowerTube 750Wh internal, perfectly integrated into the frame with an intuitive lockable mechanism for easy removal.
Reaches full charge in less than 6 hours, and just over 2 hours for half charge.
eBike battery chargerBosch’s 4A Compact Charger (230V)
Frame6061 alloy, hydroformed T6 aluminium, multi-butted, custom drawn, tapered headtube, internal cable routing, Shape.it Link and 12mm x 148mm Boost dropouts
ForkRockShox ZEB Ultimate 29in, 180mm travel, 44mm offset, DebonAir, Charger 2.1 RC2 damper, Fast Black coating, tapered steerer, 110mm x 15mm Boost, Maxle Stealth

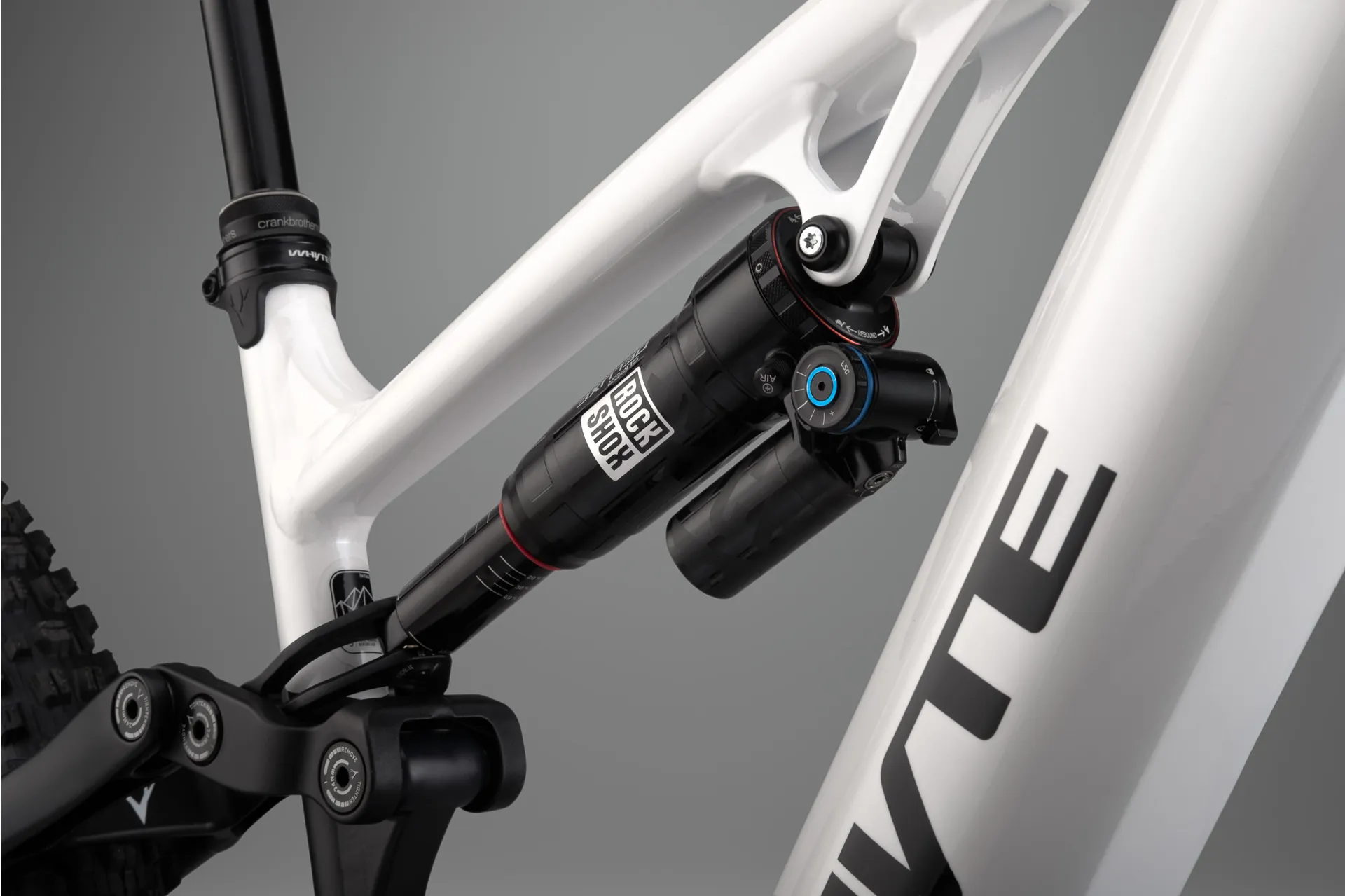

ShockRockShox Super Deluxe Ultimate RCT, air, Fast Black coating, adjustable rebound, low speed compression adjustment and tuneable DebonAir

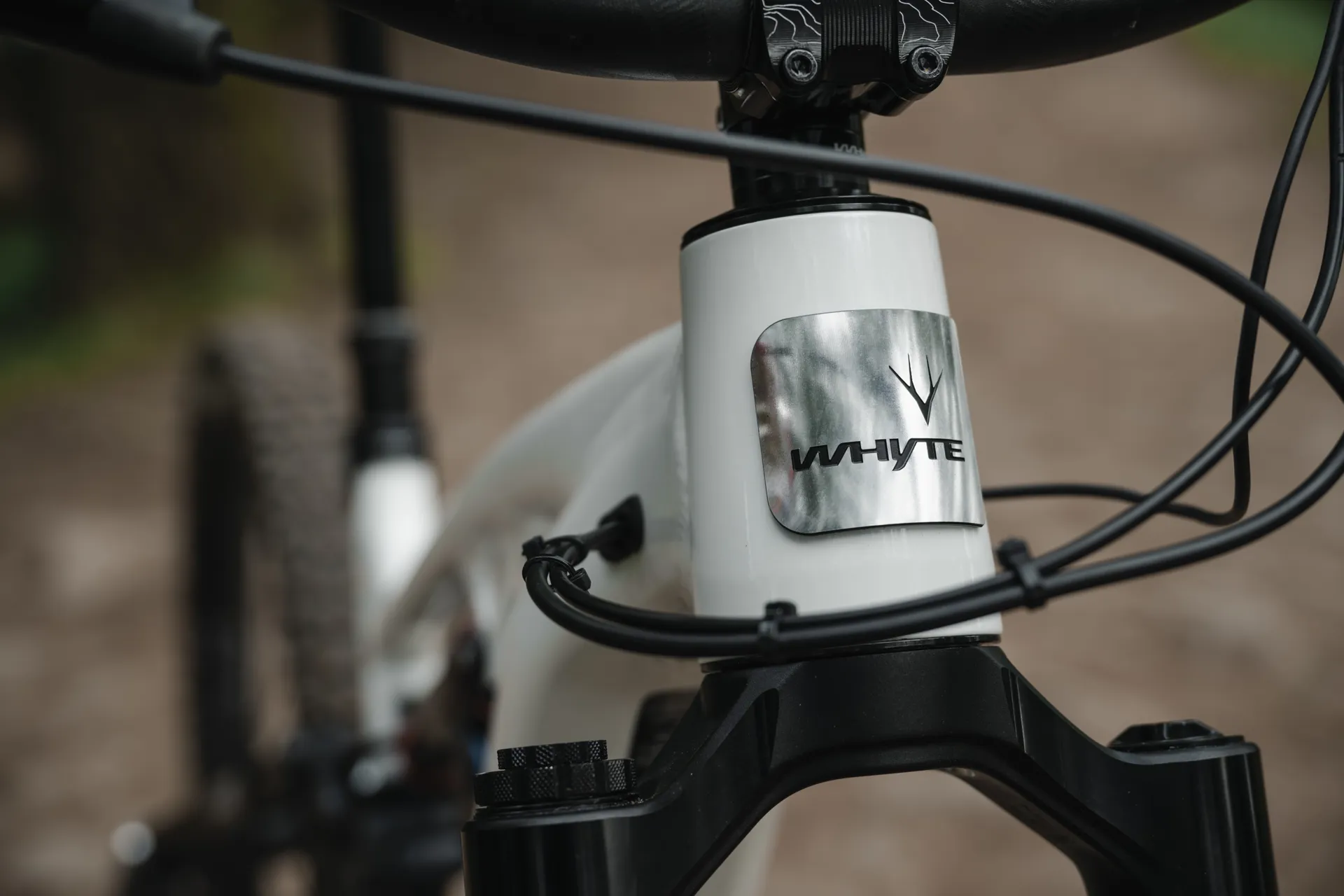

HeadsetFSA No. 55R/35 Orbit 1.5 ZS, 1.8in lower and 1 1/8in upper sealed cartridge bearings
Rear HubDT Swiss Hybrid HX1700, 30mm wide rim, 12 x 148mm Boost, SRAM XD steel
Front HubDT Swis Hybrid HX1700, 30mm wide rim, 15 x 110mm Boost
SpokesDT Swiss
RimsDT Swiss Hybrid HX1700
TyresMaxxis Assigai WT, TR, 29in x 2.5in 120TPI, EXO+ casing, 3C Maxx Grip, front; Maxxis Minion DHR II WT, TR, 29in x 2.4in 120TPI,
Double Down, 3C Maxx Terra, rear
Shift LeversSRAM AXS Pod, two button MMX, 12 speed
Rear DerailleurSRAM XX Eagle AXS T-Type
CassetteSRAM XS-1295 Eagle T-Type, 10-52T, 12 speed
ChainSRAM X0 T-Type Eagle, 12 speed
CranksetRace Face Affect E-Bike, 165mm, ISIS with X-SYNC Direct Mount 36T chainring for Bosch Performance Line CX, black
Bottom BracketN/A
SeatpostCrank Brothers Highline 3, 30.9mm (M/L 150mm travel; XL 170mm travel), Highline ball socket remote lever
SeatFizik Terra Aidon, 145mm wide, Wingflex, S-Alloy Mobius rail

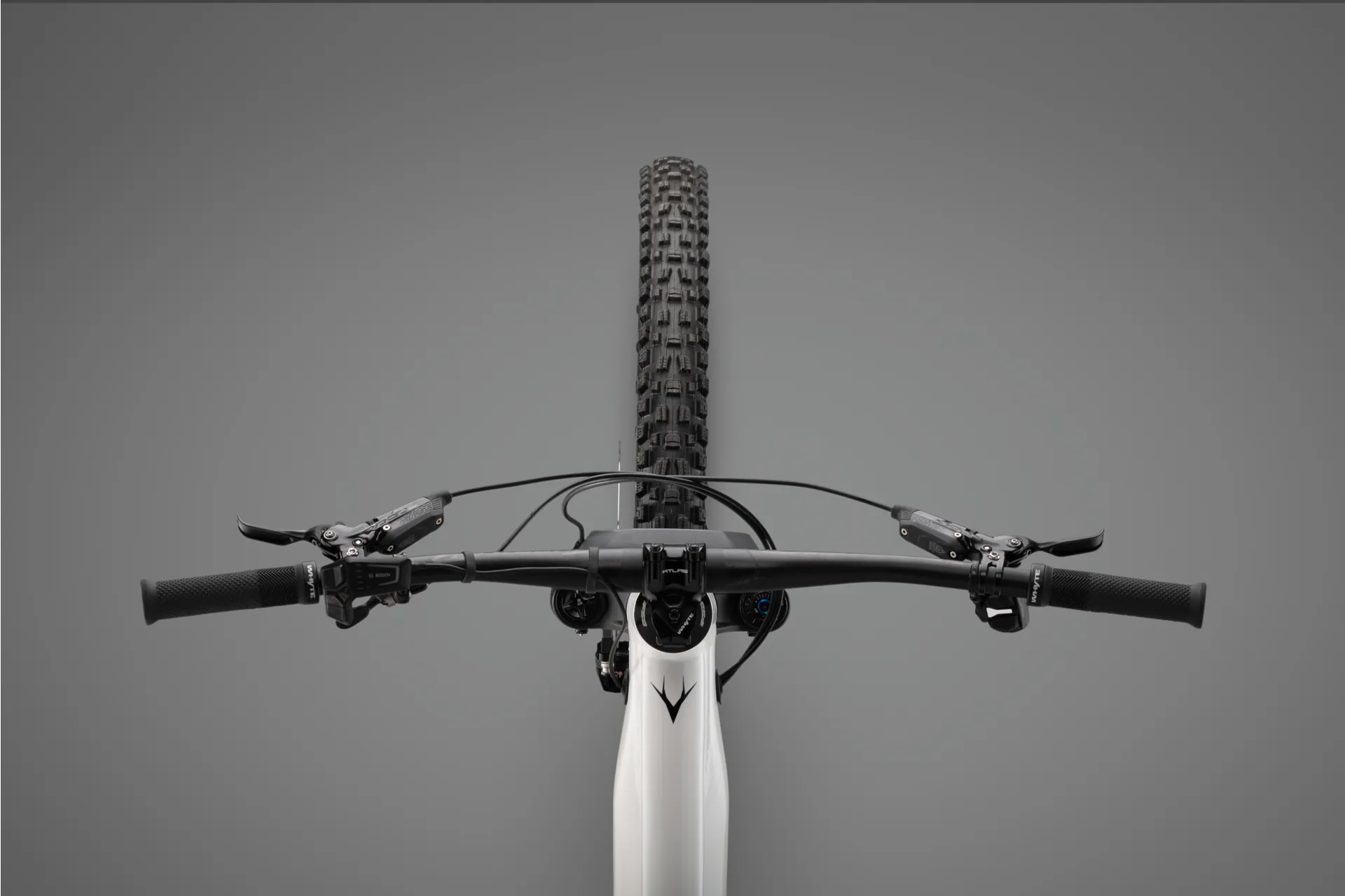

BarRace Face Turbine R, 35mm rise, 35mm bar bore, 800mm wide
StemRace Face Atlas, 35mm bar bore, 35mm extension
GripsWhyte Lock-on Enduro
Front BrakeSRAM Code RSC, four piston with sintered metal pads, 220mm disc
Rear BrakeSRAM Code RSC, four piston with sintered metal pads, 200mm disc
PedalsClick here to choose an upgrade pedal
Weight26Kg
Sizing Information
MediumLargeX.Large
Head angle (deg)63 +/- 0.563 +/- 0.563 +/- 0.5
Seat angle (deg)75.475.275.0
Top tube (mm)609.6642.8674.7
BB height (mm)345345345
Stand over (mm)769770772
Wheelbase (mm)1255.51290.81324.6
Chainstay (mm)444444444
Seat post (mm)30.930.930.9
Head tube (mm)100115130
Seat tube (mm)420445470
