The Levo Carbon has the same frame as the S.Works with an affordable great performing component list
The Levo Carbon has the same frame as the S.Works with an affordable great performing component list
Specialized

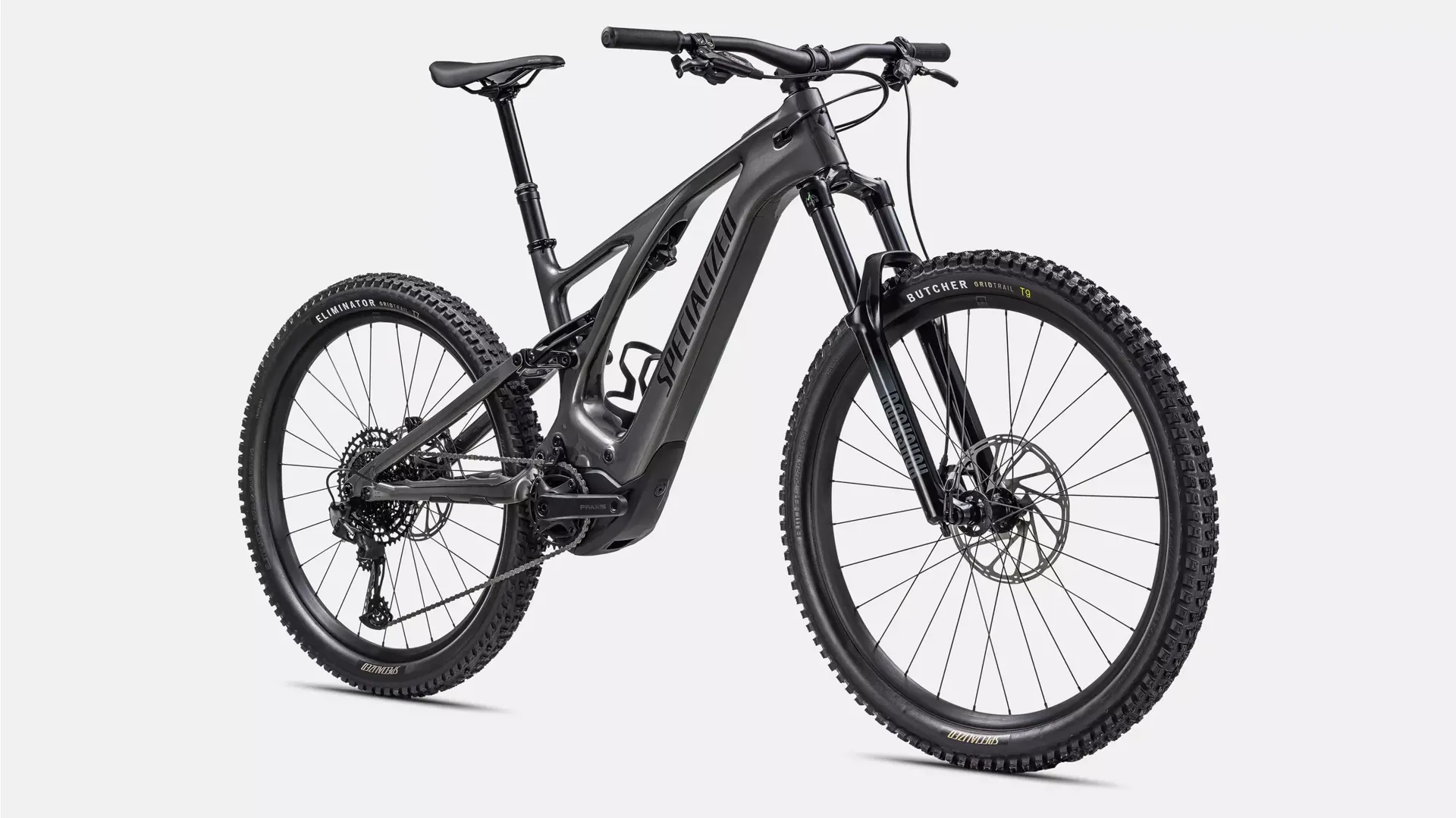

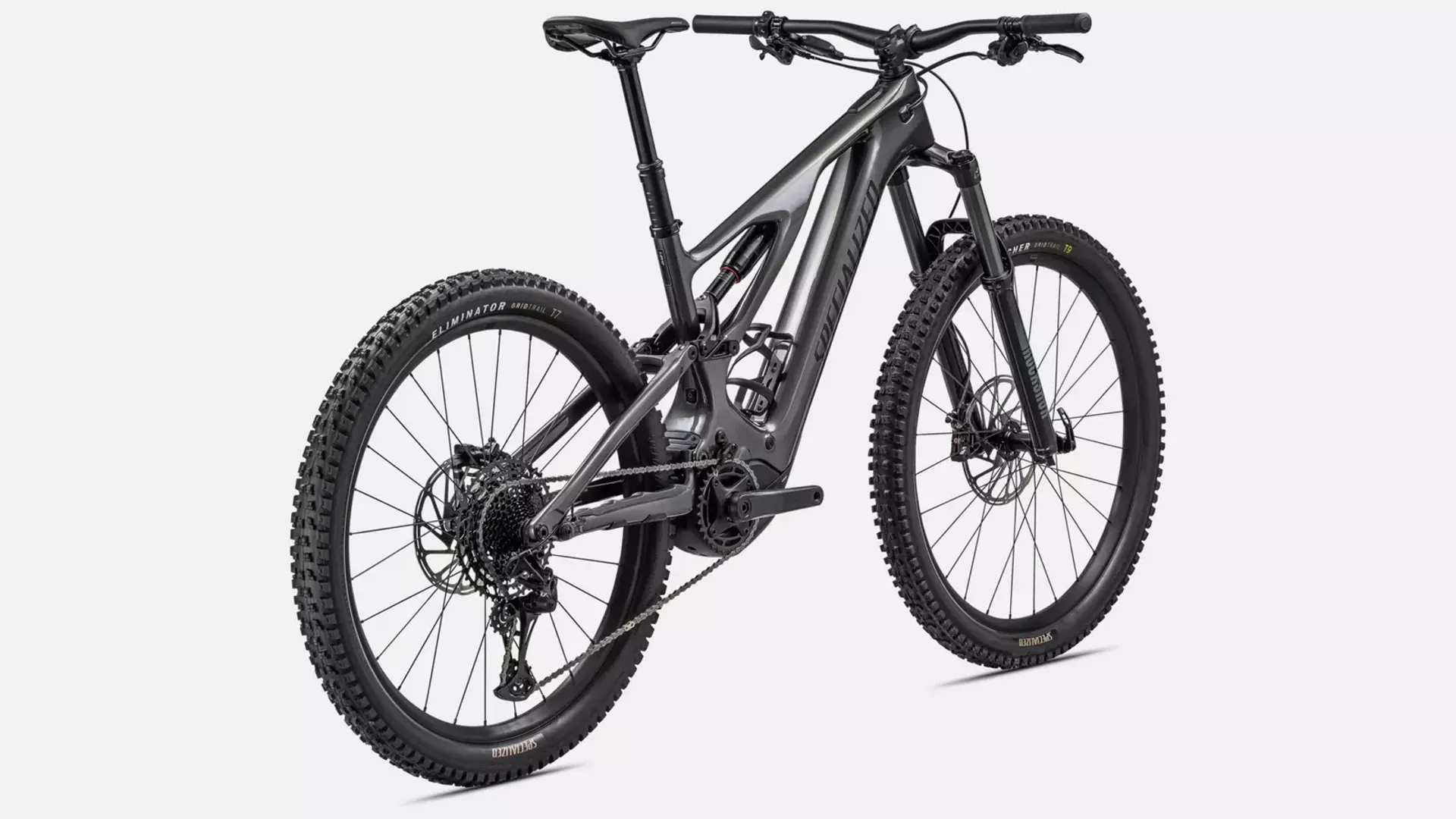

Specialized Levo Carbon - Smoke/ Black

Size Guide
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Specialized Levo Carbon - Smoke/ Black

Season:2023

Brand:Specialized

Code:362014348651

NOW SUPPLIED WITH 700Wh BATTERY


The all-new Levo delivers the unbelievable power to ride more trails through an unequaled combination of ride quality, usable power, and ride anywhere range. It’s the distillation, application, and amplification of a 40-year obsession with creating the world’s best riding mountain bikes. Since its introduction, Levo has set the bar every other e-MTB aims for, and the new Levo raises that bar again.

It starts with our Turbo Full Power 2.2 motor and Turbo Connect Unit (TCU), which provide Levo with a smooth and seamless amplification of your efforts—4x you power that lets you choose where to ride, and when you want to do it. Levo also shatters limitations when it comes to range, amplifying your effort for up to five hours of trail time. Now you can ride farther, and explore more, than ever before. And the optimized chassis boasts 150mm of custom-tuned rear suspension and adjustable geometry that delivers a stable and natural ride like no other. Because at the end of the day, it’s the ride that matters. Believe it.

More climbing, more descending, more miles, more fun. Spec’d with a no-fuss SRAM SX/NX drivetrain, trail-taming RockShox suspension, and a lightweight, durable alloy wheelset, the all-new Turbo Levo delivers more of everything that you love about trail riding.

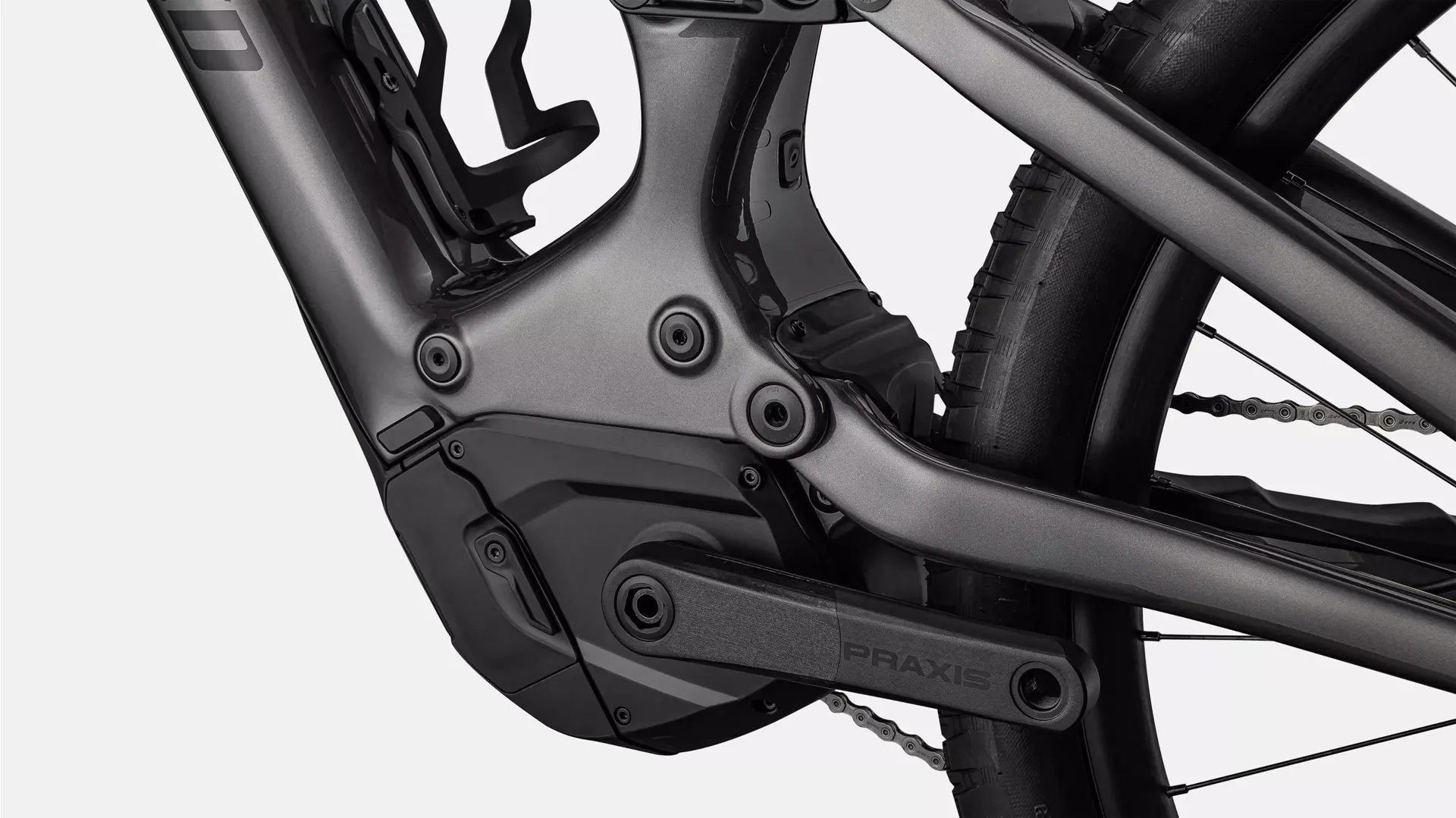

  • Levo’s fully integrated Turbo Full Power 2.2 motor, 500Wh battery, and Turbo Connect Unit deliver category-leading 90 Nm of torque and 565 watts of power for up to five hours of ride time, empowering you to ride farther and faster than ever before.

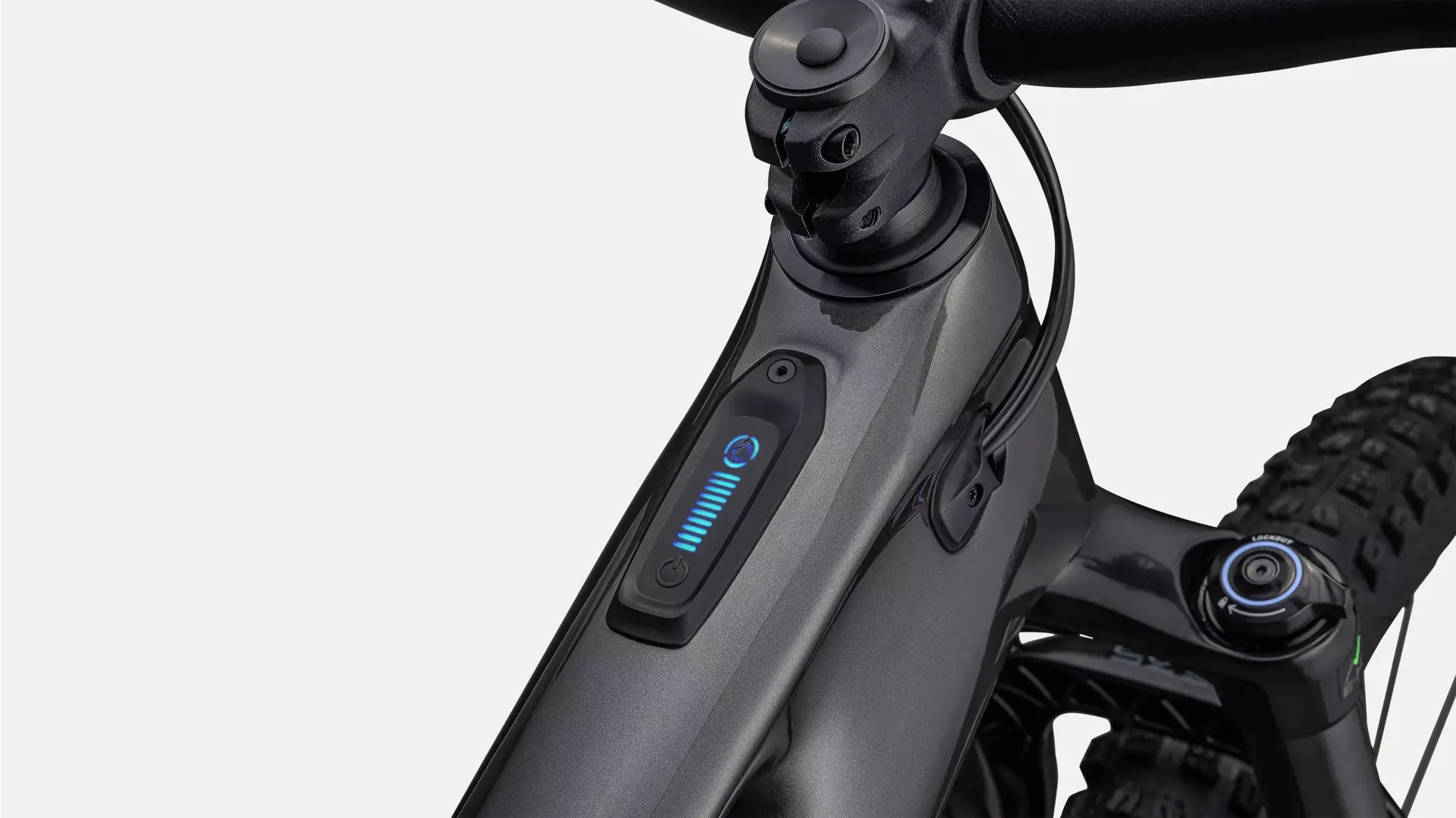

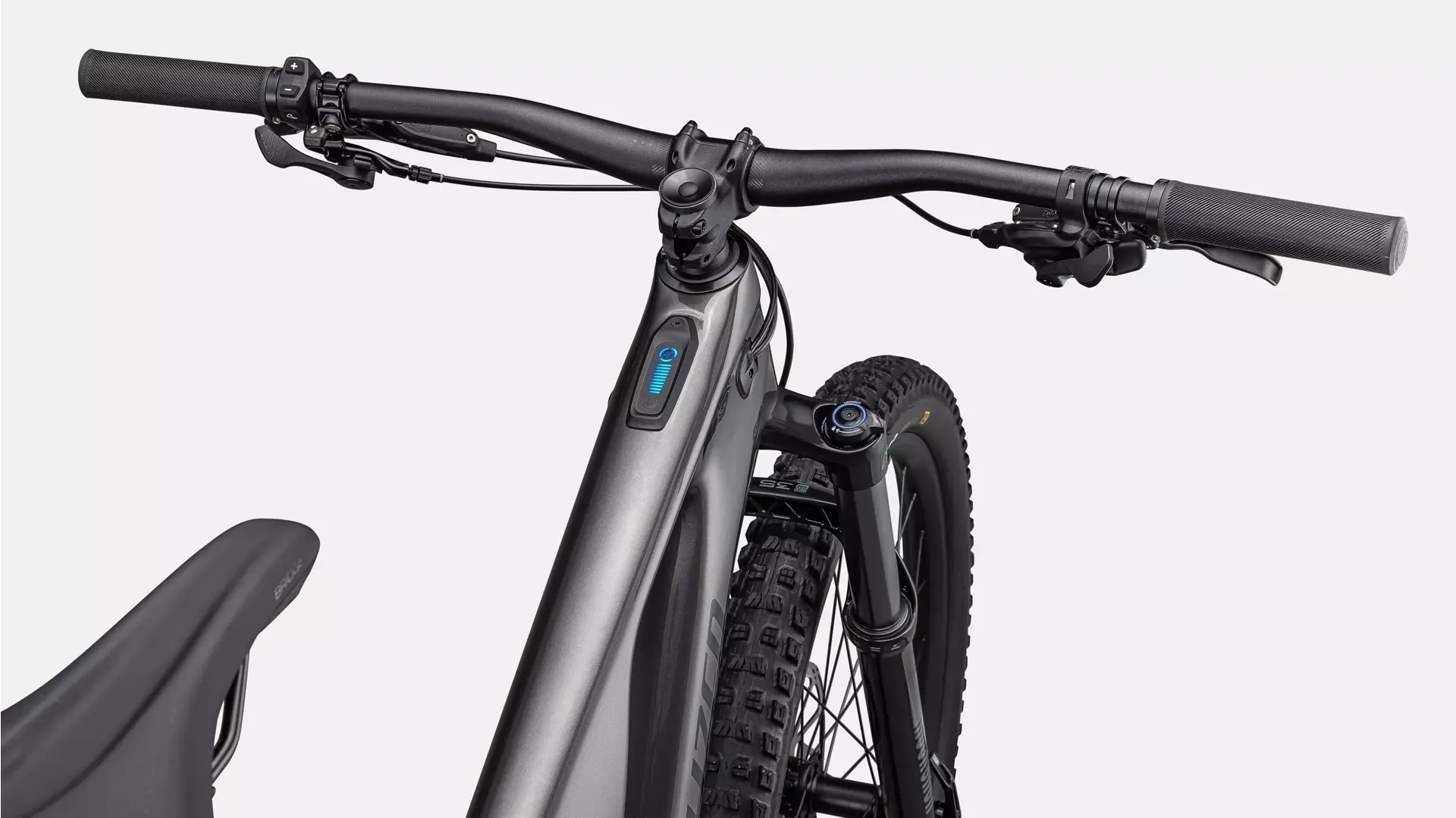

  • The Levo’s Turbo Connect Unit (or “TCU”) is more than an “On-Off” button—it’s the brains of the bike. The TCU shows your battery level and power-assist mode. It also communicates, via ANT+/Bluetooth®, with our optional handlebar display to display even more information about your day’s ride.
  • A dedicated mixed-wheel size design with a 27.5” wheel in the back and 29” up front delivers a nimble ride that carves circles around other full-power e-MTBs. A generous cockpit centers you on the bike, optimizing traction and corner control. The low bottom bracket, slack headtube angle and reduced fork offset keep things stable in the rough.
  • Levo offers two distinct geometry settings, allowing you to easily dial-in its performance for any riding style and any terrain. Bottom bracket height can be fine-tuned up or down by 7mm.

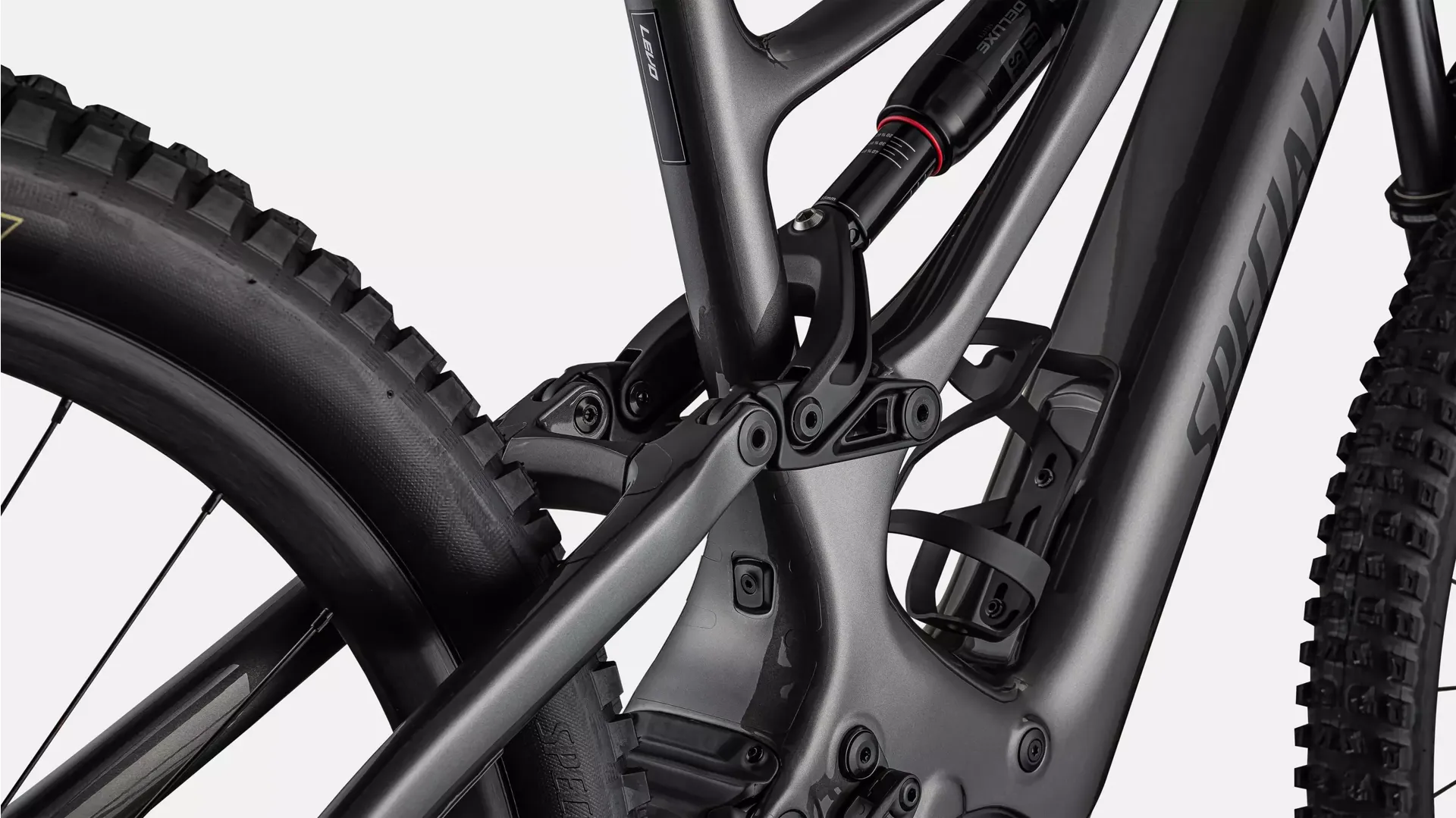

  • Levo’s 150mm of rear travel is supple on small bumps, devours square-edged hits without a twitch, eats massive G-outs for breakfast, yet still offers amazing pedal response and delivers your power to the ground with total efficiency.
  • The Levo’s S-Sizing is based on what matters—rider size and style, not inseam. Six sizes, all with similar headtube lengths and standover, allow you to choose the size that best suits your individual style. Smaller S-Size numbers are going to be nimble and more flickable, while bigger S-Sizes deliver more stability and a roomier ride.
Technical Information
FrameFACT 11m full carbon, 29" front wheel, 27.5" rear wheel, full internal cable routing, 148mm spacing, fully sealed cartridge bearings, 150mm of travel, geo adjust head tube, geo adjust horst pivot
MotorSpecialized Turbo Full Power System 2.2 Motor 90Nm
UI/Remote

Specialized TCU, 10-LED State of charge, 3-LED Ride Mode display, ANT+/Bluetooth®, w/Handlebar remote

Battery

Specialized M3-700, Integrated battery, 700WH

ChargerCustom charger, 42V4A w/ Rosenberger plug
Wiring HarnessCustom Specialized wiring harness
Rear Shock

RockShox Deluxe Select R, rebound adjust, S1: 52.5x210mm, S2-S6: 55x210mm

ForkRockShox 35 Silver, 35mm stanchion, Turnkey damper, S1: 150mm travel, S2-S6: 160mm travel
StemAlloy Trail Stem, 35mm bar bore
GripsSpecialized Trail Grips
HandlebarsSpecialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 30mm rise, 780mm width
Saddle

Body Geometry Bridge Saddle, steel rails

Front Brake

SRAM Guide RE, S1-S3: 200mm, S4-S6: 220mm

Rear Brake

SRAM Guide RE, S1-S3: 200mm, S4-S6: 220mm

Rear DerailleurSRAM NX Eagle, 12-speed
Shift LeversSRAM SL SX Eagle, 12-speed
CassetteSRAM NX Eagle PG-1230, 12-speed, 11-50t
ChainSRAM NX Eagle, 12-speed
CranksetPraxis forged M30, custom offset, 160mm
ChainringsSRAM X-Sync Eagle, 104 BCD, 32T, steel
Front HubAlloy, sealed cartridge bearings, 15x110mm thru-axle, 28h
Rear HubAlloy, sealed cartridge bearings, 148mmx12mm thru-axle, 28h
RimsSpecialized 29, hookless alloy, 30mm inner width, tubeless ready
SpokesDT Swiss Industry
Front TireButcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.6"
Rear TireEliminator, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready, 27.5x2.6"
Inner TubesStandard, Presta Valve
SeatPost

TranzX dropper, 34.9mm, S1: 100mm, S2: 125mm, S3: 150mm. S4-S5: 170mm, S6- 200mm

Seat BinderAlloy, 38.6mm
SWATSWAT compatible Zee Cage II side loading bottle cage
Sizing Information
S1S2S3S4S5S6
Crank Length160mm160mm160mm160mm160mm160mm
Handlebar Width780mm780mm780mm780mm780mm780mm
Stem Length40mm40mm50mm50mm50mm50mm
Saddle Width155mm155mm143mm143mm143mm143mm
Seatpost Length100mm125mm150mm170mm170mm200mm
Stack605mm617mm626mm635mm644mm653mm
Reach412mm432mm452mm477mm502mm532mm
Headtube Length105mm105mm115mm125mm135mm145mm
Headtube Angle64.5°64.5°64.5°64.5°64.5°64.5°
BB Height352mm350mm350mm350mm350mm350mm
BB Drop25mm27mm27mm27mm27mm27mm
Trail130mm130mm130mm130mm130mm130mm
Fork Length (full)557mm567mm567mm567mm567mm567mm
Fork Rake/Offset44mm44mm44mm44mm44mm44mm
Front Center738mm760mm784mm814mm843mm878mm
Chainstay Length442mm442mm442mm442mm442mm442mm
Wheelbase1179mm1200mm1225mm1255mm1284mm1318mm
Bike Standover Height752mm776mm783mm787mm788mm790mm
Seat Tube Length380mm390mm405mm425mm445mm465mm
Seat Tube Angle78°77.2°76.7°76.2°76.2°76.2°
Max Seatpost Insertion210mm220mm240mm255mm275mm295mm
Min Seatpost Insertion80mm80mm80mm80mm80mm80mm
