Perfermorance, value and fun.. thats what the Rift Zone E2 gives you in bucket loads
Perfermorance, value and fun.. thats what the Rift Zone E2 gives you in bucket loads
Marin

Marin Rift Zone E1 E.Mountain Bike - Grey/ Red Inc. Spare Battery

£3,999.00 £4,835.00 17% off
Size Guide
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Marin Rift Zone E1 E.Mountain Bike - Grey/ Red Inc. Spare Battery

Season:2024

Brand:Marin

Code:7365830GLSGRYRED

!!! Supplied with an extra spare 630WH battery free of charge whilst stocks last!!!

Our mid-price, mid-tier Rifty E, the Marin Rift Zone E1 is beautifully balancing performance and value. RockShox handles the suspension, Shimano Deore brings a tough, reliable 11-speed drivetrain and Shimano’s STEPS EP6 drive unit powers you up, along and down. A 630WH battery is supplied as standard for maximum range and we’ve included CushCore tire inserts and Marin tubeless sealant straight out of the box.

Specification Highlights:
  • 630Wh Battery
  • RockShox Pike/ Deluxe Select+ Suspension
  • Shimano Deore 11-speed Drivetrain w/11-51t Cassette
  • Tektro Slate EVO, 4-Piston Brakes
  • Vee Tire Co Attack HPL Top 40 Tubeless Compatible Override E-Specific Casing Tyres With Cushcore Liners installed as standard
Technical Information

  • FRAME

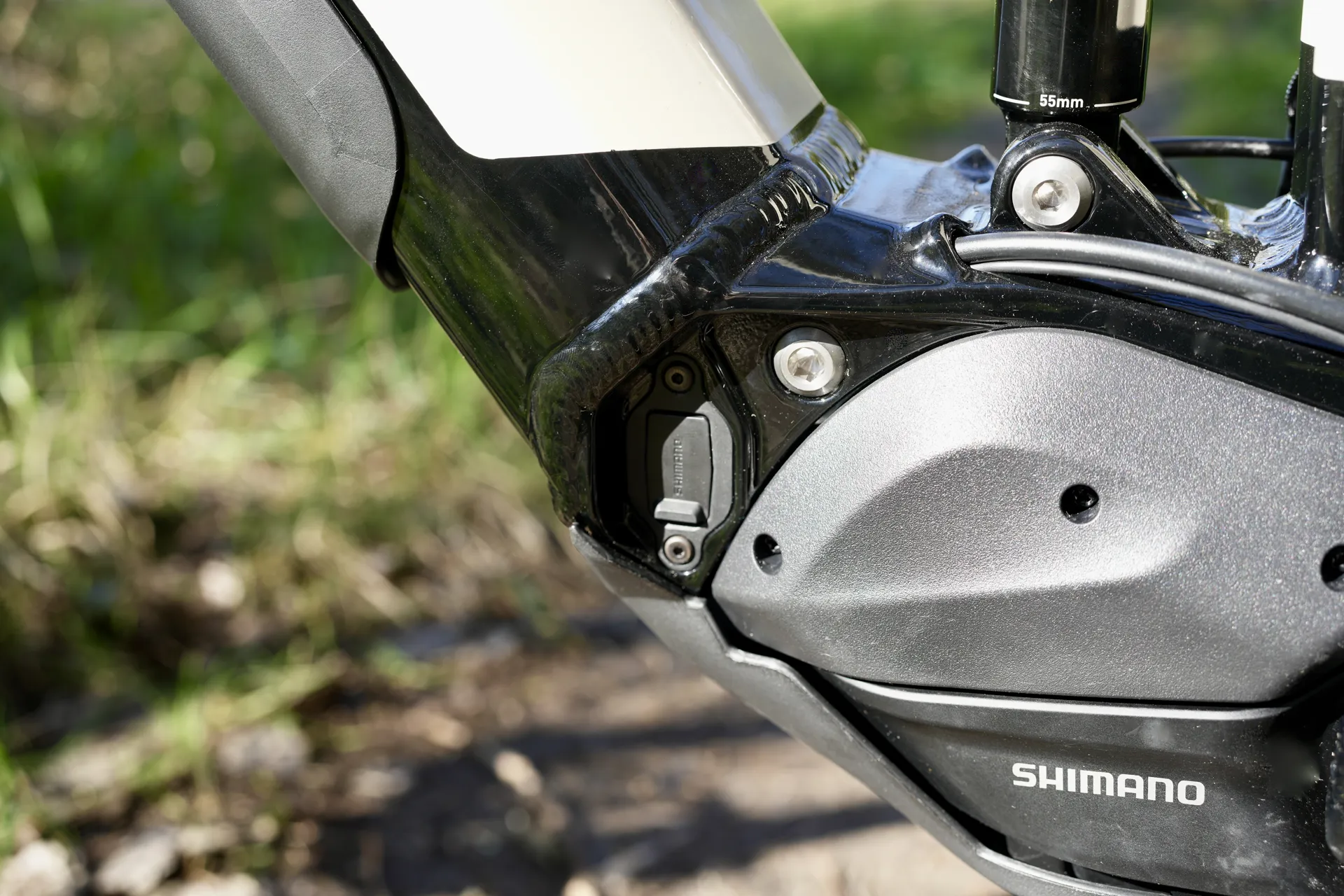

    All New Series 4 Alloy Frame, 140mm MultiTrac Suspension, Integrated Battery/Charging Port, 148mm Rear Thru-Axle, Built-in Rear Speed Sensor

  • FORK

    RockShock Pike Base 29", Motion Control Damper, 140mm Travel, Maxle Stealth Axle, 42mm Offset

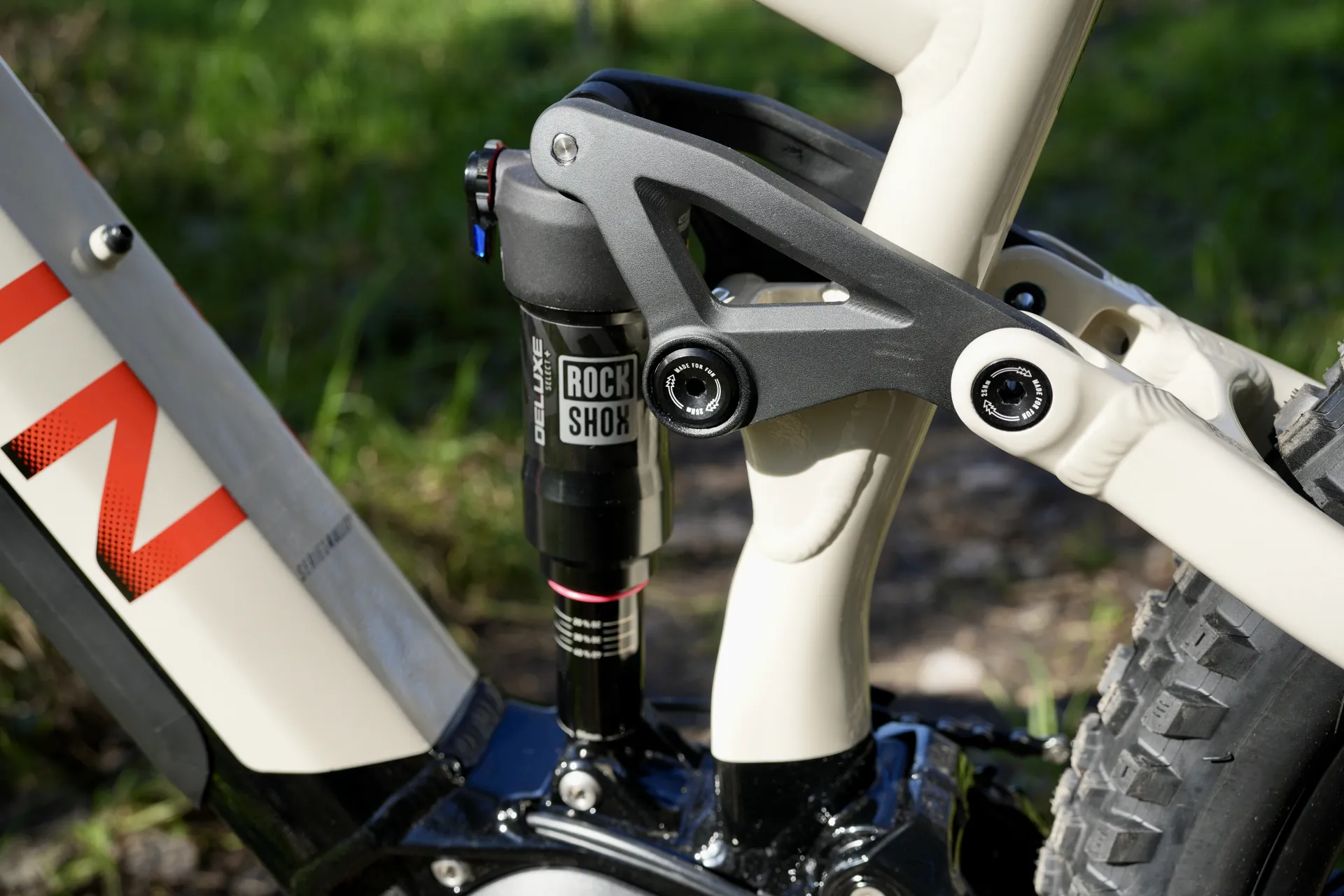

  • SHOCK

    RockShox Deluxe Select+, Compreson and Rebound Adjustment, 210x50, 25xM8 Lower and Upper Mount

  • RIMS

    Marin Aluminum Double Wall, 29" Diameter, 29mm Inner Rim Width, Sleeved Joint, Disc Specific, Tubeless Compatible

  • HUB REAR

    Shimano HB-TC500, 148x12mm, Centerlock, Standard Freehub Body

  • HUB FRONT

    Shimano FH-TC500, 110x15mm, Centerlock, 32H

  • SPOKES

    14g Black Stainless Steel

  • TIRES

    Vee Tire Co. Attack HPL, 29x2.5", Top 40 Tubeless Compatible, Override E-Specific Casing, CushCore Tire Inserts and Valve Stems, Marin Tire Sealant 300ml, Squeeze Top with Valve Core Removal Tool Cap

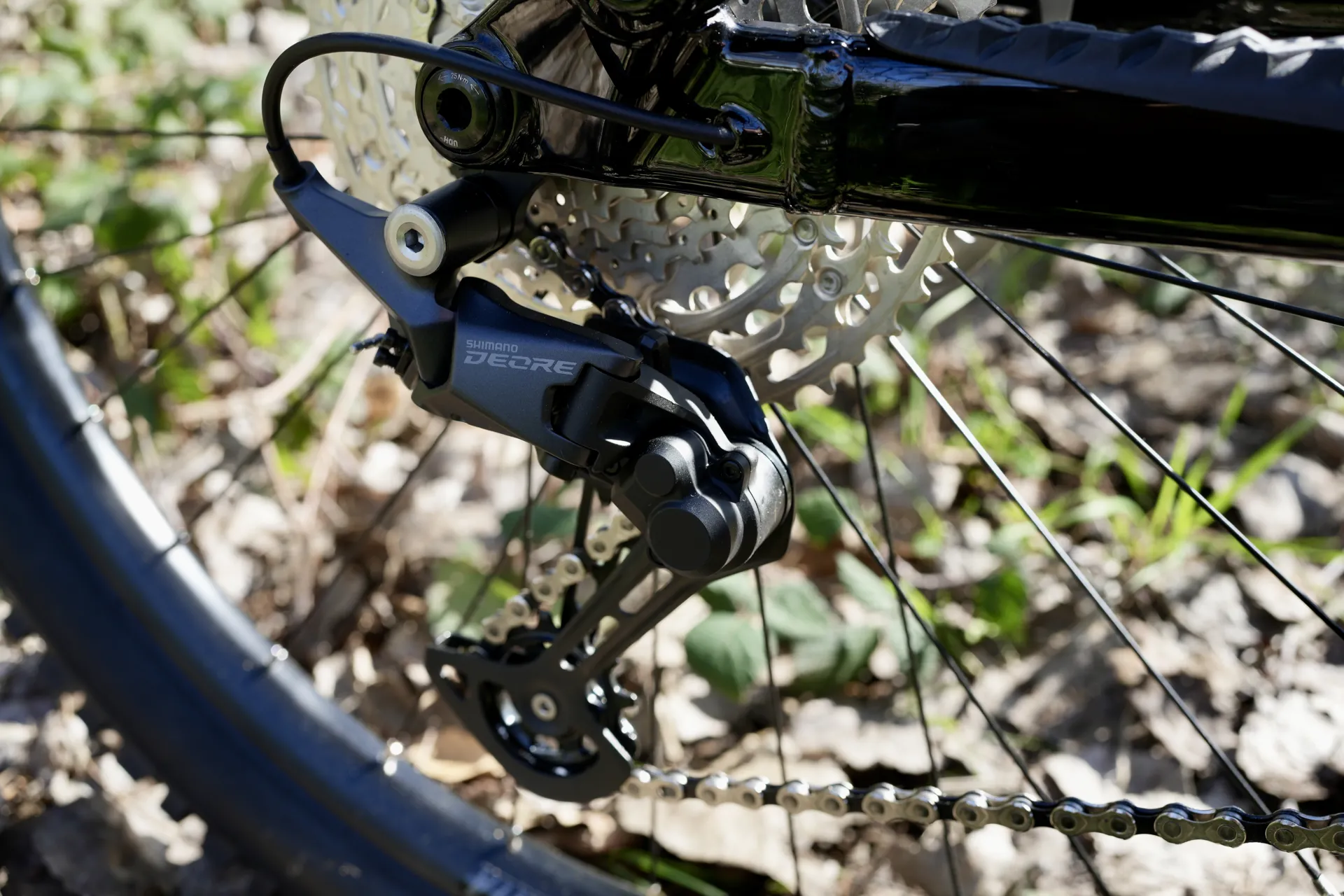

  • DERAILLEUR REAR

    Shimano Deore, Direct Attachment, 11-Speed, SGS

  • SHIFT LEVER

    Shimano Deore, 11-Speed, I-Spec EV

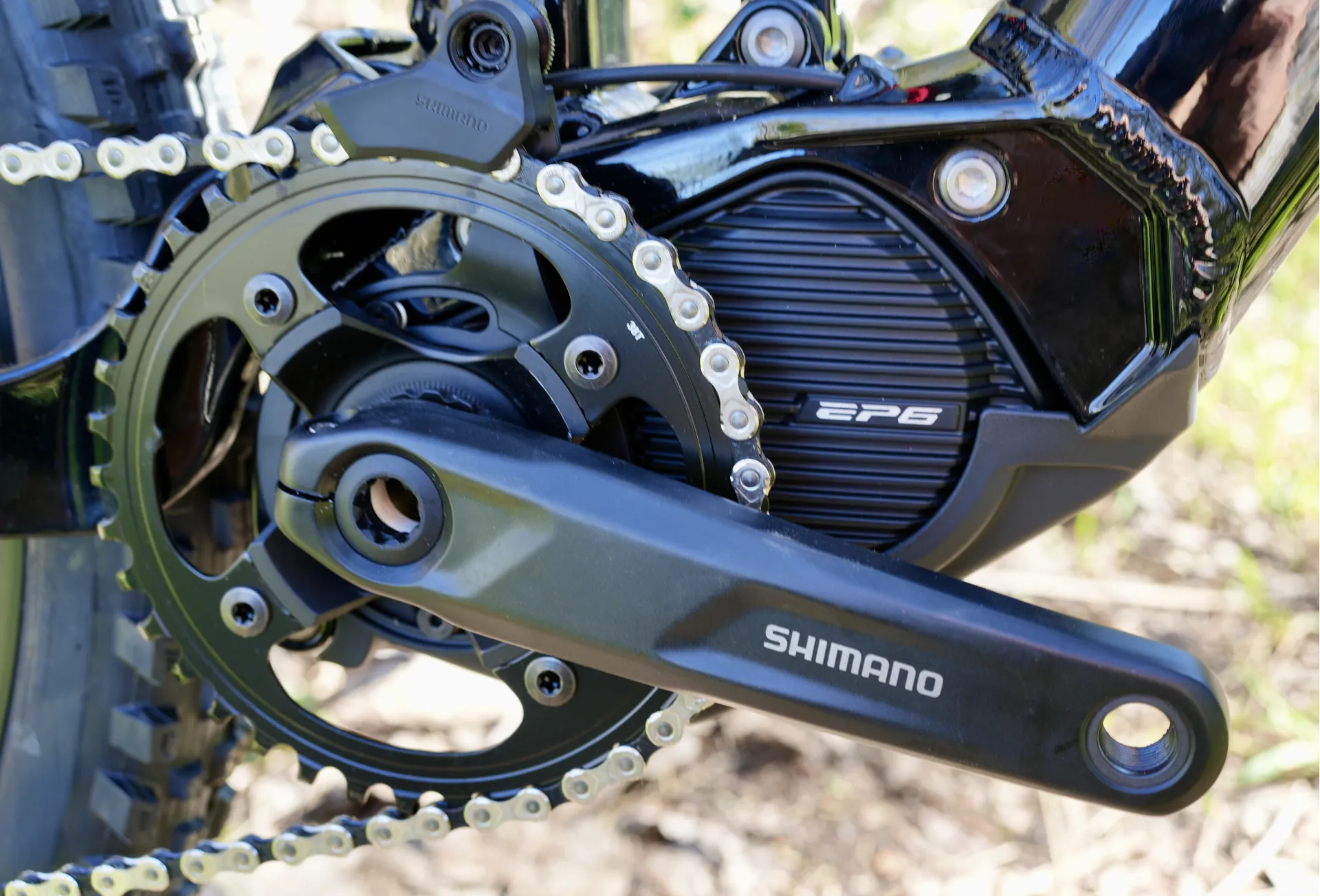

  • CRANKSET

    Shimano EM600, 160mm Length, 38t Chainring

  • MOTOR

    Shimano Steps EP801 Drive Unit, 250W, 85Nm

  • CHAIN

    KMC X-10E, Silver

  • CASSETTE

    SunRace 11-Speed, 11-51T

  • BRAKE FRONT

    Tektro Slate EVO, 4-Piston Hydraulic Disc, Resin Pads, 203mm Rotor

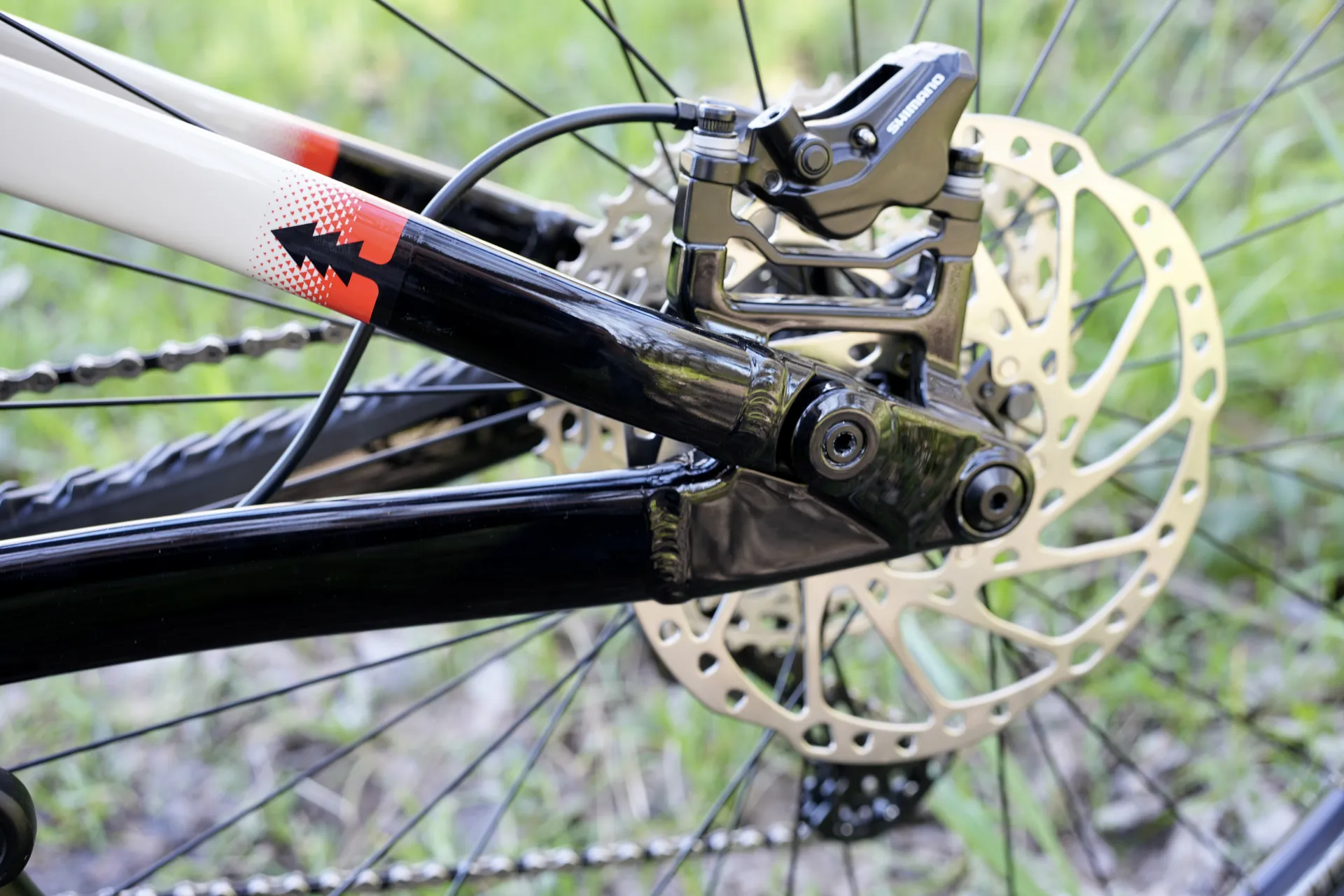

  • BRAKE REAR

    Tektro Slate EVO, 4-Piston Hydraulic Disc, Resin Pads, 203mm Rotor, w/ Bolt on Speed Sensor

  • BRAKE LEVERS

    Tektro Slate EVO Hydraulic Lever, I-Spec EV Compatible

  • HANDLEBAR

    Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back

  • STEM

    Marin 3D Forged Alloy, 35mm

  • GRIPS

    Marin Grizzly Lock On

  • HEADSET

    FSA No 57E, Sealed Cartridge Bearings, 1 1/8" x 1 1/2”

  • SEATPOST

    TranzX, YSP23JL, 1x Remote, Size S 150mm Travel, Size M and L 170mm Travel, Size XL 200mm Travel, 30.9mm

  • SADDLE

    Marin eMTB Saddle

  • PEDALS

    Marin MTB Plastic

  • BATTERY

    Shimano BT-EN806, Internal 630Wh

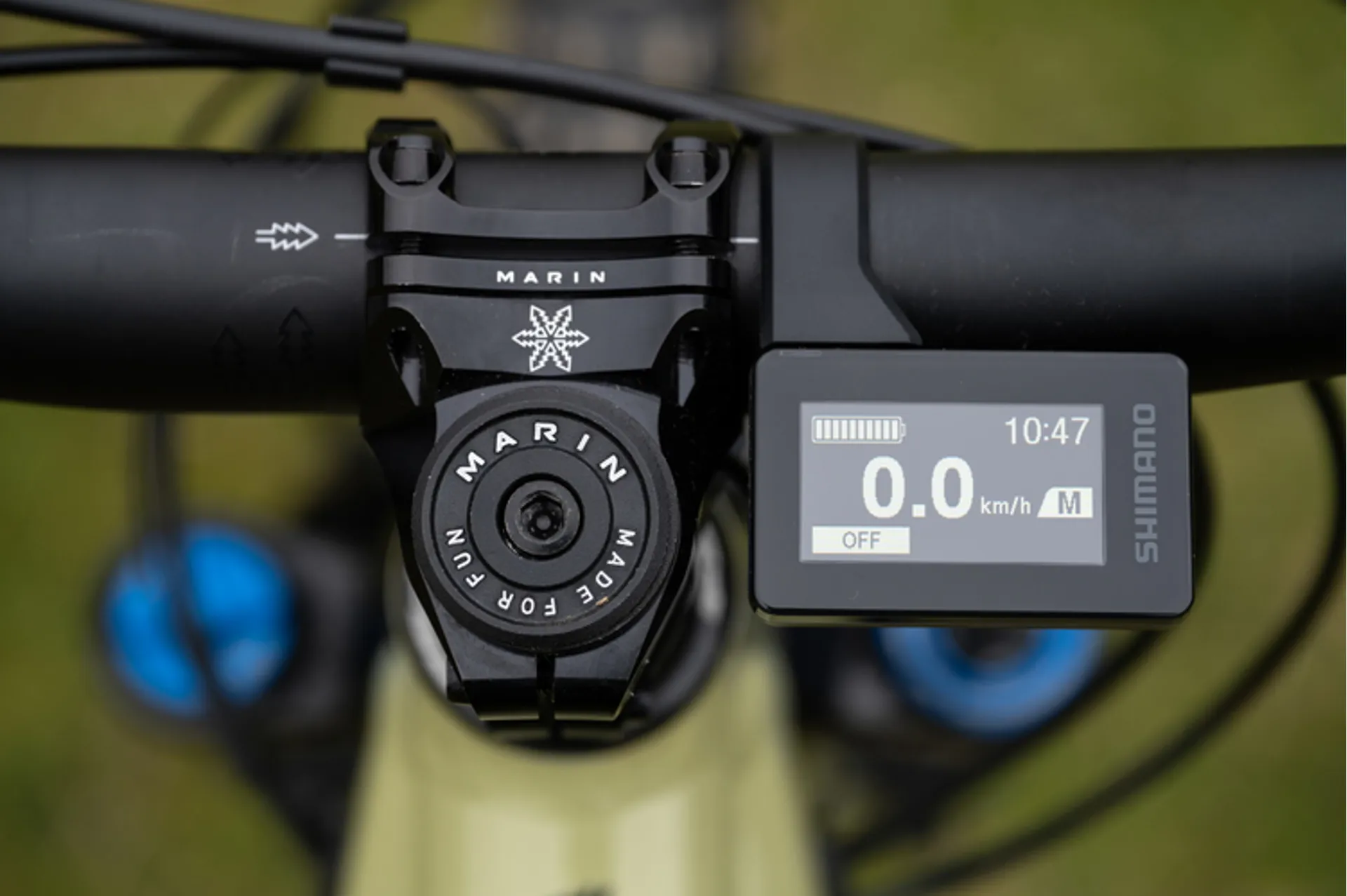

  • DISPLAY

    Shimano SC-E600

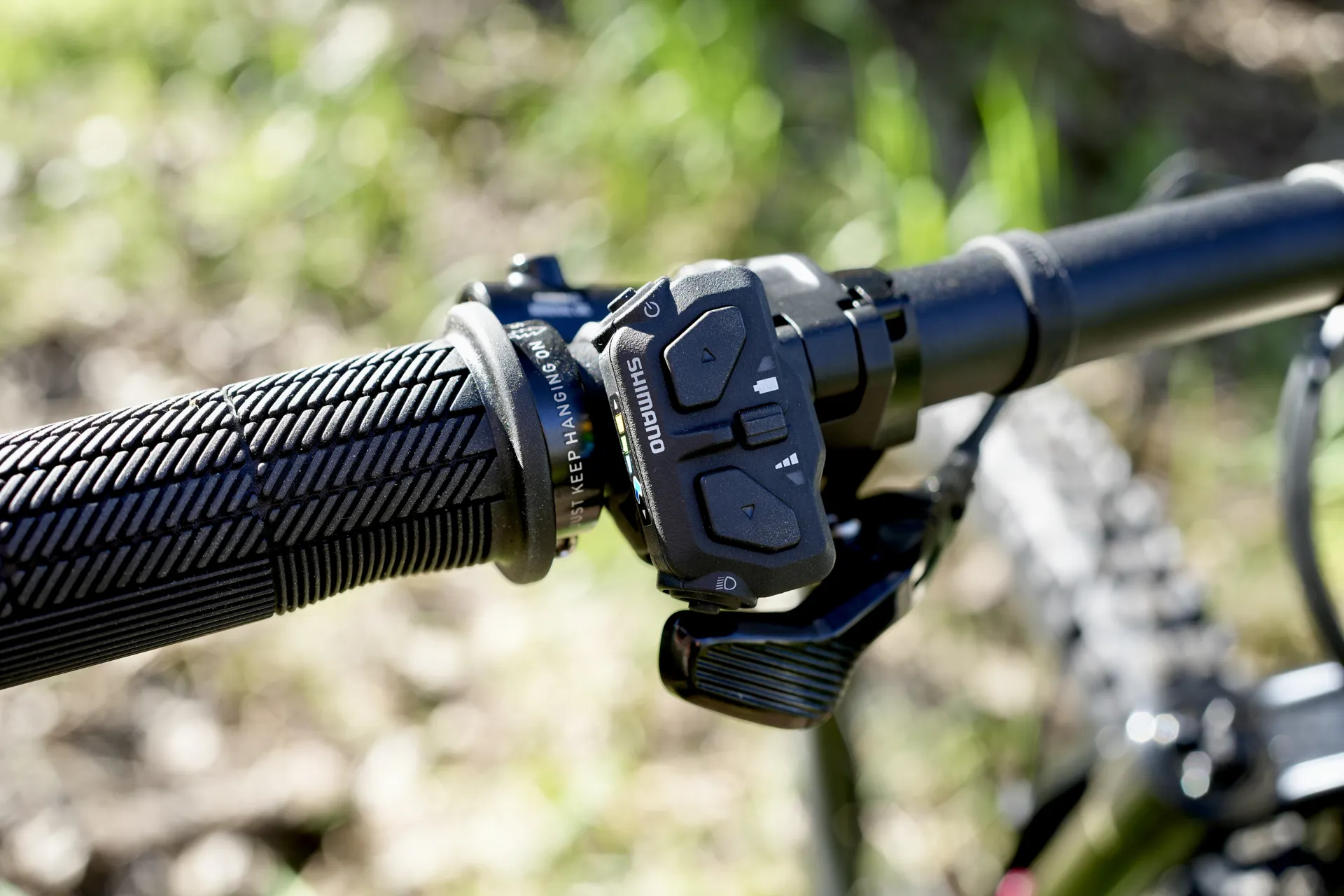

  • SWITCH

    Shimano SW-EN600L Left Hand Switch for Assist Mode Change

  • EXTRAS

    Shimano Battery Charger EC-E6002, Shimano CS-EN800 Chainguide

Sizing Information
Rift Zone E2 geometry diagram
SMLXL
Stack606.98614.04625.1634.16
Reach445465485515
Headtube Angle65°65°65°65°
Headtube Length100110120130
Seattube Angle77°77°77°77°
Seattube Length390400425435
Toptube Effective585.13607.22629.32661.41
BB Height348.5348.5348.5348.5
BB Drop32323232
Chainstay440440440440
Wheelbase1198.291222.521246.741280.97
Standover Heigth693.65696.01709.94719.93
Fork Offset44444444
Seatpost Diameter30.930.930.930.9
Handlebar Width800800800800
Stem Length35353535
Crank Length160160160160

All lengths in millimeters
