Combine the knowledge of Haibike and their offroad pedegree, frame building know how and the truely amazing Pinion MGU running on a Gates Belt system, you have the go anywhere, any weather machine of the AllMtn 10
Combine the knowledge of Haibike and their offroad pedegree, frame building know how and the truely amazing Pinion MGU running on a Gates Belt system, you have the go anywhere, any weather machine of the AllMtn 10
Haibike

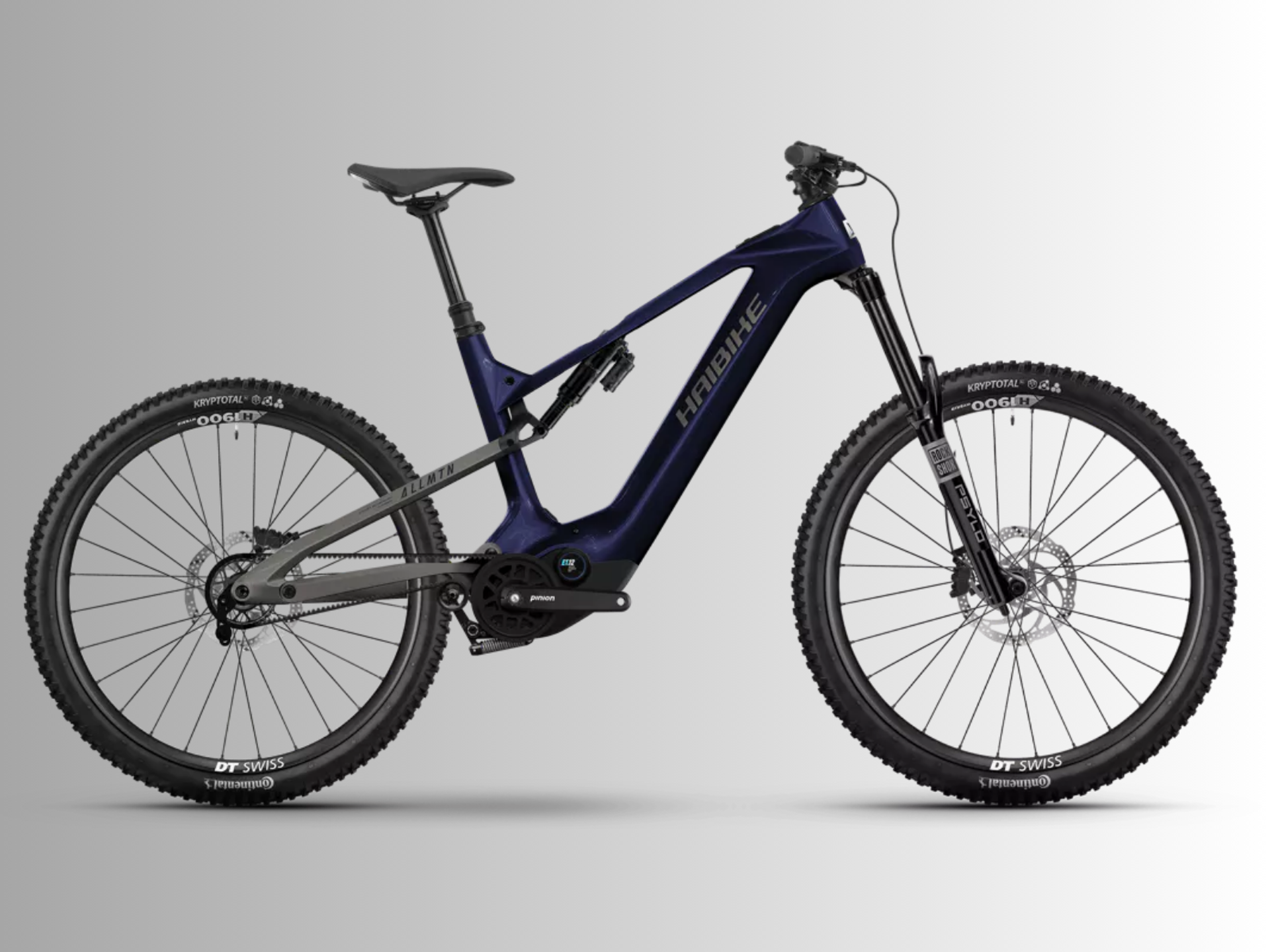

Haibike Allmtn CF 10 TRN/ IQ E.Mountain - Glossy Midnight Blue/Grey

£7,799.00
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Haibike Allmtn CF 10 TRN/ IQ E.Mountain - Glossy Midnight Blue/Grey

Season:2025

Brand:Haibike

Code:HMFT1Multicolor

Escape Bike Shop are super excited to be stocking the brand new Pinion equipted Haibike AllMtn 10, we are carrying stock and also have a demo bike availble to go out and experience how the belt drive gearbox bike rides.

We are also happy to discuss upgrades and personalizing of this bike, talk to us about your dream build.


Reach the highest peaks with ultimate riding fun. Our new ALLMTN CF 10 TRN/IQ delivers just that – and even more. This full-suspension eMTB embodies “Next Level Riding” like no other eMountain bike in our range. One key feature is the fully integrated Pinion Motor.Gearbox.Unit (MGU) – an advanced drive technology that combines motor and gearbox in one housing. Supported by the mullet setup, shorter chain stays and improved kinematics with 160mm of travel front and rear, you’ll enjoy an entirely new, intuitive riding experience. And with the 800Wh battery, even the longest Alpine climbs become a breeze, while the high-quality Magura disc brakes bring you safely back down to the valley. Climbing to the highest peaks has never been this fun!

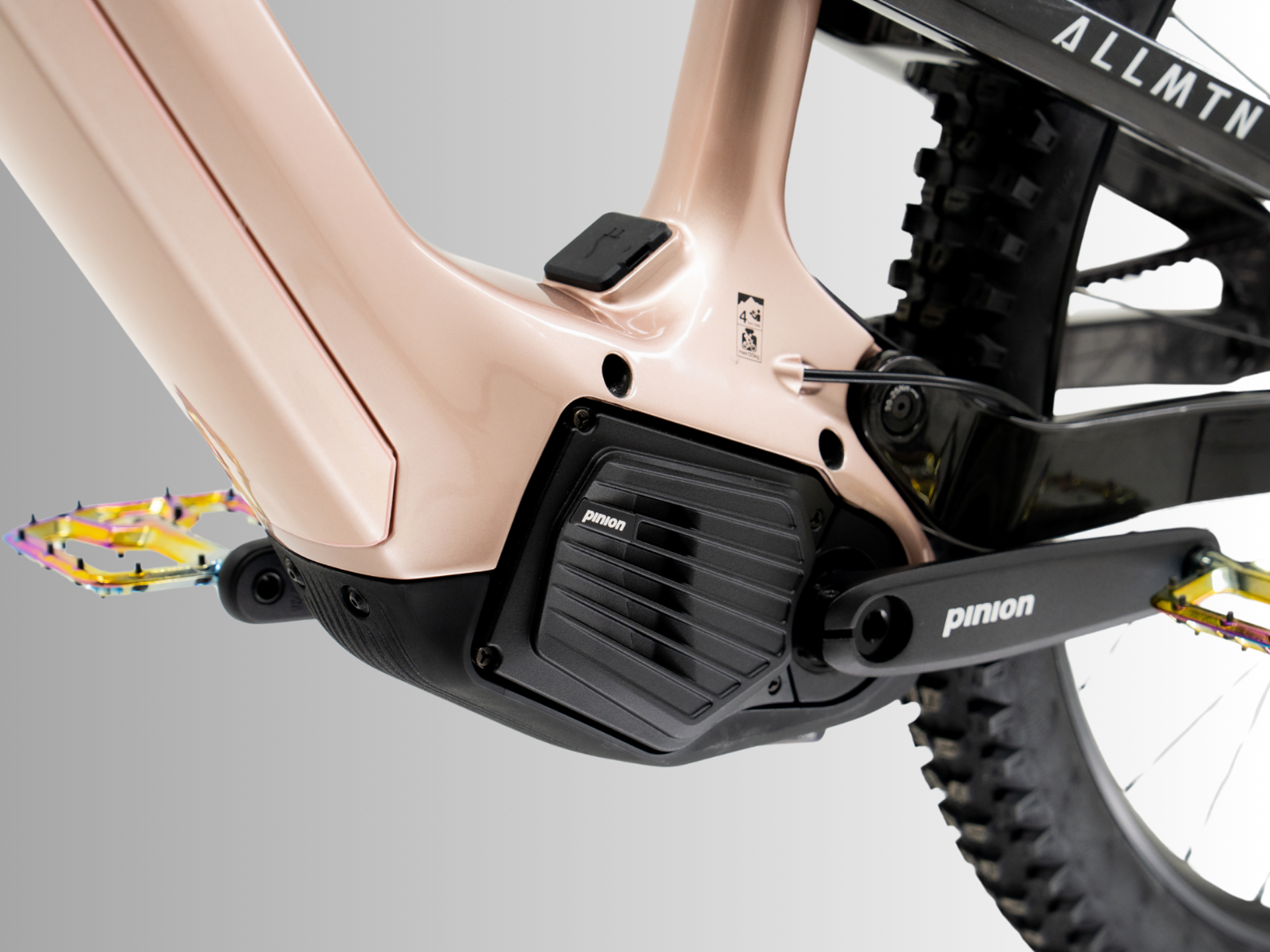

PINION MGU E1.12 MOTOR AND 12-SPEED TRANSMISSION IN ONE -At the heart of the new AllMtn CF TRN/IQ is the Pinion MGU E1.12– a compact unit combining a powerful electric motor with a precise 12-speed gearbox.
Thanks toelectronic shifting technology, you shift seamlessly and reliably—even under load.
Derailleur and cassette? A thing of the past—meaning no broken parts, no constant readjustments, just pure ride focus.

SMART.SHIFT TECHNOLOGY - Precise and seamless shifting without cracking - even under load. Performs quickly and intelligently, even on the steepest uphills.

LOW WEAR & MINIMAL MAINTENANCE - Thanks to the belt drive and a transmission sealed against wind and water, the bike is extremely low-maintenance and highly durable. (Oil change only every 10,000 km / 6213.7 miles.)

NEW KINEMATICS WITH OPTIMIZED SHOCK POSITION -Crafted in Europe from ultra-light carbon, the AllMtn features a new kinematic setup and an innovative shock position. The result: a clean, radical design & pure freedom.

  • New Carbon frame platform
  • Pinion E1.12 MGU gearbox and motor

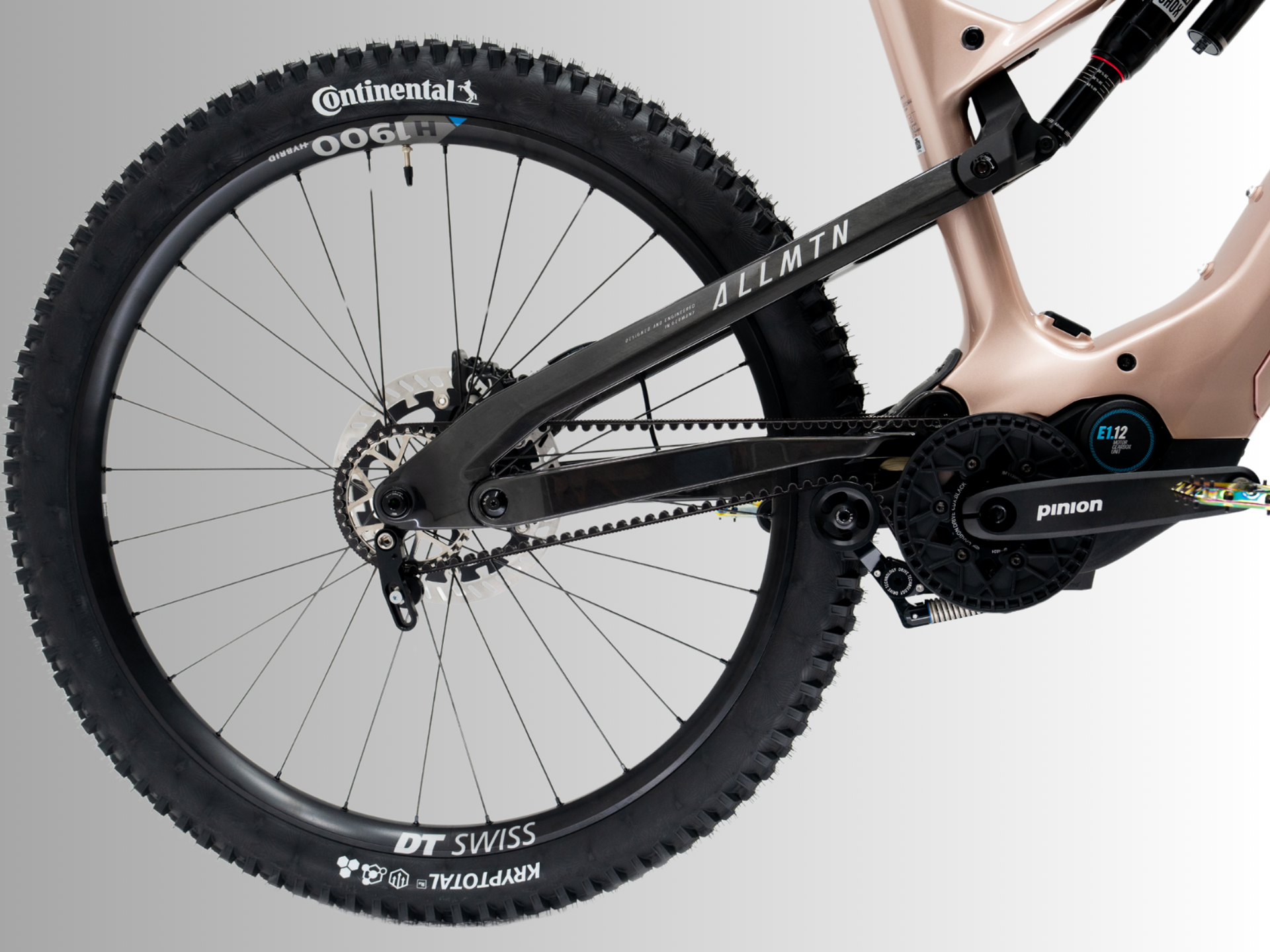

  • 12 Speed Gates carbon belt drive
  • 800Wh battery
  • RockShox Psylo Gold RC forks
  • RockShox Deluxe Select rear shock
  • TRP Slate T4 brakes
  • WTB ST i30 / i35 wheelset
Technical Information
eBike motorPinion E1.12 Motor Gearbox Unit

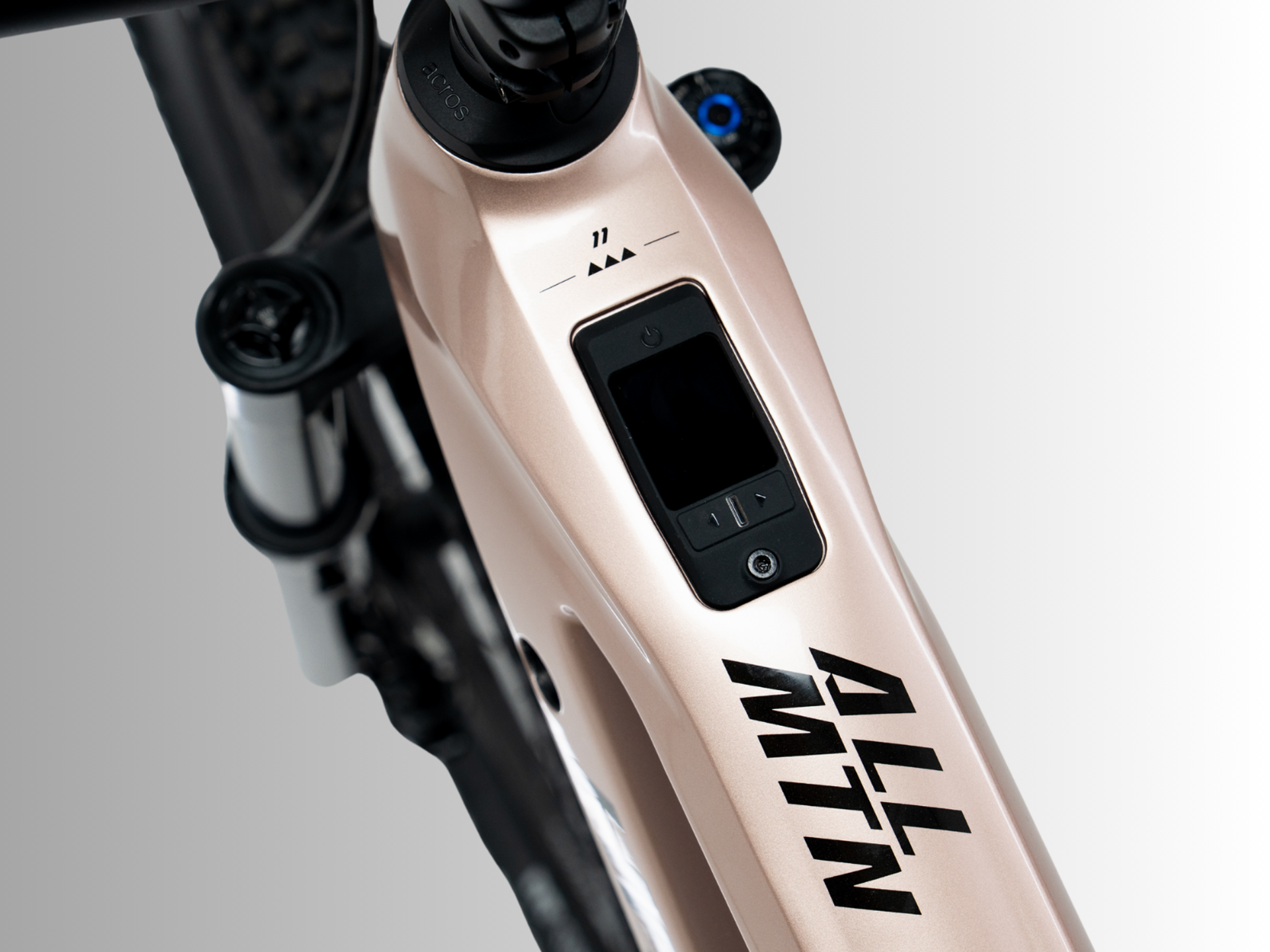

eBike display
Pinion FIT Master Node Display + Remote Pure
eBike battery
Pinion InTube 800Wh
eBike battery chargerPinion FIT Standard Charger 48V
FrameUltra Light Carbon
ForkRockshox Psylo Gold RC, Crown Adj, DebonAir 160 mm

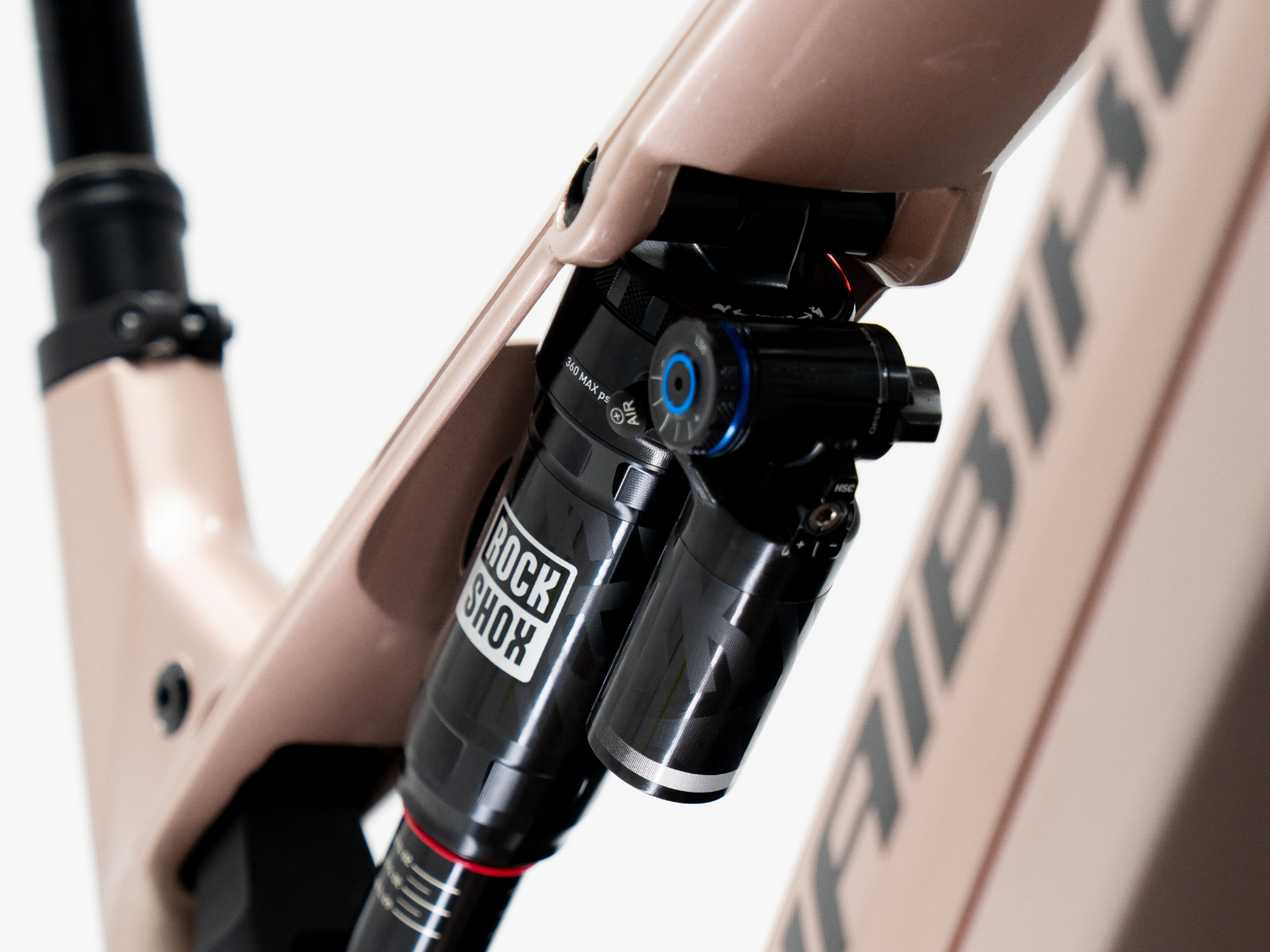

ShockRockshox Super Deluxe Select RT 230x60mm, DebonAir
HeadsetAcros BlokLock
WheelsetWTB ST i30 TCS 2.0 32H F:29"/ WTB ST i35 TCS 2.0 32HR:27.5"
TyresContinental Kryptotal-Fr, Enduro Soft 29x2.40" Front; Continental Kryptotal-Rr, Enduro Soft, 27.5x2.40" Rear
Shift LeversPinion Triggershift Smart Shift TE1 E-Trigger
Rear DerailleurN/A
CassetteGates Carbon Drive CDX Sprocket, 9 Spline
ChainGates Belt Carbon Drive Belt CDX, 120T
CranksetPinion Forge Crankset + GATES CDX front sprocket w/ Guard 165mm
Bottom BracketN/A
SeatpostLimotec Dropper Post A4H 150mm Dropper, Dia. 34.9mm
SeatSelle Royal Vivo 1216HRN
BarHaibike TheBar++ Dia. 31.8 mm
StemHaibike 'The Stem' 35mm Length
GripsMTB Grip Set VLG-1751D2
Front BrakeTektro Hydraulic Disc brake TRP Slate EVO HD-M807, 4 pistons, 203 mm
Rear BrakeTektro Hydraulic Disc brake TRP Slate EVO HD-M807, 4 pistons, 203 mm
PedalsClick here to choose an upgrade pedal
Sizing Information
Frame size
Small - 40cm
Medium - 42cm
Large - 44cm
X.Large - 49cm
Wheel Size29/27.5"29/27.5"29/27.5"29/27.5"
Rider height (cm)158-170168-179177-189187-199
Seattube length (mm)400420440490
Toptube length (mm)560592624656
Headtube length (mm)100110120130
Seattube angle (deg)77.777.777.777.6
Headtube angle (deg)64646464
Stack (mm)617626635650
Reach (mm)425455485513
BB Drop (mm)10101010
Wheelbase (mm)1203123712711304
Chainstay length (mm)440440440440
