Using the ultra corrosion resitant Beryllium Copper material for the studs and axle these machined pedals will stand up to weather and punishment of UK riding
Using the ultra corrosion resitant Beryllium Copper material for the studs and axle these machined pedals will stand up to weather and punishment of UK riding
Pinnd

Pinnd CS2+ Flat Pedals - Black/ Copper

£265.00
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

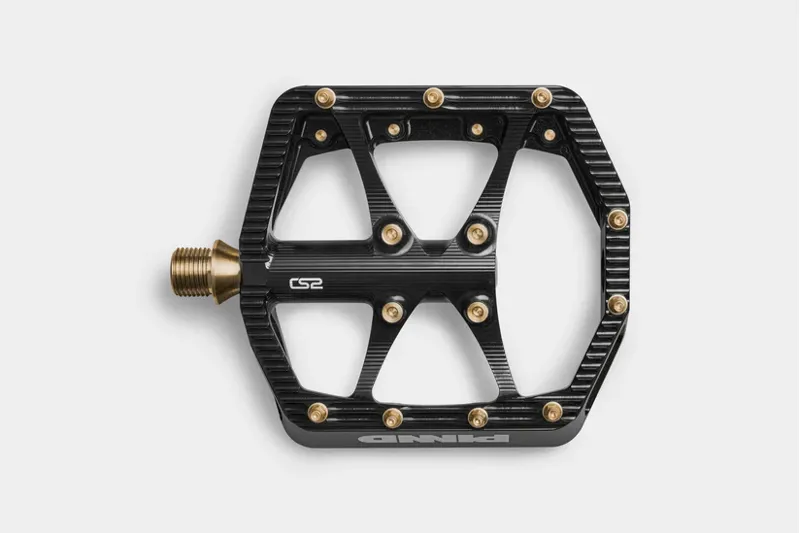

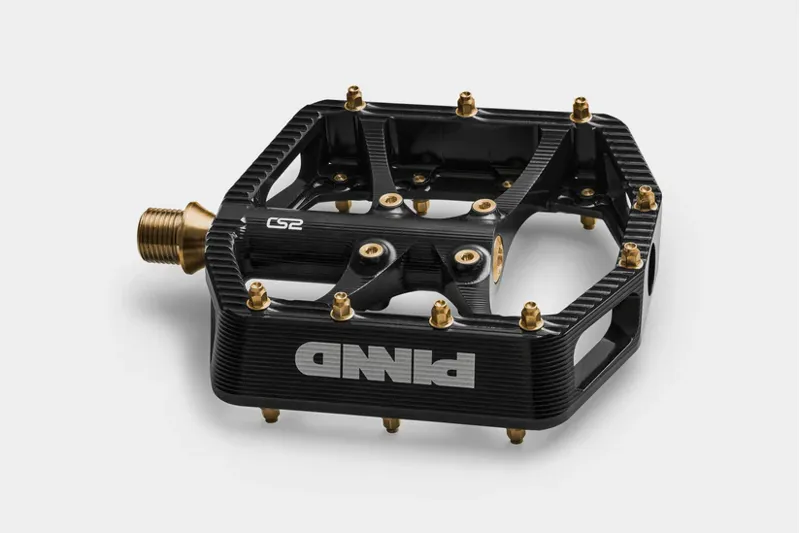

Pinnd CS2+ Flat Pedals - Black/ Copper

Season:2025

Brand:Pinnd

Code:PINCS2+

The CS2+ uses beryllium copper spindles for increased strength over the standard CS2.

Using the same oil sealed internals, our bearings run on these stronger spindles inside the heavily machined and optimised 7075 T6 platforms.

  • 1 x Needle Bearing and 2 x Cartridge Bearings per pedal
  • 13 pins per side forpersonal customisation
  • 5 year warranty (doesn't cover wear and tear)

CS2+ Pedals are made in small batches each month. When they have sold out for a month we recommend you pre-order for the next drop.

Designed for downhill, enduro and trail mountain bike riding and offering a large contact platform with a 9mm concave profile and fully adjustable pin set. Pedals are shipped with 18 pins installed allowing you to customise with an additional 8 provided. The 7075 T6 aluminium body has been CNC machined on our 5-axis tooling allowing us to fully optimise the pedal for a high traction connection between pedal and shoe. By using beryllium copper for the spindles and pins we have achieved what we think may be the strongest pedal available.

Internally the pedal features oil sealed bearings to give exceptional all weather performance and long service intervals. The design incorporates an oil seal which keeps oil in, and water and dirt out. With our use of a needle bearing instead of plastic bush, the CS2+ won't exhibit the axial play common to most designs. When this play develops the seal becomes compromised and unable to seal resulting in water and dirt ingress and lubrication egress - our solution is 2 fold. Quality oil seal and quality needle bearing.

Specifications

  • Pins26 Per Pedal - Beryllium Copper
  • Body Material7075 T6 Anodised Aluminium
  • SpindleBeryllium Copper
  • Inner BearingHK1015 Needle Bearing
  • Outer Bearing2 x Cartridge Bearings
  • Max Rider WeightNo limit
  • Foot Print110 x 105mm
  • Warranty5 Years Limited Warranty - half price crash replacement
  • Weight (pair)480g with beryllium copper pins.


NOTE: Inhalation of dust, mist or fume containing beryllium copper can be harmful as it is toxic. So please don't eat the pedals or grind them into dust and snort them. Thank you.
