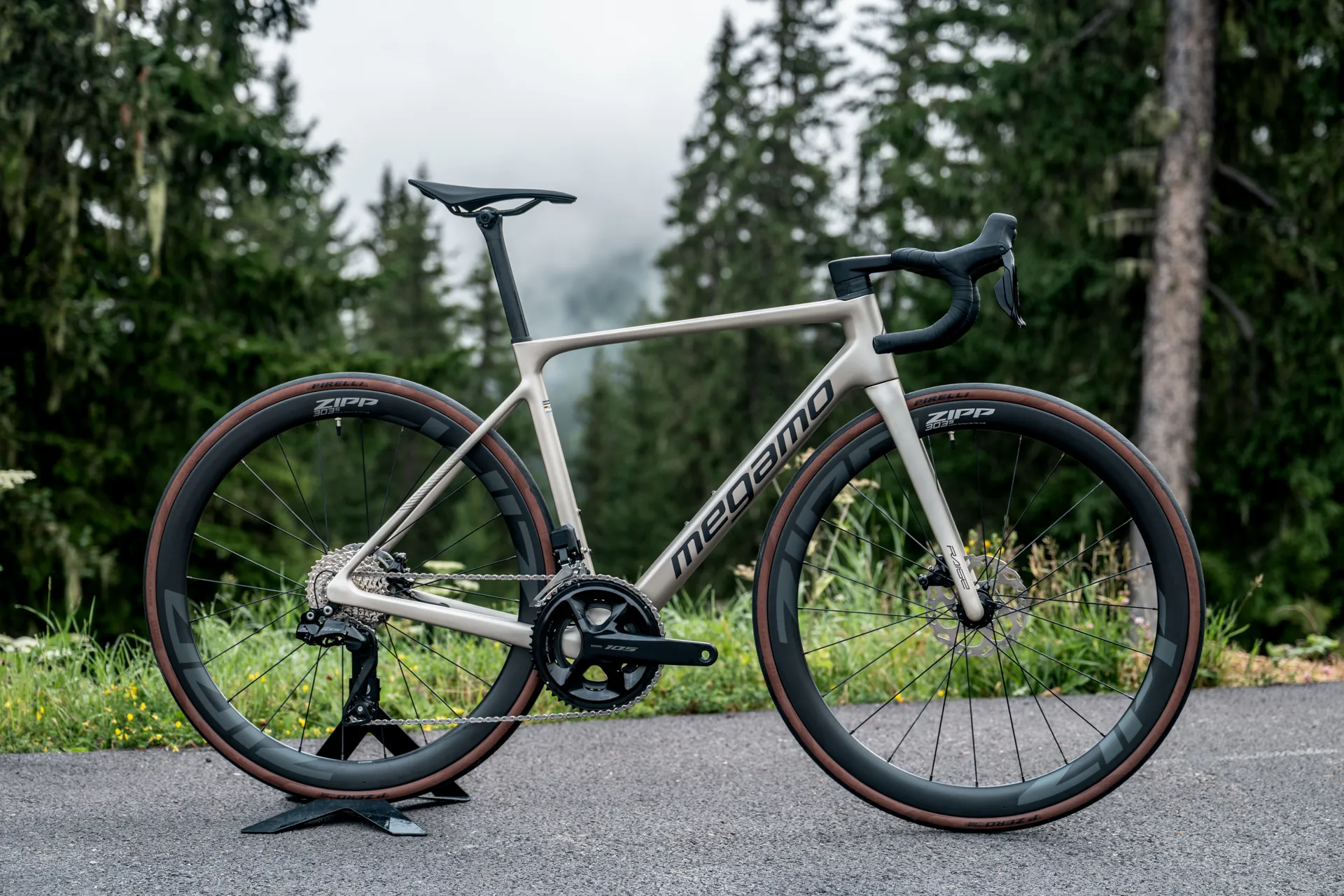

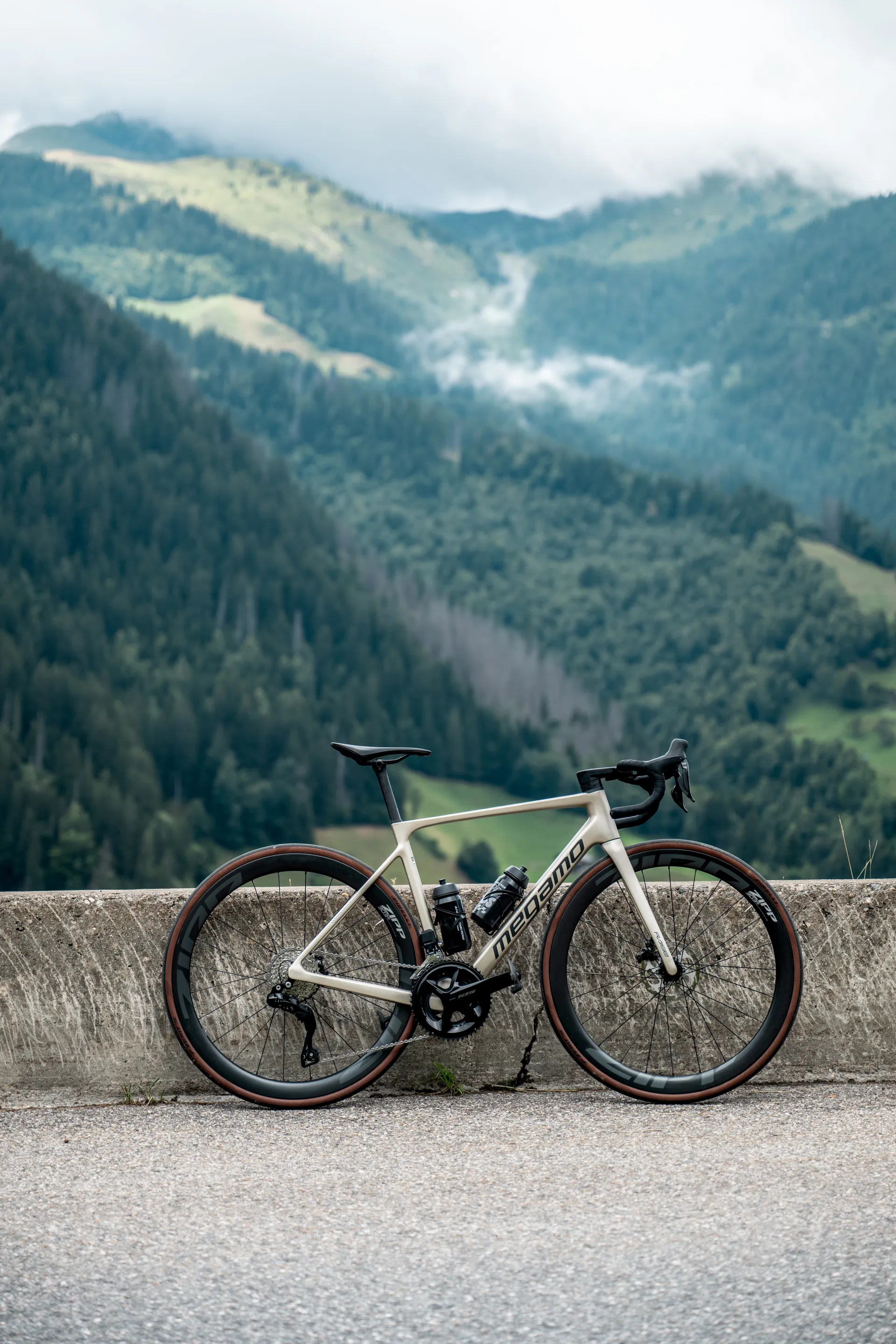

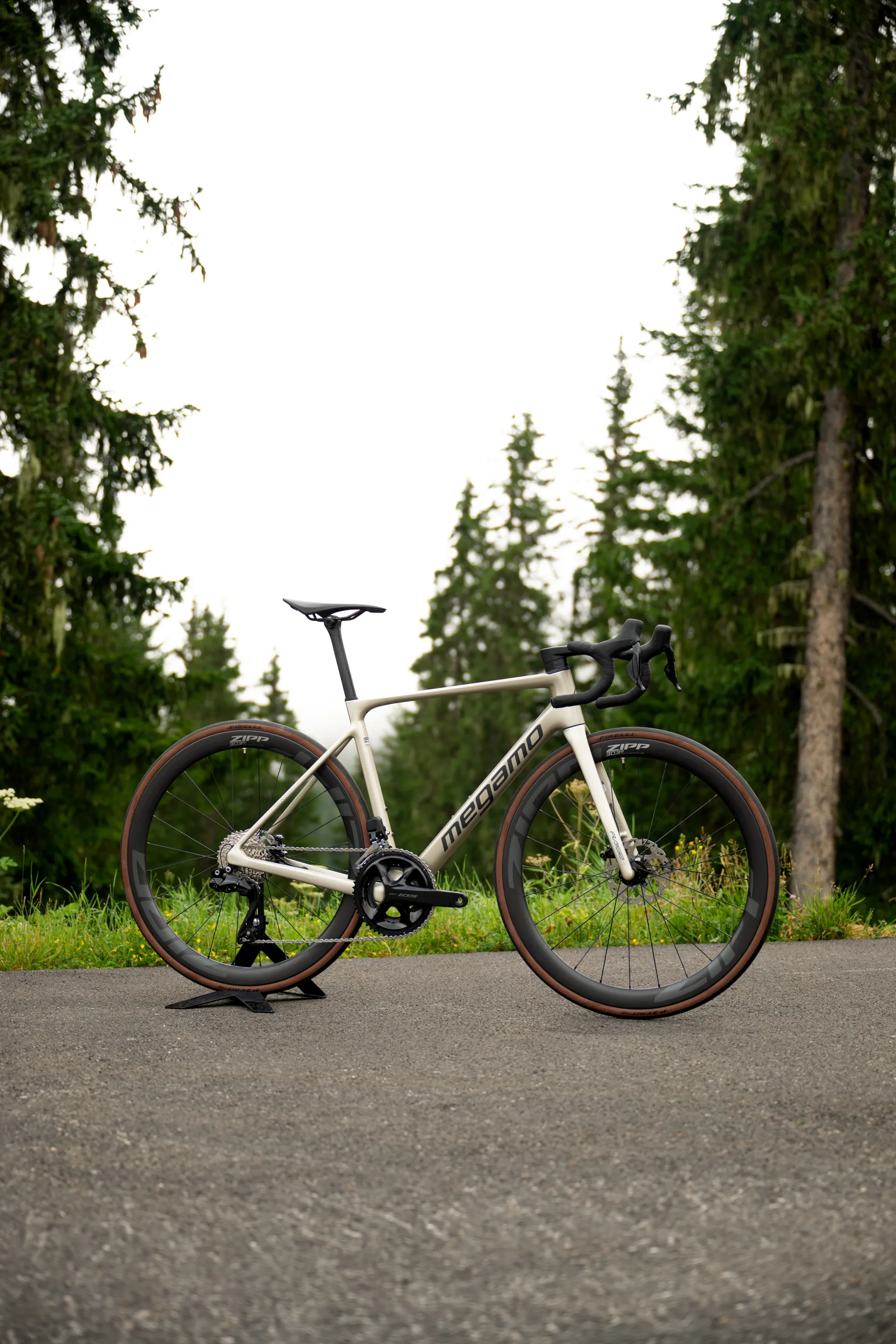

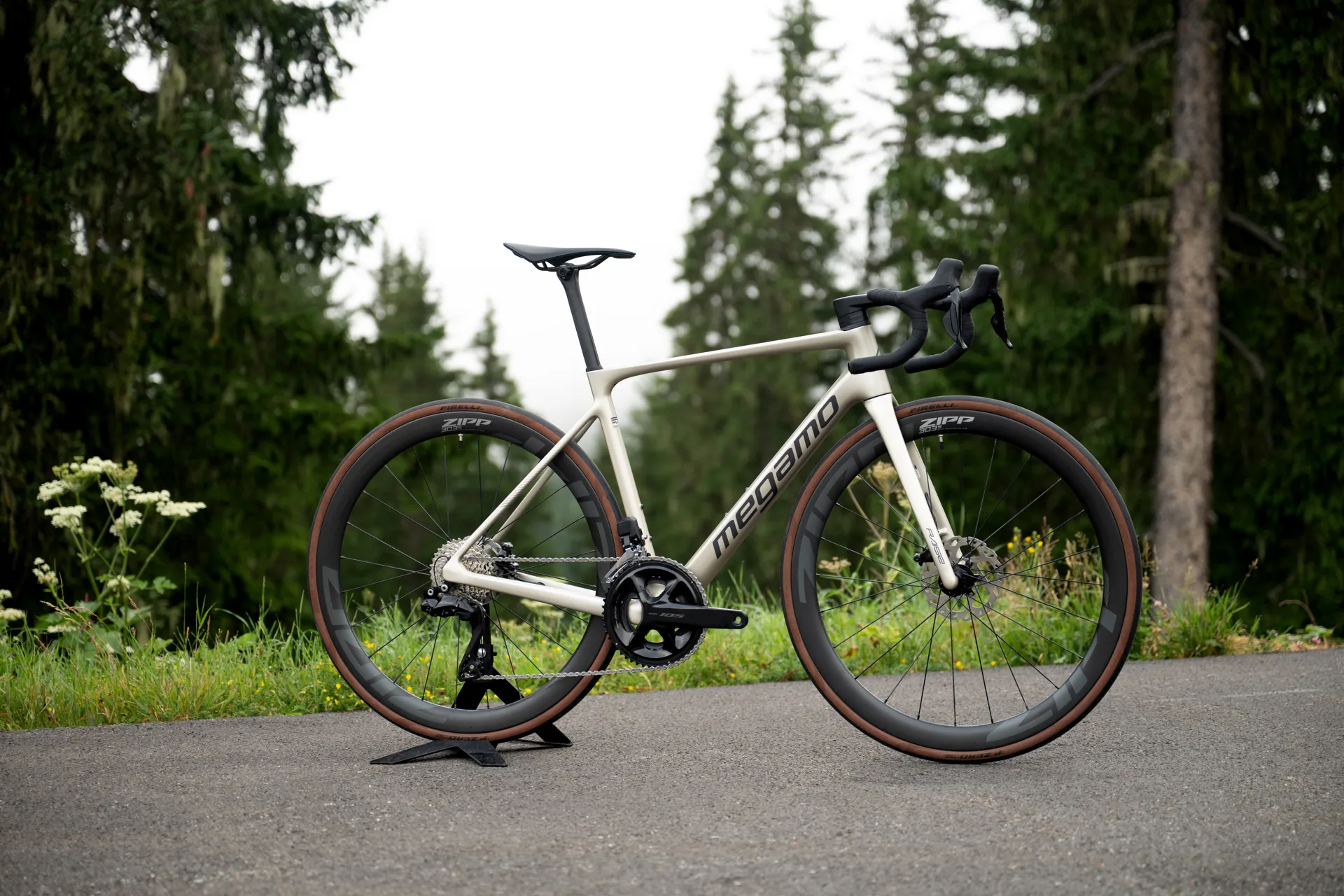

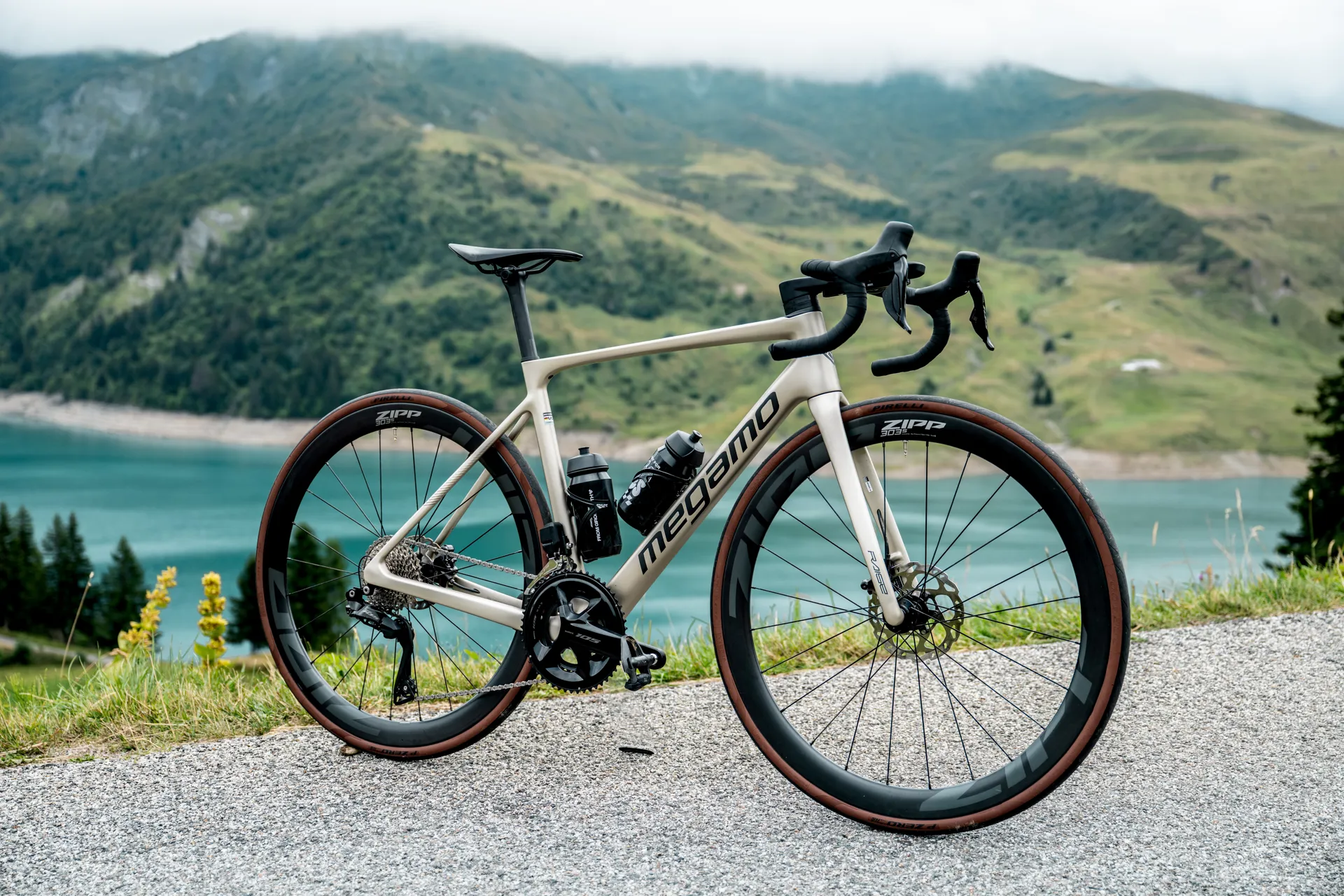

Megamo Raise 20 2026 Carbon Road Bike - Silver Ash

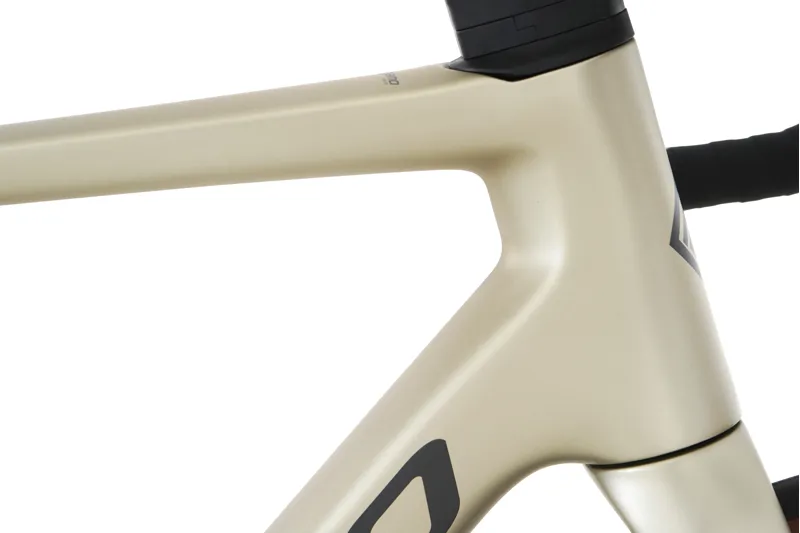

Megamo Raise 20 2026 Carbon Road Bike - Silver Ash-1

Megamo Raise 20 2026 Carbon Road Bike - Silver Ash-2

Megamo Raise 20 2026 Carbon Road Bike - Silver Ash-3

Megamo Raise 20 2026 Carbon Road Bike - Silver Ash-4

Megamo Raise 20 2026 Carbon Road Bike - Silver Ash-5

Megamo Raise 20 2026 Carbon Road Bike - Silver Ash-6

Megamo Raise 20 2026 Carbon Road Bike - Silver Ash-7

Megamo Raise 20 2026 Carbon Road Bike - Silver Ash-8

Designed to tackle steep climbs and long distances at demanding paces, the Raise offers spectacular efficiency without sacrificing comfort

Megamo

Megamo Raise 20 2026 Carbon Road Bike - Silver Ash

£2,799.00

Size Guide

Megamo Raise 20 2026 Carbon Road Bike - Brown

Megamo Raise 20 2026 Carbon Road Bike - Jade UD

Megamo Raise 20 2026 Carbon Road Bike - White

Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Megamo Raise 20 2026 Carbon Road Bike - Silver Ash

Season:2026

Brand:Megamo

Code:MG13020SA

Designed to Conquer

The 2026 Raise is designed for those who dream of conquering every summit and flying down every descent. This climbing bike combines lightness, stiffness, and comfort thanks to its carbon frame, available this year in SL and SLR versions, and its integrated handlebars, which provide a modern and aerodynamic aesthetic.

Designed to tackle steep climbs and long distances at demanding paces, the Raise offers spectacular efficiency without sacrificing comfort. Agile and responsive on the ascents, stable and fast on the descents, it's the perfect partner to push your limits and go higher, faster.

Raise 20 Key Features:

Raise Carbon Advanced Composite Super Light UCI frame with full internal cable routing
Shimano 105 2x12-speed drivetrain
Fulcrum Racing 800 DB 33.7mm wheels
Megamo Carbon integrated bar/ stem combo
Megamo Aero Carbon seatpost

Sophisticated Design and Perfect Fit

Clean Aesthetics and Maximum Aerodynamics

The Raise's fully internal cable routing eliminates any visible elements, creating an impeccably minimalist design that exudes speed.
Every line, every joint, and every detail has been carefully considered for complete integration, optimizing not only the aesthetics but also the aerodynamics and overall performance of the bike.

Total Control and Elegance in every line
The integrated carbon cockpit reduces weight and improves stiffness for more precise and responsive handling. With an 81mm reach, 130mm drop, and a 10.5° stem angle, it offers an efficient and comfortable riding position tailored to each size.Its ergonomic design and fully hidden cable routing enhance the clean, aerodynamic aesthetic that elevates the riding experience.

Lightweight, rigid and with an optimized profile to reduce wind resistance and improve efficiency with every pedal stroke.

Refined Geometry, High Performance

Aerodynamic and comfortable geometry for long distances.

Greater agility and responsiveness for superior performance on every route.

Balanced Performance for Every Route

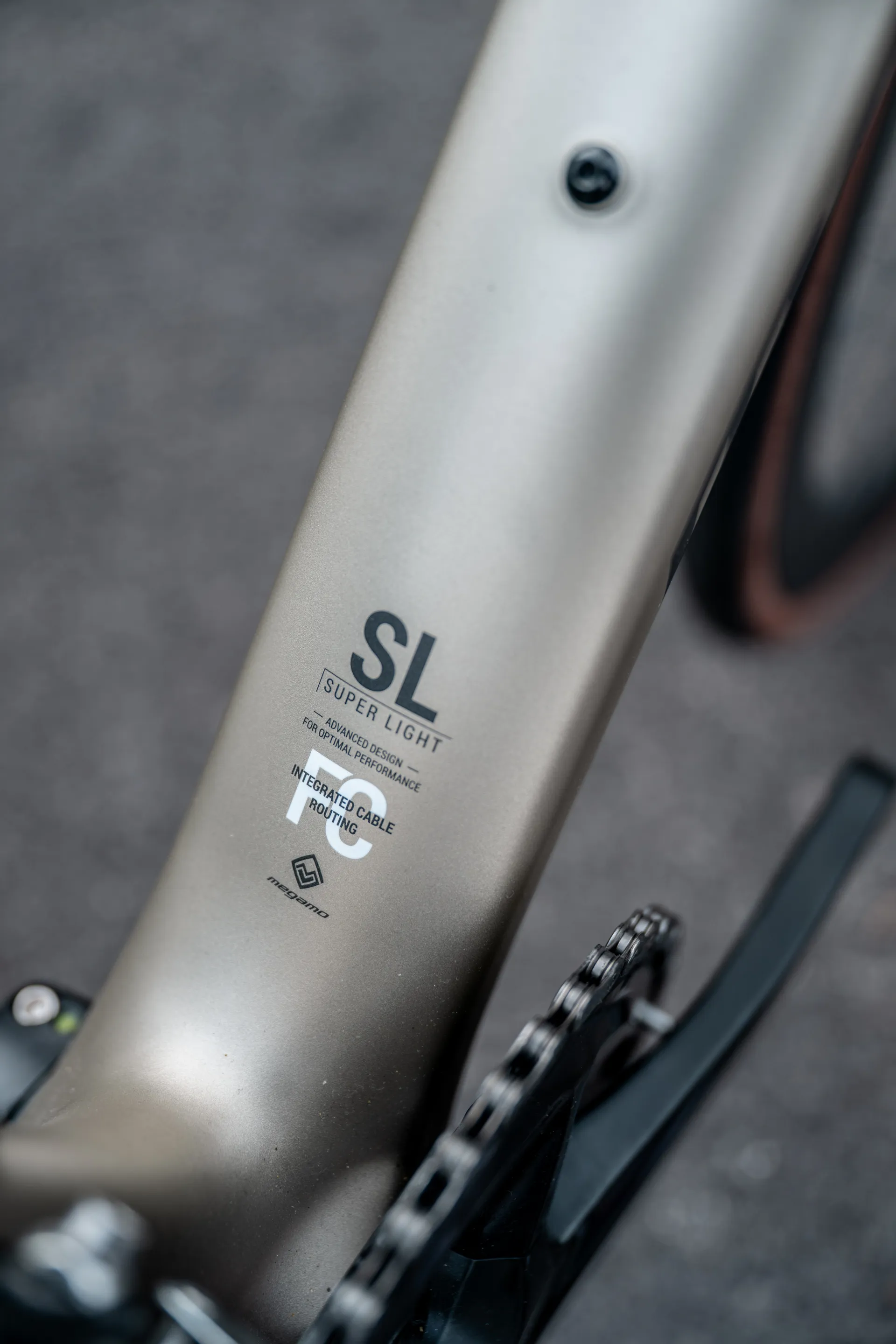

The Raise 2026 SL frame is constructed from high-performance carbon, carefully selected to offer a perfect balance of lightness, stiffness, and comfort. Designed for cyclists seeking efficiency without sacrificing comfort, it's ideal for both demanding training sessions and long days on the road.
Its structure provides excellent power transfer, maintaining a stable and smooth ride. Thanks to its optimized geometry and the intelligent use of carbon, the SL frame translates every pedal stroke into forward motion, adapting to different terrain profiles with complete confidence.

Technical Information

Frame	Raise SL Carbon Advanced Composite Super Light Frame, Full Internal Hidden Cable Routing, Flat mount disc, 12x142mm

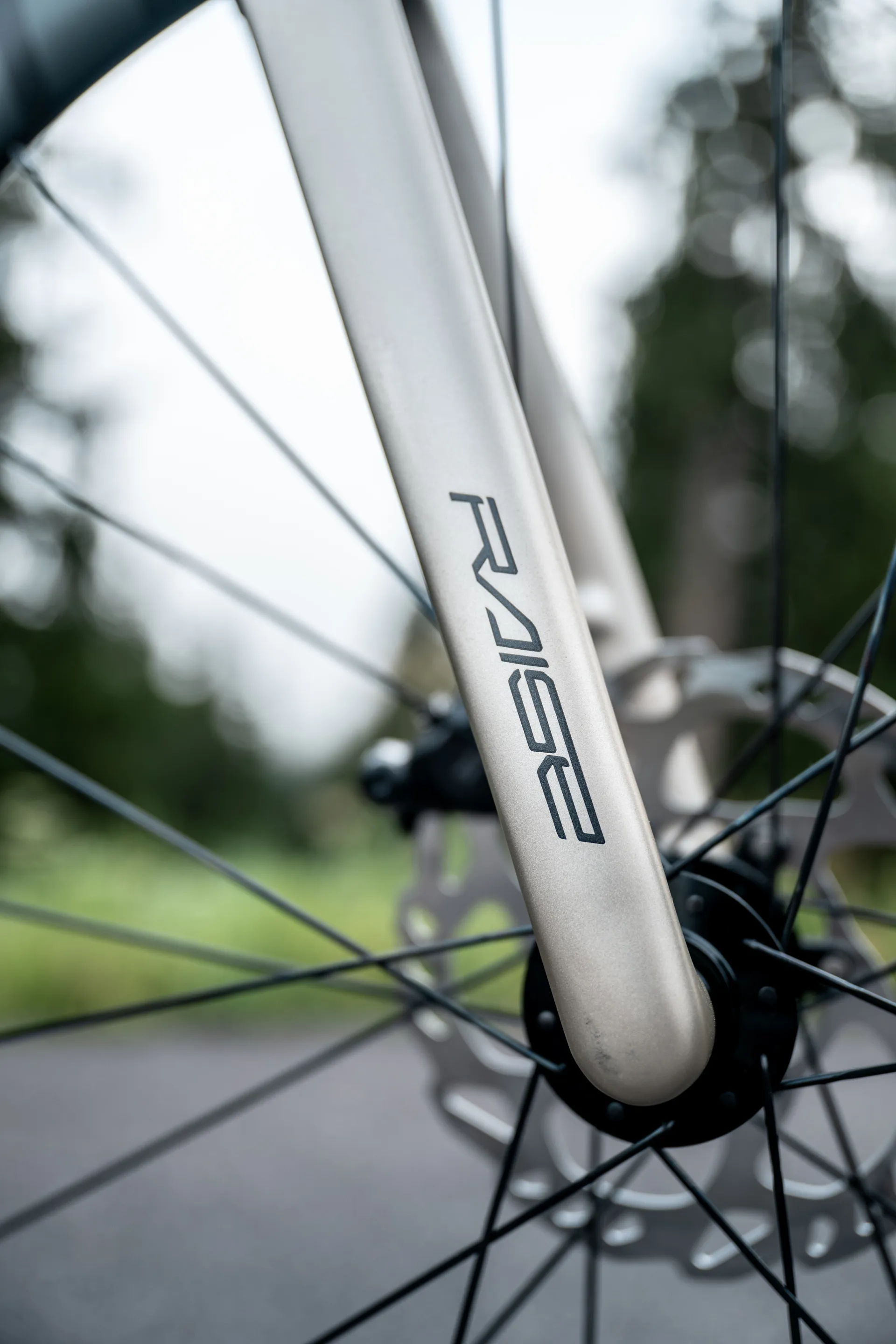

Fork	Carbon Advanced Composite fork, Full Internal Cable Routing, Flat mount disc, 12x100mm
Handlebar/ Stem	Carbon Full Integrated Internal Cable Routing
Grips	Megamo Tape
Saddle	Selle Italia Model X Superflow, Fec Alloy Rails, 145mm
Seatpost	Aerodinamic Advanced Carbon
Brakes	Shimano 105 R7120, Hydraulic disc, SM-RT70 160/ 140mm
Rear Derailleur	Shimano 105 R7100, Shadow 12-Speed
Front Derailleur	Shimano 105 R7100, 2x12-Speed
Shift Levers	Shimano 105 R7120
Cassette	Shimano 105 R7101, 11-34 Teeth
Chain	Shimano CN-M7100 105 12 Speed
Crankset	Shimano 105 R7100 Chainring 50-34 Teeth 2x12-Speed
Pedals	Not included, please look here for suitable Road clipless
Wheels	Fulcrum Racing 800 DB, 33.7mm Deep Aluminum rim, Tubeless 2-Way Fit Ready
Tyres	Vittoria Zaffiro V, 700x28c
Inner Tubes	Standard, Presta Valve - We can convert the standard set-up to tubeless, please contact to discuss.

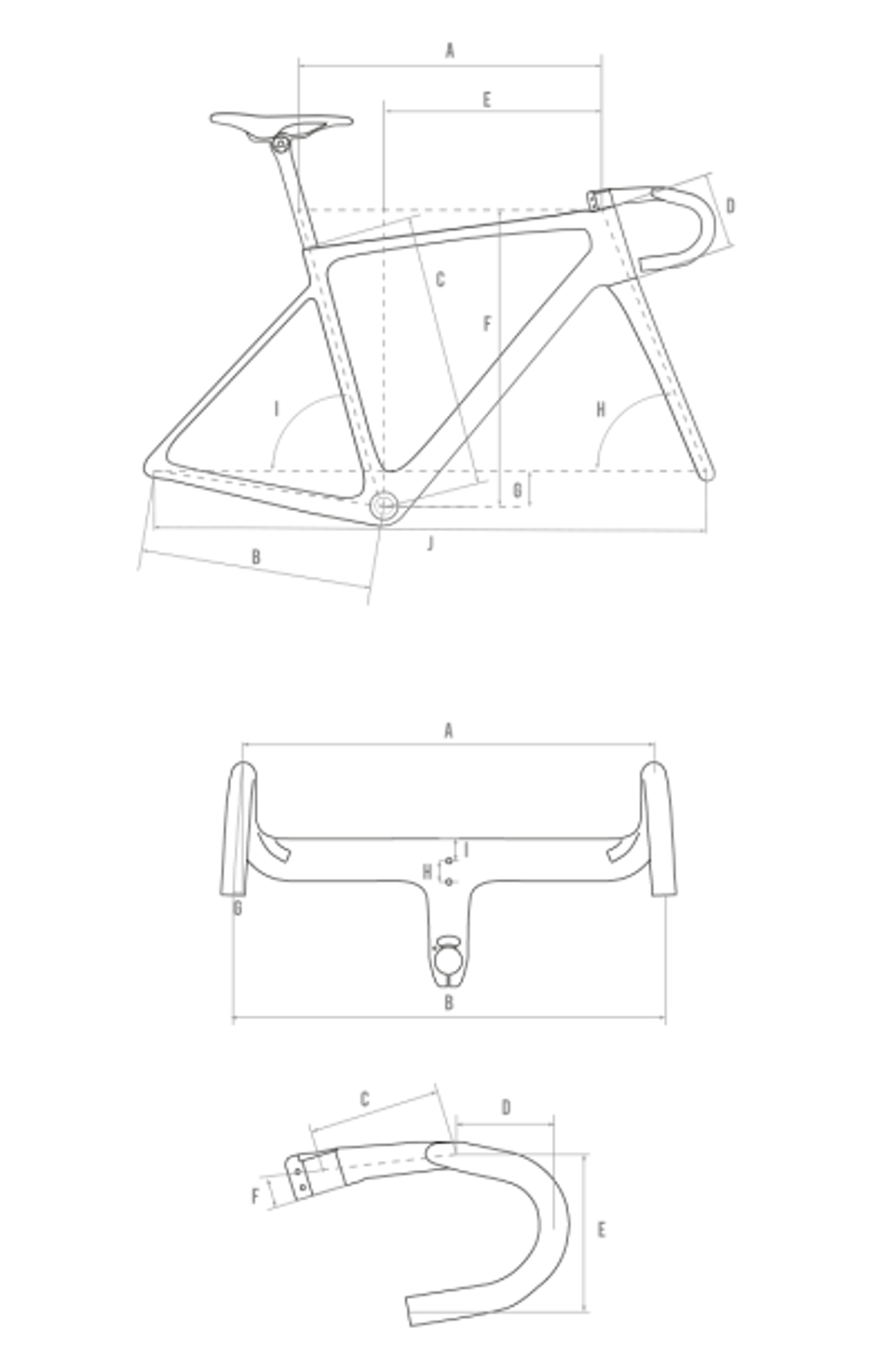

Sizing Information

	X.Small	Small	Medium	Large	X.Large
A - Reach	376	383	384	396	402
F - Stack Height	506	521	534	550	576
J - Wheelbase	970	975	980	990	1033
B - Chainstay Length	410	410	410	410	410
G - Bottom Bracket Offset	69	69	69	69	69
TO - Top Tube Length	507	527	538	554	572
H -Head Tube Angle	71.75	72.5	73	73.5	73.5
D - Head Tube Length	102	115	130	145	172
YO - Seat Tube Angle	75.5	74.5	74	74	73.5
C - Seat Tube Length	442	460	482	503	535
Crank Length	165	170	170	172.5	175
Seat Post Length	350	350	400	400	400
Stem Length	80	90	100	110	120
Stem Angle	10.5	10.5	10.5	10.5	10.5
Bar Width @ Hoods	370	390	390	410	430
Bar Width @ Drops	393	413	413	493	453
Reach/ Drop	81/ 130	81/ 130	81/ 130	81/ 130	81/ 130
Bar Flare	3.3	3.3	3.3	3.3	3.3
