The original mega value alloy hardtail trail frame from Ragley.. The 2023 Marley is perfect for UK riding.
The original mega value alloy hardtail trail frame from Ragley.. The 2023 Marley is perfect for UK riding.
Ragley

Ragely Marley Hardtail Mountain Bike Frame - Blue

Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

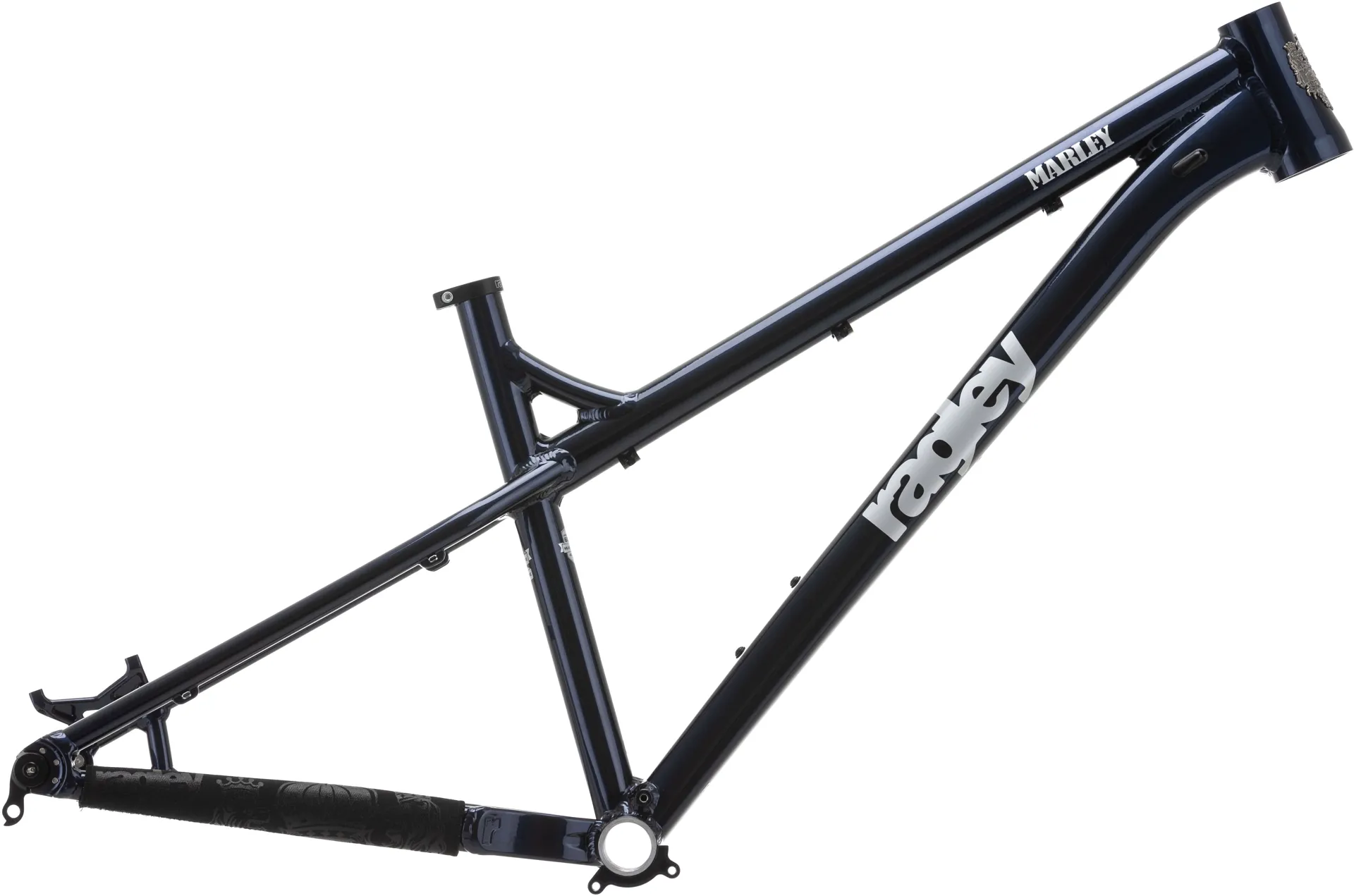

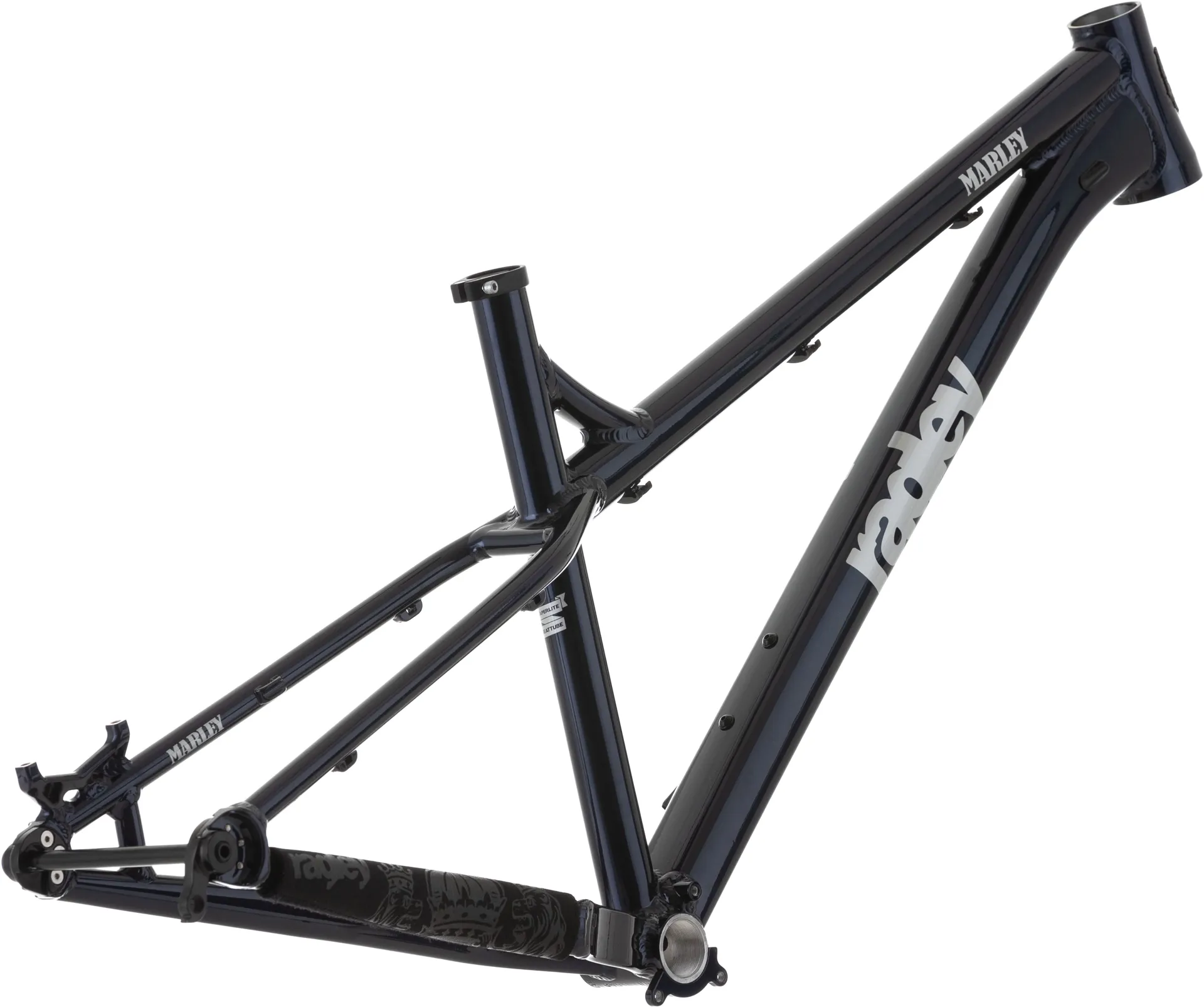

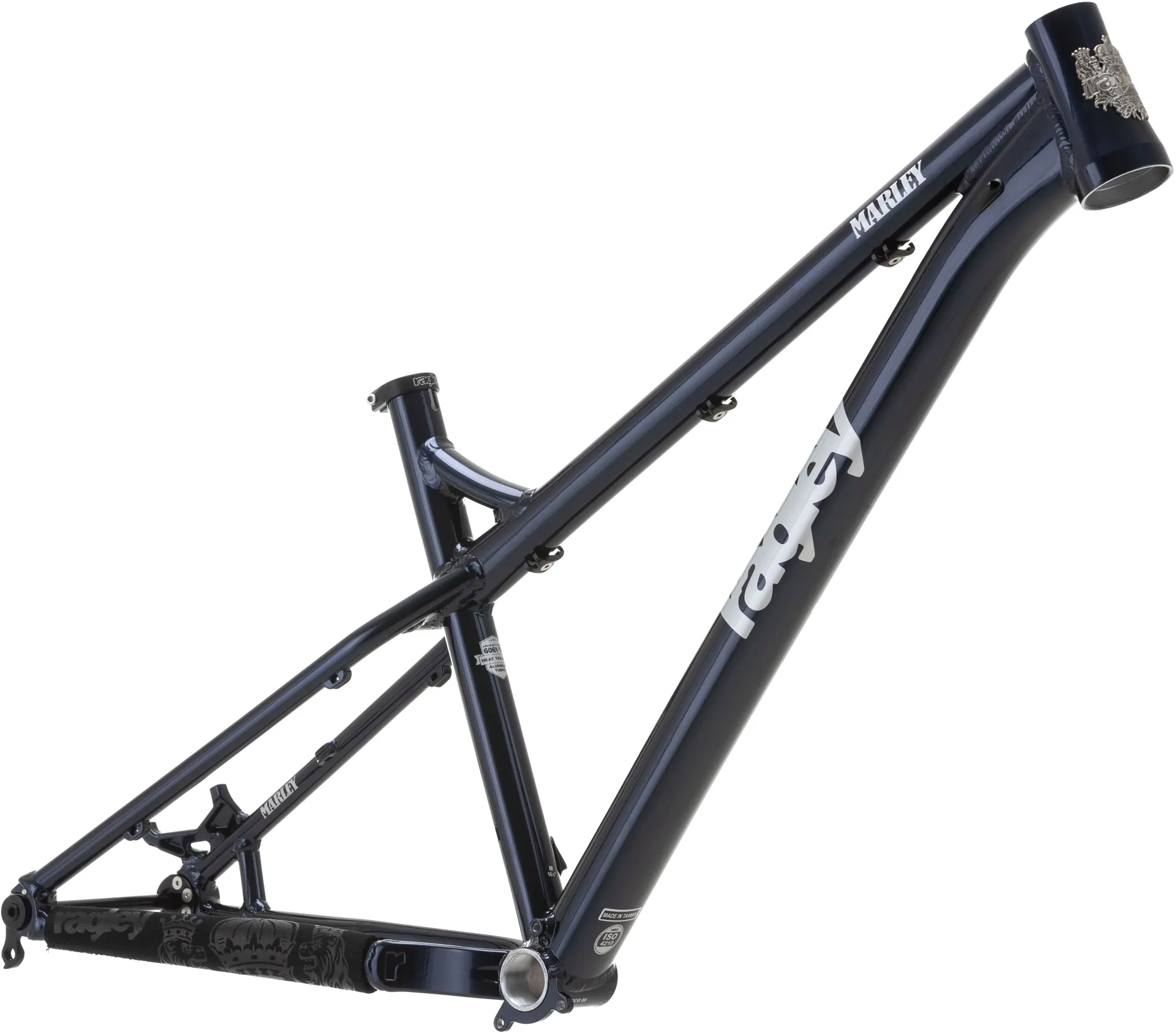

Ragely Marley Hardtail Mountain Bike Frame - Blue

Season:2023

Brand:Ragley

Code:205351BLU

The Marley has become a classic: light, punchy and versatile. It might be your first bike to explore off-road, or the agile plaything of a seasoned rider.

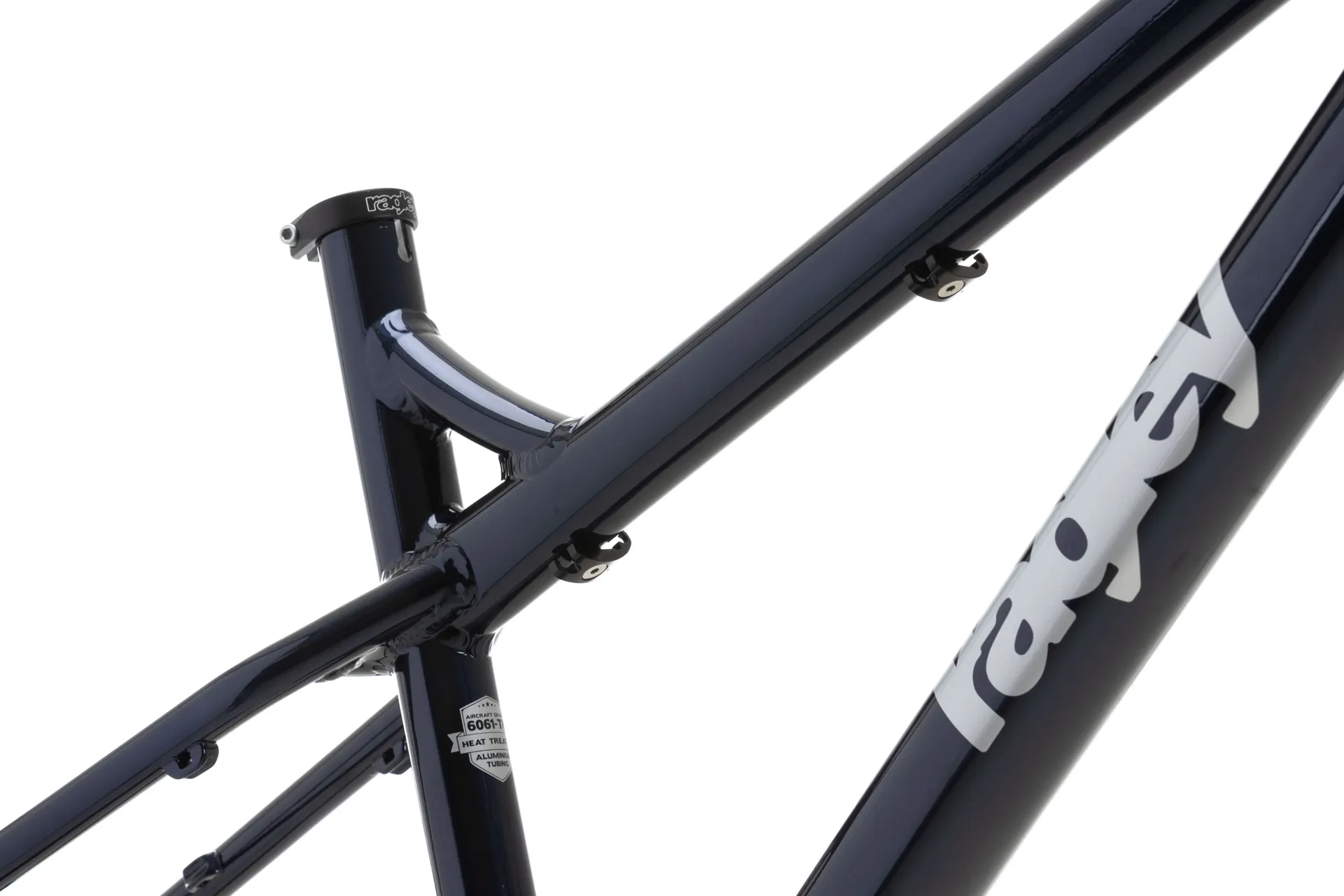

Using 6061 alloy tubing, the Marley balances a stiff frame with enough compliance for the longest of days in the saddle.

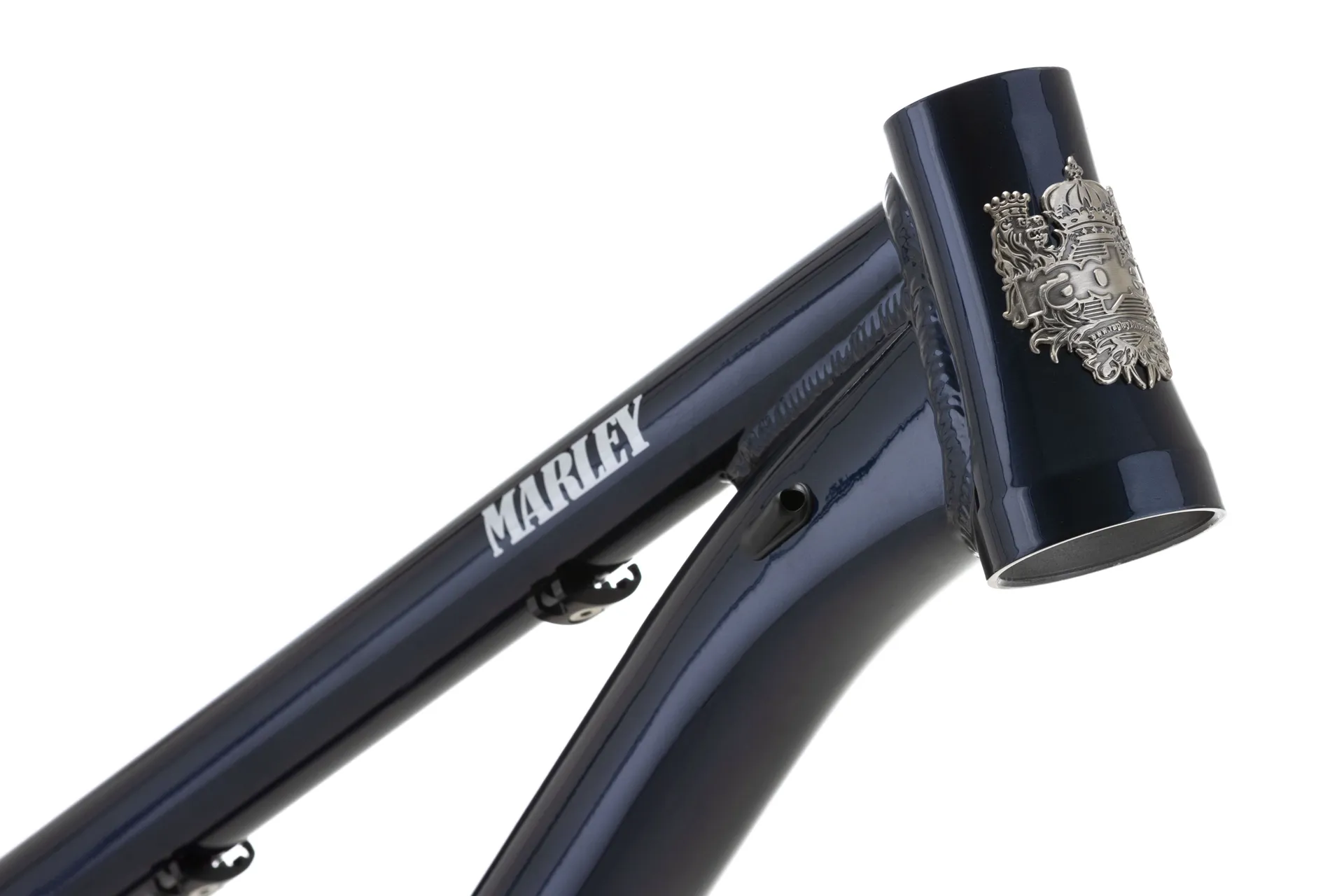

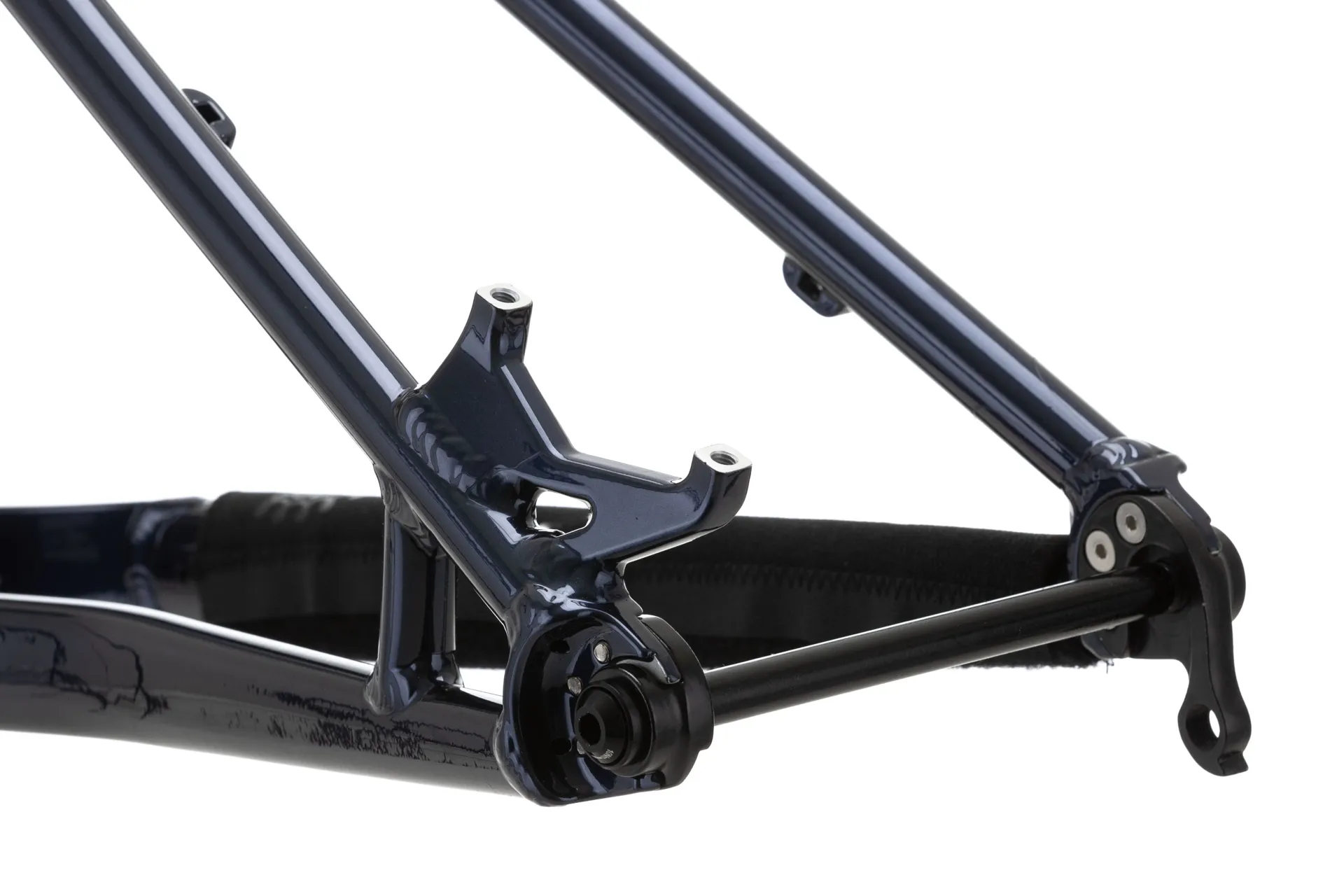

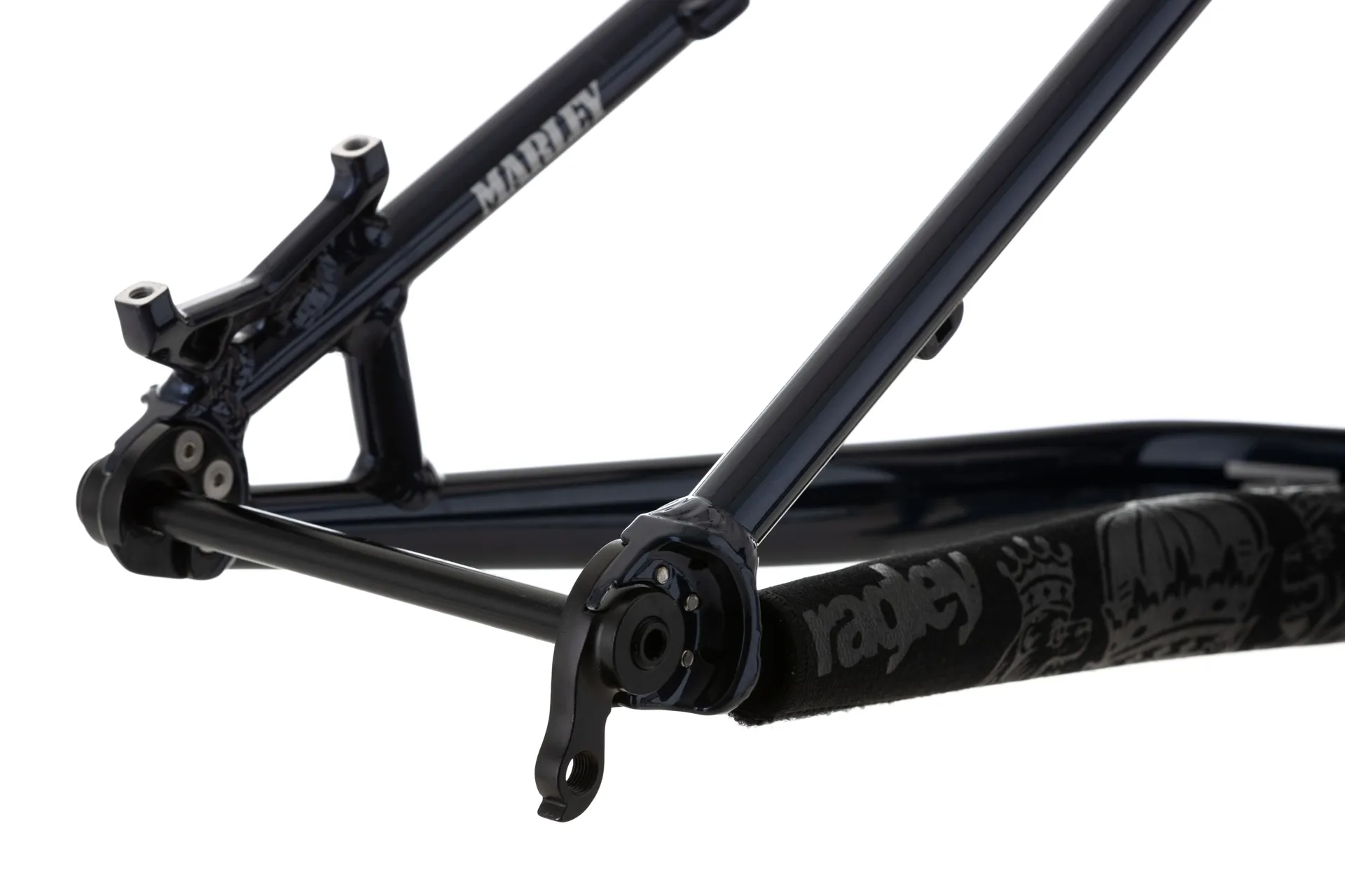

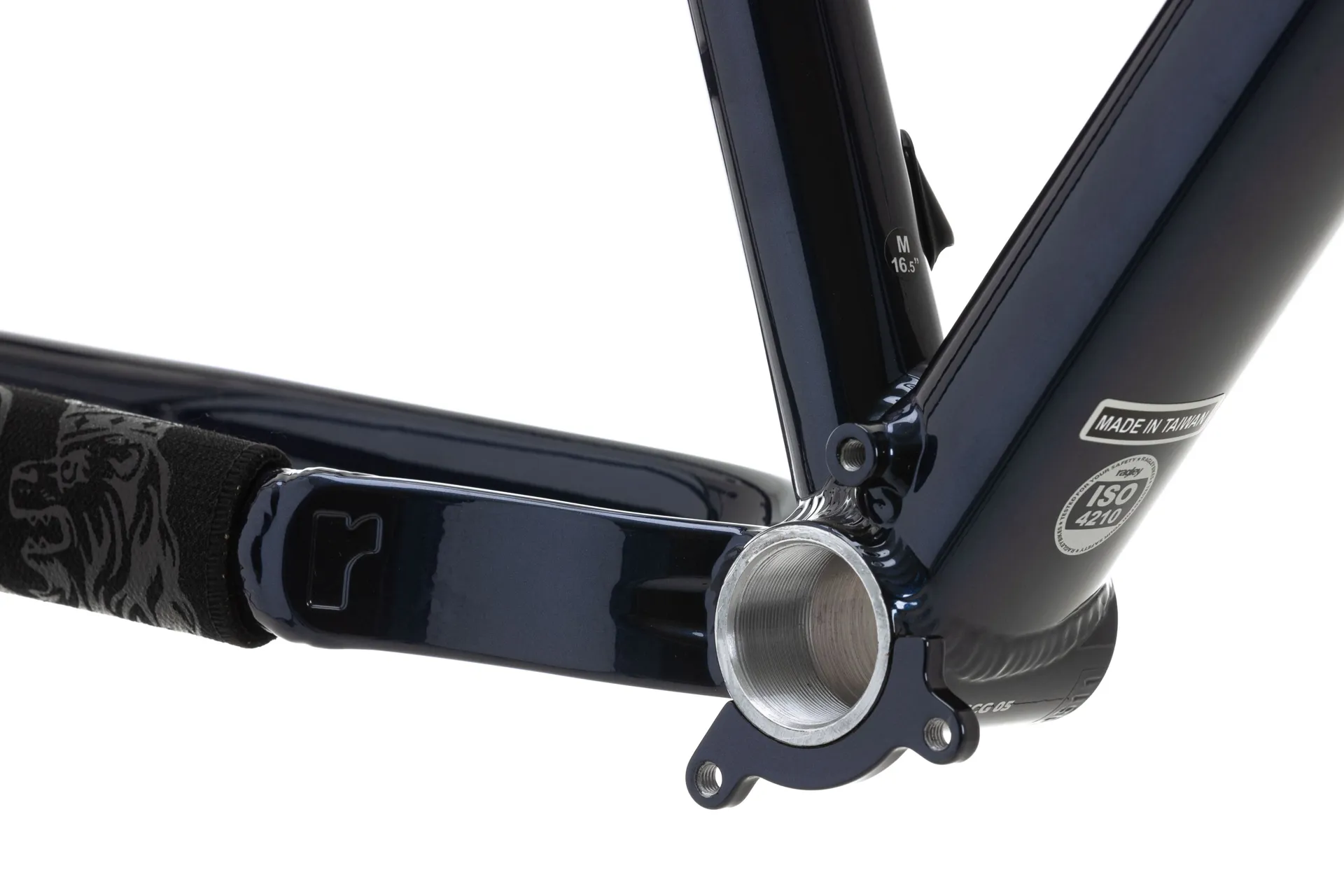

Geometry is based firmly around fun with a 65.5-degree head angle keeping things stable and confidence inspiring on the rough stuff. Elsewhere on the frame the tick-boxes are checked; ISCG 05 chain guide tabs, a 44/56mm tapered head tube, internal dropper seat post compatibility and 148x12mm boost rear end.
Up, down, along and over; the Marley proves a great riding all-rounder doesn’t have to break the bank.
Sizing Information
Frame SizeSmallMediumLargeX-Large
Seattube Length380mm420mm460mm500mm
Effective Top Tube Length599mm622mm644mm667mm
Reach415mm435mm455mm475mm
Stack601mm613mm619mm628mm
Standover Height750mm737mm772mm778mm
Chainstay Length425mm425mm425mm425mm
Headtube Length110mm120mm130mm140mm
Headtube Angle65.5°65.5°65.5°65.5°
Seattube Angle73°73°73°73°
Bottom Bracket Drop-45mm-45mm-45mm-45mm
Wheelbase1137mm1161mm1186mm1209mm
Max. Tyre Size27.5" x 2.6"27.5" x 2.6"27.5" x 2.6"27.5" x 2.6"
Seatpost Diameter31.6mm31.6mm31.6mm31.6mm
Bottom Bracket Size73mm BSA73mm BSA73mm BSA73mm BSA
Rear Axle12mm x 148mm Bolt Thru12mm x 148mm Bolt Thru12mm x 148mm Bolt Thru12mm x 148mm Bolt Thru
Recommended Fork Travel130mm130mm130mm130mm
Chain GuideISCG 05ISCG 05ISCG 05ISCG 05
Based On Axle To Crown522mm (130mm Fork)522mm (130mm Fork)522mm (130mm Fork)522mm (130mm Fork)
Chainline52mm52mm52mm52mm
Max Rotor Size203mm203mm203mm203mm
Fork Offset42mm42mm42mm42mm
External Lower Headset Cup HeightZero StackZero StackZero StackZero Stack
Headset44-56mm Tapered44-56mm Tapered44-56mm Tapered44-56mm Tapered
