The Piglet sounds like an underdog. It’s shorter travel than the Blue Pig and shares its geometry with the more trail-friendly Marley. But make no mistake, this Piglet is a special breed.
The Piglet sounds like an underdog. It’s shorter travel than the Blue Pig and shares its geometry with the more trail-friendly Marley. But make no mistake, this Piglet is a special breed.
Ragley

Ragley Piglet - Orange

Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

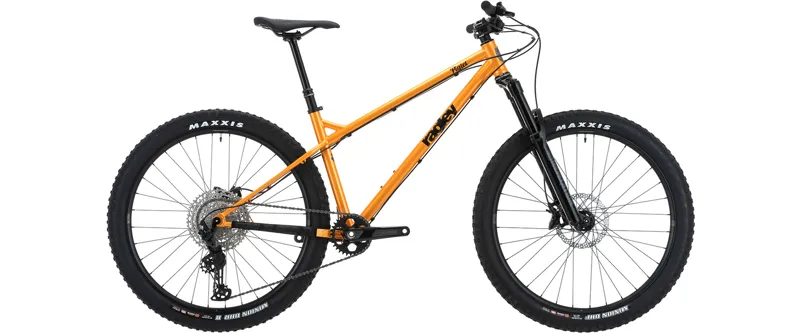

Ragley Piglet - Orange

Season:2022

Brand:Ragley

Code:106515876ORG

The Piglet sounds like an underdog. It’s shorter travel than the Blue Pig and shares its geometry with the more trail-friendly Marley. But make no mistake, this Piglet is a special breed.

The triple butted 4130 chromoly tubes supply the compliance for all day comfort but enough spring to make it a trail sniper’s dream on tight and twisty singletrack.

Engaging, lively and accurate, the Piglet is a joy on all-day epics, smashing laps around the local woods or carving up the trail centres. The frame features all the modern standards, including ISCG 05 chain guide tabs and boost 148x12 axle spacing.

Equipped with a mix of Shimano’s 12-speed Deore/SLX parts with SRAM DB8 brakes. Nukeproof then provide the wheels with the Tubeless ready rims shrouded by Maxxis 3C EXO+ rubber. No upgrades needed.

This little piggy will makeyougo wee wee wee all the way home…

Material4130 Cro-Mo Steel
Recommended Fork Travel130mm – 140mm
Axle to Crown522mm (130mm Fork)
Fork Offset42mm
Wheels Size27.5''
Max Tyre Size2.6''
HeadtubeZS44/28.6 | EX44/40
Seatpost31.6mm
Seat Clamp34.9mm
BB73mm BSA
Rear Hub12x148mm Boost
Rear Axle12mm x 148mm Thru-Axle M12*P1.5
Chain GuideISCG 05 Tabs
Brake MountMount: Post 160mm
ProtectionChainstay Protector
Technical Information
  • Frame
    Ragley Piglet 27.5" 4130 Chromoly
  • Fork
    RockShox Revelation RC 130mm, 27.5", 15x110mm Boost, Stealth Maxle, 46mm Offset, 1.5" Tapered steerer
  • Wheelset
    Nukeproof Neutron 27.5" 32h, Boost, Microspline, 36 points of engagement
  • Shifter
    Shimano M7100, SLX 12-speed, Direct attachment to brake lever using iSpec EV
  • Rear Deraileur
    Shimano M7100 SLX SGS 12-SPEED, Shadow Plus
  • Chain
    Shimano Deore CN-M6100 - 12 speed
  • Cassette
    Shimano Deore M6100-12, 10-12-14-16-18-21-24-28-33-39-45-51T
  • Crankset
    Race Face Ride, 170mm, 32t
  • Brakes
    SRAM DB8
  • Rotors
    SRAM Centerline 180mm
  • Tyres
    27.5X2.60 MINION DHF 3C MaxxTerra/EXO+/TR 120tpi / Maxxis 27.5X2.60 MINION DHR II 3C MaxxTerra/EXO+/TR 120tpi
  • Handlebars
    Ragley Alloy Handlebar, Black, 25mm Rise, 31.8mm Clamp (Width - S780mm, M780mm, L800mm, XL800mm)
  • Stem
    Ragley Stubbing V2 50mm BLACK, 31.8mm clamp, Black
  • Saddle
    Ragley Saddle
  • Seatpost
    Brand-X Ascend Internal Route Post - 31.6mm, SM - 125mm Drop, MD, 150mm Drop, LG, XL – 170mm Drop
  • Headset
    Nukeproof ZS44/28.6 | EX44/40 with Ragley top cap
  • Grips
    Ragley A20 Compound
Sizing Information

SmallMediumLargeX-Large
(A) Reach415mm435mm455mm475mm
(B) Stack605mm615mm624mm633mm
(C) Effective Top Tube Length600mm622mm646mm668mm
(D) Seattube Length380mm420mm460mm500mm
(E) Seattube Angle (Actual)73737373
(F) Headtube Length100mm110mm120mm130mm
(G) Headtube Angle65.565.565.565.5
(H) Chainstay Length425mm425mm425mm425mm
(I) Wheelbase1139mm1163mm1187mm1211mm
(J) Bottom Bracket Drop-45mm-45mm-45mm-45mm
(K) Stand Over Height739mm743mm772mm800mm
(L) Fork Travel130mm130mm130mm130mm
(M) Fork Offset42mm42mm42mm42mm
(N) Axle to Crown522mm522mm522mm522mm
