With a spec even the best rider can be happy with the 2023 Ragley Big Wig Race is a soirted 29" machine
With a spec even the best rider can be happy with the 2023 Ragley Big Wig Race is a soirted 29" machine
Ragley

Ragley Big Wig Race Hardtail Mountain Bike - Lollipop

Size Guide
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Ragley Big Wig Race Hardtail Mountain Bike - Lollipop

Season:2023

Brand:Ragley

Code:205329Lollipop

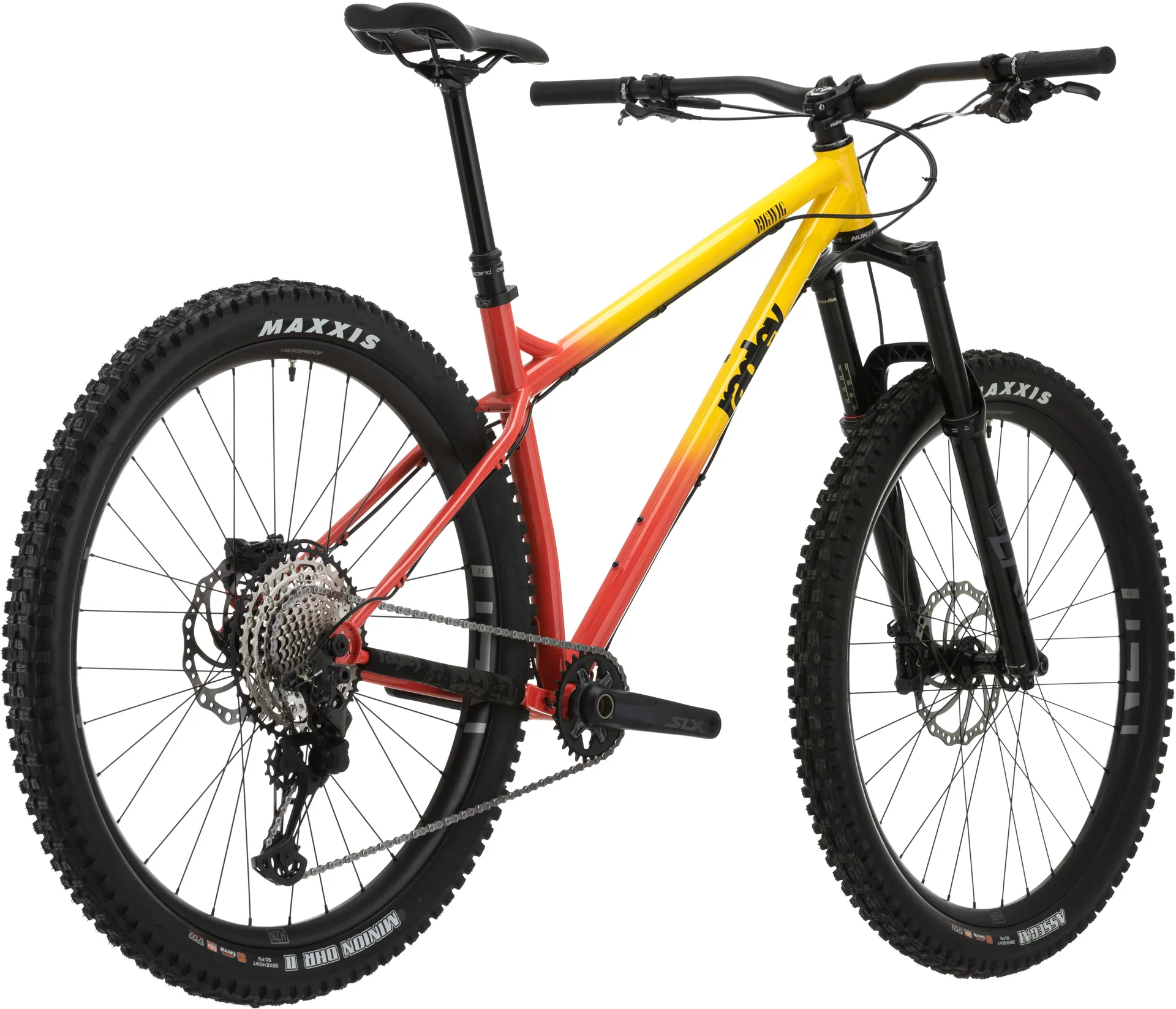

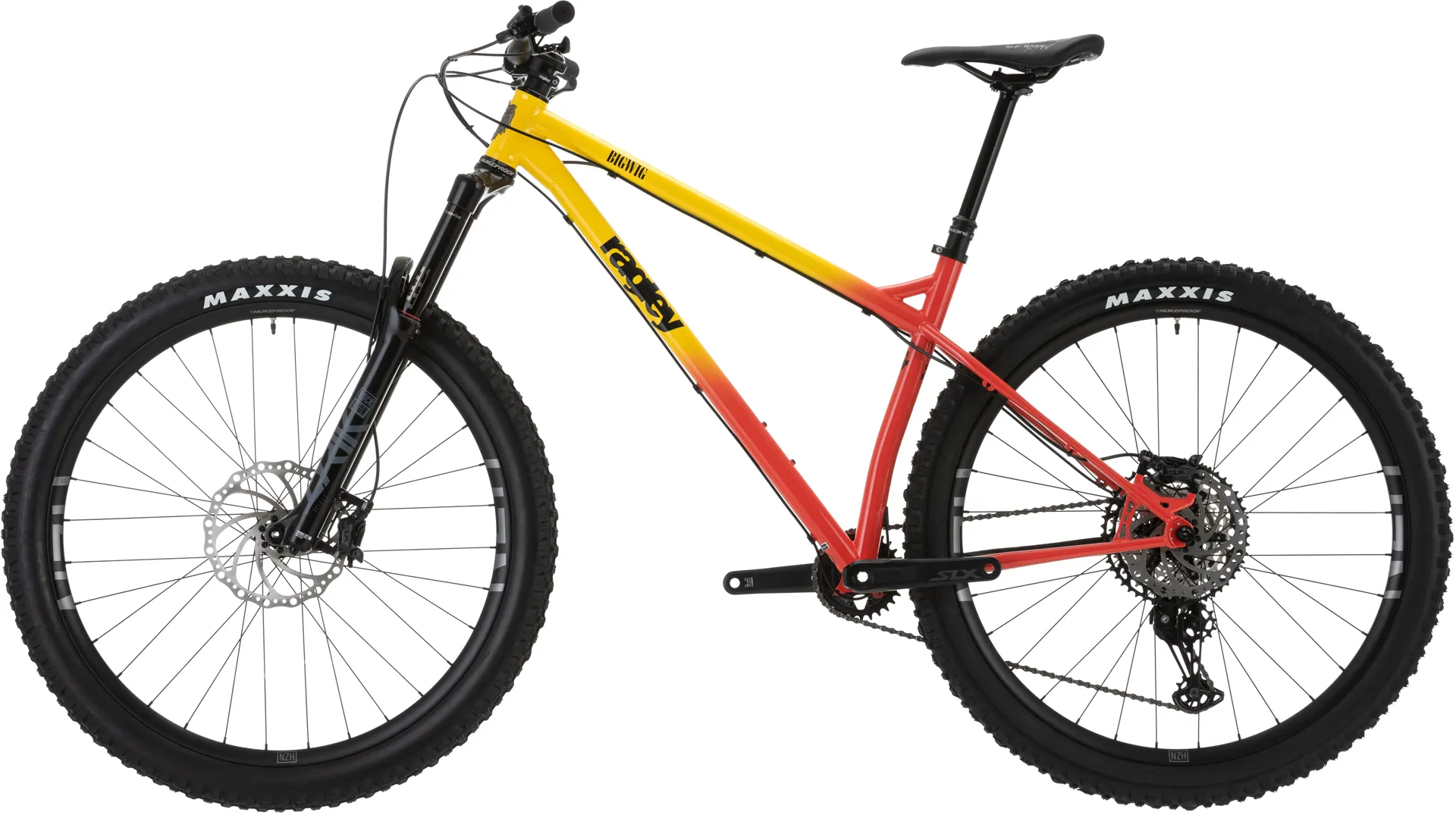

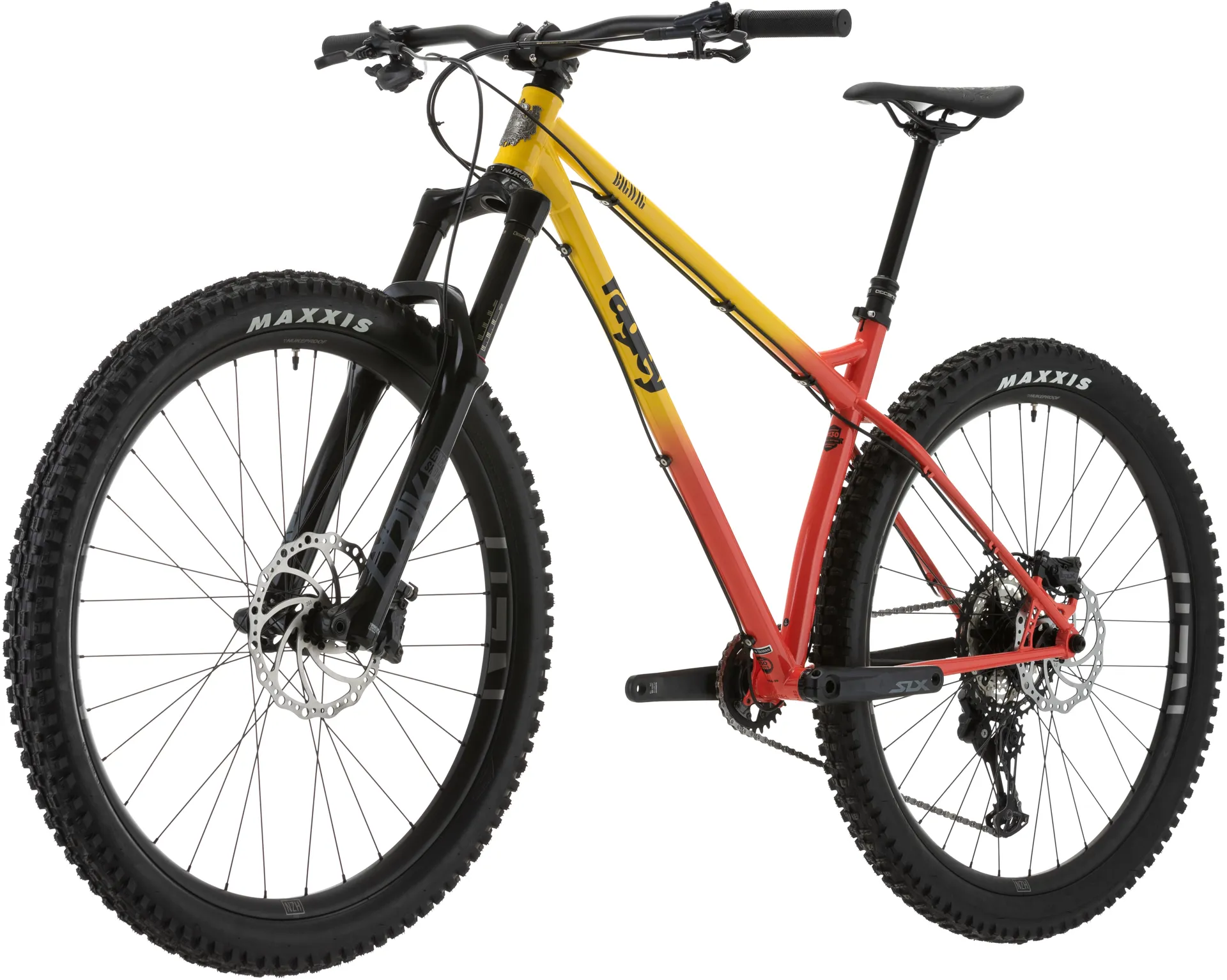

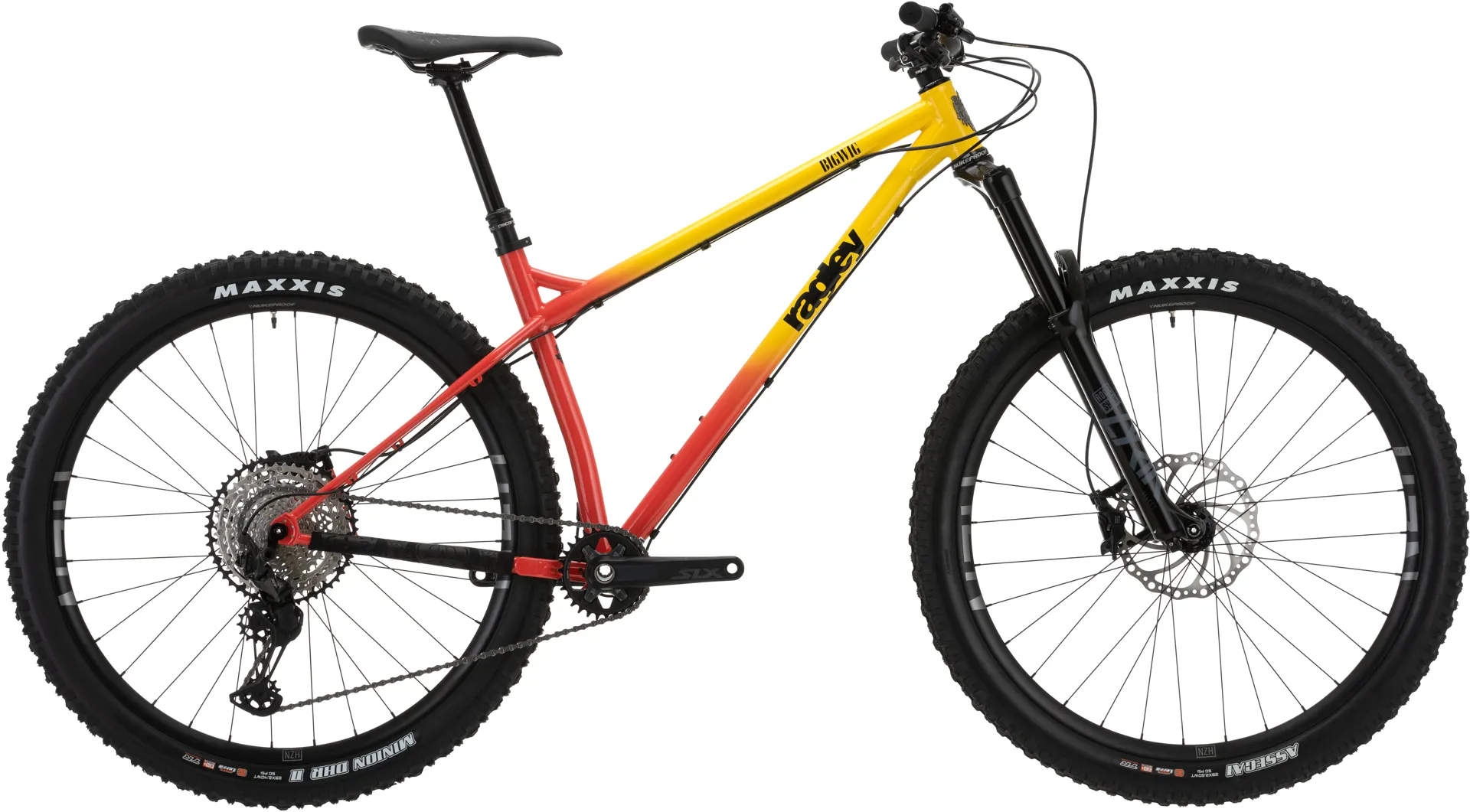

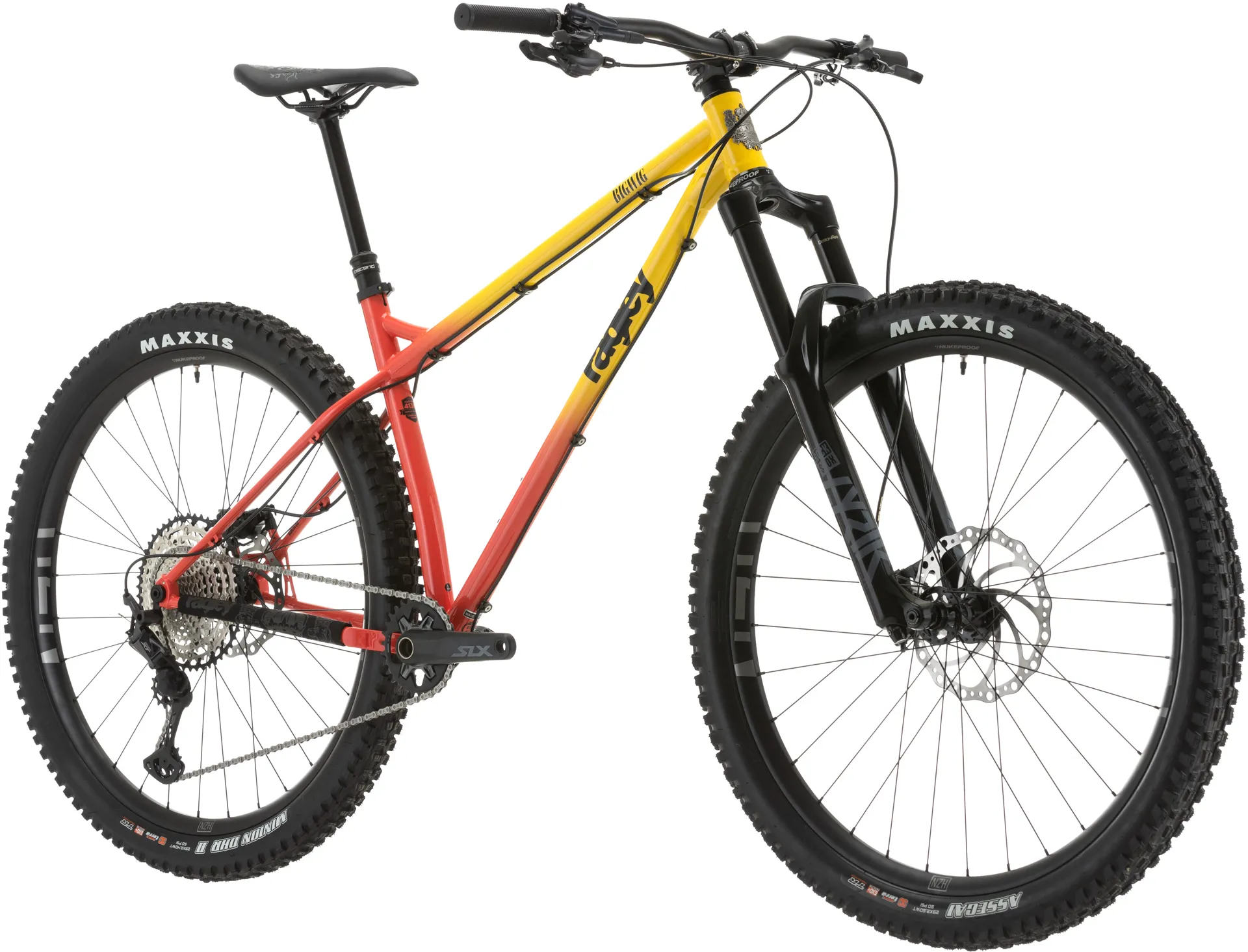

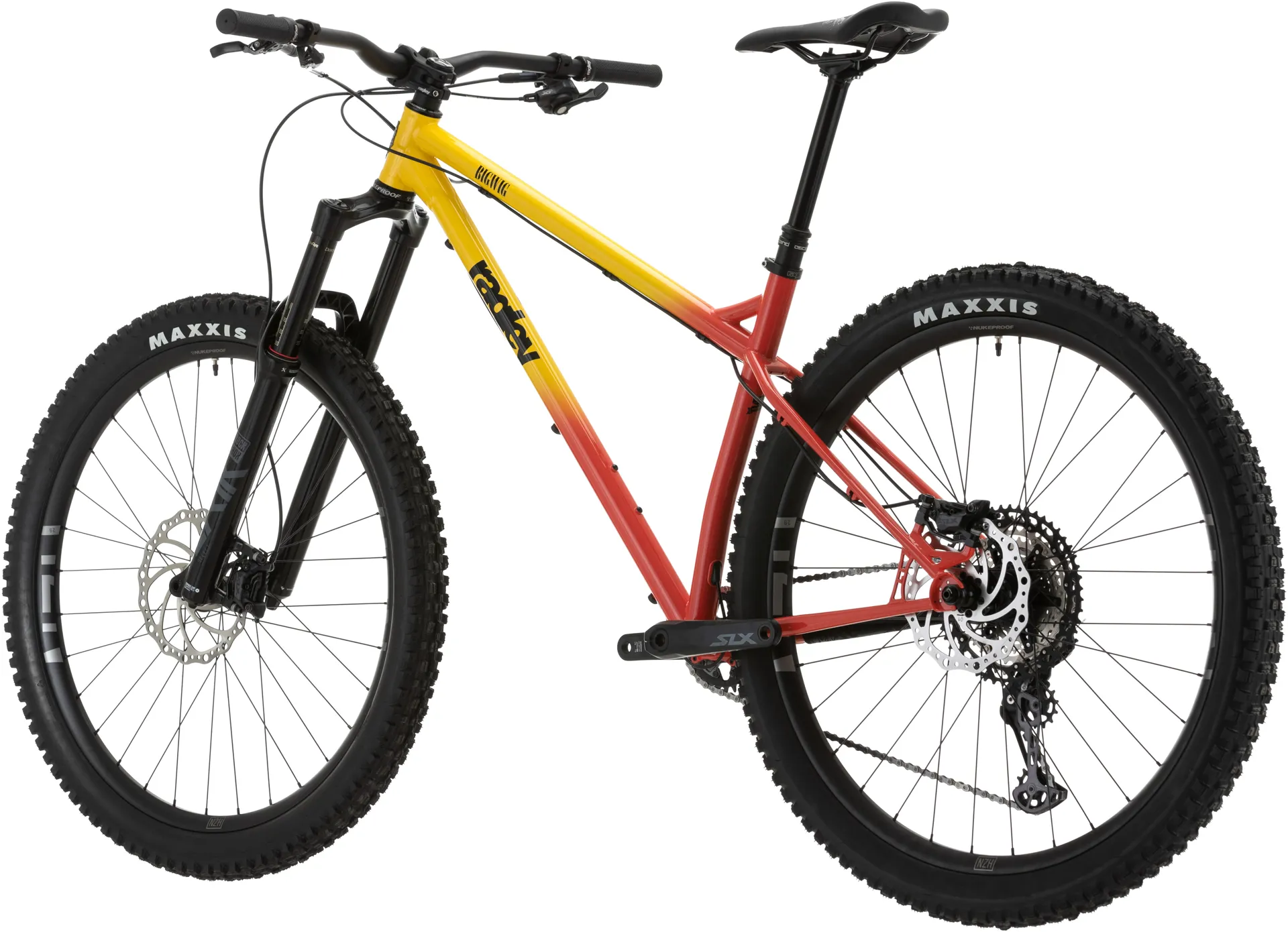

The Big Wig 29er is a commanding bike; the big-wheeled counterpart to the infamous Blue Pig.

The 29” wheels give it all-out speed like no other, with tried and tested geometry putting you in complete control between the choppiest of corners. The Big Wig is at home being piloted at an enduro race, taking on a multi-day adventure or just smashing laps of your favourite trail centre. Like so many of our bikes, it’s a versatile tool to be ridden almost anywhere, by anyone.

The Big Wig frameset features ISCG 05 tabs, a 44mm head tube, internal dropper routing and a 148x12mm boost rear end. Our steel frames are engineered from custom triple butted 4130 Chromoly tubing for a frame that is stiff but lively and comfortable. Spec is the usual blend of performance and reliability to fit the no-nonsense Ragley ethos.

Looking for a true do-it-all bike to deliver the good times well into your riding future? The Big Wig will take you there, at speed...

Technical Information
Frame:Ragley Big Wig 29" 4130 Cro-Mo

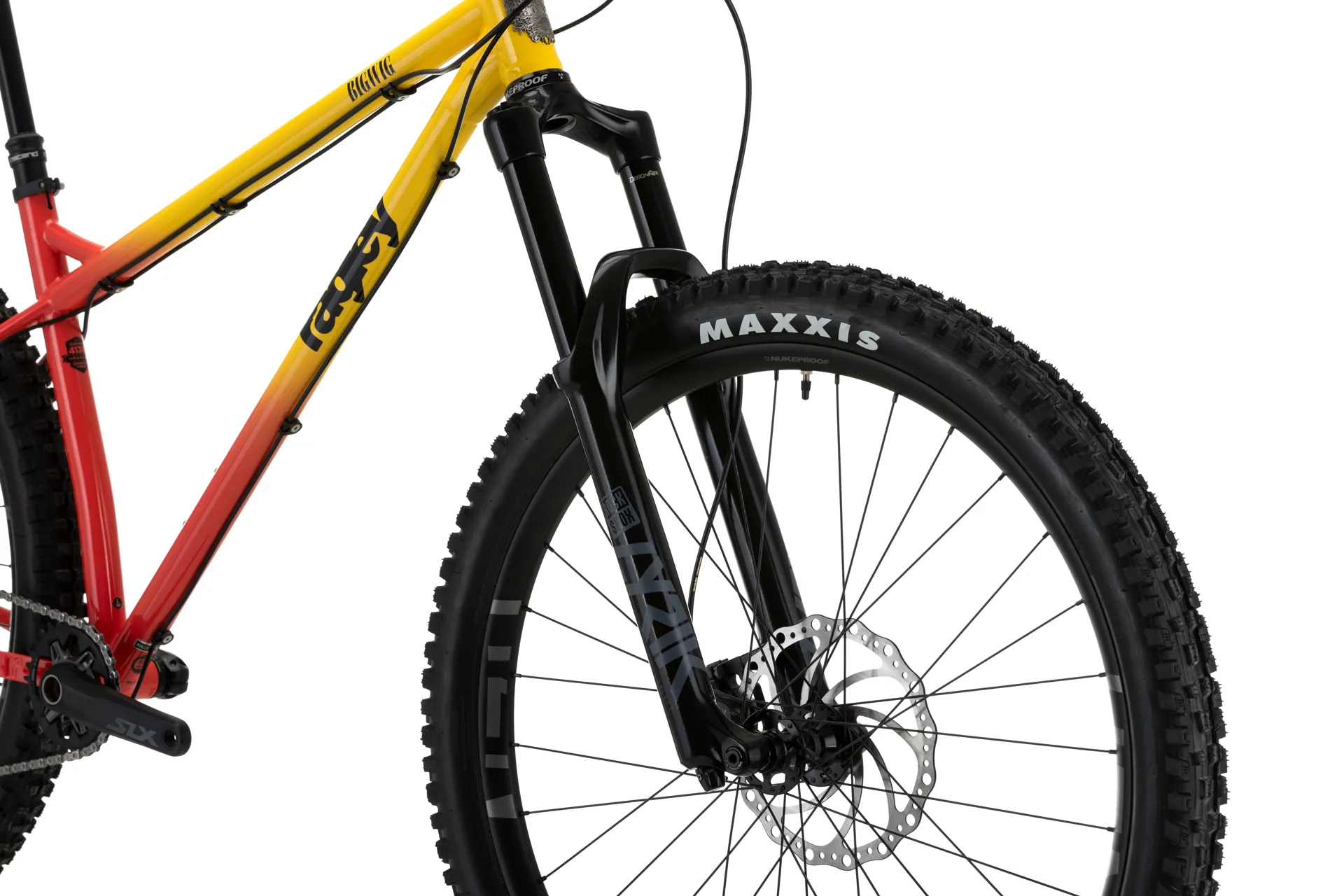

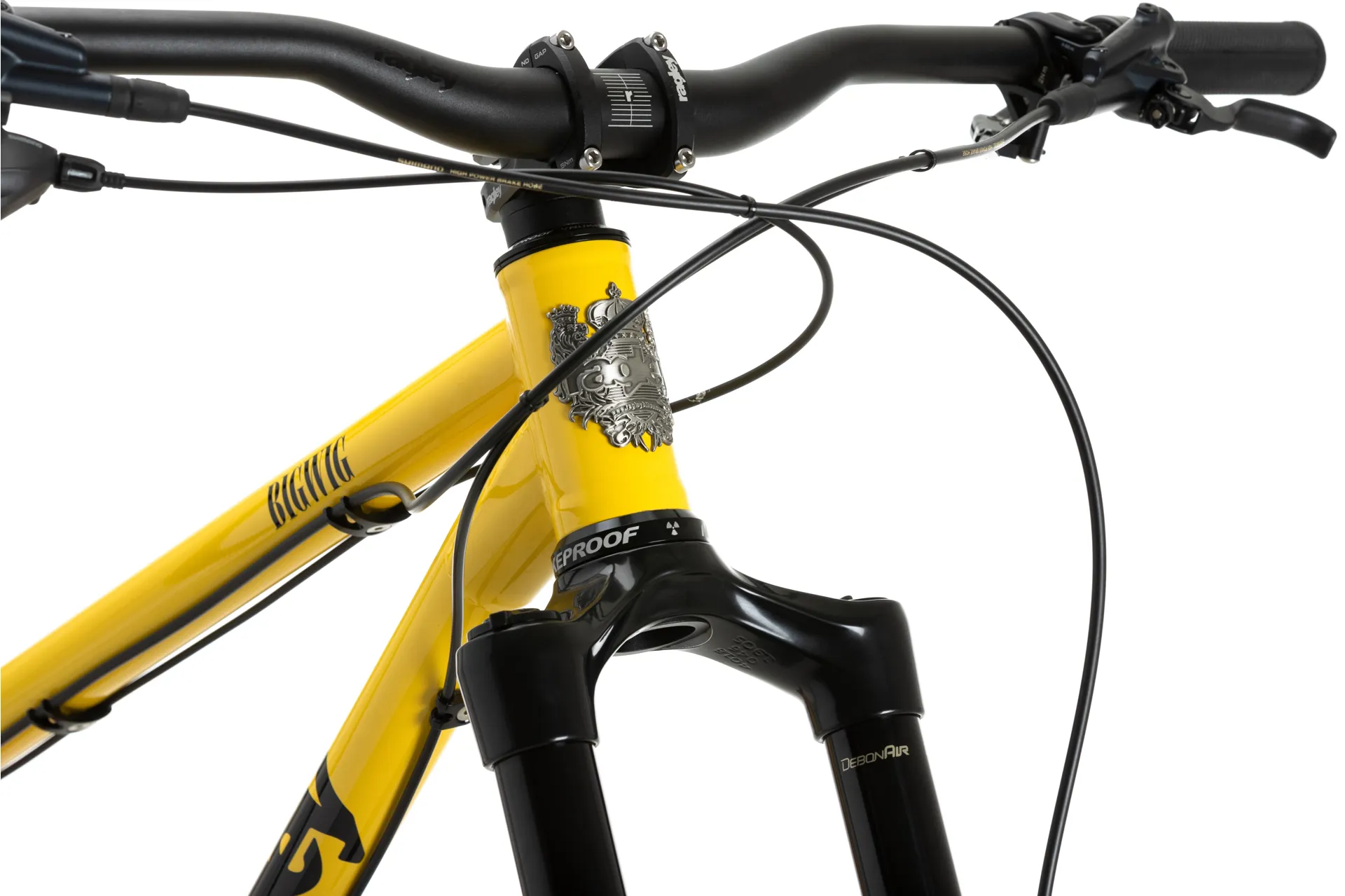

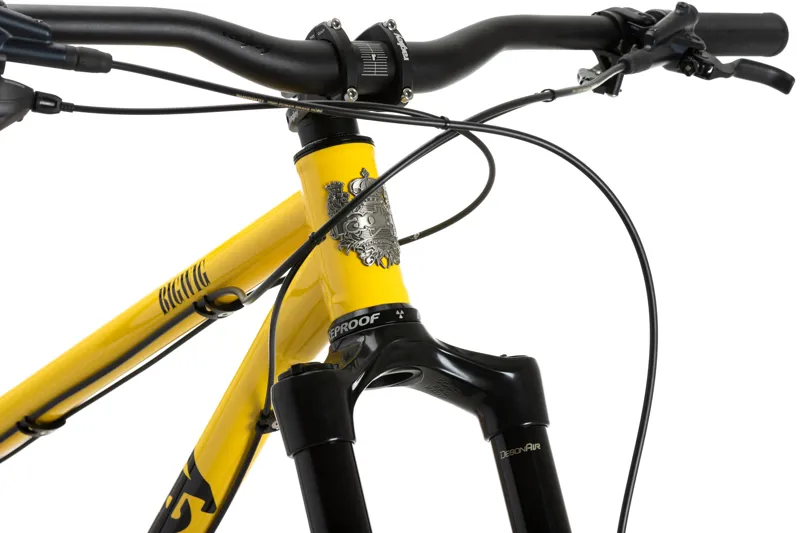

Fork:Rockshox LYRIK Select 150mm, 29", 15x110 Boost, Stealth Maxle, 51 offset, 1.5" tapered steerer
Headset:Nukeproof ZS44/28.6 | EX44/40 with Ragley top cap

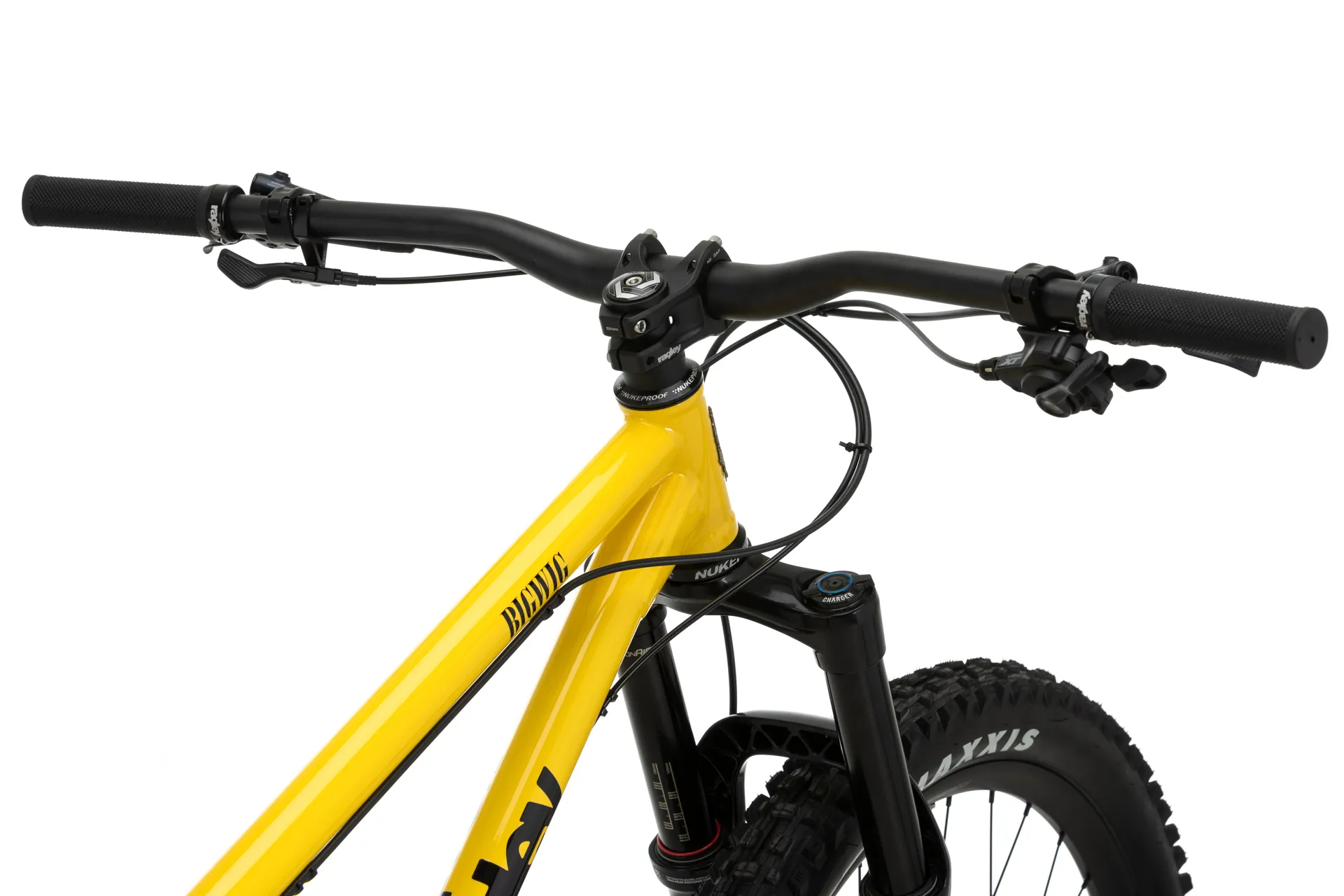

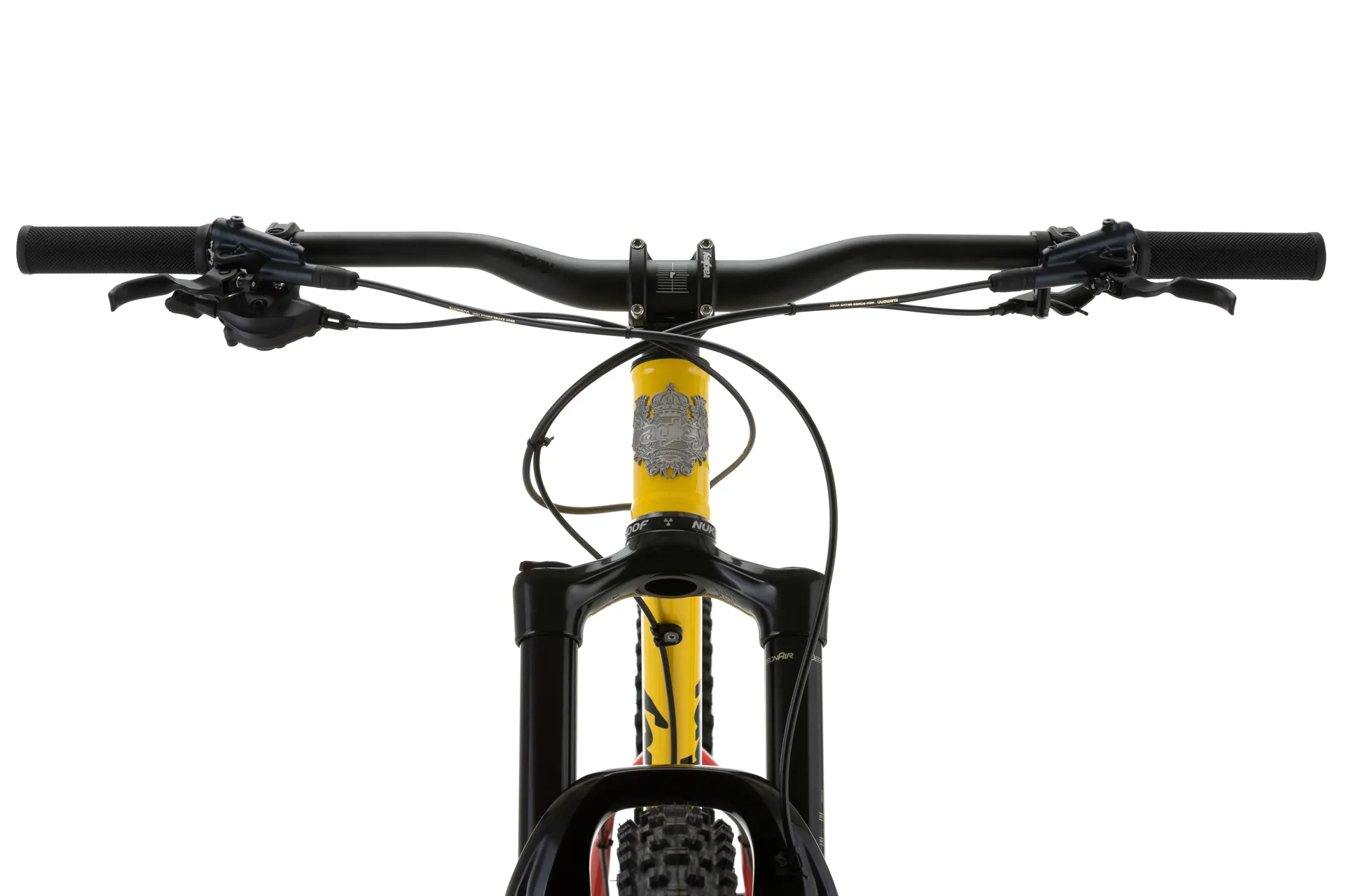

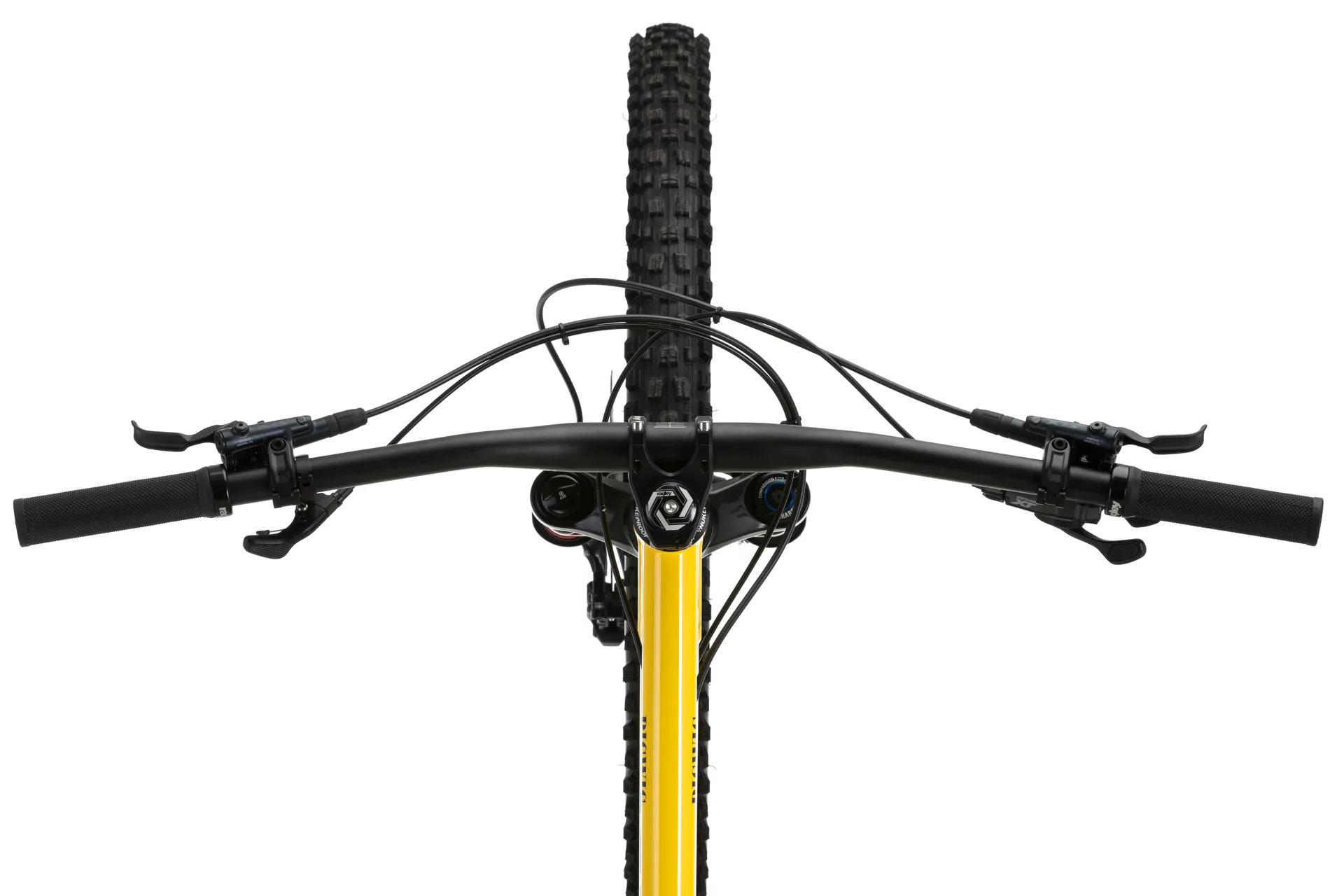

Handlebar:Ragley Alloy Handlebar, Black, 25mm Rise, 31.8mm Clamp
(Width - S780mm, M780mm, L800mm, XL800mm)
Stem:Ragley Stubbing V2 40mm BLACK, 31.8mm clamp, Black
Grips:Ragley A20 Compound
Front Wheel:Nukeproof Horizon 29" 32H 15mm x 110mm Boost, Enduro Bearings
Rear Wheel:Nukeproof Horizon 29" 32H 148mm x 12mm Boost Microspline, 102 points of engagement, Enduro bearings
Thru Axle:Length: 175mm, Pitch: M12*1.5, Thread length: 18mm
Front Tyre:Maxxis 29X2.50 WT ASSEGAI M356RU 120 FORDABLE 3C MaxxTerra/EXO+/TR
Rear Tyre:Maxxis 29X2.40 WT MINION DHR II M327RU 120 FORDABLE 3C MaxxTerra/EXO+/TR
Rim Tape & Valves:Nukeproof 33mm Tubeless Tape & Nukeproof Horizon Tubeless Valve Supplied

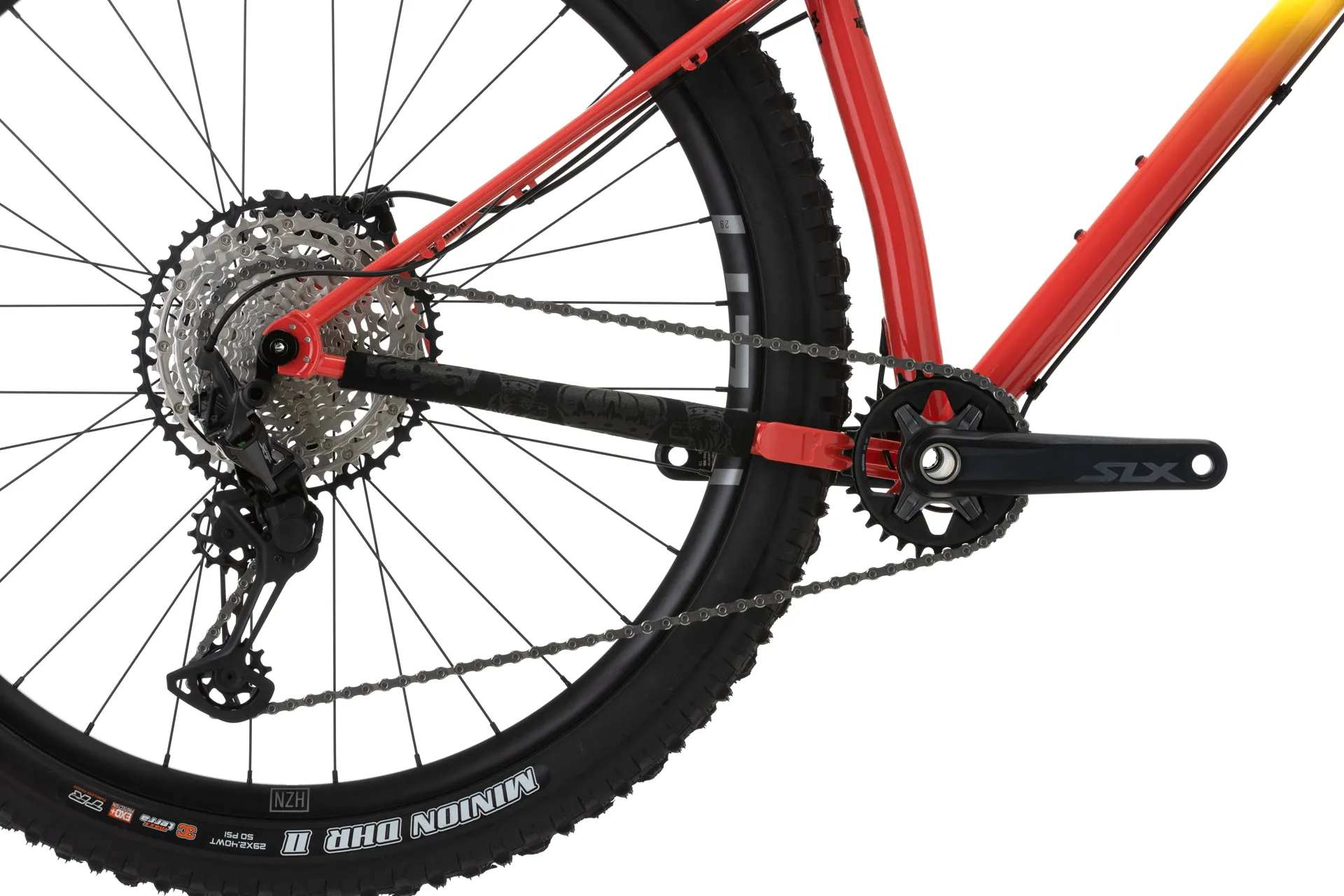

Chain:Shimano SLX M7100 12-speed

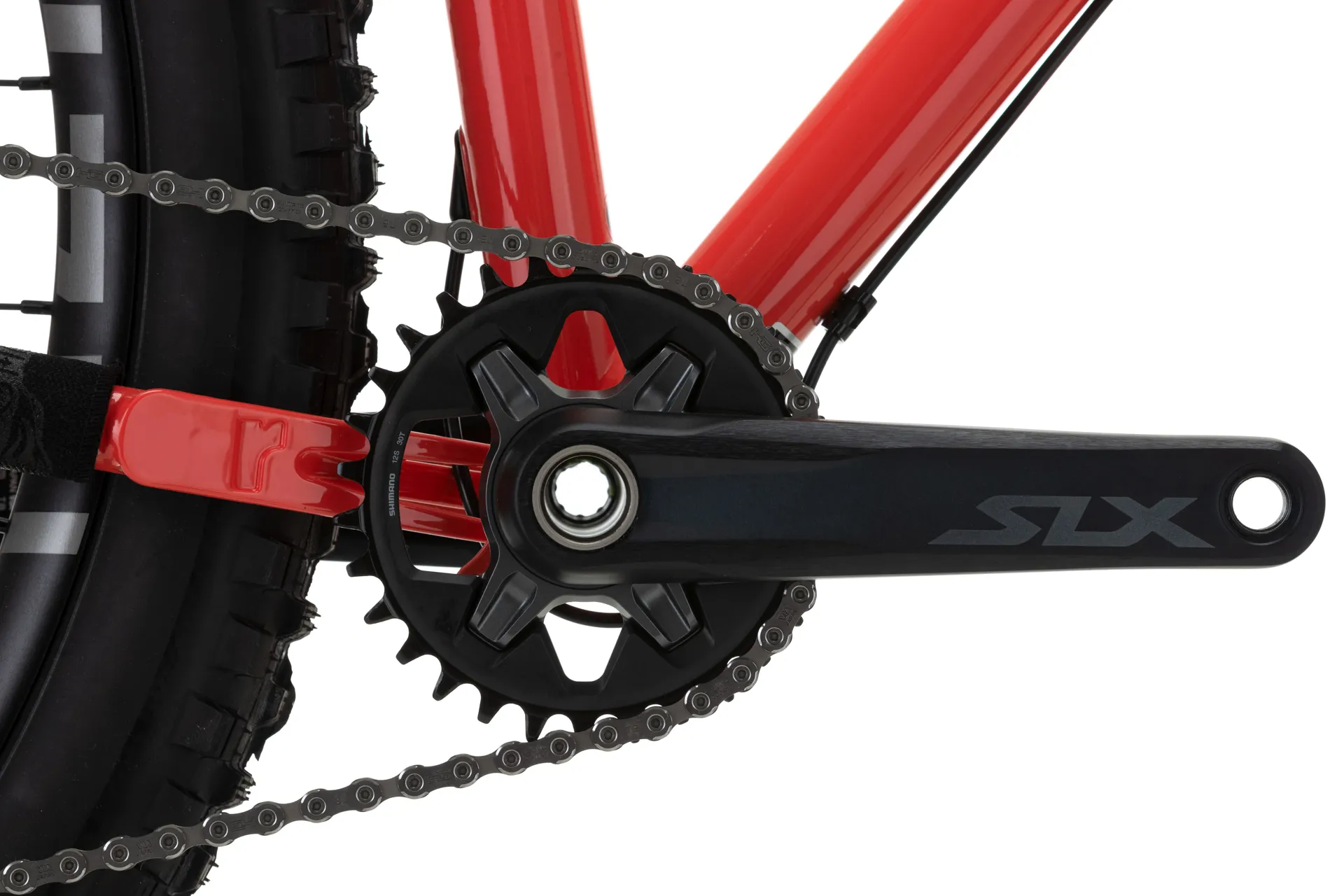

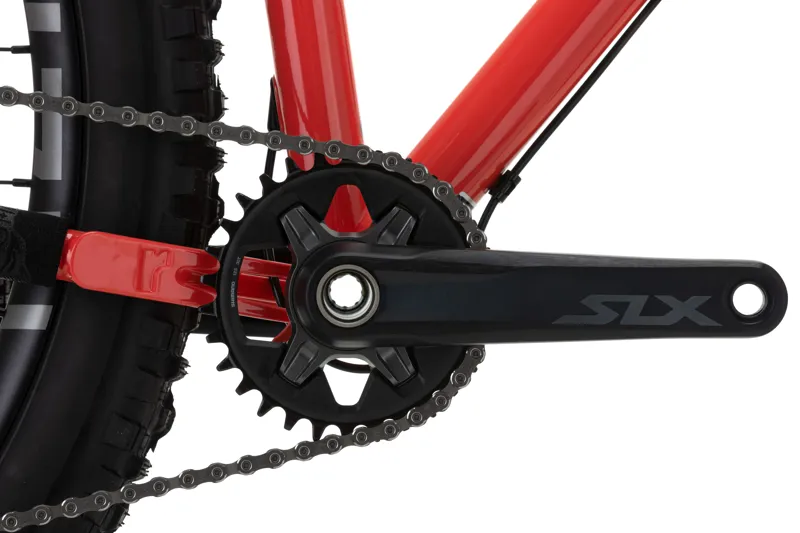

CranksetShimano SLX M7100, 12 speed, 170MM, 30T
Bottom Bracket:Shimano SLX Hollowtech II, 73mm BSA
Front Brake:Shimano SLX M7100 lever with M7120 calliper, 4-pot, resin pads with fin, 203mm rotor
Rear Brake:Shimano SLX M7100 lever with M7120 calliper, 4-pot, resin pads with fin, 180mm rotor
Rear Derailleur:Shimano XT M8100, SGS 12 Speed, Shadow Plus
Rear Shifter:Shimano XT, M8100 12 Speed, Direct attach to brake lever using iSpec EV
Drivetrain Cables:Shimano
Cassette:Shimano SLX M7100, 12 speed, 10-12-14-16-18-21-24-28-33-39-45-51T

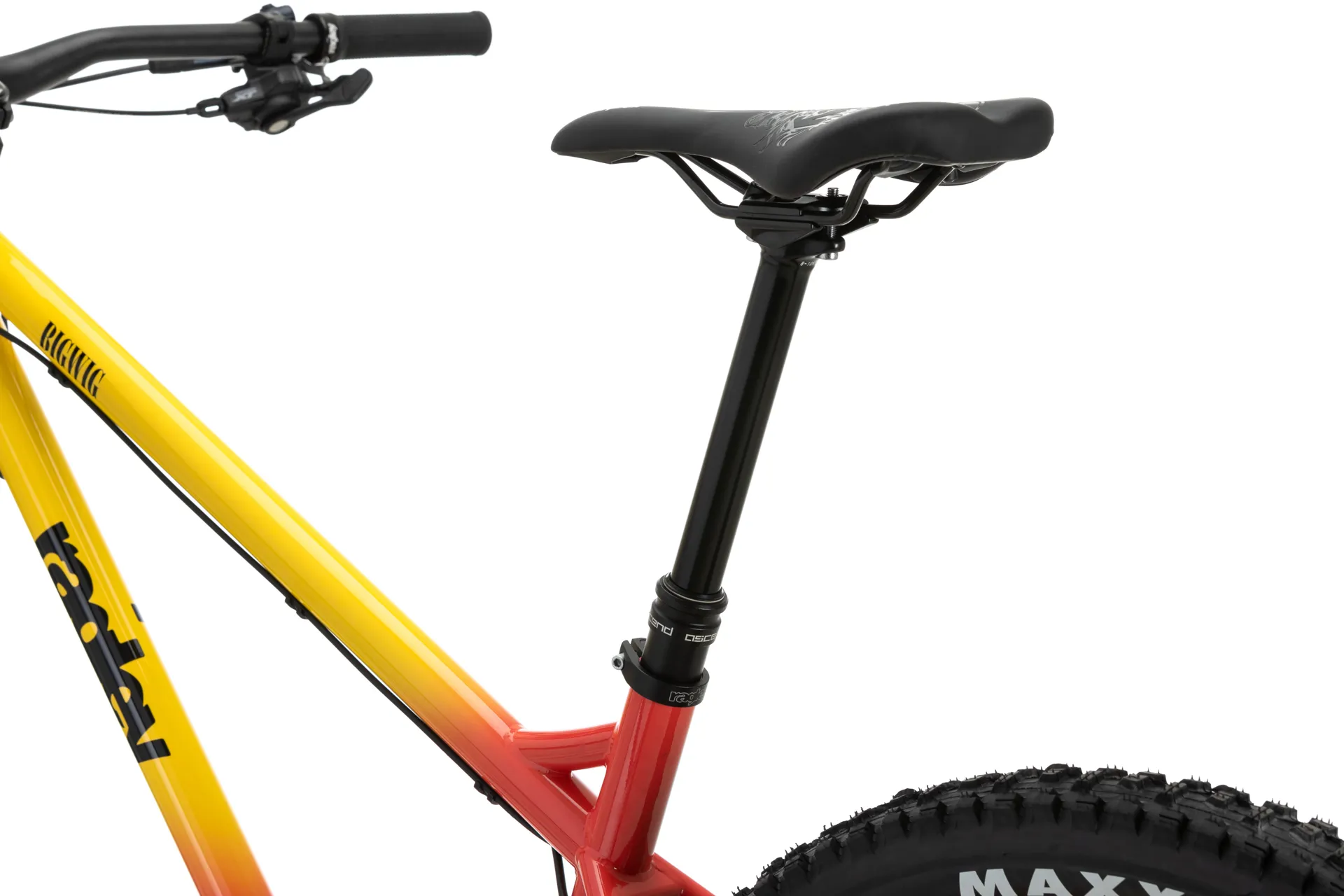

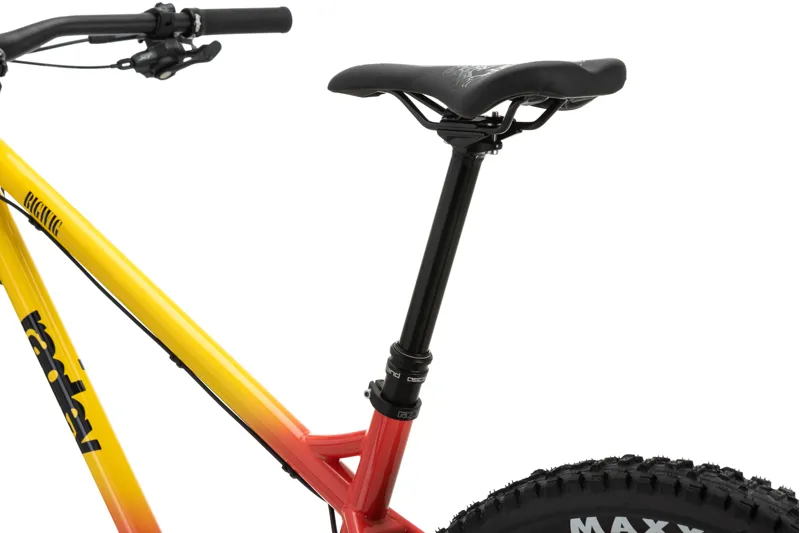

Saddle:Ragley Tracker Saddle
Seat post:Brand-X Ascend Internal Route Post - 31.6mm

SM - 125mm Drop
MD, 150mm Drop
LG, XL – 170mm Drop
Seat Clamp:34.9mm Alloy
Also included:Ragley Chain stay protector, touch up paint
5 Year Warranty and lifetime crash replacement
ISO 4210 Certified
Sizing Information
Frame SizeMediumLargeX-Large
Seattube Length420mm460mm500mm
Effective Top Tube Length625mm645mm667mm
Reach440mm460mm480mm
Stack634mm643mm652mm
Standover Height758mm785mm814mm
Chainstay Length435mm435mm435mm
Headtube Length100mm100mm110mm
Headtube Angle65.5°65.5°65.5°
Seattube Angle72°72°72°
Bottom Bracket Drop-65mm-65mm-65mm
Wheelbase1197mm1217mm1241mm
Max. Tyre Size29" x 2.4"29" x 2.4"29" x 2.4"
Seatpost Diameter31.6mm31.6mm31.6mm
Bottom Bracket Size73mm BSA73mm BSA73mm BSA
Rear Axle12mm x 148mm Bolt Thru12mm x 148mm Bolt Thru12mm x 148mm Bolt Thru
Recommended Fork Travel130mm130mm130mm
Chain GuideISCG 05ISCG 05ISCG 05
Based On Axle To Crown541mm541mm541mm
Chainline52mm52mm52mm
Max Rotor Size180mm180mm180mm
Fork Offset51mm51mm51mm
External Lower Headset Cup Height13mm13mm13mm
Headset44mm44mm44mm
