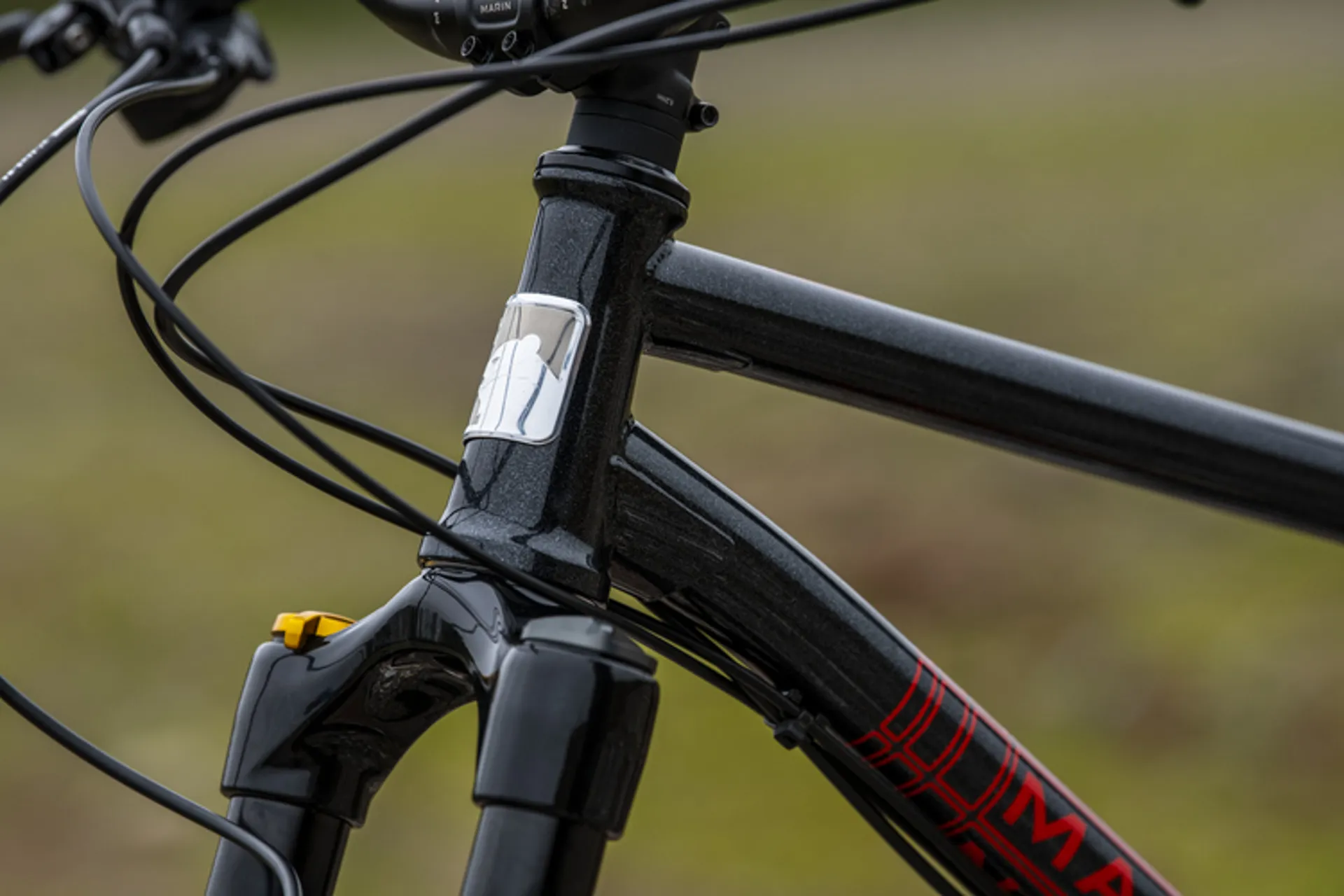

The El Roy is built on a stout Series 3 4130 CrMo frame with investment cast dropouts, integrated drop-in headset, external brake and hose mounts, all fully ED coated for longevity.
The El Roy is built on a stout Series 3 4130 CrMo frame with investment cast dropouts, integrated drop-in headset, external brake and hose mounts, all fully ED coated for longevity.
Marin

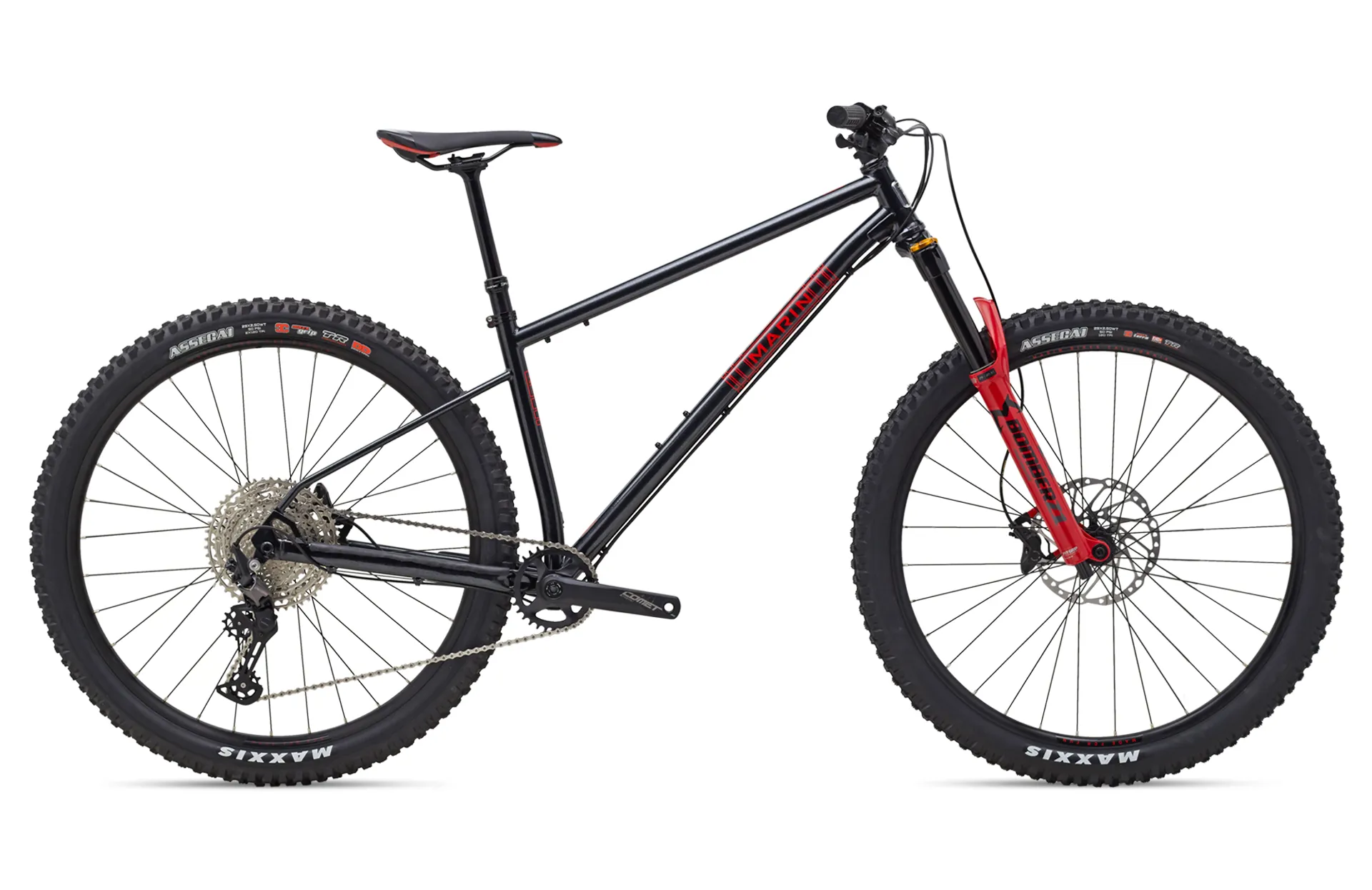

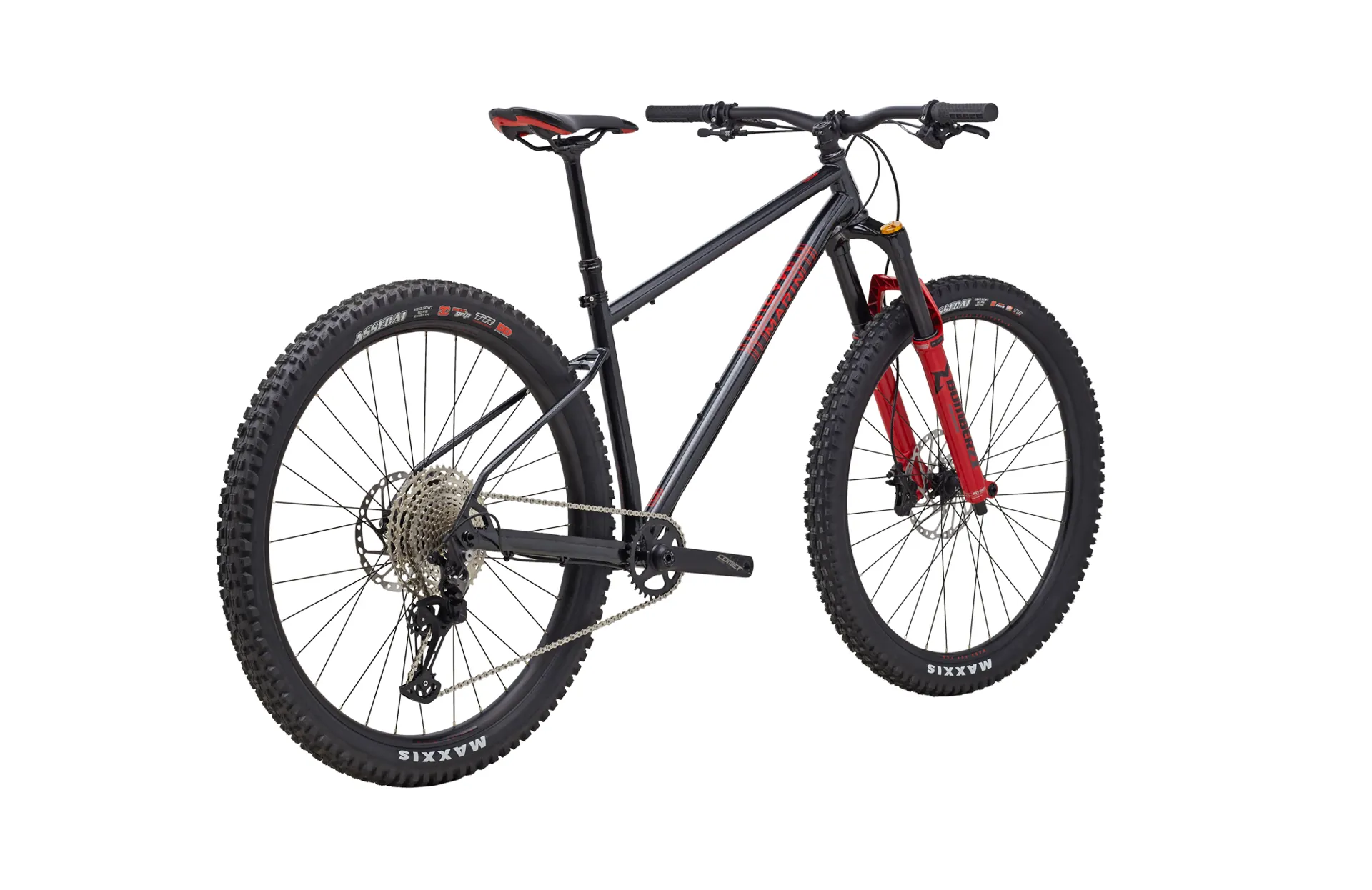

Marin El Roy 29 - Gloss Black Sparkle/ Red

Size Guide
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

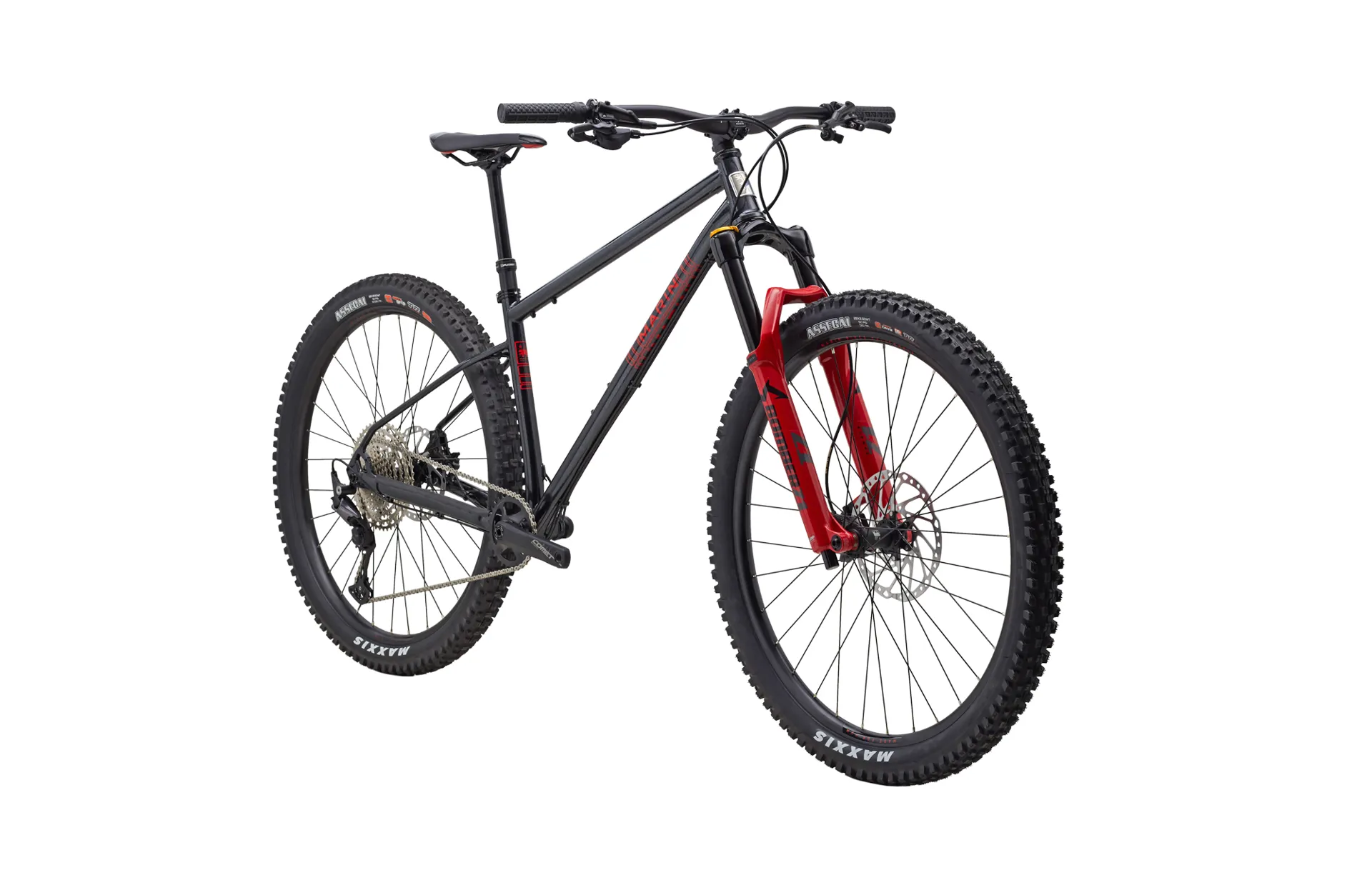

Marin El Roy 29 - Gloss Black Sparkle/ Red

Season:2022

Brand:Marin

Code:73241700

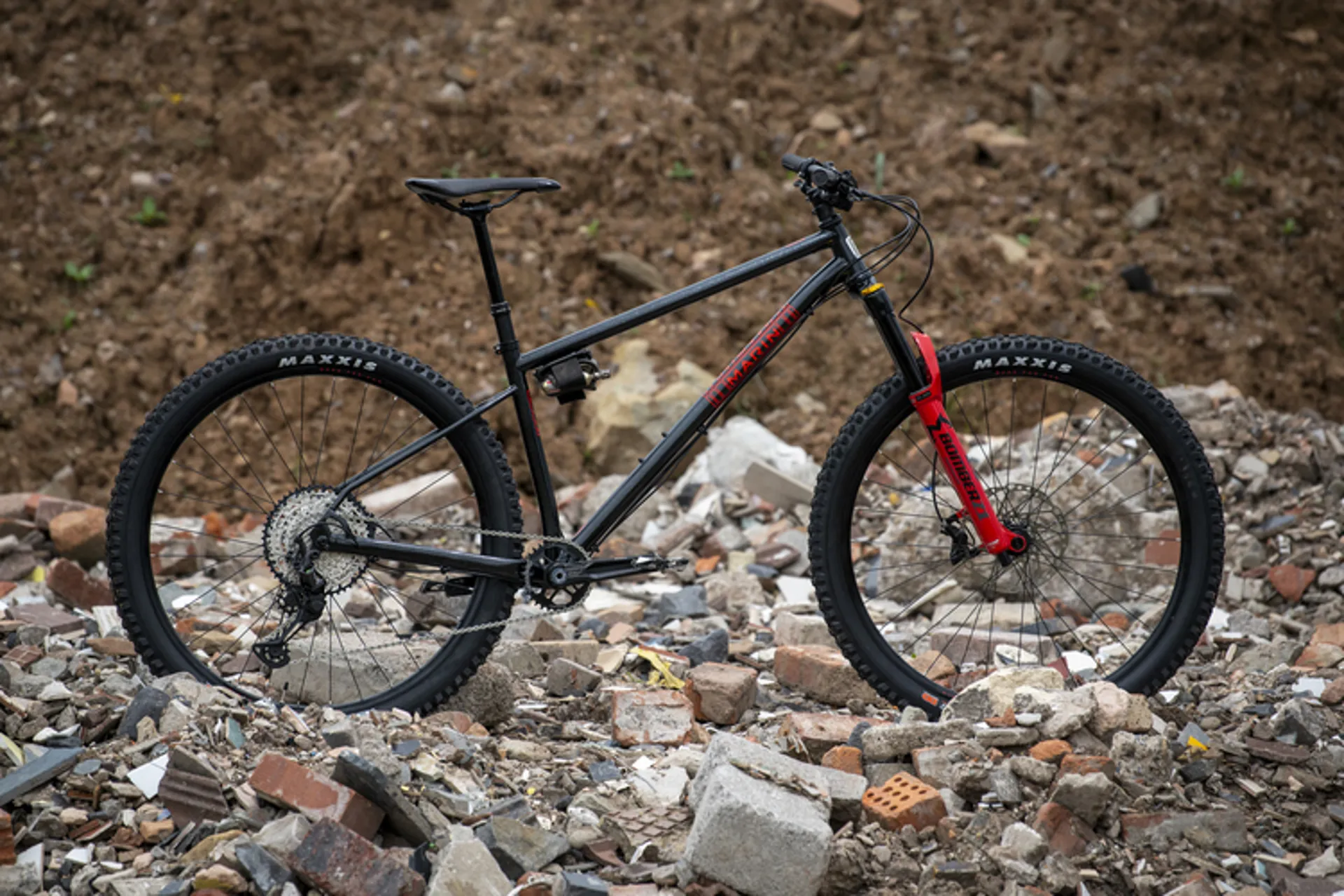

The El Roy is the ultimate aggressive steel hardtail that’ll get you to the top, and then really shine on the way down, with a spicy mix of progressive geometry and supple steel.


The classic robust yet forgiving character of chromoly steel meets modern day long and slack geometry, a match as perfect as mountain biking and post-ride burritos. This new 29” wheel trail slayer was purpose built for silly fun days in the woods, no matter the conditions.

Use it as a back-to-the-roots, all-in-one trail slayer, or as that perfect “n+1 bike,” on days when the full suspension bike stays at home in the shed.

Named in honor of our favorite post-ride taqueria, the El Roy is overflowing in solid spec choices, all wrapped up with a stout Series 3 double butted and formed CrMo frameset. Grab one of two frame sizes, Regular (Medium) or Grande (Large) , and enjoy the delicious goodness that we’ve cooked up.

Technical Information
Specification

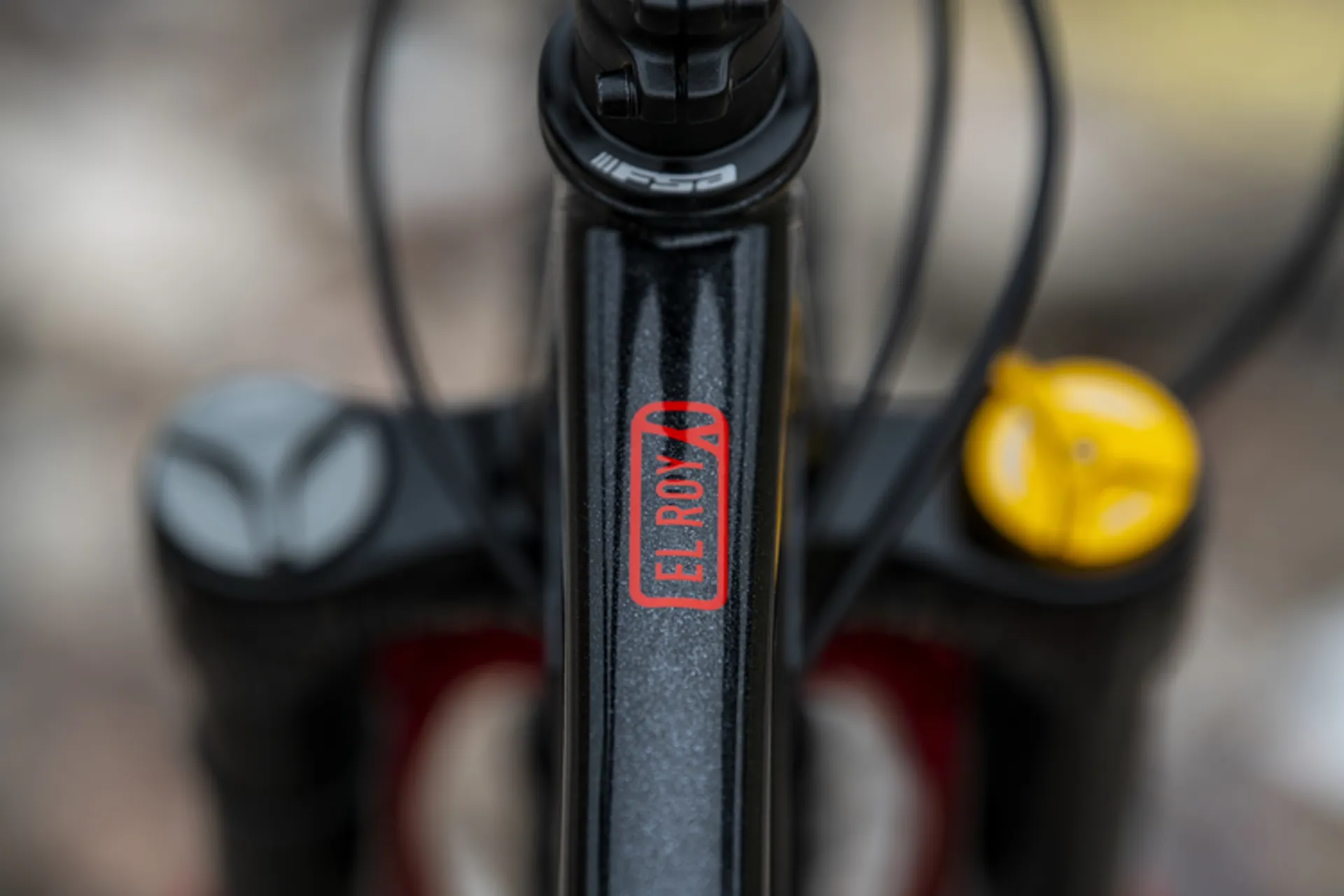

FRAMESeries 3 Double Butted and Formed CrMo tubing, Integrated Drop-In Headset, External Rear Derailleur and Brake Housing, Internal Dropper Post Routing, 148x12mm Boost Rear Spacing, Post Mount Brake Mounts
FORKMarzocchi Z1, 140mm Travel, EVOL Air Spring, GRIP Damper w/ Sweep Adjust, Kabolt 110 Axle, 44mm Offset
RIMSMarin, Double Wall Alloy, 29mm Inner, Welded Joint, Disc Specific, 32H, Tubeless Compatible
HUB REARShimano HB-MT410B, 148x12mm, Disc, Microspline Freehub Body
HUB FRONTShimano HF-MT410B, 110x15mm, Disc
SPOKES14g Black Stainless Steel
TIRESMaxxis Assegai 29x2.5", MAXX GRIP, Double Down, Tubeless Compatible
DERAILLEUR REARShimano Deore, 12-Speed, SGS
SHIFT LEVERShimano Deore, M6100, 12-Speed
CRANKSET FSA Comet, Modular 1x, 32T Direct Mount Chainring, MegaTooth Technology, Boost Spacing
BOTTOM BRACKETMego EXO 73mm BSA
CHAINKMC X-12 Silver and Black

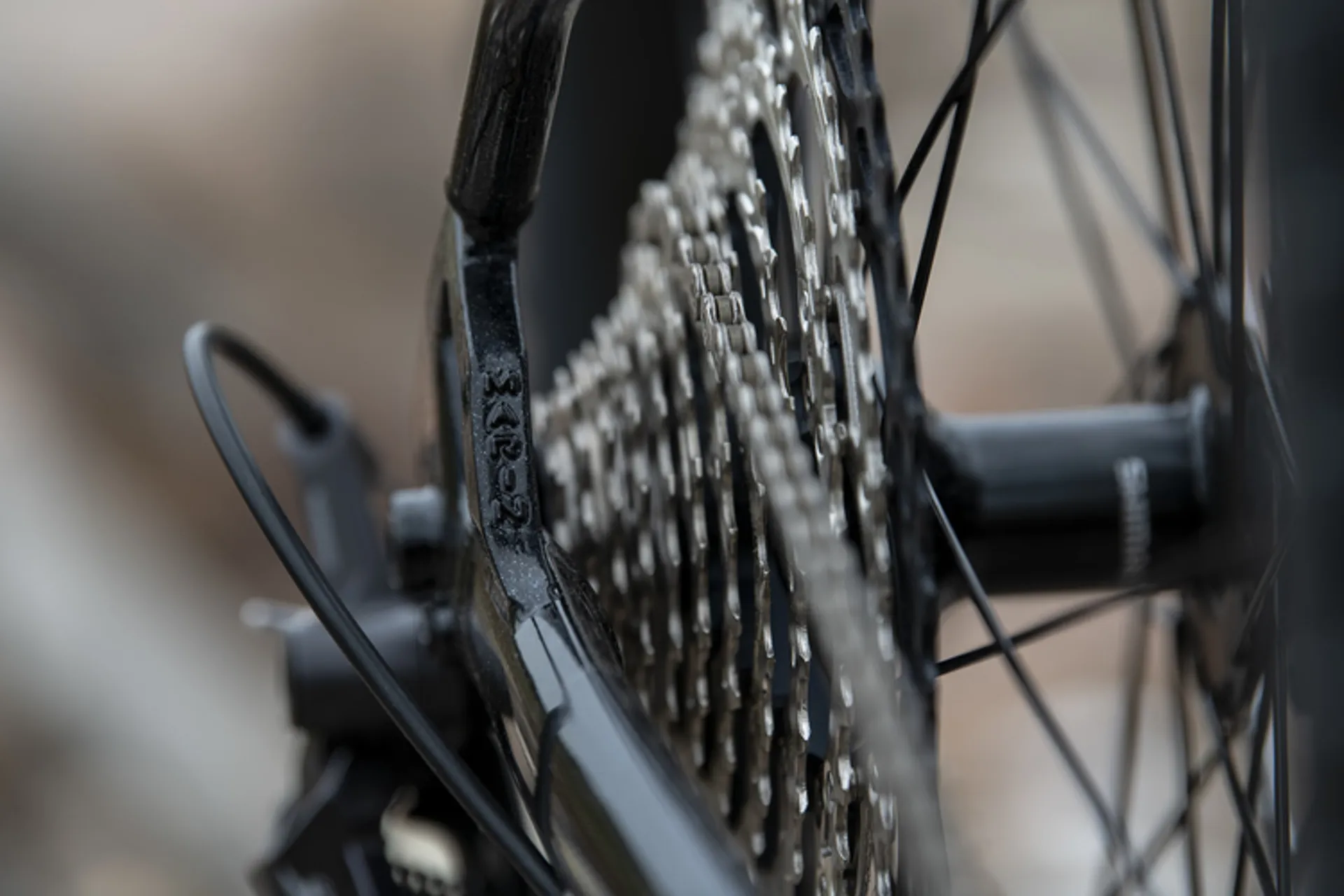

CASSETTEShimano, Deore 12-Speed, 10-51T
BRAKES FRONTShimano MT420, 4-Piston Hydraulic Disc Brake, 203mm Rotor
BRAKES REARShimano MT420, 4-Piston Hydraulic Disc Brake, 180mm Rotor
BRAKE LEVERSShimano BL-M4100 Hydraulic Lever, I-Spec EV Compatible
HANDLEBARMarin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back
STEMMarin 3D Forged Alloy, 35mm
GRIPSMarin Single Clamp Locking
HEADSETFSA Orbit 40 No.42 ACB
SEATPOSTX Fusion Manic, Regular = 150mm Travel, Grande = 170mm Travel
SADDLEMarin Speed Concept
EXTRASBolt-On Thru-Axle

Sizing Information
GEOMETRY
REGULARGRANDE
STACK645645
REACH480510
HEADTUBE ANGLE6363
HEADTUBE LENGTH120120
SEATTUBE ANGLE (EFFECTIVE)7878
SEATTUBE LENGTH420430
TOPTUBE (EFFECTIVE)617647
BOTTOM BRACKET HEIGHT318318
BOTTOM BRACKET DROP6565
CHAINSTAY435435
WHEELBASE12521282
STANDOVER HEIGHT735743
FORK OFFSET4444
SEATPOST DIAMETER30.930.9
HANDLEBAR WIDTH800800
STEM LENGTH3535
CRANK LENGTH170170
