Maximum enduro, zero compromises. The Alpine Trail 1 features a Series 4 Aluminum frame, 160mm MultiTrac LT suspension, and adjustable geometry.
Maximum enduro, zero compromises. The Alpine Trail 1 features a Series 4 Aluminum frame, 160mm MultiTrac LT suspension, and adjustable geometry.
Marin

Marin Alpine Trail 1 Full Suspension Mountain Bike - Gloss Black/ Blue

£2,399.00
Size Guide
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

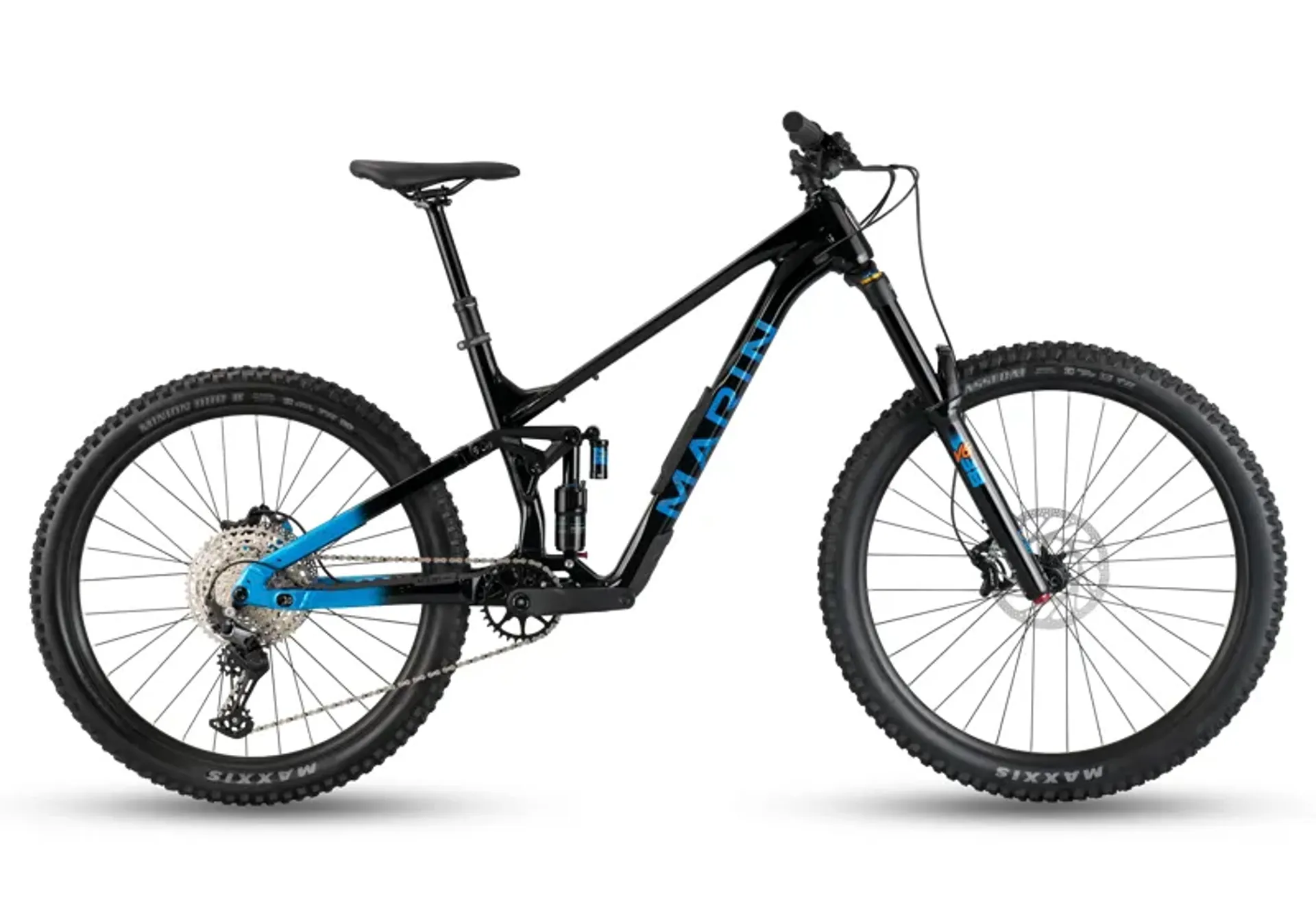

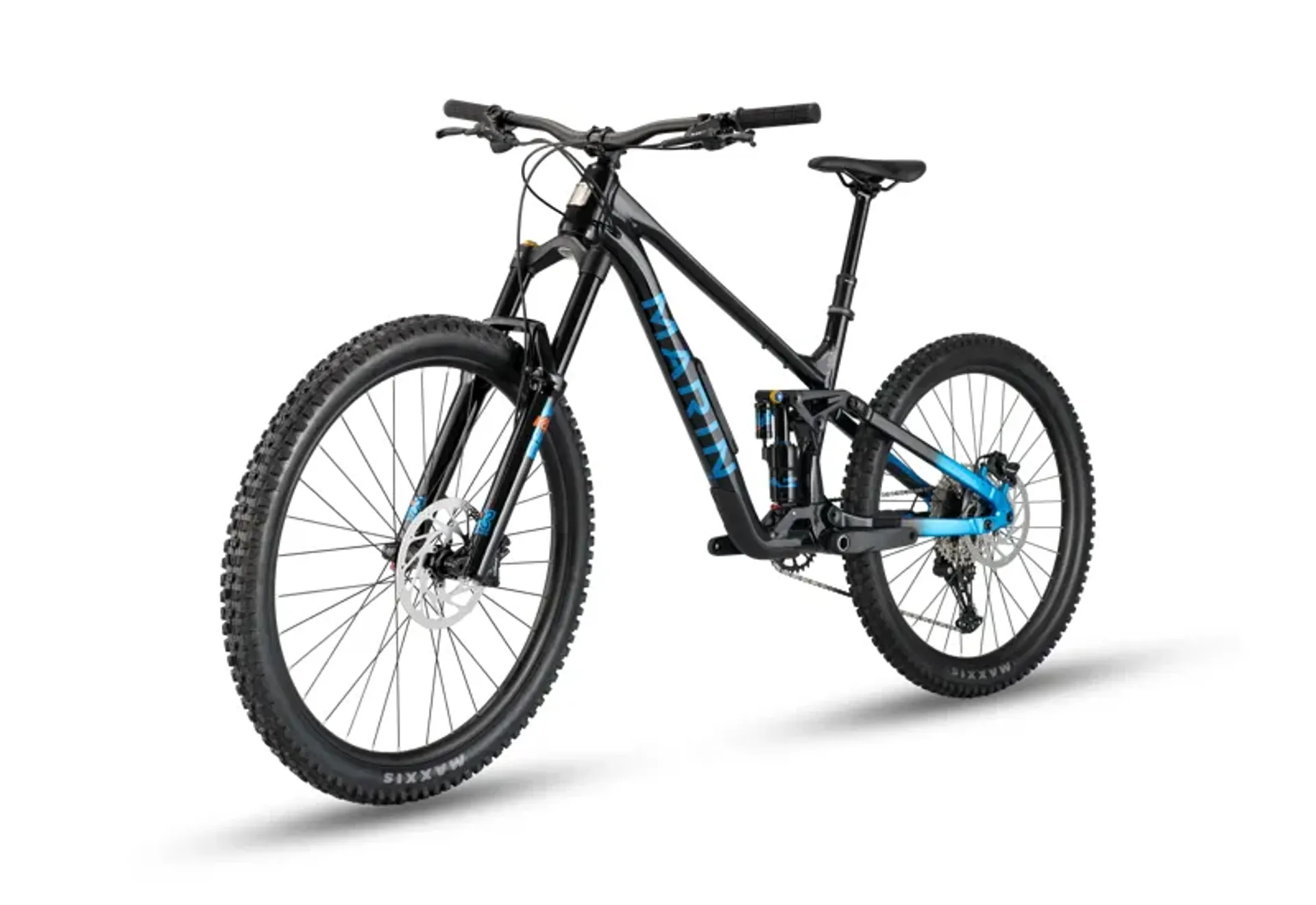

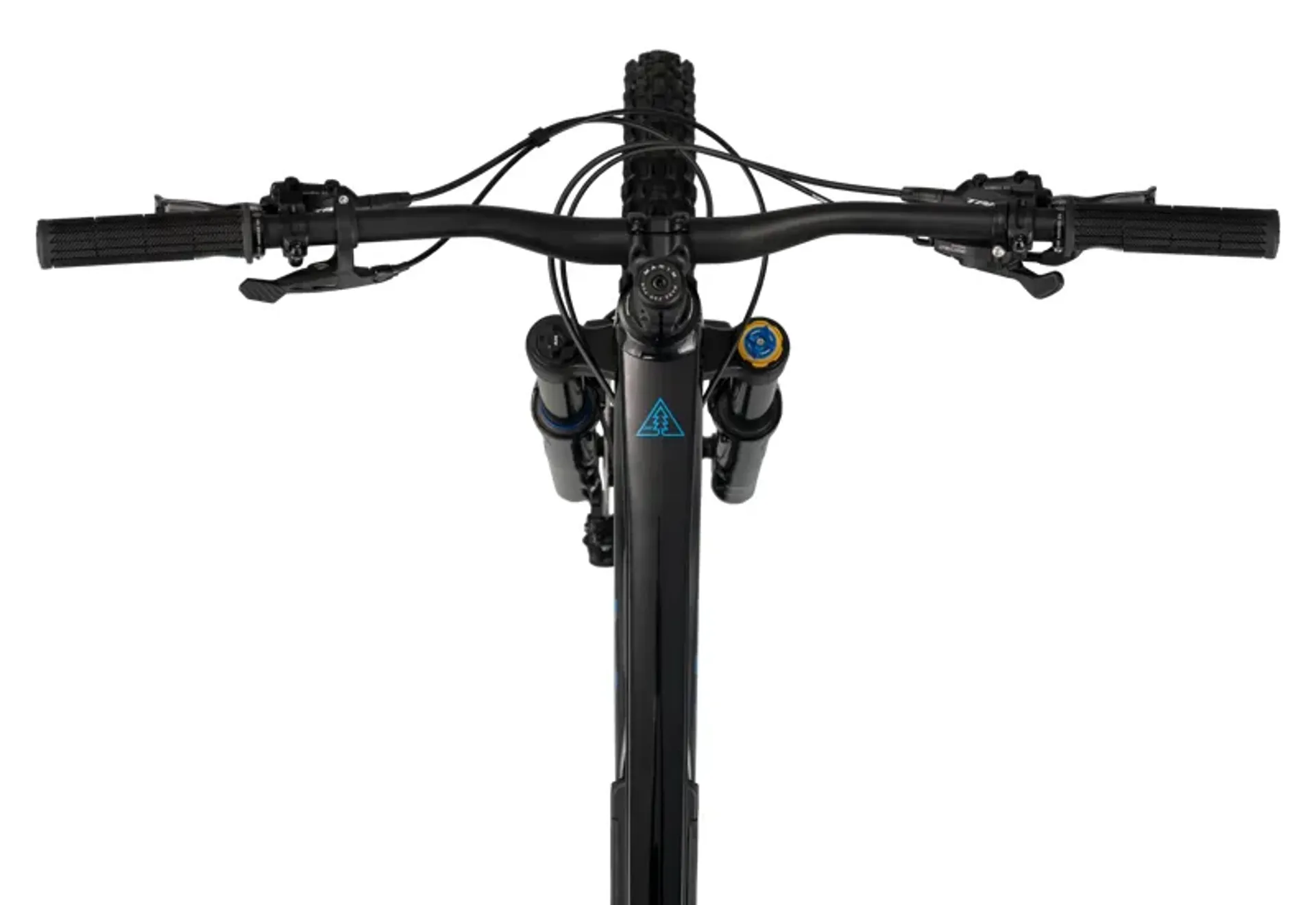

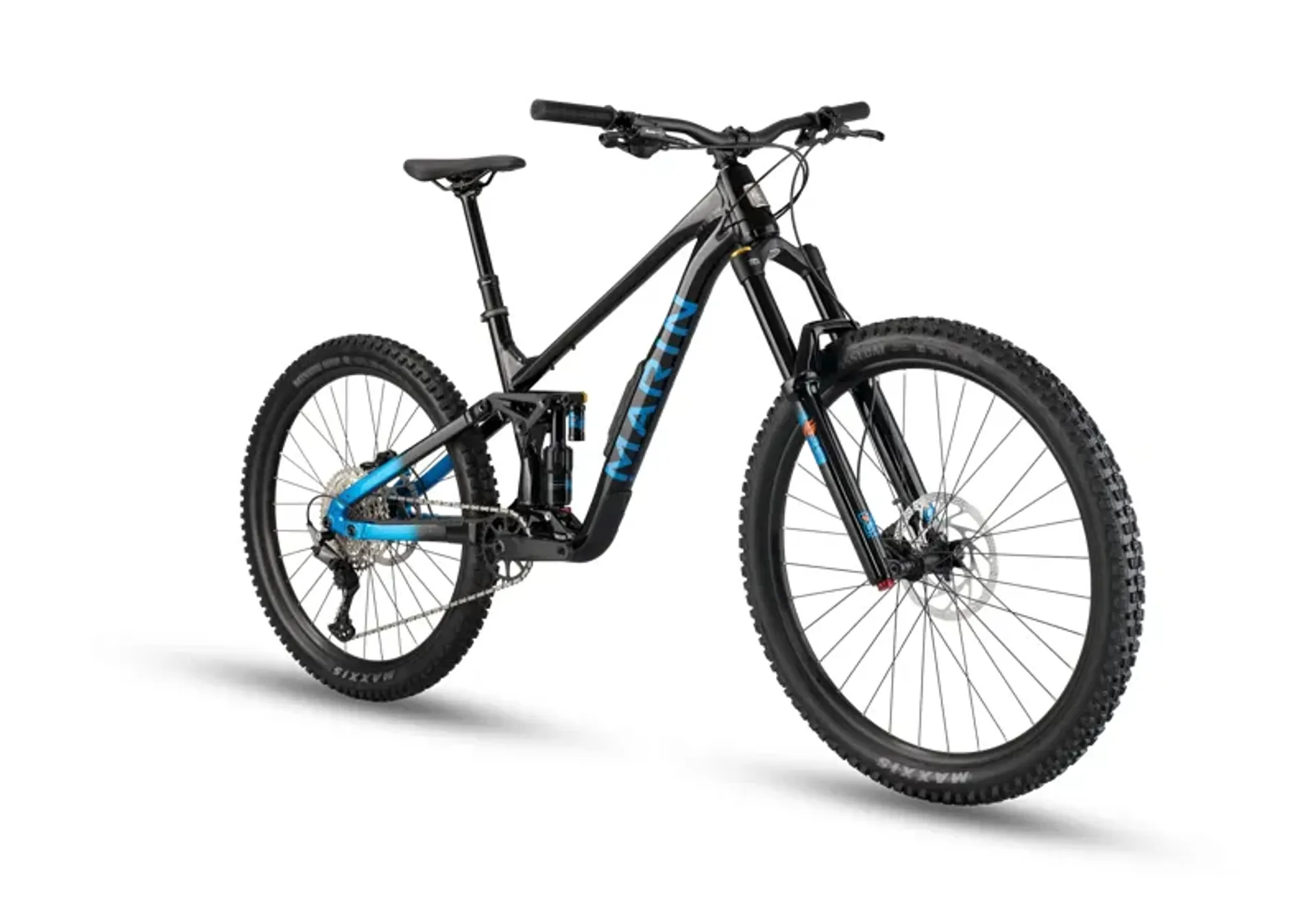

Marin Alpine Trail 1 Full Suspension Mountain Bike - Gloss Black/ Blue

Season:2026

Brand:Marin

Code:7415210BLK

Maximum enduro, zero compromises. The Alpine Trail 1 is ready for it – slap turns, eat bumps and smash the rough.

The Series 4 Aluminum frame features geometry adjustment, a 160mm MultiTrac LT suspension platform, and integrated downtube storage. It is mixed wheel or full 29in compatible, includes a UDH, and features ride-hushing chain slap protection.

The X-Fusion Vengeance fork provides 170mm of travel, matched to the H3A rear shock. The Horst-link design balances progression, support, and suppleness. Shimano's Deore 12-speed drivetrain shifts cleanly under pressure, while TRP's Slate Evo 4-piston brakes with 203mm rotors provide power and modulation.

Riders can lock in a personal set-up with tunable geometry. The upper headset cup allows for ±0.75 degrees of adjustment, and chainstay flip chips adjust bottom bracket height and chainstay length. The TranzX adjustable travel dropper allows for a precise fit.

2026 Marin Attack Trail 1 Main Features:

  • Series 4 Aluminum frame with integrated Bear Box downtube storage
  • 160mm MultiTrac LT suspension platform
  • X-Fusion Vengeance 170mm fork and H3A rear shock
  • Shimano Deore 12-speed drivetrain
  • TRP Slate Evo 4-piston brakes with 203mm rotors
  • Adjustable geometry via headset cups and flip chips
  • Mixed wheel (29in front/27.5in rear) or full 29in compatible
  • TranzX adjustable travel dropper
Technical Information
  • Fork
    Fox 36 Rhythm, 170mm Travel, 29", Grip Damper, 110x10 Kabolt, 44mm Offset
  • Frame
    Series 4 6061 Aluminum, 29” Wheels, 160mm Travel MultiTrac LT Suspension Platform, Integrated Downtube Storage, Adjustable Headset & CS Length/BB Height, Full Internal Cable Routing, Chainstay Mounted Post Mount Disc Brake, 148x12mm Boost Thru-Axle, 73mm Threaded BB w/ ISCG05 Tabs
  • Front Suspension
    X-Fusion Vengence, 170mm Travel, 44mm Offset, 110x15mm Bolt-on Axle
  • Rear Suspension
    X-Fusion H3A Air, 205x65, 30xM8 Lower Hardware, Custom Tune
  • Rim
    New Marin, Double Wall Alloy, 29mm Inner, Sleeved Joint, Disc Specific, 32H, Tubeless Compatible
  • Hub Rear
    Shimano HB-MT501B, 148x12mm, Centerlock, Micro Spline Freehub Body
  • Hub Front
    Shimano HF-MT500B, 110x15mm, Centerlock
  • Spokes
    14g Black Stainless Steel
  • Tires
    Front: Maxxis Assegai MAXX GRIP, 29x2.5" EXO+; Rear: Maxxis Minion DHR II, MAXXTERRA, 27.5x2.5" DoubleDown, Tubeless compatible
  • Derailleur Rear
    Shimano Deore, 12-Speed, SGS
  • Shift Lever
    Shimano Deore, 12-Speed, SL-6100-IR
  • Crankset
    Samox RAC61C, Forged Alloy, 32T, 55mm CL, 165mm
  • Bottom Bracket
    Samox BSA Threaded
  • Chain
    KMC X-12 Silver and Black
  • Cassette
    Shimano, Deore M6100 12-Speed, 10-51T
  • Brakes
    TRP Slate EVO, 4-Piston Hydraulic Disc, Resin Pads, 203mm Rotor
  • Brake Levers
    TRP Slate EVO Hydraulic Lever, I-Spec EV Compatible
  • Handlebar
    Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back
  • Stem
    Marin 3D Forged Alloy, 35mm
  • Grips
    Marin Grizzly Lock-On
  • Headset
    FSA Custom Headset, Adjustable HTA Design
  • Seatpost
    TranzX YS160QL Adjustable Travel Dropper Post, Size S=150mm, M=170mm, L-XL=200mm Travel, 34.9mm
  • Saddle
    Marin Speed Concept
  • Extras
    Bolt-On 12mm Thru-Axle, 174mm Length, 1.0 Thread Pitch, 16.5mm, Tapered Head
Sizing Information
GeometrySmallMediumLargeX.Large
A Stack 620634643647
B Reach 430460490520
C Headtube angle 63.5°63.5°63.5°63.5°
D Headtube length 100115125130
E Seattube length 400420430450
F Seattube angle 79°79°79°79°
G Toptube effective 556592626659
H Bb height 352352352352
I Bb drop 24 | 724 | 724 | 724 | 7
J Chainstay 435442442442
K Wheelbase 1211124812831318
L Standover height 683690695698
M Fork offset 44444444
N Seatpost diameter 34.934.934.934.9
O Handlebar width 780780780780
P Stem length 35353535
Q Crank length 160160160160
