The 802 is available in XS upto a Medium size. All sizes have more compact geometry than the 801 or 805
The 802 is available in XS upto a Medium size. All sizes have more compact geometry than the 801 or 805
Whyte

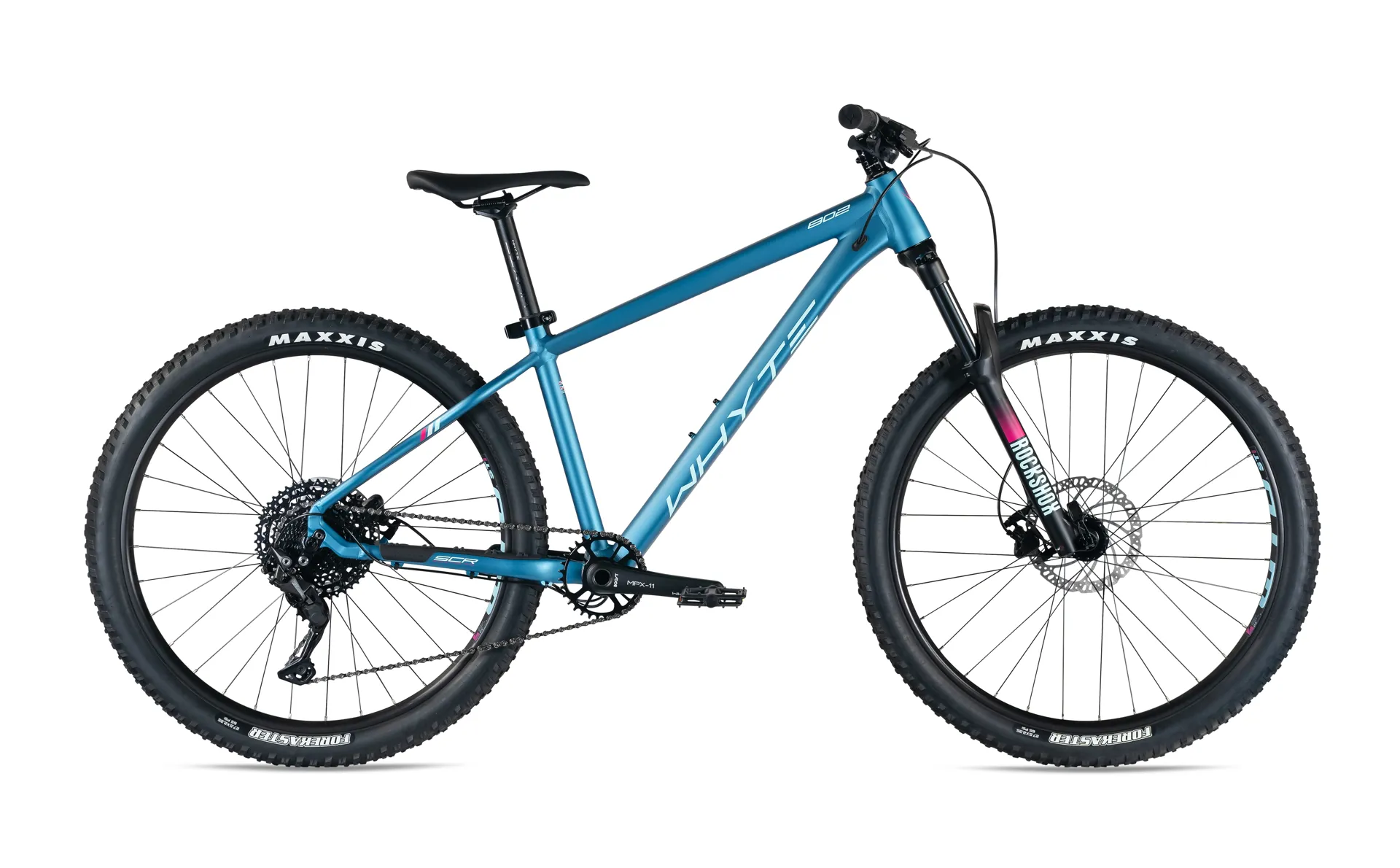

2023 Whyte 802 Compact Hardtail Mountain Bike V4 - Matt Diesel/ Light Blue/ Magenta

£1,250.00
Size Guide
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

2023 Whyte 802 Compact Hardtail Mountain Bike V4 - Matt Diesel/ Light Blue/ Magenta

Season:2023

Brand:Whyte

Code:JW802Diesel

Whyte don’t just shrink sizing on their XS bikes they carefully reshape our Compact Trail Hardtails with a shorter reach for pitch perfect proportional performance however big you want to go.

They make maximum use of their own custom componentry, so every contact point fits as well as the frame and the handling is flawless - even on the toughest terrain. Add benchmark trail ready kit and the result is a bike that lets you focus totally on your best rides ever, not trying to find a fit that works.


The 802 gets a Boost 148mm rear dropout which allows up to a 2.8” tyre to be fitted and provides increased mud clearance for year-round trail riding.

Technical Information
SPECIFICATION
FRAME6061 Alloy, Hydro Formed T6 Aluminium, Multi Butted, SCR, Tapered Headtube, Get A Grip Seat Clamp System, Internal Cable Routing with BBX63 and Chainstay Post Mount Dropouts 12mm X 148mm Boost
FORKRockShox Recon RL 27.5", 120mm Travel, 37mm Offset, Solo Air, Fast Black Coating, Adjustable Rebound, Tapered Alloy Steerer, 110mm x 15mm Boost, Maxle Lite
REAR SHOCKN/A
HEADSETFSA No. 57B Orbit ZS, 1 1/2" Lower and 1 1/8" Upper Caged Bearings
REAR HUBAlloy, Double Sealed Cartridge Bearings, 10mm x 148mm Boost Thru Axle, 32 Hole
FRONT HUBAlloy, Double Sealed Cartridge Bearings, 15mm x 110mm Boost Thru Axle, 32 Hole
SPOKESDT Swiss Champion 2.0mm, Black Stainless, Brass Nipples
RIMSWTB ST i27 TCS 2.0 System, Pinned Joint, Tubeless Ready, 32 Hole
TYREMaxxis Forekaster 27.5"x 2.35" Dual Compound, 60TPI
SHIFT LEVERSShimano Deore SL-M4100, 10 Speed
FRONT MECHN/A
REAR MECHShimano Deore RD-M5120-SGS, Shadow Plus, 10 Speed
CASSETTESunRace CSMS2, ED Black, 11-46, 10 Speed
CHAINSunRace 10 Speed
CRANKSETWhyte, Forged 2pcs Cranks, Direct Mount 32T Narrow/Wide Chainring, 170mm, 10 Speed
BOTTOM BRACKETBSA, Cartridge Bearings, 73mm
SEATPOSTWhyte 6061 Alloy, 15mm Offset, 30.9mm x S/M 350mm, L/XL 400mm, 2 Bolt Clamp
SADDLEWhyte Custom
HANDLEBARWhyte 6061 Alloy, 15mm Rise, 31.8mm, XS 740mm Wide, S/M 760mm Wide
STEMWhyte Alloy, 40mm Extension
GRIPSWhyte Lock-on Enduro Grip
BRAKES FRONTTektro Auriga HD-M280, 180mm Disc
BRAKES REARTektro Auriga HD-M280, 180mm Disc, 180mm Disc, Internal Routing
BRAKE LEVERSTektro Auriga HD-M280
PEDALSFibre Reinforced Composite Platform
Sizing Information
GEOMETRY
SIZEXSSM
HEAD TUBE ANGLE64.564.564.5
SEAT TUBE ANGLE74.574.574.5
TOP TUBE HORIZONTAL580599627
BB HEIGHT ABOVE GROUND303.5303.5303.5
STAND OVER HEIGHT761779803
WHEEL BASE114111611191
CHAIN STAY LENGTH440440440
SEAT POST DIAMETER30.930.930.9
HEAD TUBE LENGTH107115125
SEAT TUBE LENGTH381406444
STACK602609619
REACH407424440
