Cruising the trails, hitting the jump park or nailing a descent... this bike does it all!
Cruising the trails, hitting the jump park or nailing a descent... this bike does it all!
Marin

2022 Marin San Quentin 2 Hardtail Mountain Bike - Blue / Green

Size Guide
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

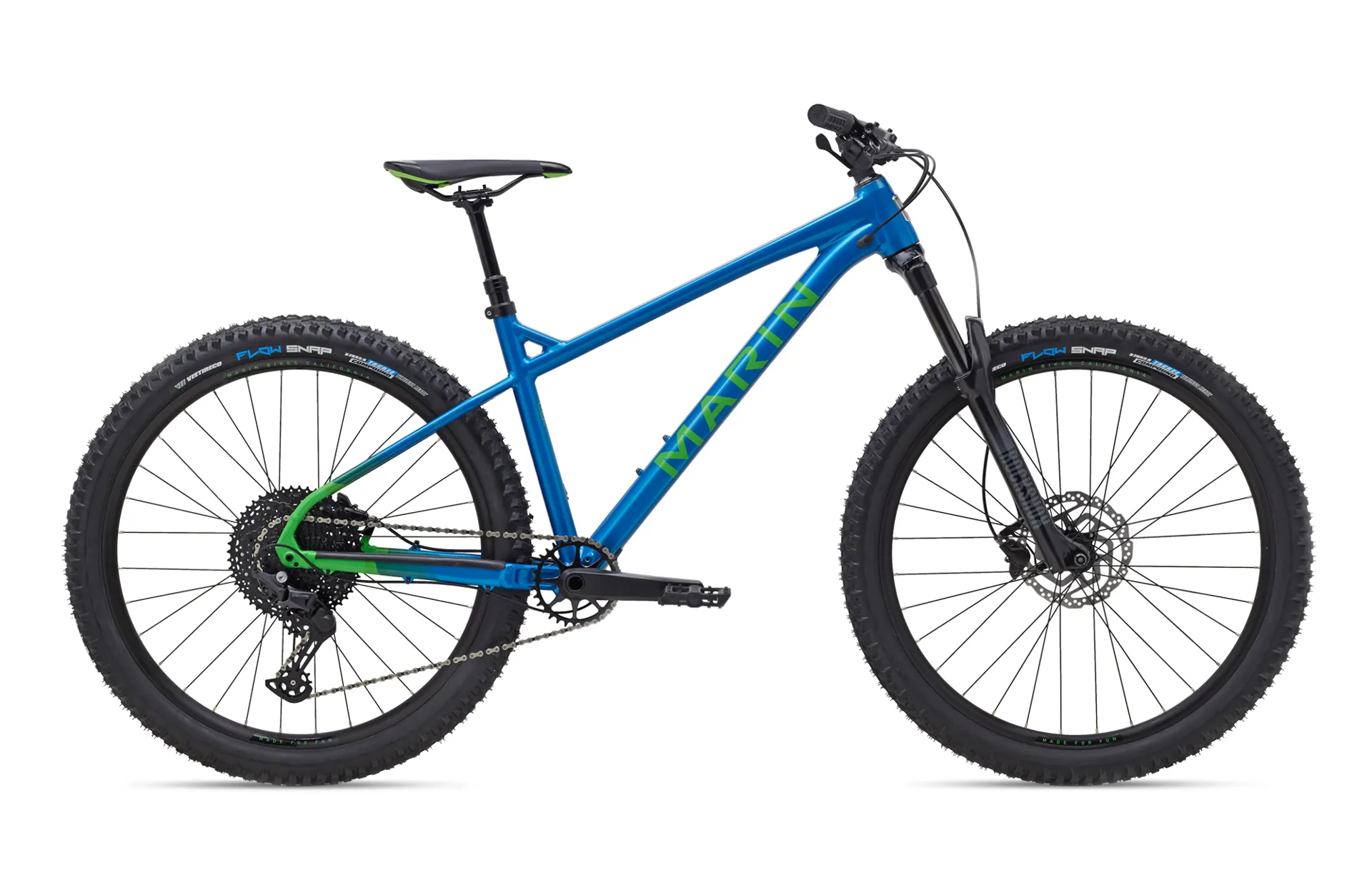

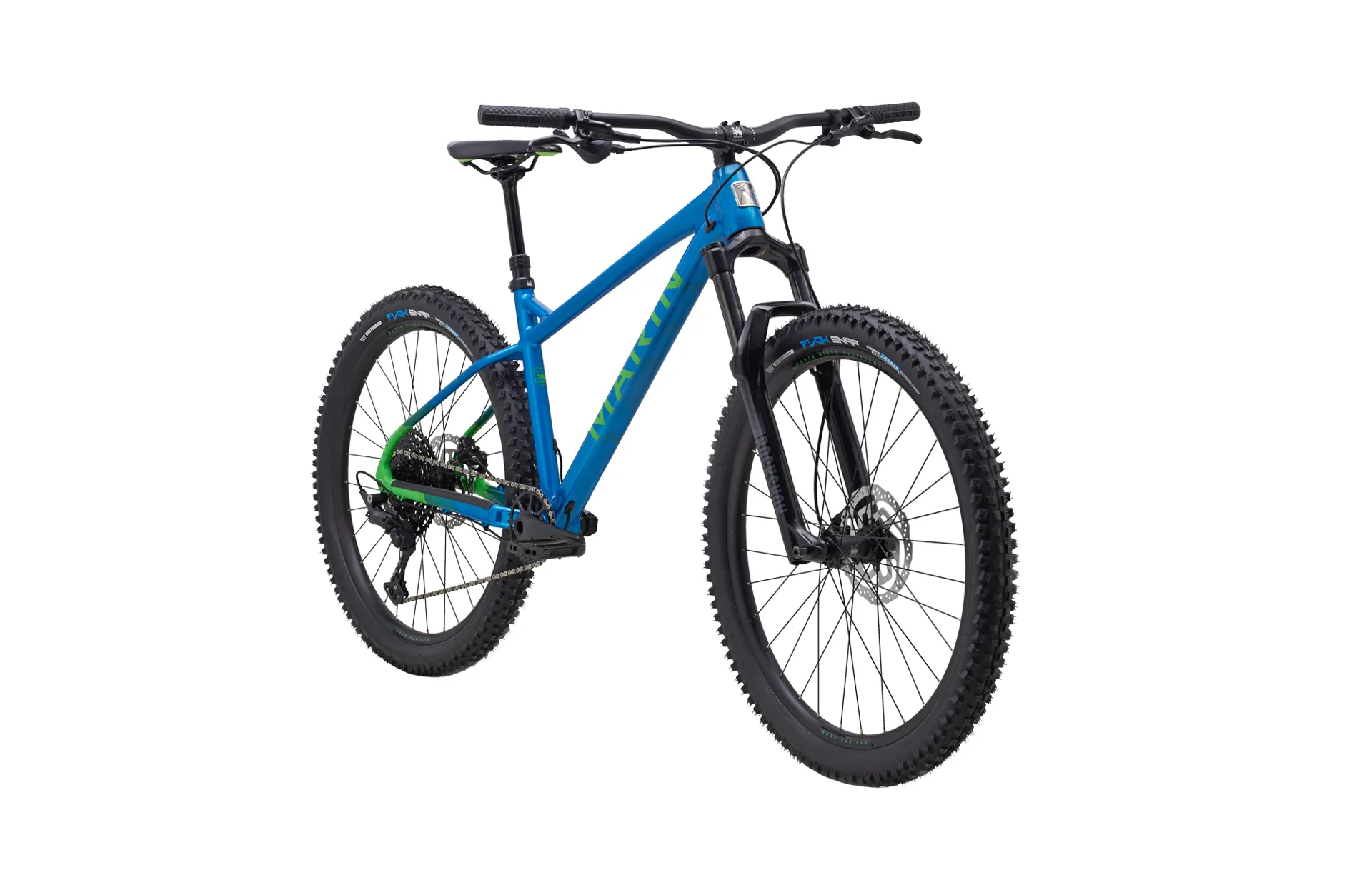

2022 Marin San Quentin 2 Hardtail Mountain Bike - Blue / Green

Season:2022

Brand:Marin

Code:732413

Downhill Trails, Light Dirt Jumps and Enduro!

The San Quentin is for the aggressive hardtail trail rider looking for a blend between singletrack capabilities and extended air time.

Key Features:

  • Series 3 aluminum frame w/12x148mm thru axle
  • RockShox Recon RL fork w/130mm travel
  • Shimano Deore wide range 1x 11-speed drivetrain
  • Shimano hydraulic disc brakes

The San Quentin 2 features a Series 3 aluminum frame, with advanced tube forming, complex 3D Forged dropouts, tapered head tube, post mount disc tabs, full internal cable routing, and a boost 148mm thru-axle

Taking cues from the Alcatraz, the San Quentin line up provides all the benefits of the DJ style with massive stand over, slick frame tubes, and a sexy paint job.

The slack head tube angle paired with a steep seat tube angle create a ride that will fly uphill with perfect front wheel precision but then descend like it’s on rails. The balanced rider position thanks to the steep seat tube puts your weight between the wheels for impressive climbing and handling on flats, while the slack front end and short rear center help to pull you through the rough descents and corners with an intuitive feel.

San Quentin 2 features ISCG 05 tabs for easy chain retention device installation for rowdier riders.

Technical Information

SPECIFICATIONS

FRAME

Series 3 6061 Aluminum, Double Butted Frame, Internal Shifter and Dropper Post Routing, External Brake, 12x148mm Thru-Axle, 73mm Threaded BB

FRONT SUSPENSION

RockShox Recon RL, 110x15mm Boost Spacing, Fast Black Stanchions, 130mm Travel, Bolt-On Thru-Axle, 37mm Offset

RIMS

Marin Aluminum Double Wall, Disc Specific, 29mm Inner, Pinned Joint, 32H, Tubeless Compatible

HUB, REAR

Shimano HF-MT400B, 148x12, Centerlock, Standard Freehub Body

HUB, FRONT

Shimano HF-MT400B, 110x15mm, Centerlock

SPOKE, NIPPLES

14g Black Stainless Steel

TIRES

Vee Tire Co, Flow Snap, 27.5x2.6", MPC Compound, Wire Bead

DERAILLEUR, REAR

Shimano Deore, 11 Speed, SGS

SHIFT LEVER

Shimano Deore, 11-Speed, SL-5100R

CRANKSET

Marin Forged Alloy, Integrated Steel 32T Narrow Wide Chainring, Boost Spacing

BOTTOM BRACKET

External Sealed Cartridge Bearing

CHAIN

KMC X-11 Silver and Black

CASSETTE

SunRace, 11-Speed, 11-51T, ED Black

BRAKE, FRONT

Shimano BR-MT201 Hydraulic Disc Brake, 180mm Rotor

BRAKE, REAR

Shimano BR-MT201 Hydraulic Disc, 180mm Rotor

BRAKE LEVERS

Shimano BL-MT201 Hydraulic

HANDLEBAR

Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back

STEM

Marin 3D Forged Alloy, 35mm

GRIPS

Marin MTN, Closed End

HEADSET

FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2”

SEATPOST

TranzX, YSP18, 1x Remote, Size S 125mm Travel, Size M-XL 150mm Travel, 30.9mm

SADDLE

Marin Speed Concept

PEDALS

Choose your pedals by clicking on here
Sizing Information
San Quentin 2 geometry diagram
SMLXL
Stack586.1590.7599.7604.3
Reach422444464484
Headtube Angle65°65°65°65°
Headtube Length105110120125
Seattube Angle75°75°75°75°
Seattube Length385430475515
Toptube Effective579.1602.3624.7645.9
BB Height310310310310
BB Drop50505050
Chainstay425425425425
Wheelbase1144.81168.91193.11215.3
Standover Height664677714745
Fork Offset37373737
Seatpost Diameter30.930.930.930.9
Handlebar Width780780780780
Stem Length35353535
Crank Length170175175175

All lengths in millimeters
