Not just the fit and finish, but the characteristics of this bike make it a great all-rounder. Something you can take on 90% of the trails and have and absolute blast, and it's one of the best values you're going to get
Not just the fit and finish, but the characteristics of this bike make it a great all-rounder. Something you can take on 90% of the trails and have and absolute blast, and it's one of the best values you're going to get
Marin

2022 Marin Rift Zone 1 29 Full Suspension Mountain Bike - Grey / Black

Size Guide
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

2022 Marin Rift Zone 1 29 Full Suspension Mountain Bike - Grey / Black

Season:2022

Brand:Marin

Code:732405

Fast Paced, Epic Rides

Pushing The Envelope Both Up And Down Hill

Chasing Personal Records

The Rift Zone is Marin's most speed oriented MultiTrac bike, created for the rider looking for the speed and roll over capabilities of 29” wheels in a trail capable package. Long, low, and slack trail geometry is more aggressive than an XC race bike for more control at top speed, and more fun while chasing seconds.

  • MultiTrac is an acclaimed suspension system, fine-tuned to have a balanced ride capable of absorbing big hits with an efficient pedaling platform. The rocker link provides a progressive leverage ratio for the rear shock for small bump sensitivity and the feeling of a long travel system on large drops and rocks.

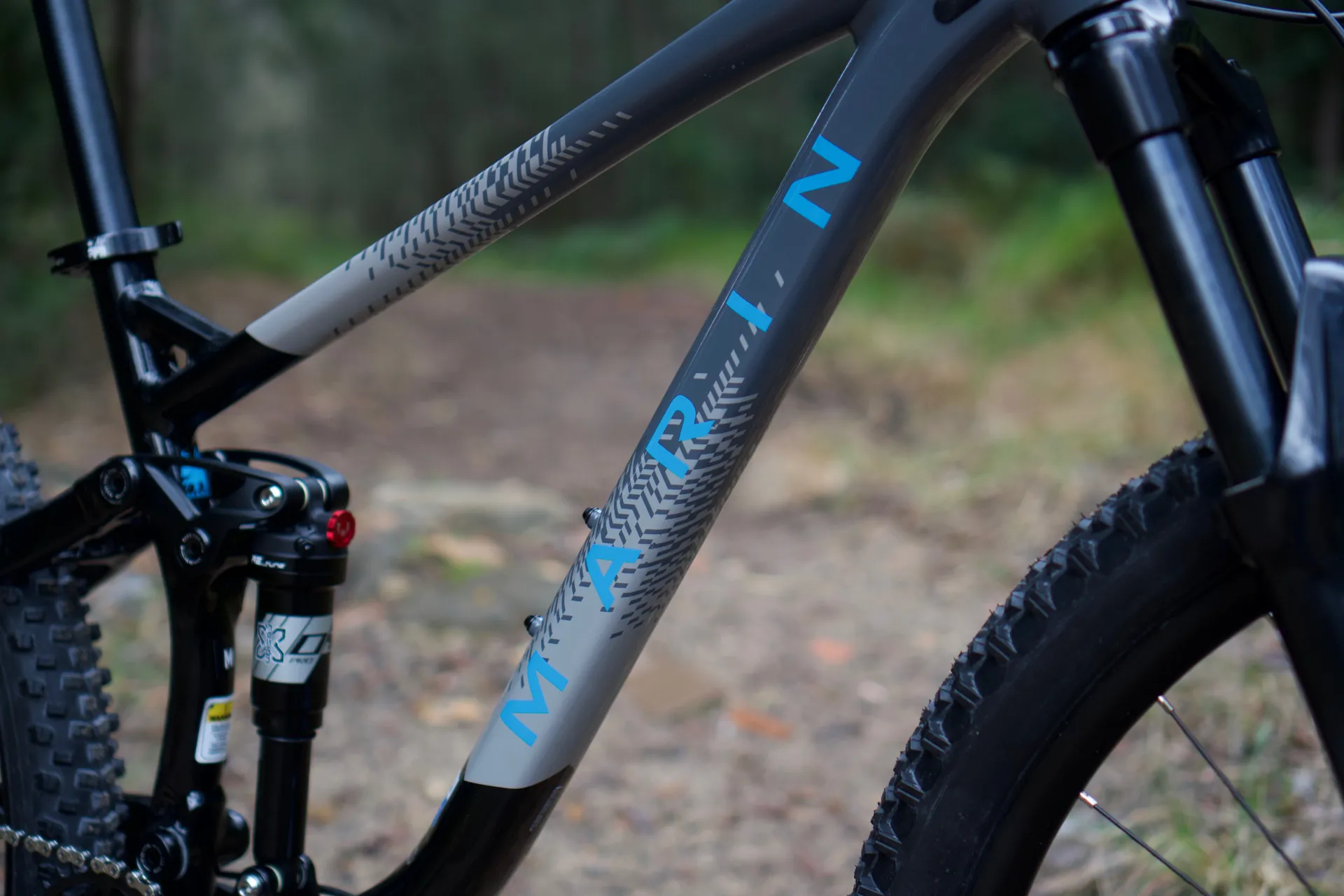

  • Rift Zone 1 features Series 3 aluminum frames, with detailed forgings, highly manipulated tubes, and full internal cable routing, giving the rider a high feature and high-performing upgrade-worthy platform.
Technical Information

SPECIFICATIONS

FRAME

Series 3 6061 Aluminum Frame, 29” Wheels, 125mm Travel, MultiTrac Suspension Platform, 141 Boost Spacing (upgradable to 148x12), 73mm Threaded BB w/ ISCG05 Tabs

FRONT SUSPENSION

RockShox Recon Silver RL 29", 130mm Travel, Solo Air, Compression and Rebound Adjustment, Alloy Tapered Steerer, Fast Black Uppers, 110x15mm Boost Spacing, Maxle Stealth, 42mm Offset

REAR SUSPENSION

X-Fusion O2 Pro R, Custom Tune, 210x50mm, M8x25mm Hardware Top and Bottom

RIMS

Marin, Double Wall Alloy, 29mm Inner, Pinned Joint, Disc Specific, 32H, Tubeless Compatible

HUB, REAR

Shimano HB-MT200B, 141 QR, Centerlock, Standard Freehub Body

HUB, FRONT

Shimano HF-MT400B, 110x15mm, Centerlock

SPOKE, NIPPLES

14g Black Stainless Steel

TIRES

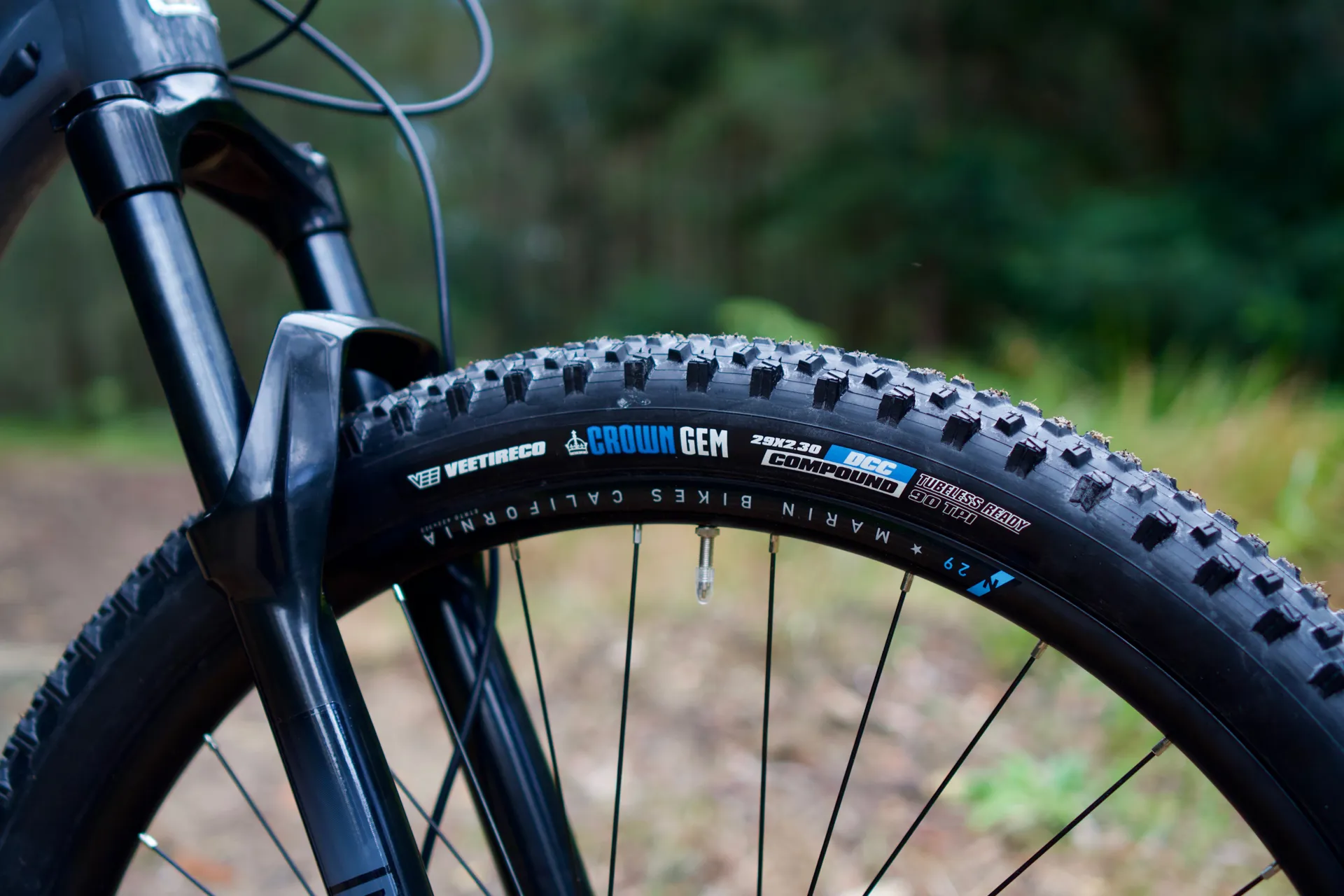

Vee Tire Crown Gem 29x2.35", Dual Control Compound, Tubeless Ready

DERAILLEUR, REAR

Shimano Deore, 11 Speed, SGS

SHIFT LEVER

Shimano Deore, 11-Speed, SL-5100R

CRANKSET

Marin Forged Alloy, Integrated Steel 32T Narrow Wide Chainring, Boost Spacing

BOTTOM BRACKET

External Sealed Cartridge Bearing

CHAIN

KMC X-11 Silver and Black

CASSETTE

SunRace, 11-Speed, 11-51T, ED Black

BRAKE, FRONT

Shimano BR-MT200 Hydraulic Disc, 180mm Rotor

BRAKE, REAR

Shimano BR-MT200 Hydraulic Disc, 180mm Rotor

BRAKE LEVERS

Shimano BL-MT201 Hydraulic

HANDLEBAR

Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back

STEM

Marin 3D Forged Alloy, 35mm

GRIPS

Marin MTN, Closed End

HEADSET

FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2”

SEATPOST

Marin Alloy, 30.9mm - (How about upgrade to a dropper post, we will fit it before the bike is shipped or collected)

SADDLE

Marin Speed Concept

PEDALS

Choose your pedals by clicking on here
Sizing Information

Rift Zone 29 1 geometry diagram

SMLXL
Stack602.6607.15611.7616.25
Reach430455480505
Headtube Angle65.5°65.5°65.5°65.5°
Headtube Length100105110115
Seattube Angle76°76°76°76°
Seattube Length390400425430
Toptube Effective580.24606.36632.51658.6
BB Height344344344344
BB Drop34343434
Chainstay425425425425
Wheelbase1158.92118612131240.1
Standover Height691.84697.1717.83721.97
Fork Offset44444444
Seatpost Diameter30.930.930.930.9
Handlebar Width780780780780
Stem Length35353535
Crank Length170175175175

All lengths in millimeters
