The Marin DSX FS is a flat bar gravel bike with mountain bike sensibilities, featuring a 60mm suspension fork, 12-speed drivetrain, and hydraulic brakes.
The Marin DSX FS is a flat bar gravel bike with mountain bike sensibilities, featuring a 60mm suspension fork, 12-speed drivetrain, and hydraulic brakes.
Marin

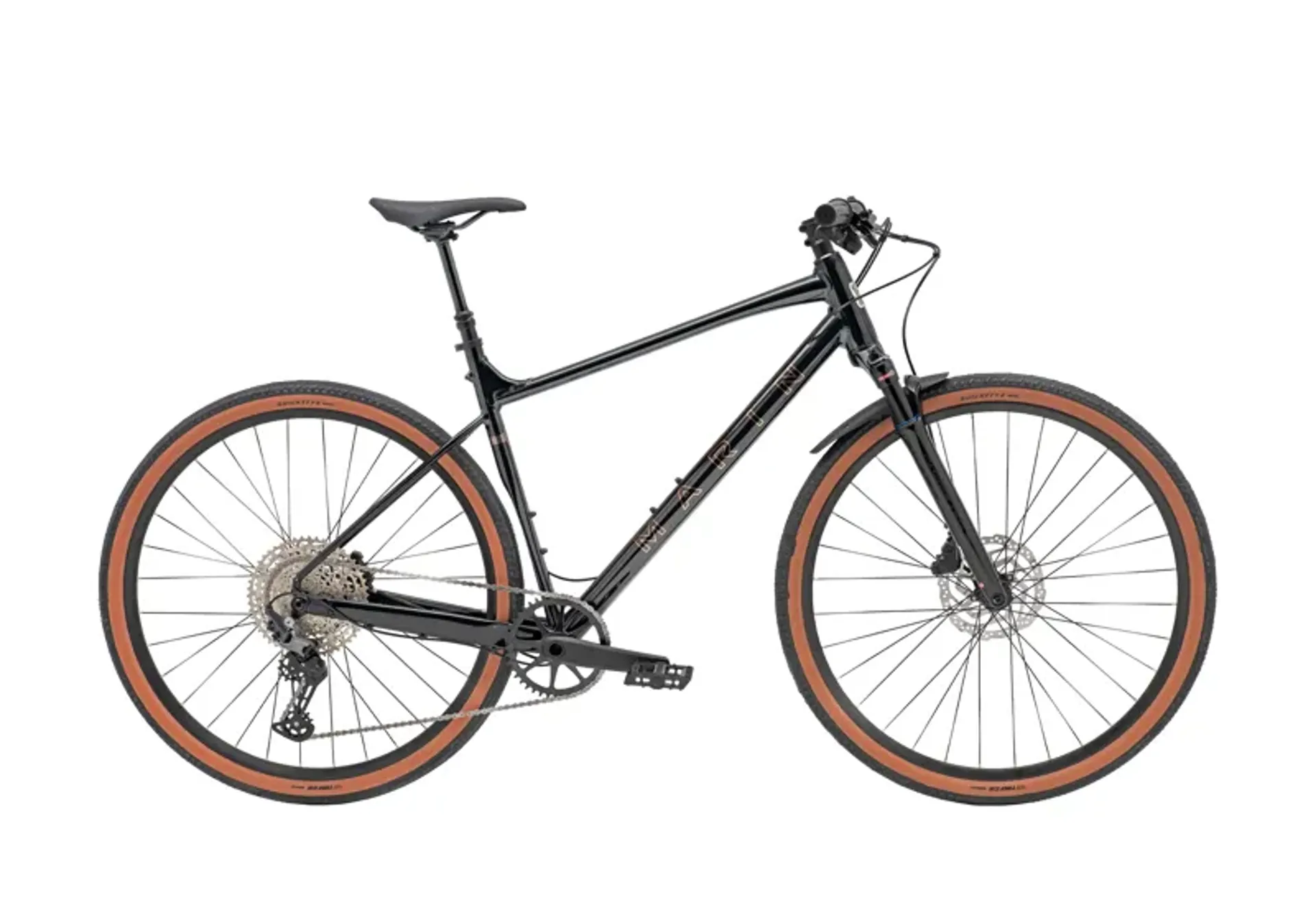

Marin DSX FS in Black/Orange

£1,499.00
Size Guide
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Marin DSX FS in Black/Orange

Season:2026

Brand:Marin

Code:7406940BLKORG

The Marin DSX FS is a flat bar gravel bike that blends mountain bike sensibilities with a flat bar package. It is capable of fast commutes, long adventures spanning pavement and light singletrack, and all-day gravel events.

The DSX is based on the Gestalt X drop bar platform with Series 3 aluminium frames and carbon forks with large tyre clearance, low standover, hydraulic disc brakes, and 1x drivetrains with the comfort and heads-up positioning of a flat handlebar.

The Marin DSX FS breaks the gravel bike mould by adding a 60mm SR/Suntour front suspension fork for hard-charging, off-road adventures. It features a 12-speed 1X Shimano SLX drivetrain, Vee Tire Co tyres, Shimano hydraulic brakes and reliable Marin components.

Features:

  • Shimano 12 Speed Gears
  • Dropper Post Compatible
  • Series 3 Aluminium Frame
  • Shimano Hydraulic Brakes
  • 60mm SR/Suntour front suspension fork
Technical Information
  • Frame
    Series 3 DSX, Suspension Adjusted Geometry, 6061 Aluminum, Tapered Head Tube, Relieved BB, Internal Cable Routing, Mudguard and Rack Mounts, Flat Mount Disc, 142x12mm Thru-Axle
  • Front Suspension
    SR Suntour GVX LOR, 60mm Travel, Air Spring, Rebound Adjust, Lockout, Integrated Fender Mounts
  • Rim
    Marin Aluminum Double Wall, 21mm Inner, Disc Specific, Tubeless Compatible
  • Hub Rear
    Forged Aluminum, 142x12mm, Disc Specific, 32H
  • Hub Front
    Forged Aluminum, 100x12mm, Disc Specific, 32H
  • Spokes
    14g Black Stainless Steel
  • Tires
    Vee Tire Co., QuikStyk, 700x45, Folding Bead, Tubeless Compatible
  • Derailleur Rear
    Shimano Deore, RD6100, 12-Speed
  • Shift Lever
    Shimano Deore, SLM6100, 12-Speed
  • Crankset
    Forged Aluminum, 42T Steel Narrow Wide Chainring
  • Bottom Bracket
    Sealed Outboard Bearing
  • Chain
    KMC X12
  • Cassette
    Shimano Deore, CSM6100, 12-Speed, 10-51T
  • Brakes
    Shimano BR-MT201/R300, Hydraulic, Flat Mount, 160mm Rotor
  • Brake Levers
    Shimano Hydraulic
  • Handlebar
    Marin MiniRiser
  • Stem
    Marin 3D Forged Alloy
  • Grips
    Marin MTB
  • Headset
    FSA No.42 ACB, Sealed Cartridge Bearings, 1 1/8" x 1 1/2"
  • Seatpost
    TranzX YSP38J, Size S 70mm, Size M-XL 110mm Travel, 27.2mm
  • Saddle
    Marin DSX
  • Pedals
    Nylon Platform
