Kado Works is the fastest e-enduro race bike ever. Designed, developed, and proven by the UK’s first ever E-Enduro National Champion.
Kado Works is the fastest e-enduro race bike ever. Designed, developed, and proven by the UK’s first ever E-Enduro National Champion.
Whyte Bikes

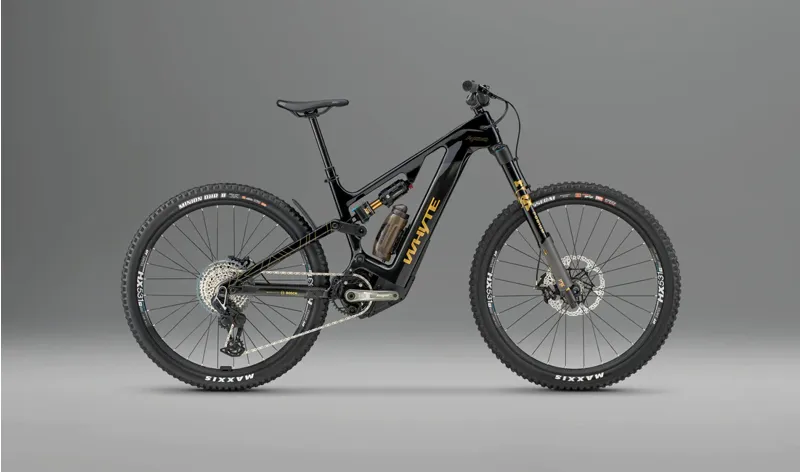

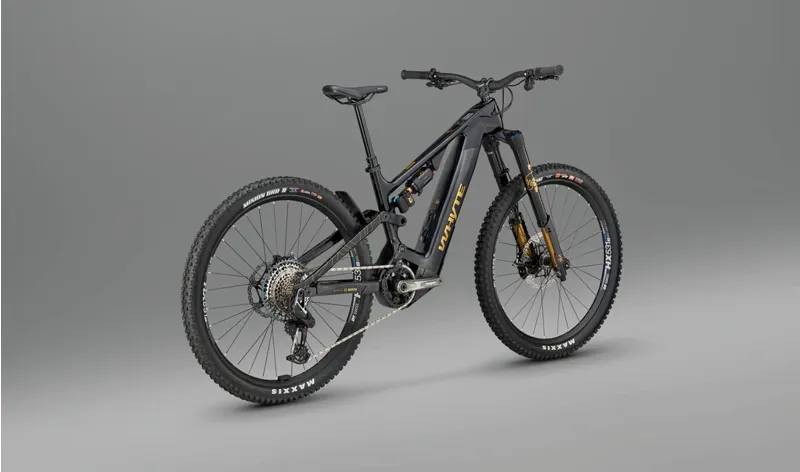

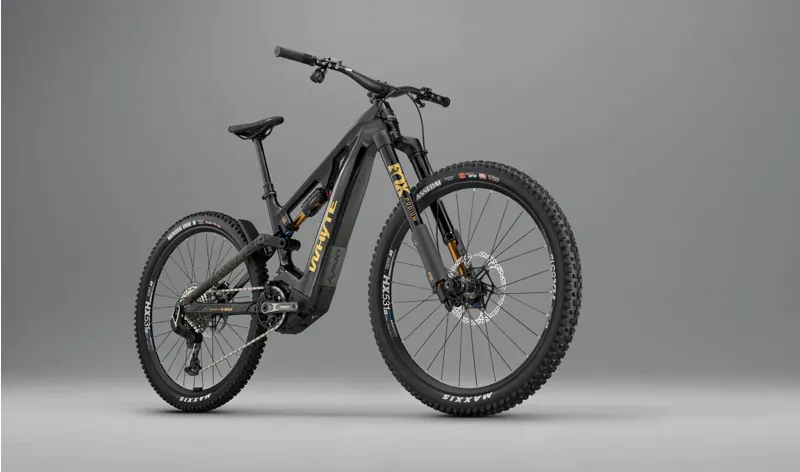

Whyte Bikes Kado Works E.Mountain Bike - Gunmetal Black/ Gold

£9,999.00
Size Guide
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Whyte Bikes Kado Works E.Mountain Bike - Gunmetal Black/ Gold

Season:2025

Brand:Whyte Bikes

Code:KadoWorksGUNBLK

Our fastest e-enduro race bike ever
Designed, developed and proven by the UK’s first ever E-Enduro National Champion and 2024 E-Enduro Series Champion, Sam Shucksmith – both titles won aboard the prototype – the championship-winning Kado Works blends a full carbon-fibre frameset with Bosch’s latest CX motor and battery technologies. All combined with meticulously custom-tuned suspension performance and the highest performing parts list possible so you can unleash the speed – everywhere.

Highlights
  • 170mm front + 151mm rear of suspension travel.
  • Fox Podium Factory 29in fork + Fox Float X2 Factory EVOL custom-tuned shock.
  • Uni-directional full carbon fibre frame with geometry adjustment.

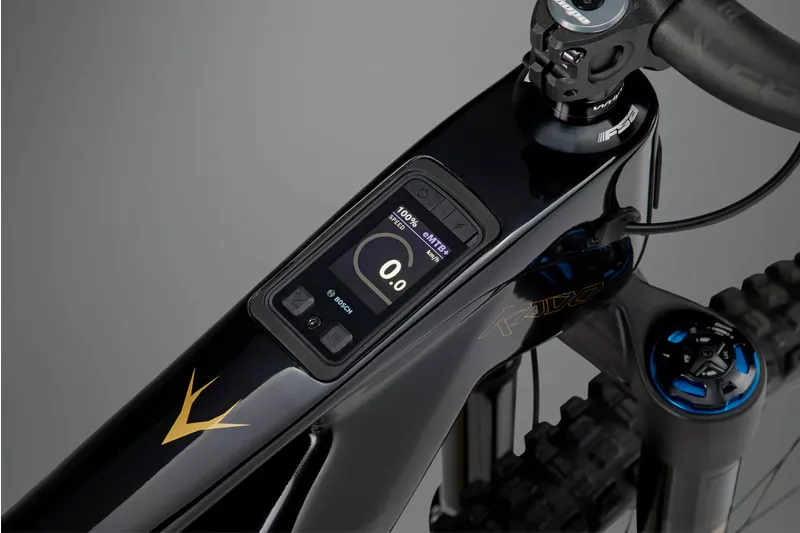

  • Bosch's fifth generation Performance Line CX full-torque full-power motor.
  • Ready for the latest software upgrade to unlock E-MTB+ mode + 100Nm torque + 750W peak power.
  • 800Wh removeable internal battery.
  • 29in wheels front and rear + MX ready.

    High performance, unleashed
    We’ve poured everything into Kado Works to give you the highest performance possible: an optimised low centre of gravity delivers exceptional cornering agility, high-speed stability, and balanced handling on any terrain – no matter how fast or rowdy things get; custom-tuned suspension for the very best grip, feedback and control; confidence-inspiring geometry, and much more. All combined so you can beat the clock – and your personal best.
Technical Information
  • Frame
    Uni-directional carbon mainframe and rear triangle, tapered head tube, internal cable routing, Shape.it Link V2 and 12mm x 148mm Boost dropouts
  • Rear Shock
    Fox Float X2 Factory Series, EVOL, lock out, 230mm x 57.5mm, custom tuned for Whyte

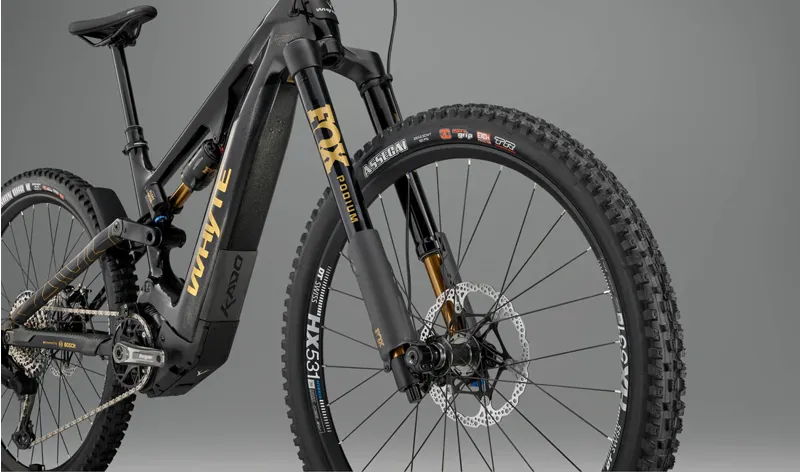

  • Fork
    2026 Fox Podium Factory 29in, 170mm travel, 44mm offset, Grip X2 damper, tapered steerer, 110m x 20mm axle
  • Headset
    FSA No. 55R, 1-1/8in upper and 1.5in lower
  • Stem
    Whyte Trail full CNC, 32mm extension, 35mm bar bore
  • Handlebar
    Race Face ERA Carbon, 20mm rise (sizes S/M) / 40mm rise (sizes L/XL), 35mm bar bore, 800mm wide
  • Bar Tape / Grip
    Whyte Enduro lock-on

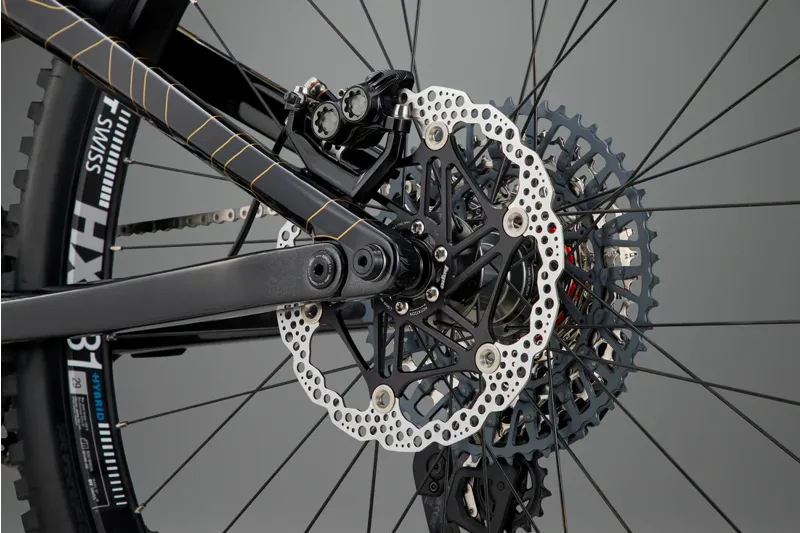

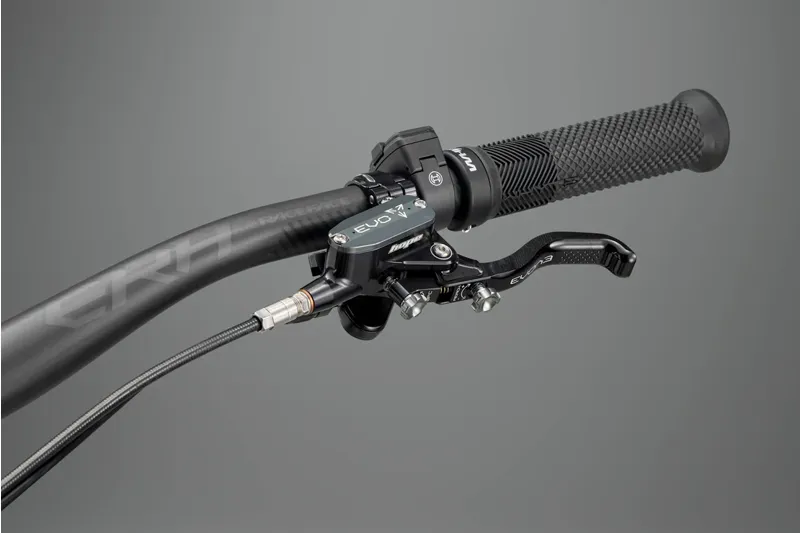

  • Brake Levers
    Hope EVO GR4
  • Tyres
    Maxxis Assigai WT, TR, 29in x 2.5in 120TPI, EXO+ sidewall protection, 3C MaxxGrip, dual compound, folding bead, front; Maxxis Minion DHR 2 WT, TR, 29in x 2.4in 120TPI, Double Down casing, 3C MaxxTerra, dual compound, rear

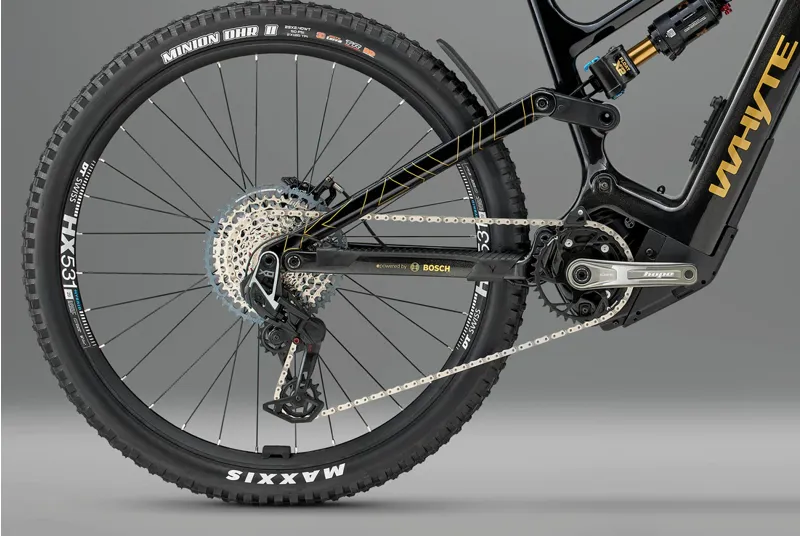

  • Rear Derailleur
    SRAM XO T-Type AXS, 12 speed, powered off the Bosch CX motor system’s internal battery
  • Shift Levers
    SRAM AXS Pod, right, MMX, 12 speed
  • Chain
    SRAM GX T-Type, 12 speed
  • Cassette
    SRAM XS 1275, T-Type, 10-52T, 12 speed
  • Chainset
    Hope E-Bike cranks, 155mm length, Bosch mounting, 36T chainring T-Type
  • Pedals
    Fibre reinforced composite platform
  • Saddle
    Fi’zi:k Terra Aidon, 145mm wide, Wingflex, S-Alloy Mobius rail

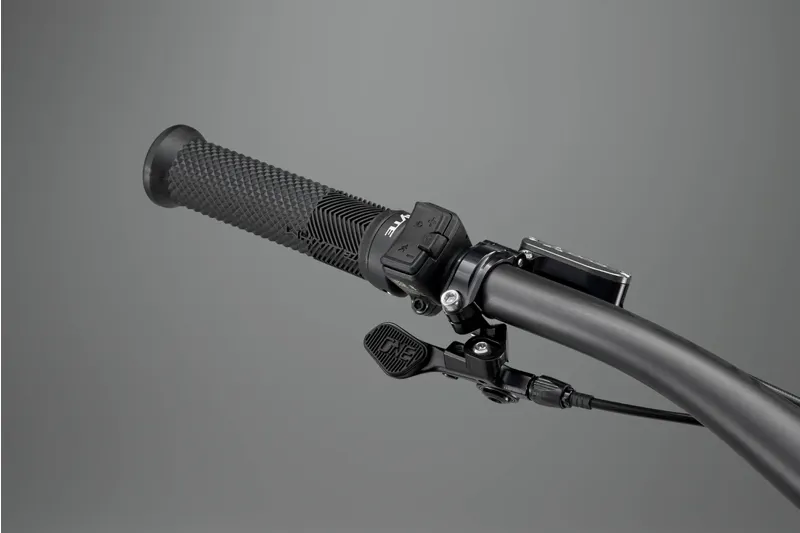

  • Seatpost
    One Up Components V3 Dropper Post, MMX Paddle remote lever, size-specific drop (size S: 150mm travel; size M: 170mm travel; size L and XL: 210mm travel)
Sizing Information
SmallMediumLargeX.Large
A - REACH (mm)430455480505
B - STACK (mm)627.0638.4650.2663.8
C - HEAD ANGLE (° degrees)64.5 (63.9)64.5 (63.9)64.5 (63.9)64.5 (63.9)
D - SEAT ANGLE (° degrees)77.477.377.277
E - BB HEIGHT (mm)354.2354.2346.3346.3
F - WHEELBASE (mm)1218.31248.41278.91310.2
G - REAR CENTRE (mm)450.2450.2450.2450.2
H - STANDOVER HEIGHT (mm)TBCTBCTBCTBC
I - SEAT TUBE LENGTH (mm)395420445470
J - HEAD TUBE LENGTH (mm)104116129144
