The MIG-R is the perfect Ebike for those who love all-mountain riding and care about quality components
The MIG-R is the perfect Ebike for those who love all-mountain riding and care about quality components
Thok

Thok MIG 2.0 R - Gloss Grey/ Black

£5,690.00
Size Guide
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Thok MIG 2.0 R - Gloss Grey/ Black

Season:2023

Brand:Thok

Code:MIGR23

The new Mig-R is the perfect ebike for those who love all-mountain riding and care about quality components. With a Shimano EP8 drive unit, a 630wh battery, Fox suspension and mullet wheels, the Mig-R can handle long rides on every type of terrain.

  • TCG "THOK CONTROL GEOMETRY"

    It’s the innovative geometry characterized by an elongated top-tube, a slack (66°) head-tube angle, and a straight seat-tube with 74,7°. This geometry ensures riding comfort, perfect traction, and optimal control on technical singletracks.

The Low Gravity Center allows the rider to perform at his best. Top quality components for these stunning e-bikes

LOW GRAVITY CENTER

The MIG range’s signature LGC technology, which puts the 630 Wh battery under the downtube, creates a very low gravity centre, optimising weight distribution and ensuring stability and excellent handling when tackling and overcoming every obstacle, both uphill and downhill.

MOTOR BRACKET CONNECTION

Thanks to the optimised connection between sloping tube, motor support and back end, the MIG-R is very rigid at the centre of the frame, which gives it great handling and makes it highly responsive in every condition.



THOK PROGRESSIVE SYSTEM

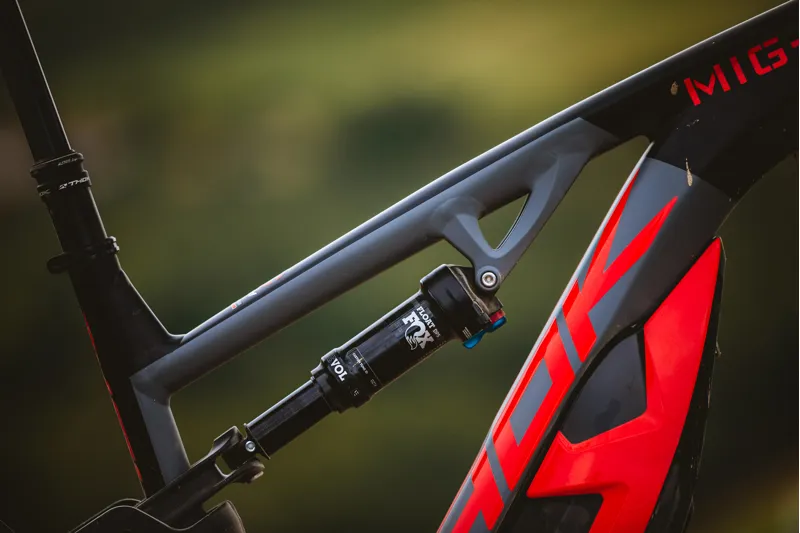

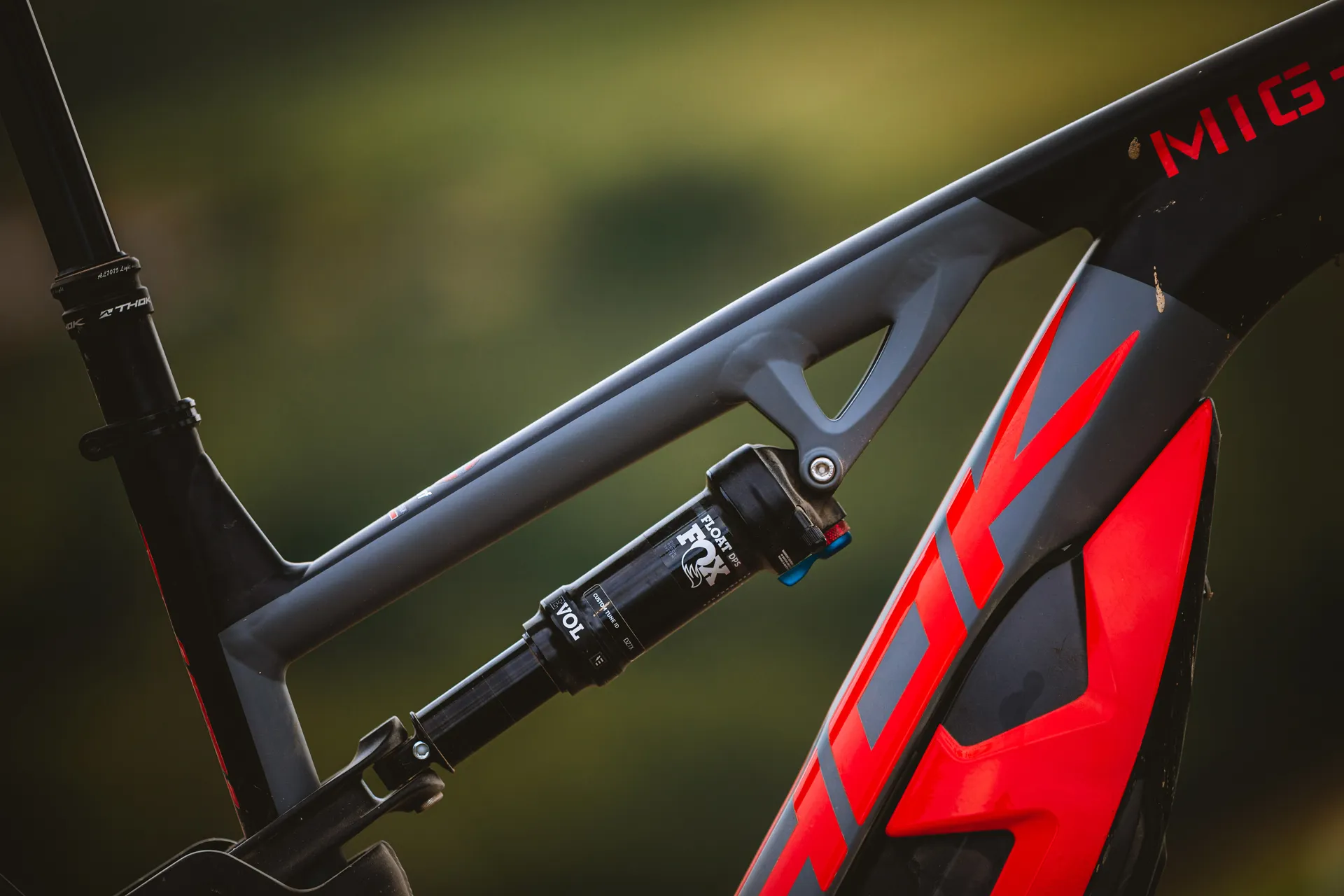

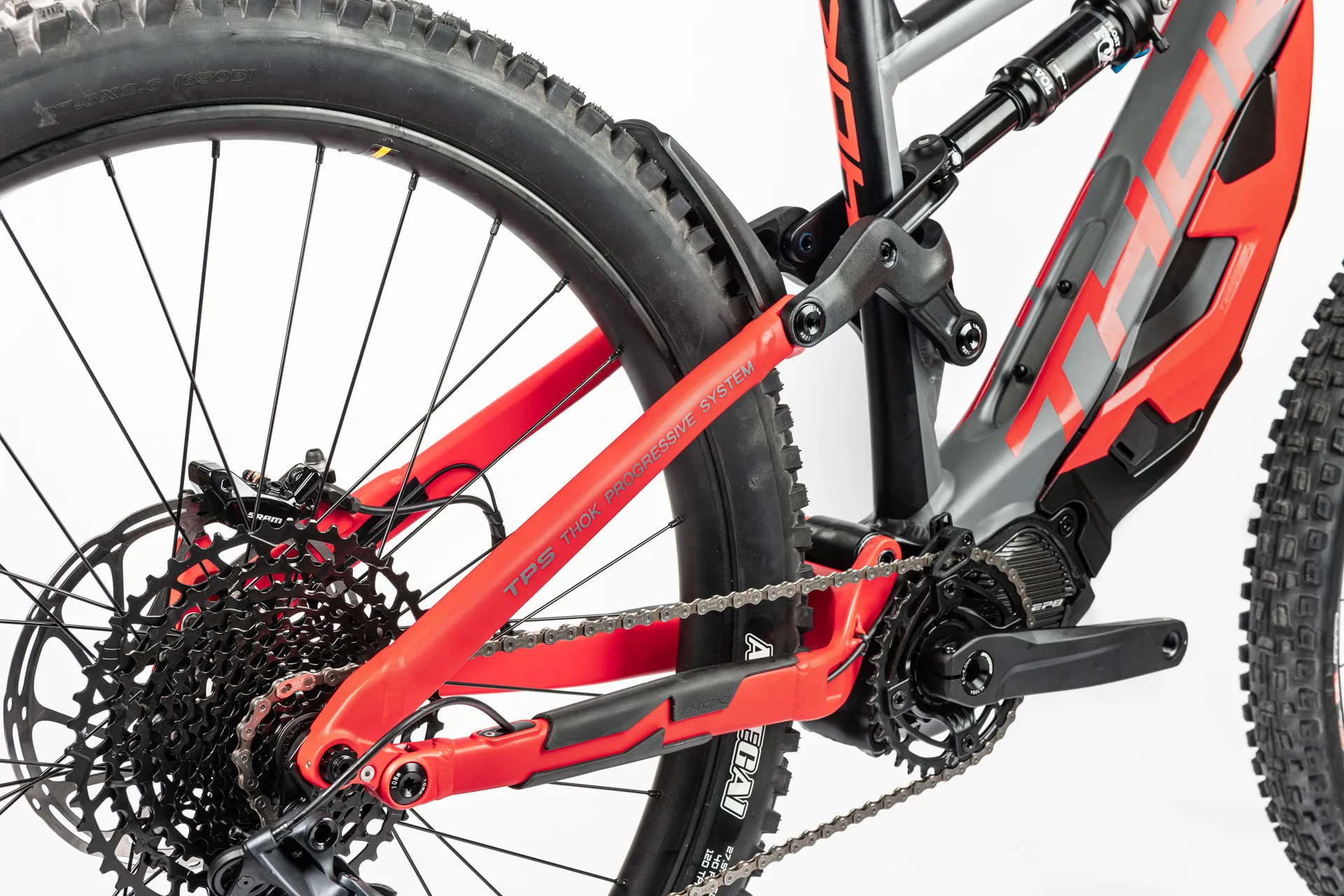

The rear suspension system TPS (Quadrilatero Horst Link), with metric shock absorber and dedicated rocker, has been specifically designed for E-MTB. The progressive suspension allows to overcome even the most demanding obstacles with ease and safety.

THOK DISK MOUNT

For greater efficiency and powerful braking, the brake caliper has been mounted directly on the frame (without any adapter).

MULLET WHEELS

Front and rear wheels have different diameters, respectively 29" and 27,5”. In combination with the new TCG Plus technology, it allows to easily overcome challenging obstacles and provide optimal traction and rideability in every situation.

*In order to ensure same control and rideability, S size is delivered with wheels of same diameter (27,5”)

SHIMANO EP8 MOTOR

EP8 is the revolutionary second generation engine produced by Shimano. With its 2.6 kg weight it is, to date, one of the lightest drive units available on the market and, thanks to the increase of the maximum torque to 85 Nm and the reduction of friction by 36%, it ensures great riding power. pedaling with fluid, direct and natural delivery, guaranteeing complete control of the bike. The MIG-R will come with a mapping for the EP8 completely customised by THOK with two assistance profiles: “long ride” for long riding experiences and “fast ride” for higher performing rides.


DETAILS

Cover in polypropylene, with quick release bolt and “FAST ON” silicone power switch. Standard back fender.

"ALL-MOUNTAIN PERFORMANCE” SET-UP

Its top-quality components make the MIG-R a high performing all-mountain bike, these include:
  • 630 Wh Shimano Battery
  • Fork: FOX Rhythm 36, 150 mm
  • Shock: FOXFloat DPS with 3 levels (FIRM/MEDIUM/OPEN), 140 mm
  • SRAM Guide RE disc brakes with 4 pistons / 200 mm discs made specifically for E-MTBs.
  • 12-speed GX Eagle gearshift with 10-52 cassette
  • Mavic rims
Technical Information
FrameAlloy frame 6061 T4 T6 with 140mm rear travel, forged and CNC parts, hydroformed tubes, geometry 29"/27.5", semi-integrated battery
Power supplySHIMANO STEPS EP8 - 85 Nm (250W) - 630 Wh waterproof battery
Display and shifterShimano SC-E7000 with 1,39" display - SW-E7000 ergonomic controller (Eco, Trail, Boost e Power-Walk)
ForkFOX - RHYTHM, 36 Float 150 mm, boost 29"
Rear shockFOX - DPS , THOK personalized setup 210x55
BrakesSRAM - GUIDE RE, 4 piston, hydraulic brakes - rotor 200 mm
Rear derailleurSRAM - GX Eagle 12 S
ShiftingSRAM - NX Eagle trigger 12 S
CassetteSRAM - Eagle 12 S ; 11-50
ChainSRAM - 12 S
CrankFSA 165 mm with crown 34 T
WheelsetFront: THOK DRIFTER 29"x 30 mm (Size S 27.5"x 35 mm) / Rear: THOK DRIFTER 27.5"x 35 mm
StemTHOK CNC, oversize 35 mm
HandlebarTHOK Oversize bar 35 mm, size 20 mm
GripTHOK - Lock-On grip
Front TyreMAXXIS - Assegai 3C / EXO+ / TR 29" x 2.6 (Size S 27,5")
Rear WheelMAXXIS - Assegai 3C / EXO+ / TR 27.5 x 2.6"
SeatpostTHOK - Dropper post (125 mm size S - 150 mm other size)
SaddleTHOK - Fit in Chromo
PedalsBasic Plastic Platforms - Click here for our upgrade pedal choices
Weight22 kg (Medium size without pedals)
Sizing Information
SMLXL
Top Tube Length, Orizzontal (mm)560600630665
Reach (mm)413432456483
Stack (mm)596606624642
Seat Tube Length - center to Top (mm)400435470520
ChainStay Length (mm)450450450450
Head Tube Angle66°66°66°66°
Seat Tube Angle74,7°74,7°74,7°74,7°
BB Drop (mm)13131313
Wheel Base (mm)1165118912291255
Head Tube Length (mm)100110130150
Fork Offset (mm)44444444
Bottom Bracket Height (mm)350350350350
Handlebar Width (mm)780780780780
Stem Length (mm)45454545
Crank Length (mm)165165165165
Dropper (mm)125150150150
Fork height (mm)552552552552
Standover (mm)810810810810
Trail114,6114,6114,6114,6
