The 2025 Haibike Alltrail 3 offers the chance to experience proper offroad E.bike performance without the need to empty the bank balance.
The 2025 Haibike Alltrail 3 offers the chance to experience proper offroad E.bike performance without the need to empty the bank balance.
Haibike

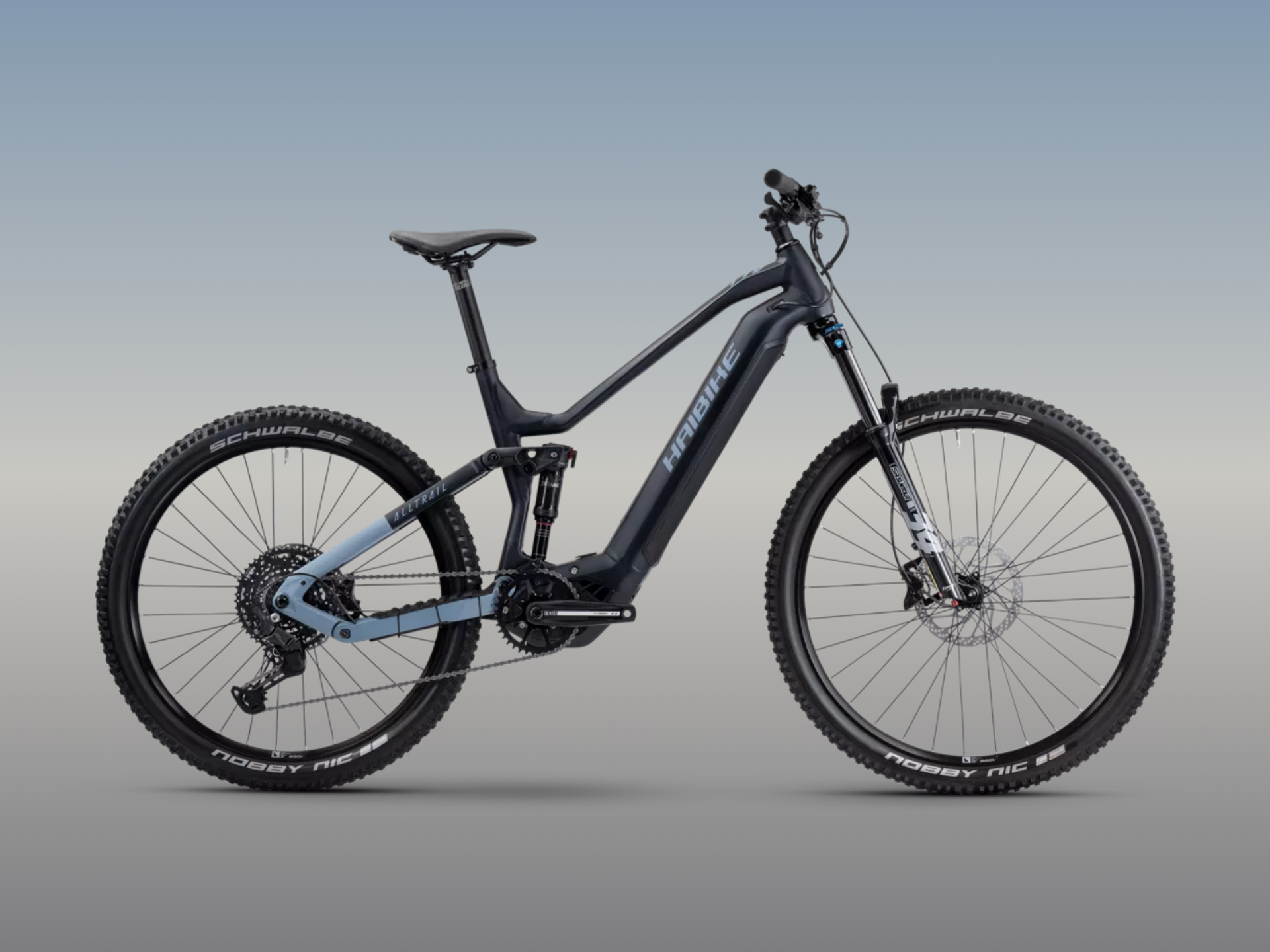

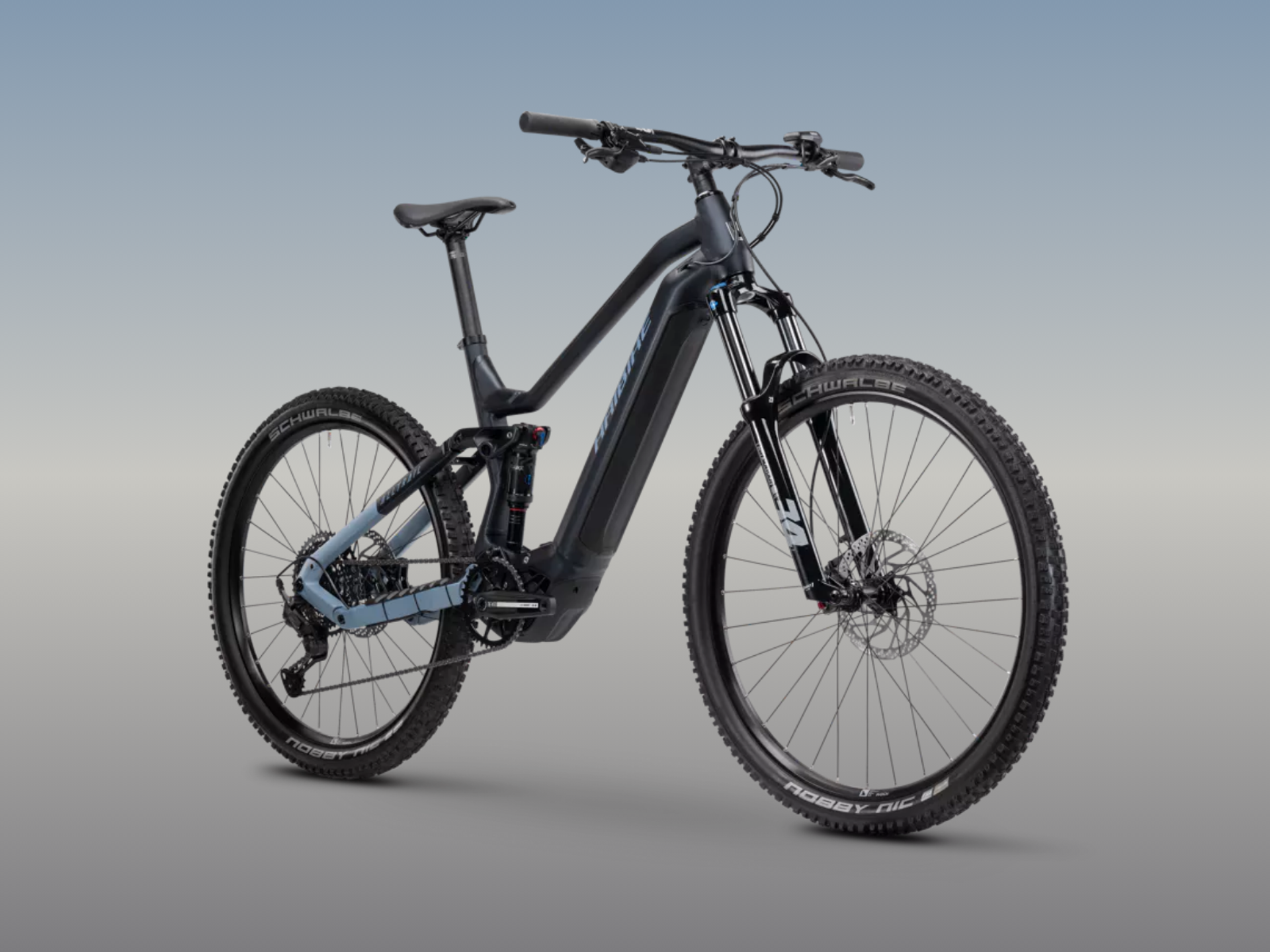

Haibike Alltrail 3 E.Mountain Bike - Matte Ocean Black/ Blue

£3,199.00
Size Guide
Haibike Alltrail 3 E.Mountain Bike - Gloss Caramel/ Orange/ Black
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Haibike Alltrail 3 E.Mountain Bike - Matte Ocean Black/ Blue

Season:2025

Brand:Haibike

Code:HAIALLTRA32

Hit the trails with ease. Our ALLTRAIL 3 is the ideal eMTB for your first steps into trail riding. This touring full-suspension features a mullet setup, offering perfect traction on the climbs while remaining agile on the descents. The concept is simple yet brilliant: the 29″ front wheel provides stability, while the 27.5″ rear wheel lets you tackle tight corners with ease. With the Shimano 10-speed drivetrain, you’ll always find the right gear, even on varied terrain. And the powerful Yamaha PW-S2 motor gives you that extra boost when you need it. Maximum comfort is provided by the SR Suntour fork, offering 140mm of travel to handle even the toughest downhills. We’re confident that this eMTB will deliver maximum touring fun in any terrain, with a level of ease you’ve never experienced – even when things get bumpy.

  • Aluminium Frame

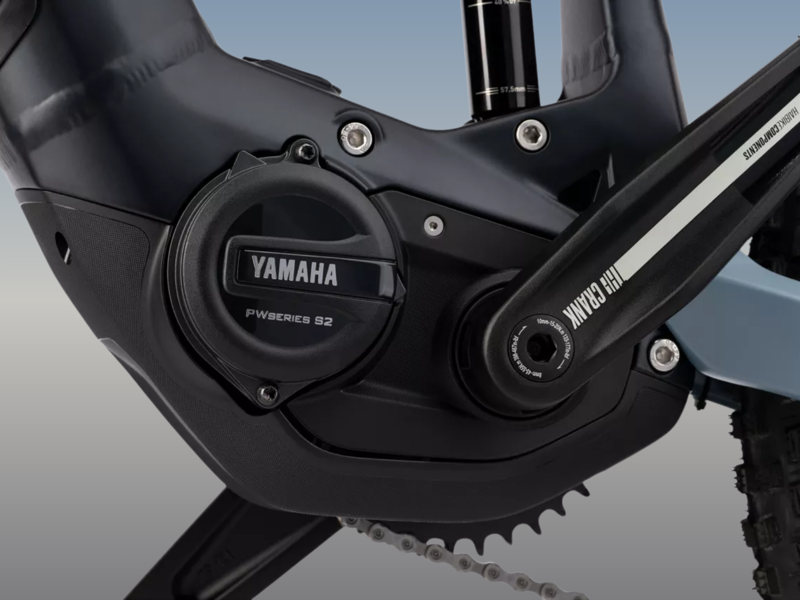

  • Yamaha PW-S2 Motor 75Nm Torque
  • 720Wh Intube Battery
  • Yamaha A2 Display

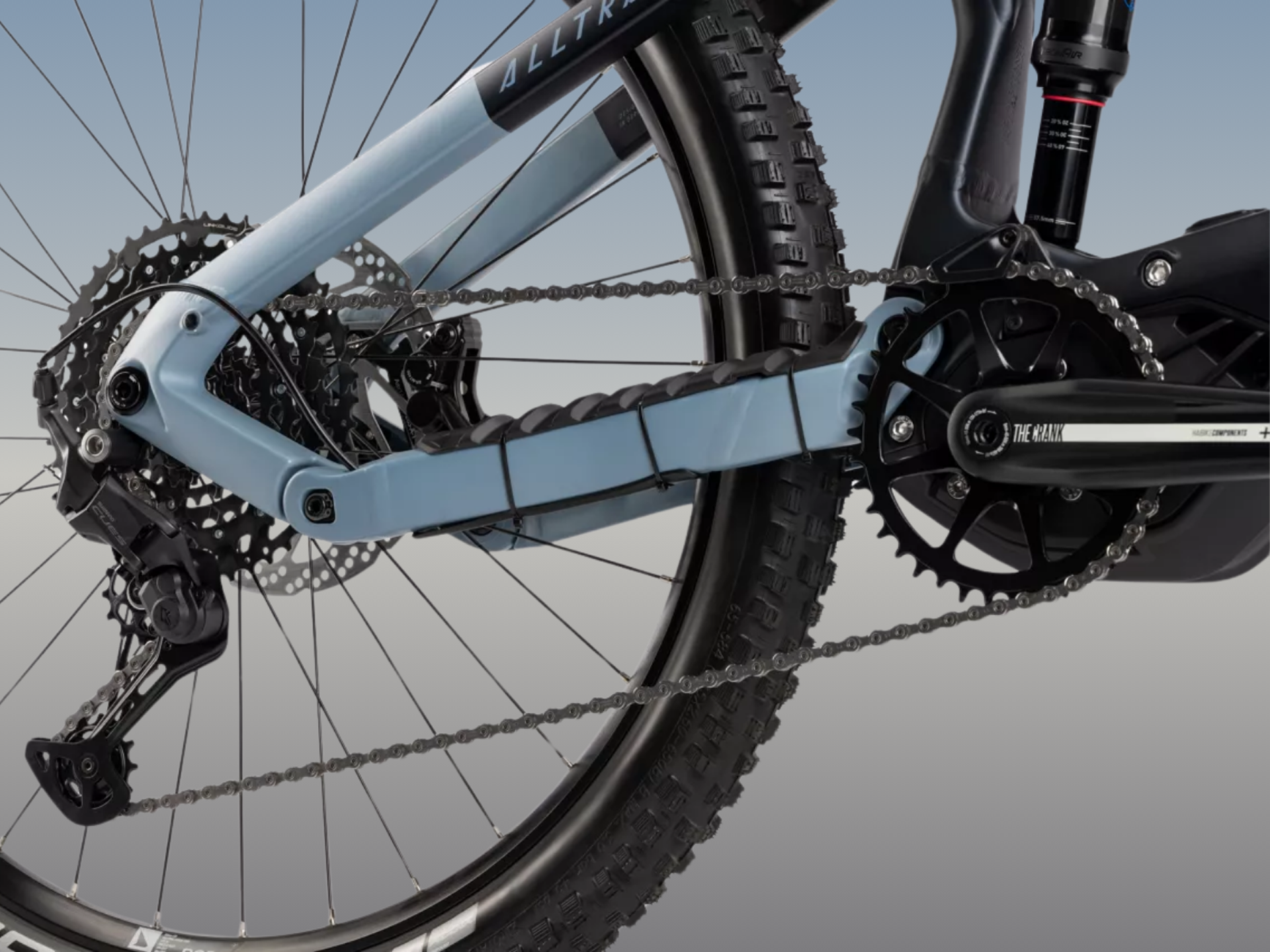

  • Shimano CUES 10 Speed Gearing

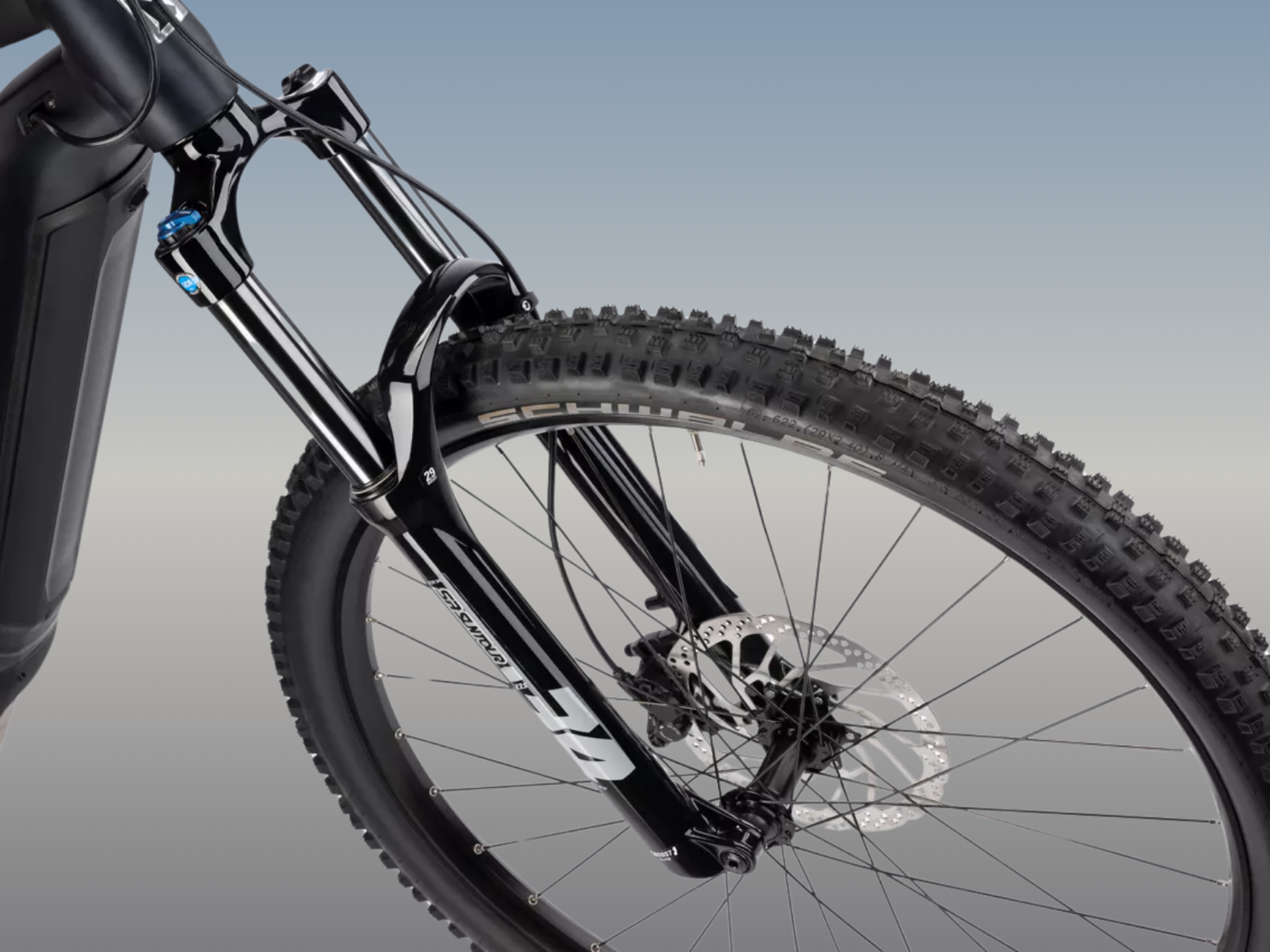

  • Suntour SF23-XCR34 140mm Travel Fork

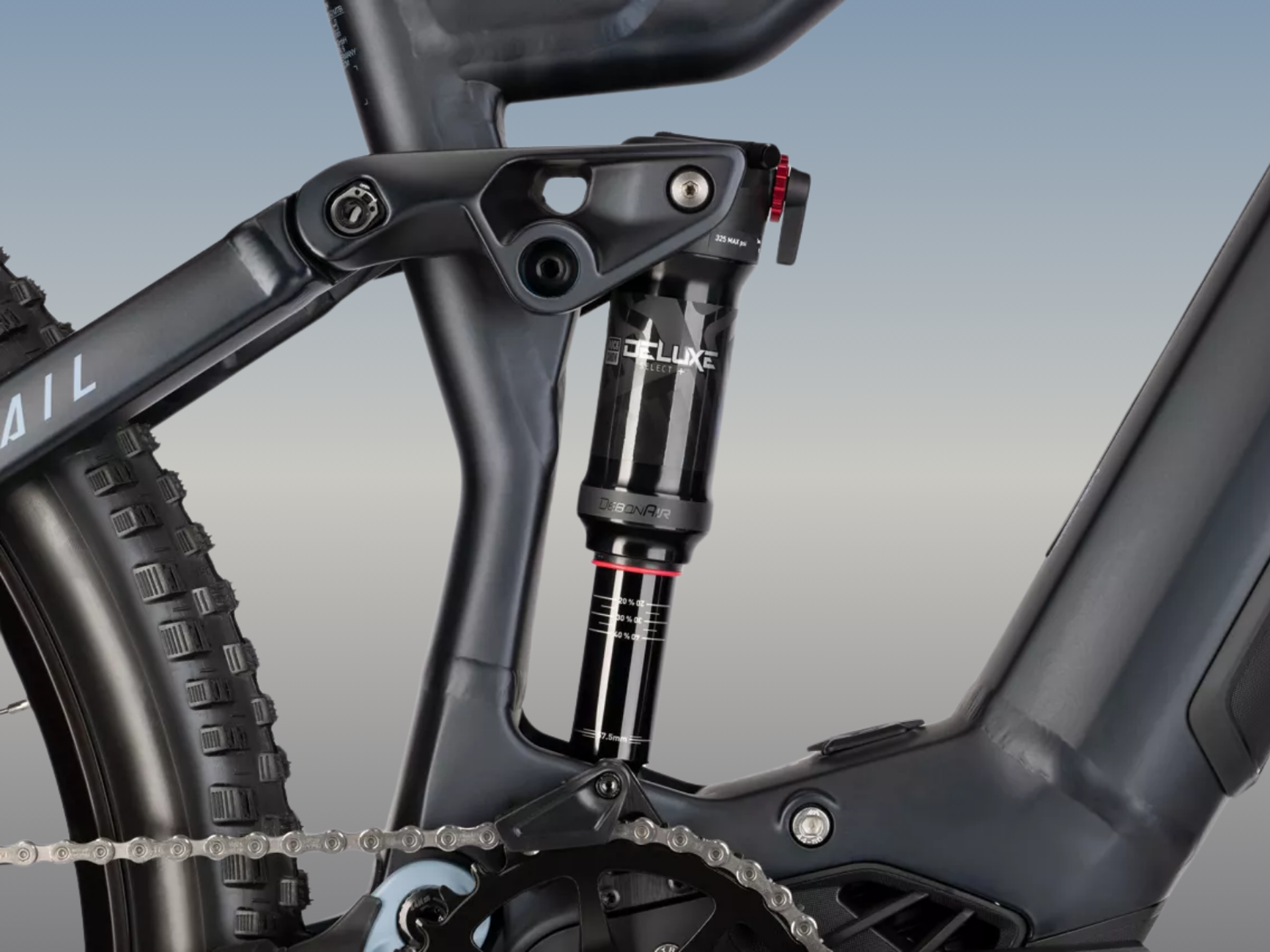

  • Rockshox Deluxe Select+ 205x57,5mm, Trunnion, DebonAir Rear Shock 140mm Travel
  • Shimano MT420 Brakes, 203mm Rotors
  • Mullet Wheels, Rodi TRYP Rims
  • Schwalbe Nobby Nic ADDIX Tyres
  • Samox ISIS Alloy Crankarms + Direct Mount Chainring 165mm

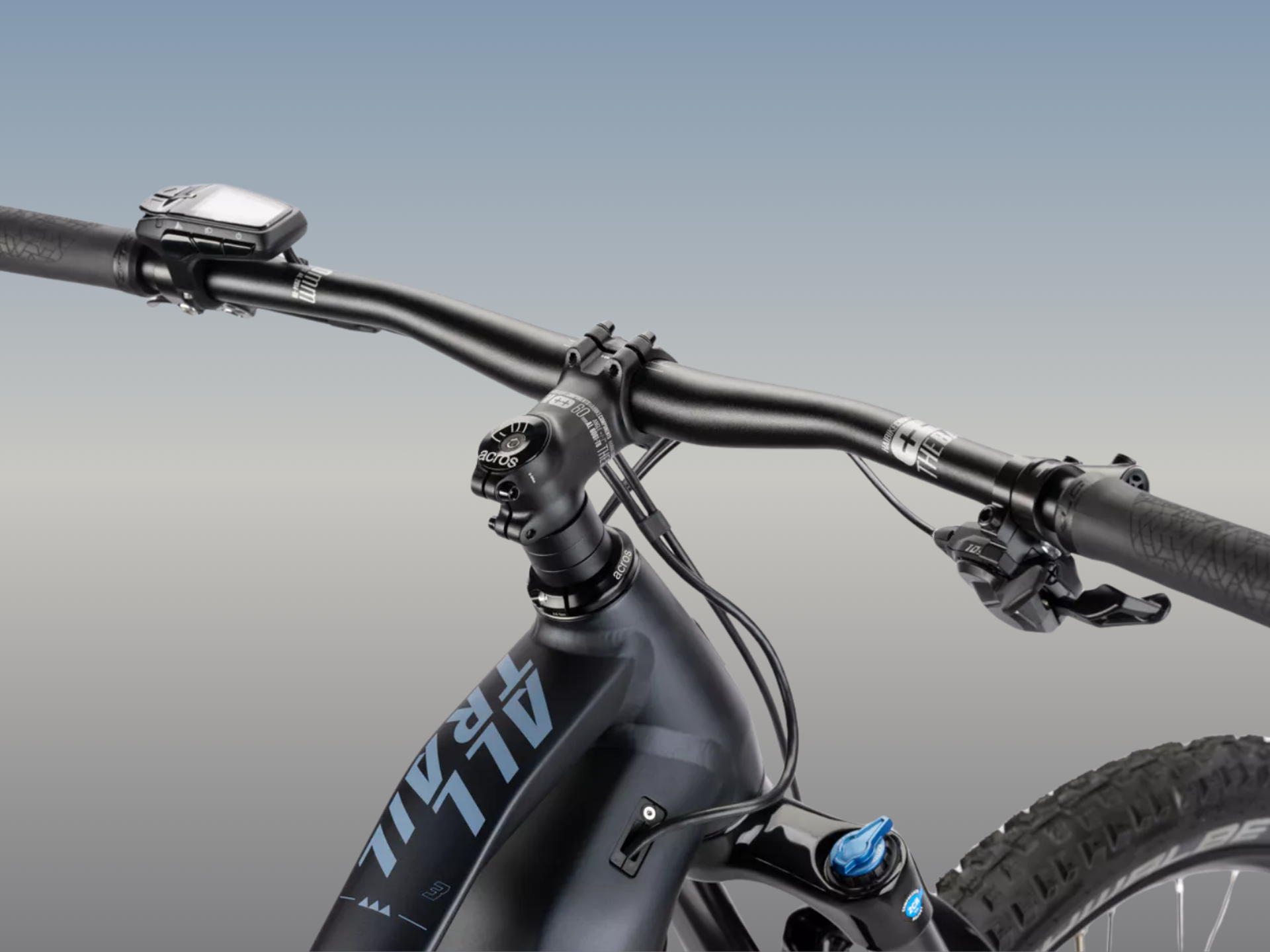

  • Haibike Flat Bar TheBar++ Dia. 31.8 mm
  • Selle Royal Vivo Saddle and Rigid Seatpost
Technical Information
Frame

MTB Fully Aluminium Uni

MotorYamaha PW-S2, 75NM
UI/RemoteYamaha A2 Display
ConnectivityN/A
BatteryYamaha InTube 720Wh
ChargerYamaha Standard Charger 4A
Rear Shock

Rockshox Deluxe Select+ 205x57,5mm, Trunnion, DebonAir, 140mm Travel

ForkSuntour SF23-XCR34, Air Boost DS 2CR, 2pos, 140mm Travel
Stem

Haibike Alloy

GripsVelo VLG-1751D2, MTB Grips
Handlebars

Haibike TheBar++ Dia. 31.8 mm

SaddleSelle Royal Vivo 1216HRN
BrakesShimano Hydraulic Disc brake Deore BR-MT420, 4 pistons, resin pad, 203 mm Front and Rear Rotors
Rear DerailleurShimano CUES RD-U6000 10/11s, Shadow+
Shift LeversShimano Triggershift CUES SL-U6000-10R, Rapidfire+
CassetteShimano CUES CS-LG300-10, HG, 11-48 Teeth
ChainShimano Chain Cues CN-LG500 10s
CranksetSamox ISIS Alloy Crankarms + Direct mount Chainring 165
ChainringsDirect Mount 34 Teeth Steel
Wheels

Rodi TRYP 30 Disc, 32 Hole with eyelets, F: 29"/ R: 27.5"

TyresSchwalbe Nobby Nic Performance, Addix
SeatPost

JD Non Suspension SP20T.1A Dia. 34.9 mm, Length: 400 mm

Sizing Information
Frame size
Small
Medium
Large
X.Large
Wheel Size2927.5"2927.5"2927.5"2927.5"
Body height (cm)158-169167-177175-185183-195
Seattube length (mm)410440470500
Toptube length (mm)576591611631
Headtube length (mm)120130140150
Seattube angle (deg)76.776.676.676.6
Headtube angle (deg)66666666
Stack (mm)637652661670
Reach (mm)425436454471
BB Drop (mm)17171717
Wheelbase (mm)1216122112431264
Chainstay length (mm)460460460460
