From The XC circuit to your local fast trails, the Chisel frame is the perfect chassis for your deream light weight hardtail build.
From The XC circuit to your local fast trails, the Chisel frame is the perfect chassis for your deream light weight hardtail build.
Specialized

Specialized Chisel Mountain Bike Frameset - Satin Organic Brushed

£1,050.00
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

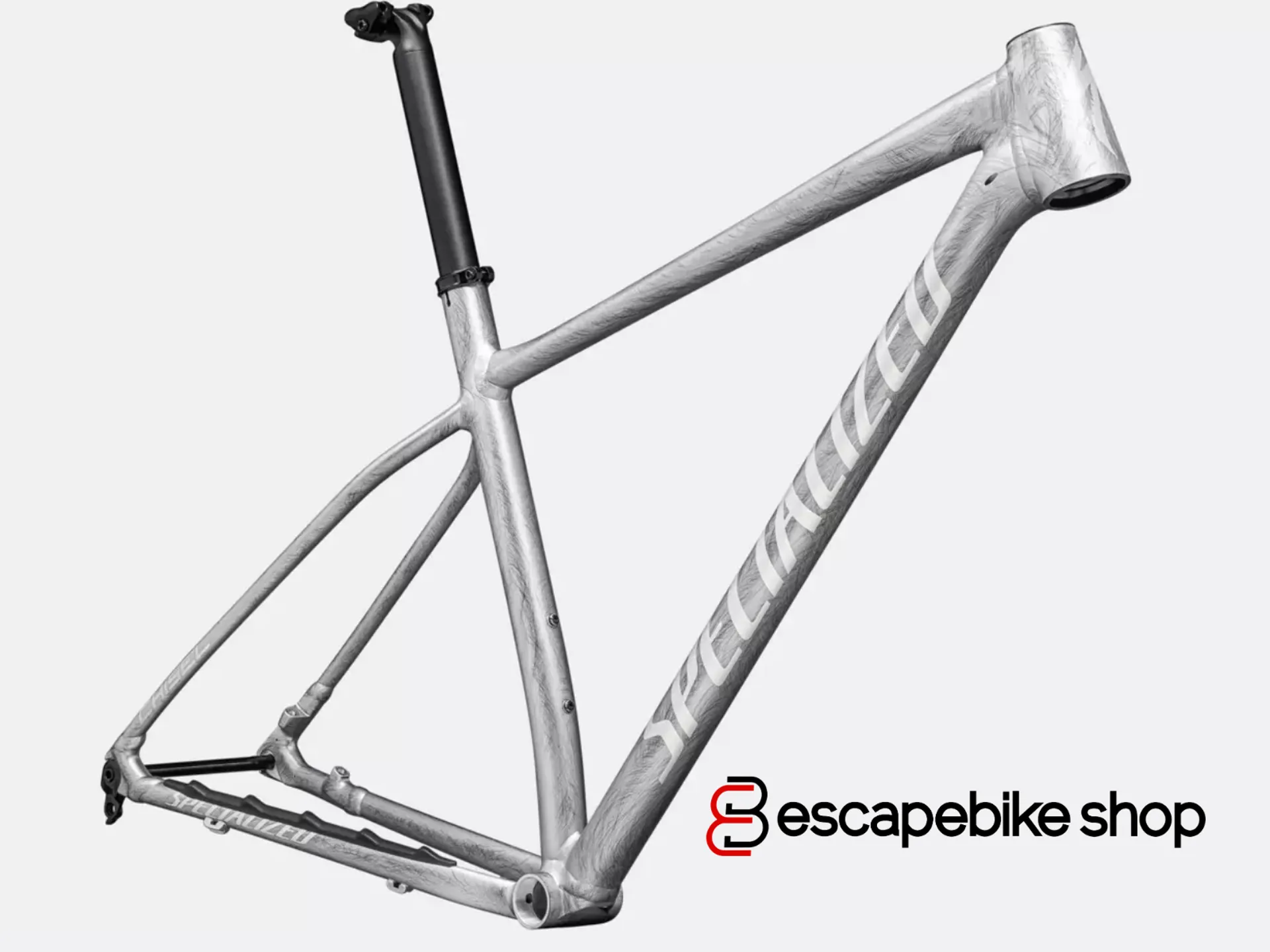

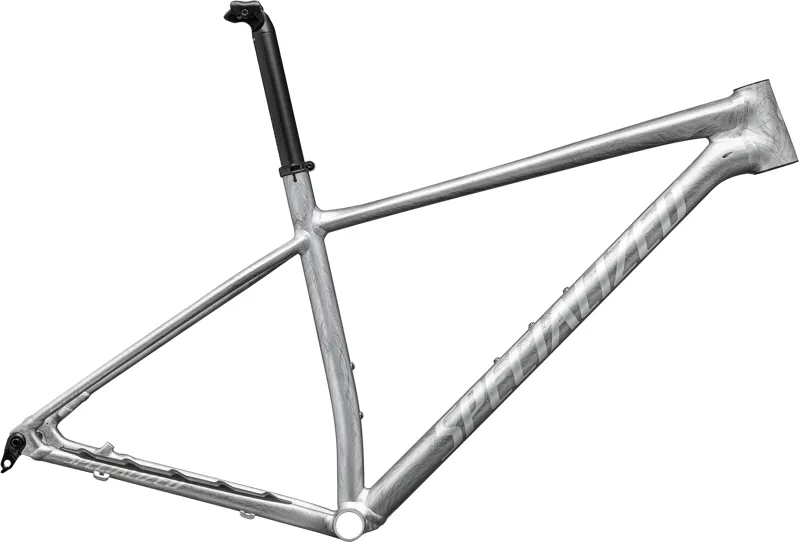

Specialized Chisel Mountain Bike Frameset - Satin Organic Brushed

Season:2023

Brand:Specialized

Code:336300348924

The all-new Chisel has been purpose-built to tackle modern cross country trails and race courses with the utmost speed. In fact, it shares many of the same modern features as its Epic Hardtail sibling, but in a more budget-friendly package—making it the most efficient and capable alloy hardtail out there.

And with this frame option, you can build your new Chisel exactly how you like. Top-end build for a durable XC shredder? Oh, yeah. Or maybe a budget-friendly one that you can upgrade later? Easy. The Chisel frame is the perfect canvas to start painting your new path to XC racing.

  • We asked ourselves, “How do we bring pro-level performance down to a price more riders can afford?” D'Aluisio Smartweld Technology, that's how. Smartweld allows us to create the most consistent, high-strength welds possible while taking full advantage of compliant, hydroformed alloy tubes. The result? One of the lightest alloy hardtail frames out there at 1,350g, which also features size-tuned stiffness.
  • The new Chisel also houses all of the modern features that you expect from an XC bike, like Progressive XC Geometry with a 68-degree headtube angle and longer reach, internal cable routing, a threaded bottom bracket, boost spacing, 30.9mm dropper post compatibility, and 1x-only drivetrains.
Technical Information

FRAMESET

Seat Binder

Specialized Alloy, 34.9mm

Frame

Specialized D'Aluisio Smartweld M5 Alloy, Hydroformed tubes, Progressive XC Geometry, internal cable routing, BSA BB, 12x148mm spacing, 30.9mm Dropper post compatible

COCKPIT

SeatPost

Specialized Alloy, Single Bolt, 30.9mm

WEIGHT

Weight

1.95kg (4 lb, 4.8 oz)

Weight Size

LG

*Weights based on production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice.

Sizing Information
XSSMLXL
Seatpost Length350mm350mm400mm400mm400mm
Stack591mm605mm605mm619mm633mm
Reach385mm405mm430mm455mm480mm
Head Tube Length95mm95mm95mm110mm125mm
Head Tube Angle68°68°68°68°68°
BB Height304mm309mm309mm309mm309mm
BB Drop68mm63mm63mm63mm63mm
Trail103mm103mm103mm103mm103mm
Fork Length, Full486mm506mm506mm506mm506mm
Fork Rake/Offset44mm44mm44mm44mm44mm
Front Center647mm674mm699mm730mm760mm
Chainstay Length432mm432mm432mm432mm432mm
Wheelbase1070mm1099mm1124mm1154mm1185mm
Top Tube Length, Horizontal555mm578mm603mm632mm661mm
Bike Standover Height732mm762mm792mm816mm847mm
Seat Tube Length367mm400mm430mm470mm520mm
Seat Tube Angle74°74°74°74°74°
Geometry
