The original all rounder that can do way more than the spec or price suggests... the 2023 Ragley Blue Pig could be your only bike!
The original all rounder that can do way more than the spec or price suggests... the 2023 Ragley Blue Pig could be your only bike!
Ragley

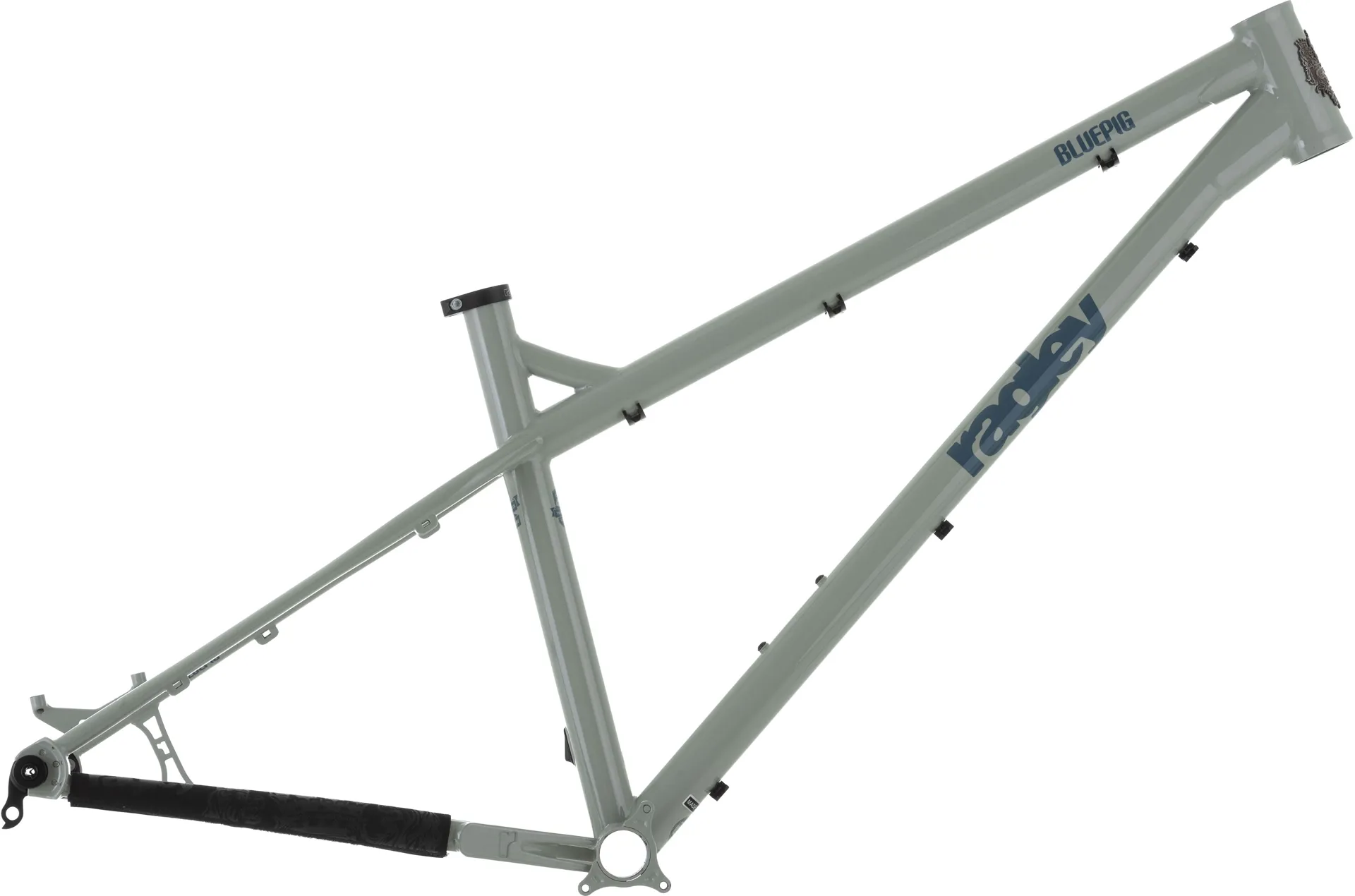

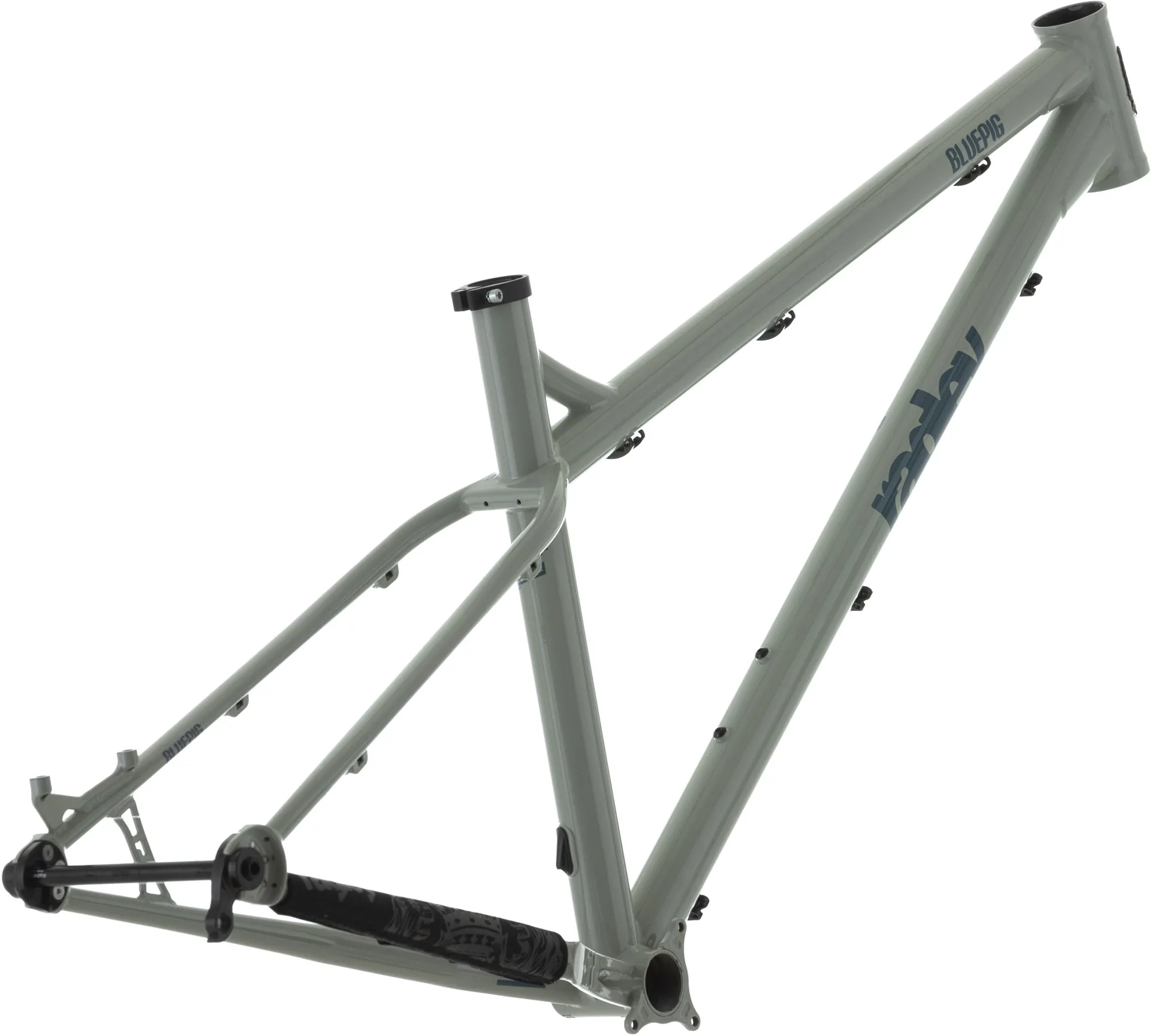

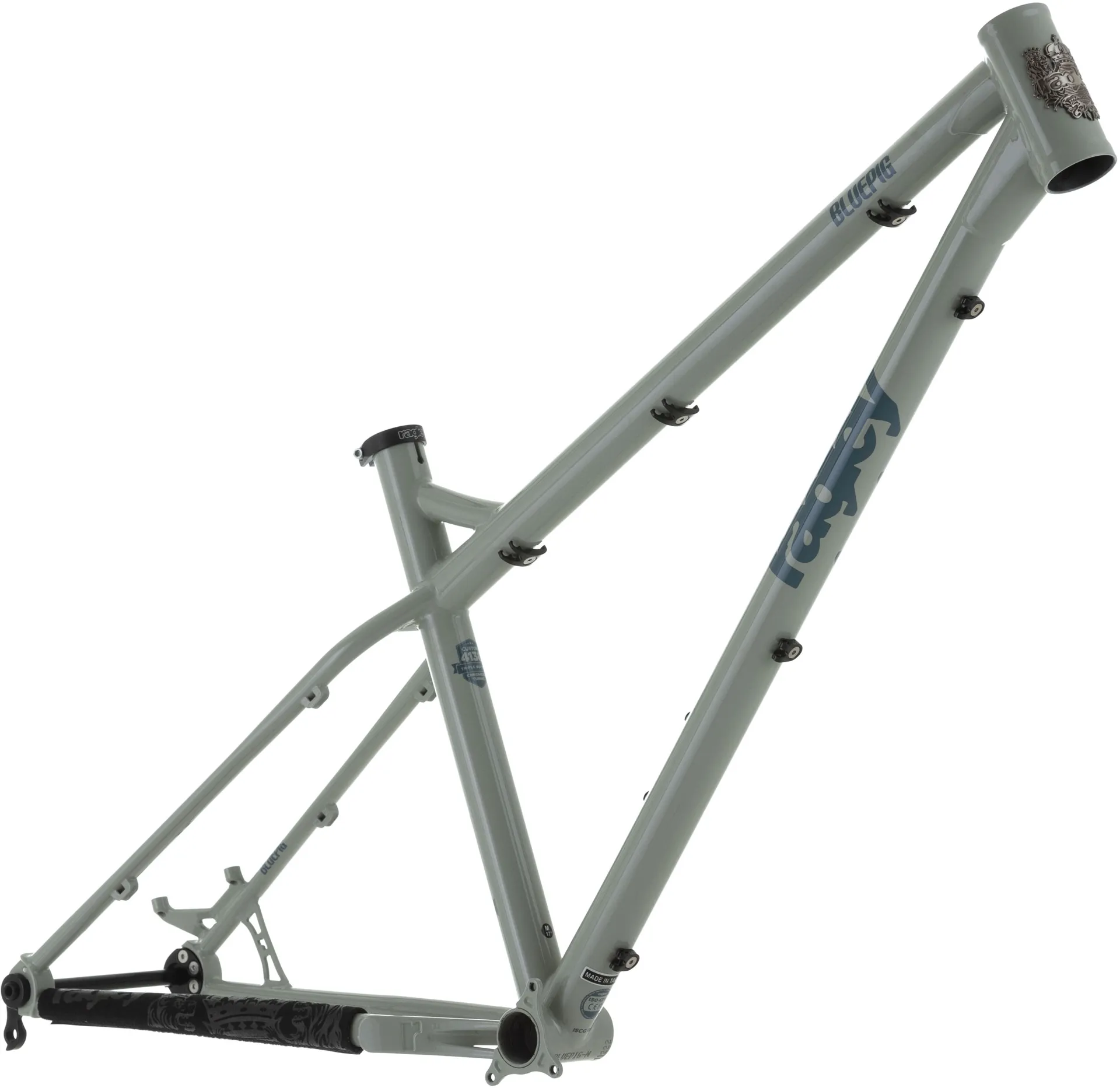

Ragley Blue Pig Hardtail Mountain Bike Frame - Blueish Grey

Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

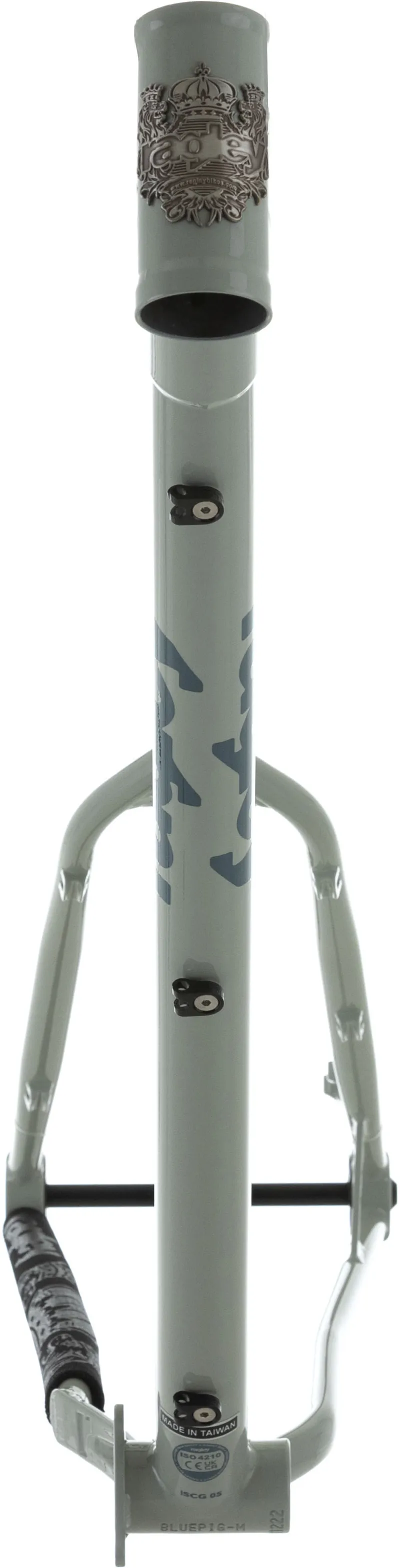

Ragley Blue Pig Hardtail Mountain Bike Frame - Blueish Grey

Season:2023

Brand:Ragley

Code:205354GRY

If you have heard of Ragley, you already know the Blue Pig name. From the early days of the ‘hardcore hardtail’ it has pushed the geometry envelope and been loved by anyone who rides for all-out grin-inducing fun.

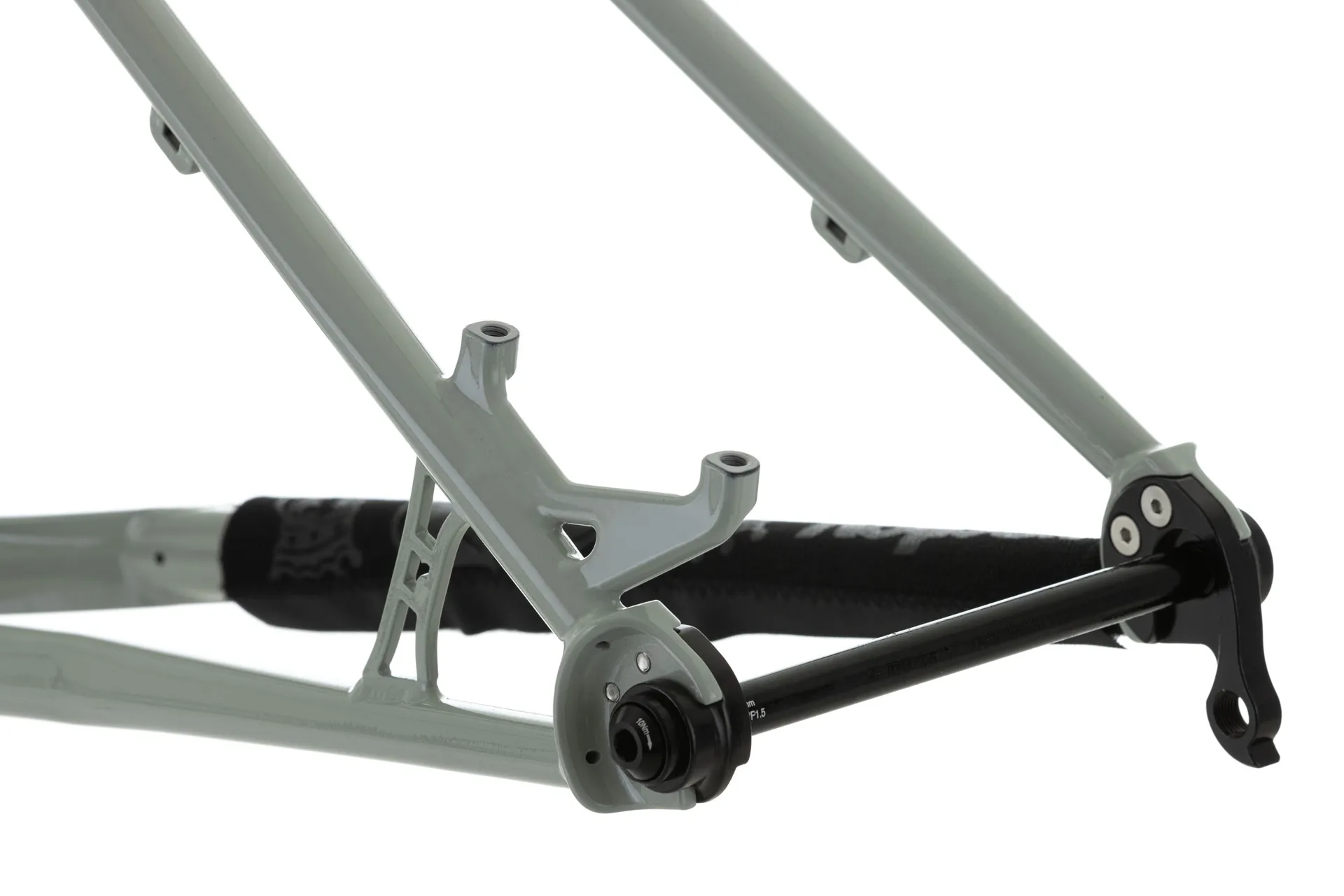

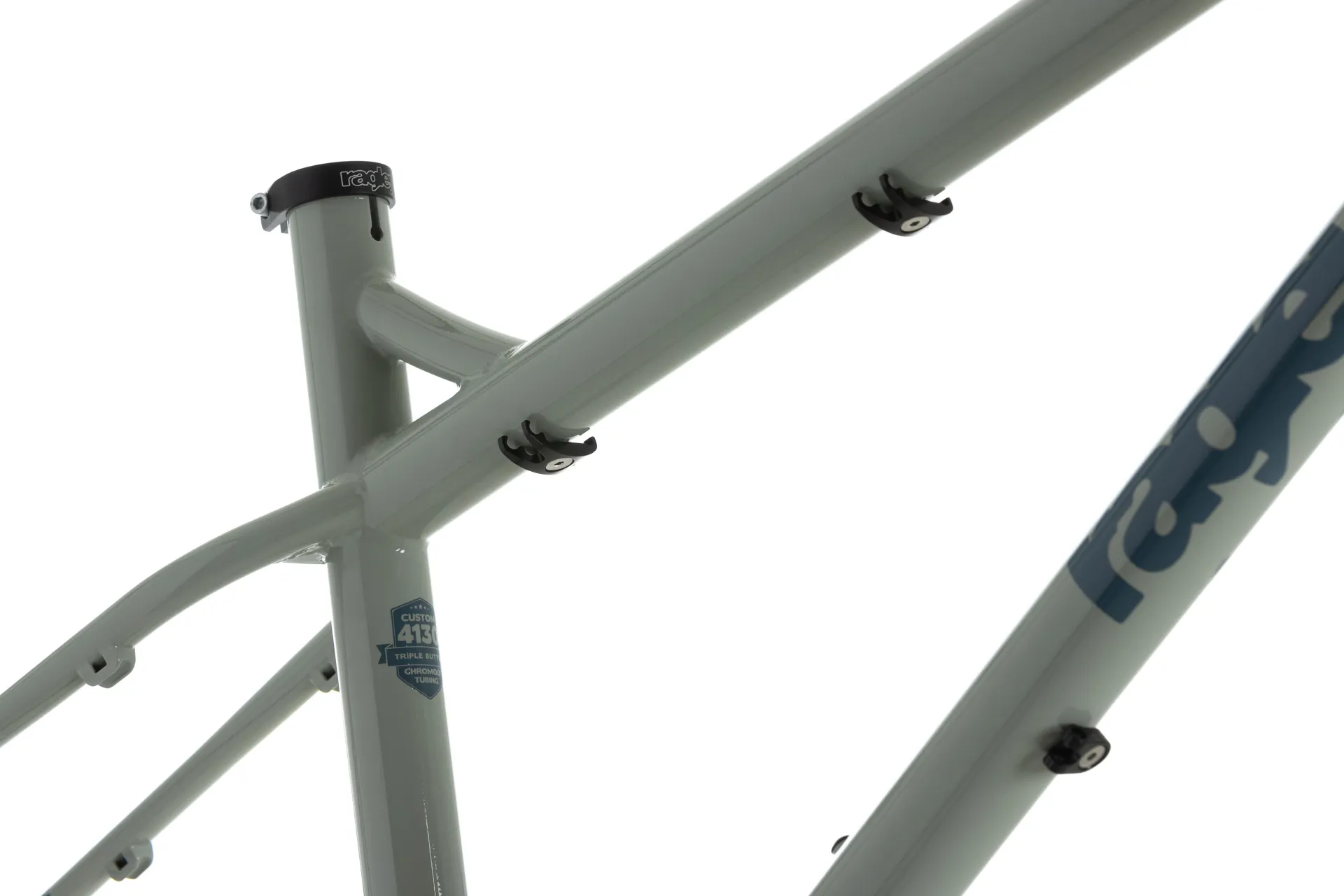

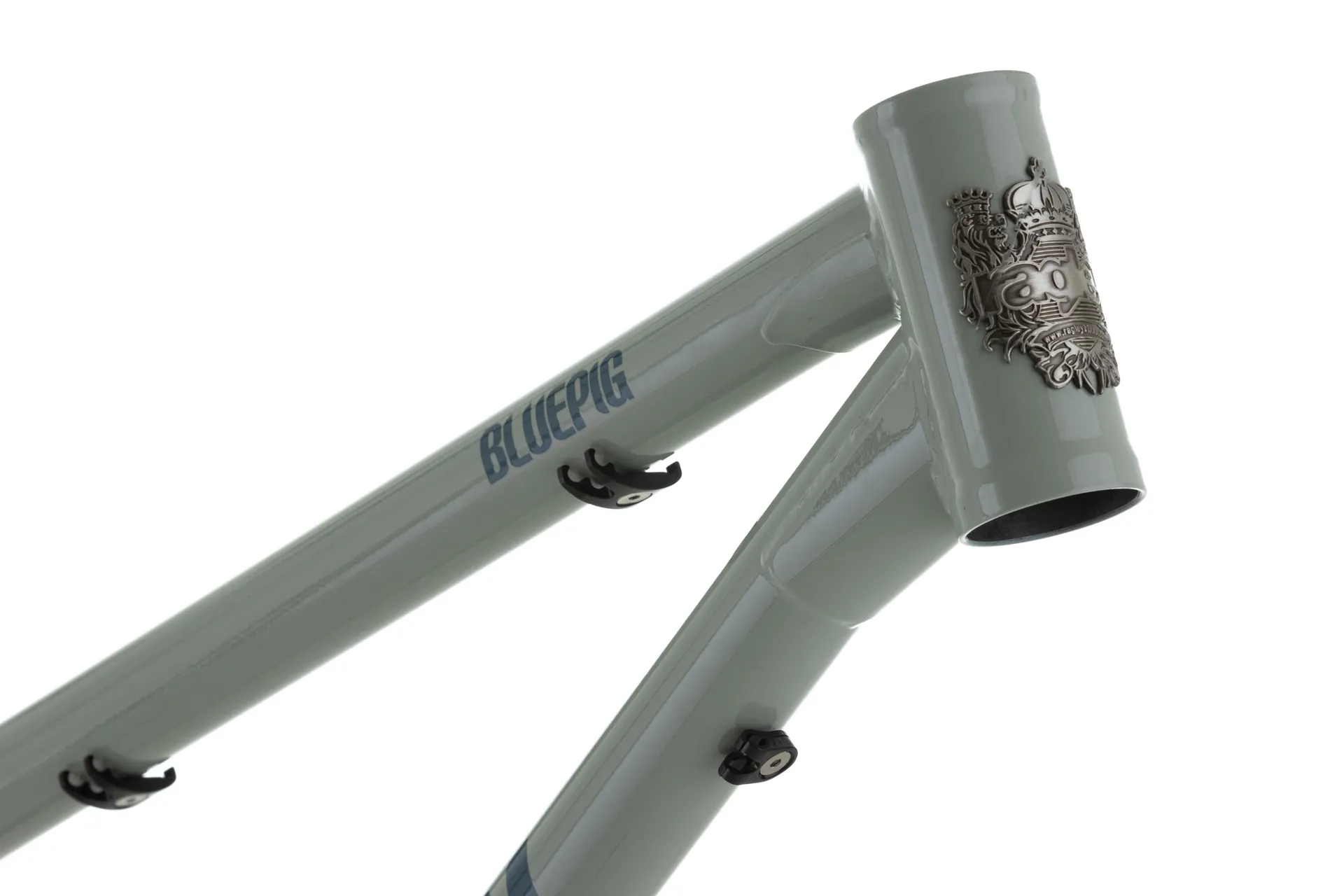

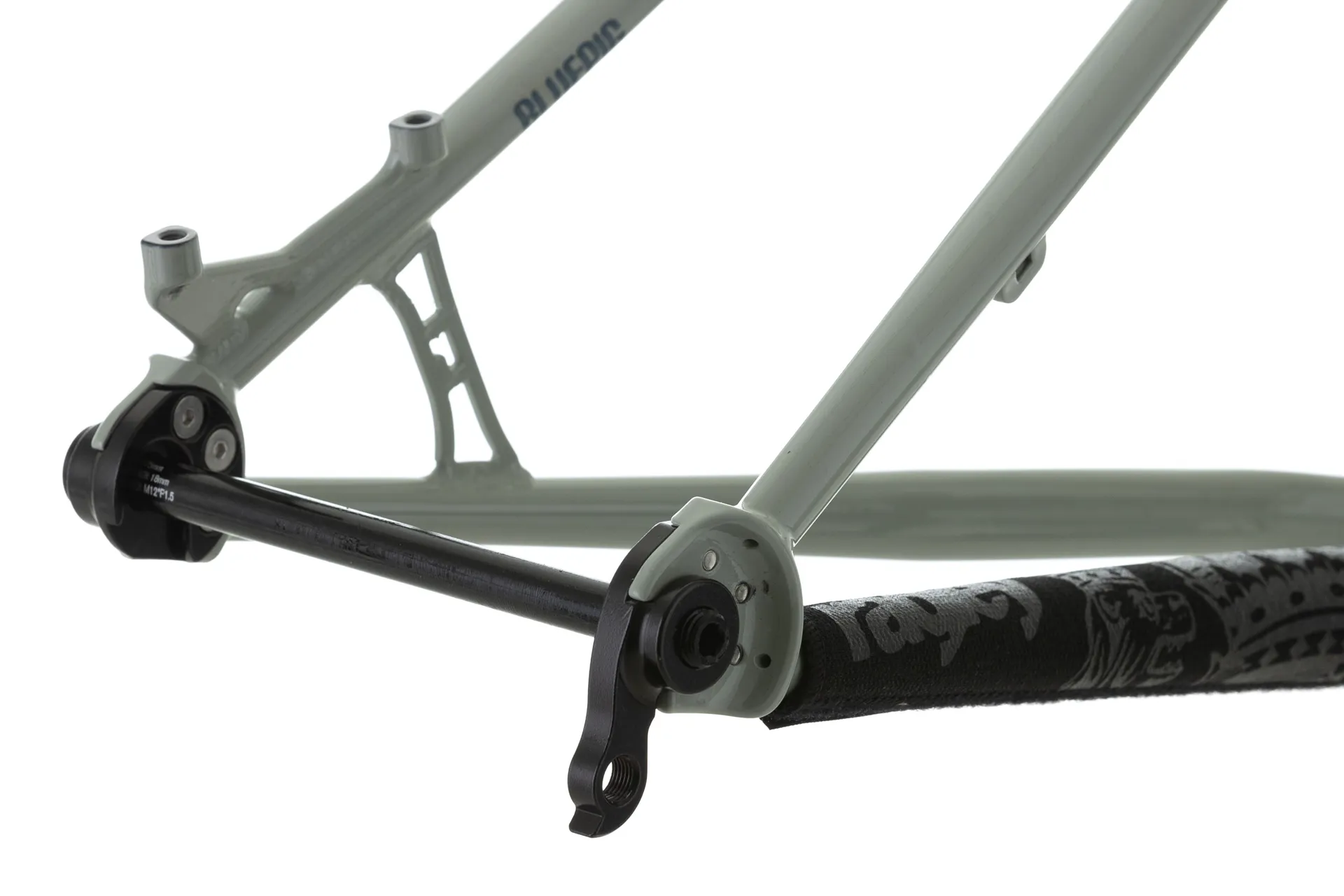

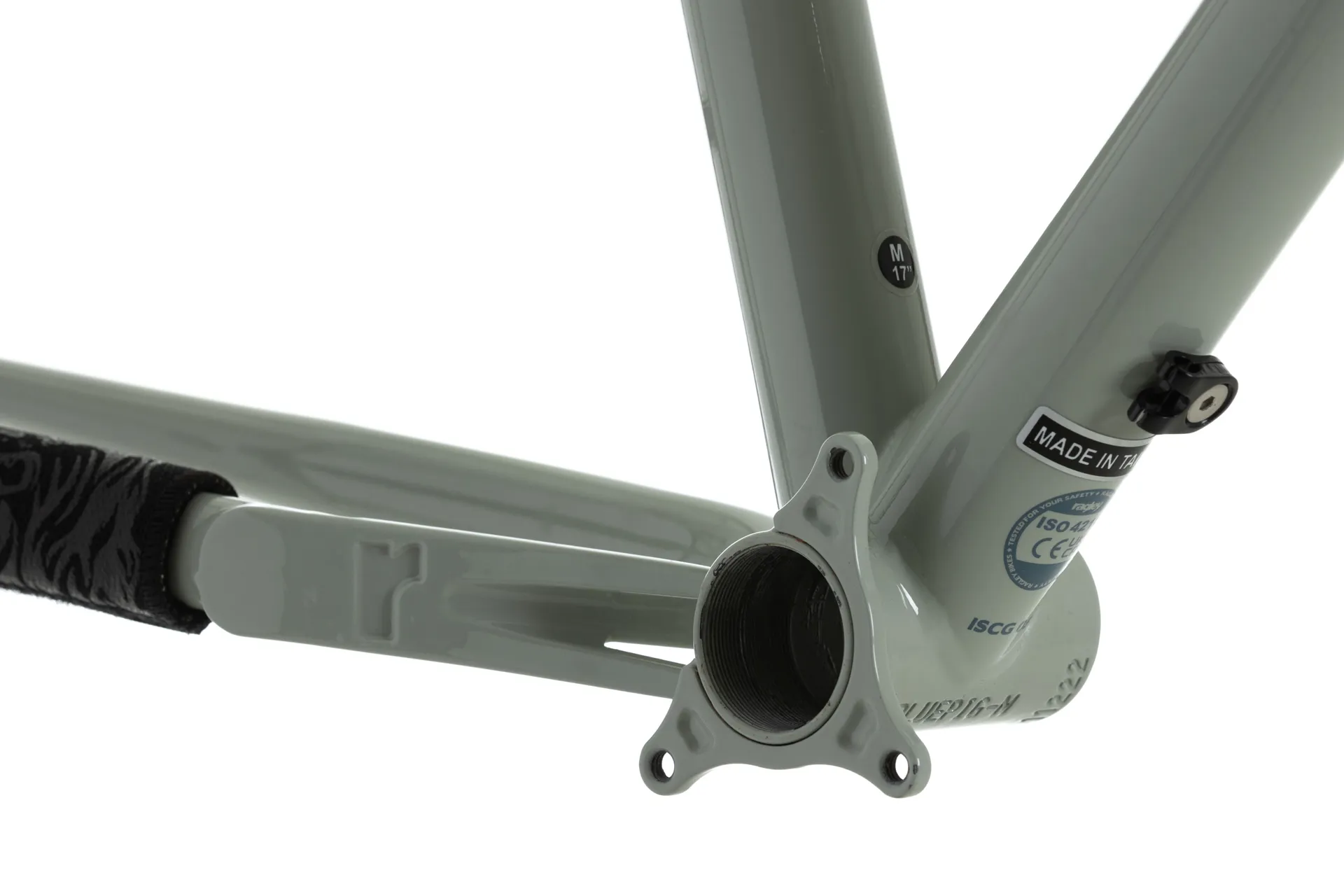

The current Blue Pig keeps the flame burning strong: Custom triple butted 4130 Chromoly tubing, ISCG 05 tabs, a 44mm head tube, internal dropper routing and a 148x12mm boost rear end. But it’s the geometry that defines it: the 63.75 degree head angle making its rowdy intentions abundantly clear.

Comfortable enough to ride all-day, tough enough for the bike park and flighty enough to speederbike through the local woodland loam. The Blue Pig is built to take abuse and inspire confidence when things get gnarly, but it’s not been pillaging the trough; it’s light to ride and quite happy putting in the miles to get to the good stuff.

If you don’t think a hardtail is capable, you’ve been riding the wrong bike…

Sizing Information
Frame SizeSmallMediumLargeX-Large
Seattube Length380mm420mm460mm500mm
Effective Top Tube Length596mm619mm641mm665mm
Reach420mm440mm460mm480mm
Stack614mm6623mm632mm641mm
Standover Height746mm750mm778mm806mm
Chainstay Length425mm425mm425mm425mm
Headtube Length100mm110mm120mm130mm
Headtube Angle63.75°63.75°63.75°63.75°
Seattube Angle74°74°74°74°
Bottom Bracket Drop-45mm-45mm-45mm-45mm
Wheelbase1170mm1194mm1219mm1243mm
Max. Tyre Size27.5" x 2.4"27.5" x 2.4"27.5" x 2.4"27.5" x 2.4"
Seatpost Diameter31.6mm31.6mm31.6mm31.6mm
Bottom Bracket Size73mm BSA73mm BSA73mm BSA73mm BSA
Rear Axle12mm x 148mm Bolt Thru12mm x 148mm Bolt Thru12mm x 148mm Bolt Thru12mm x 148mm Bolt Thru
Recommended Fork Travel150mm150mm150mm150mm
Chain GuideISCG 05ISCG 05ISCG 05ISCG 05
Based On Axle To Crown542mm (150mm Fork)542mm (150mm Fork)542mm (150mm Fork)542mm (150mm Fork)
Chainline52mm52mm52mm52mm
Max Rotor Size180mm180mm180mm180mm
Fork Offset42mm42mm42mm42mm
External Lower Headset Cup Height13mm13mm13mm13mm
Headset44mm44mm44mm44mm
